In our hands-on experience across hundreds of 14th gen storage-dense deployments, the R740xd 12-Bay 3.5" is the configuration we reach for most often in the family. This is the R740xd at its most archetypal: twelve hot-swap 3.5" front bays for bulk NL-SAS capacity, optional mid-bay and rear flex bay expansion to 18 LFF total in a single 2U chassis, and the same Intel Purley dual-socket compute platform as the R740 2U companion. For the IT director sizing a backup target, a vSAN OSA capacity tier, a Ceph OSD node, or a general-purpose storage server in 2026, the R740xd 12-Bay 3.5" is our highest-velocity storage-dense SKU.

This page is the primary platform reference for the R740xd family on our catalog. The R740xd ships in five front-bay configurations that share the same processor, memory, RAID, networking, and management platforms: 12-Bay 3.5" (this page), 12-Bay 3.5" + 2-Bay 3.5" RFB, 24-Bay 2.5" SAS/SATA, 24-Bay 2.5" + 4-Bay 2.5" RFB, and the 24-Bay 2.5" NVMe companion. The variant-specific framing for each lives on its own page; this page carries the full Purley platform vocabulary that the companions link back to.

To configure a build, call 1-800-778-1545 for our account team. Every R740xd we ship runs through a 12+ hour burn-in across every memory channel, every PCIe slot, and every drive bay including mid-bay and rear-bay positions if equipped; for LFF deployments specifically, the burn-in includes a full surface scan and SMART validation on every drive bay before shipment. Every unit ships with a 180-day standard warranty and 1-Year, 2-Year, and 3-Year Premium options available at quote time. Volume pricing applies at 5 units and above; tell us your workload and quantity and we will steer you to the right R740xd variant or to an adjacent platform if the data supports it.

Where the R740xd 12-Bay 3.5" Fits in the Family

The R740xd is the storage-focused 2U companion to the R740. Same compute platform, same management firmware, same networking. The R740 caps at 8 LFF or 16 SFF front bays with no mid-bay or rear-bay options. The R740xd exists specifically because that ceiling is too low for storage-dense workloads. If your workload needs more than 8 LFF or 16 SFF, or needs mid-bay or rear-bay expansion, you need the R740xd. If your workload is compute-balanced and 8 to 16 bays of front storage is sufficient, the R740 16-Bay 2.5" is the cleaner spec at lower chassis cost.

Within the R740xd family, the 12-Bay 3.5" is the default. We pick it when the workload is capacity-driven rather than IOPS-driven: backup targets, capacity-tier SDS nodes, file servers, media archives, cold storage. We pick a 24-Bay 2.5" variant when the workload is performance-driven and SSDs are the right drive class. We pick a +RFB variant when the additional rear bays are worth the reduced PCIe slot count. We pick the 24-Bay 2.5" NVMe companion when the workload specifically requires native NVMe across all front bays. The full variant map lives in Where to Look Instead below.

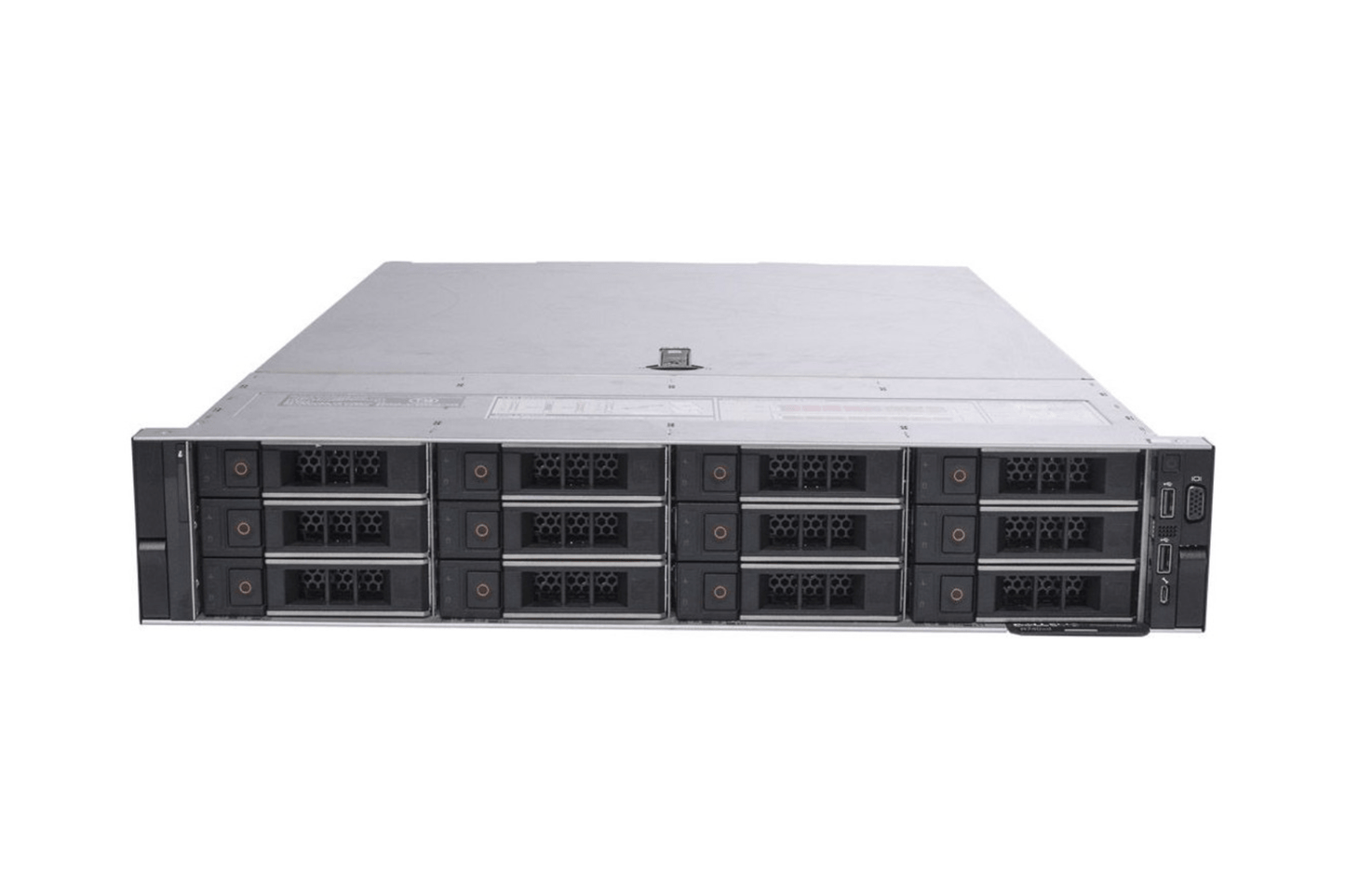

Storage - 12x 3.5" LFF Front Bays

Twelve hot-swap 3.5" SAS/SATA front bays on a direct-attach LFF backplane. This is the R740xd's bulk-capacity proposition: up to 12 x 20 TB = 240 TB raw on the front bays alone, before any mid-bay or rear-bay expansion. The backplane is SAS/SATA only on the LFF front bays; front NVMe is not supported on this chassis. If front NVMe is the requirement, the 24-Bay 2.5" NVMe companion is the right page.

Mid-bay expansion (R740xd-specific): Optional 4x 3.5" or 4x 2.5" mid-drive tray adds four additional bays inside the chassis, bringing front+mid to 16 LFF total (or 12 LFF + 4 SFF for hybrid configurations). The mid-bay cage is accessed by removing the top cover; drives are hot-swap once installed. The 4x 2.5" mid-bay variant supports NVMe in the mid position, which is one of the few ways to add NVMe to the LFF chassis. Cabling and PSU power budget must support the additional bays at order time.

Rear flex bay (RFB) option: The 12-Bay 3.5" can be configured with a 2x 3.5" rear flex bay, bringing front+rear to 14 LFF, or 18 LFF total with both mid-bay and rear-bay populated. The architectural tradeoff is reduced PCIe slot count because the rear riser is consumed by the rear-bay assembly. The +RFB configuration is sold as a separate SKU; see R740xd 12-Bay 3.5" + 2-Bay LFF RFB if rear bays are in your spec.

Drive options we quote:

• NL-SAS 7.2K: 12 TB, 14 TB, 16 TB, 18 TB, 20 TB. The volume capacity sweet spot on the refurbished market in 2026 is 16 TB. RAID 6 mandatory above four drives.
• Enterprise SATA HDD: 8 TB, 12 TB. Acceptable for backup targets and cold archive. Lower MTBF than NL-SAS; NL-SAS is the correct spec for 24/7 production workloads.
• 3.5" SAS SSD: Rare on the secondary market and expensive per TB. If you need LFF flash, the volume play is 2.5" SSDs in a 3.5"-to-2.5" caddy adapter, but the 24-Bay 2.5" companion variants are usually cleaner for flash-heavy deployments.

RAID 5 is unsafe on large-capacity LFF. RAID 6 is the floor on any NL-SAS array above four drives. The unrecoverable-read-error rate on multi-TB drives makes a second failure during rebuild statistically likely; a 16 TB NL-SAS rebuild on a degraded RAID 6 takes 24 to 36 hours under load. We will not configure RAID 5 on 12 TB or larger NL-SAS without a documented warning to the customer; our default is RAID 6 or RAID 60 on spinning disk above 4 TB per drive. This is not a marketing preference, it is the failure-mode arithmetic of large-capacity disks.

Boot: BOSS-S1 (Boot Optimized Storage Solution, dual mirrored M.2 SATA SSDs on a dedicated PCIe card, hardware RAID 1, cold-swap). Standard 14th gen boot device. We add it to every R740xd BOM by default. Do not boot from the front bays; reserve those for workload storage. Booting from the BOSS keeps the OS isolated from the data-plane RAID controller and frees all twelve front bays for the workload.

Storage Controllers

The full 14th gen PERC family is available on the R740xd via the Mini-PERC slot. Picking the right controller is the single decision that most affects steady-state write performance on this chassis, and the choice is workload-driven, not budget-driven by default.

PERC H740P (8 GB NV cache, battery-backed): Our production storage default. The 8 GB non-volatile cache and battery backing survive a power event without UPS dependency. For the R740xd's storage-dense workloads (large sequential writes on backup targets, parity writes on RAID 6, mixed I/O on file servers), the H740P is the right call. This is what we quote unless the workload specifically calls for something else.

PERC H730P (2 GB cache, battery-backed): Solid general-purpose choice for mixed or read-heavy workloads where 8 GB of cache is over-spec. Lower price point than the H740P, same drop-in form factor. For backup-target workloads where most writes are sequential and the controller cache is rarely the bottleneck, the H730P is often acceptable and we will say so honestly.

PERC H730 (1 GB cache, battery-backed): 13th-gen carryover via Mini-PERC slot compatibility. Viable on the R740xd but generally a downgrade vs the H730P or H740P on Cascade Lake workloads. We see this controller frequently on the secondary market because 13th-gen-to-14th-gen field upgrades carried it forward rather than replacing it; refurbished units sometimes ship with the H730 already installed from prior deployments. Quote when budget is the hard constraint and write performance is not load-bearing; quote H730P or H740P otherwise. The H730 is not a primary recommendation.

PERC H330 (no cache): Entry-tier hardware RAID for light workloads. Not appropriate for production storage-dense deployments on this chassis. Listed for completeness; we rarely quote it on the R740xd 12-Bay.

HBA330 (pass-through HBA): Required for software-defined storage stacks (vSAN OSA, Storage Spaces Direct, Ceph, ZFS). The HBA presents disks directly to the OS or hypervisor without any RAID abstraction. The R740xd 12-Bay 3.5" is the configuration we ship most often as a Ceph OSD node, and the HBA330 is the correct controller for that deployment.

PERC H840 (external): For external SAS enclosure connectivity (Dell MD1400 / MD1420 JBOD chassis). Useful when scale-out beyond 18 internal bays is needed but adding a second R740xd chassis is not the preferred path. Quote at order time if external storage is in the design.

S140 (software RAID via chipset): Dev/test and light workloads only. Not a production recommendation on storage-dense deployments.

Processors

The R740xd supports 1st Generation Intel Xeon Scalable (Skylake-SP, 2017 original launch) and 2nd Generation Intel Xeon Scalable (Cascade Lake-SP, 2019 refresh) in the same LGA 3647 socket. Drop-in compatible, no BIOS forklift if firmware is current. This is the V1 / V2 socket compatibility story that makes 14th gen Dell hardware resilient on the secondary market: a chassis bought as V1 in 2018 takes a V2 processor swap in 2026 without replacement.

Our recommendations for most R740xd 12-Bay 3.5" deployments:

• Gold 6230 (20 cores, 2.1 GHz, 125W TDP): The sweet spot for storage-dense workloads. Twenty cores per socket gives you forty in a dual-socket build, more than adequate for backup targets, file servers, and capacity-tier SDS nodes. 125W TDP fits the standard heatsink envelope cleanly.
• Silver 4214 (12 cores, 2.2 GHz, 85W TDP): For backup-target deployments where compute is genuinely secondary to storage capacity. Twenty-four cores total in a dual-socket build is sufficient for Veeam proxy or Commvault MediaAgent duty on a capacity-target. The 85W TDP keeps thermals comfortable in storage-dense configurations.
• Gold 6248 (20 cores, 2.5 GHz, 150W TDP): When the storage server doubles as application tier. Higher clock speed than the 6230, same core count. Note the 150W TDP boundary discussed below.

Heatsink mismatch above 150W is the trap. Any processor above 150W TDP requires the high-performance heatsink. The standard heatsink will thermally throttle under sustained load. The mismatch is one of the most common configuration errors we see on used R740xd units sold by less-careful sellers: a 6248 or Platinum-class CPU dropped into a chassis spec'd with the standard heatsink. Confirm the heatsink at quote time against the CPU TDP.

Single-socket disables half the platform. A single-socket R740xd build leaves the second CPU's 12 DIMM slots unreachable, half the PCIe lanes unavailable, and the second NDC slot (if present) inactive. Single-socket on a dual-socket platform is rarely the right call; if compute is light enough to justify a single socket, the 1U R640 is usually the better chassis. We will steer customers away from single-socket R740xd builds in almost every case.

Storage-dense thermal note: R740xd 12-Bay 3.5" configurations run hotter than equivalent R740 configurations because the additional drive bays draw power and generate heat inside the chassis. The thermal envelope is unchanged but the headroom is smaller. For Gold 6248 or above, confirm ambient temperature and rack airflow at quote time.

Memory

24 DDR4 DIMM slots: 12 per CPU, 6 channels per CPU, 2 DIMMs per channel. Supports RDIMM up to 128 GB per DIMM, LRDIMM up to 256 GB per DIMM. Maximum capacity 3 TB with 128 GB RDIMMs at full 2 DPC population, 6 TB with 256 GB LRDIMMs, up to 7.68 TB combined with Intel Optane PMem on Cascade Lake L-series CPUs (rare on storage-dense deployments).

Memory speed by population and generation:

• Skylake (V1): DDR4-2666 at 1 DPC, DDR4-2666 at 2 DPC (no penalty for full population)
• Cascade Lake (V2) Gold 6200 / 5222 SKUs: DDR4-2933 at 1 DPC, drops to DDR4-2666 at 2 DPC
• Cascade Lake (V2) other SKUs: DDR4-2666 at any population

RDIMM vs LRDIMM: For most R740xd 12-Bay 3.5" workloads, RDIMM is the right choice. 32 GB and 64 GB RDIMMs are abundant on the secondary market and price-efficient. LRDIMM (load-reduced) is only the right call when you specifically need 128 GB or 256 GB per DIMM to hit 1.5 TB or higher total capacity, which is rare on storage-dense workloads where the application is typically bounded by drive throughput rather than memory capacity.

NVDIMM-N: The R740xd supports up to 12 NVDIMM-N modules (16 GB each, 192 GB total) for write-ahead logging and other low-latency persistence applications. Important chassis-specific constraint: if the NVDIMM-N battery is installed on the GPU shroud, full-length GPUs are not supported on riser 2, and only the 3.5" mid-drive tray can be installed (or no mid-drive tray). NVDIMM-N + 3.5" mid-bay LFF storage is the supported combination; NVDIMM-N + 2.5" mid-bay is not. Confirm at quote time if both NVDIMM-N and mid-bay are in your spec.

NVMe bifurcation BIOS setting: Not directly a memory topic, but worth flagging here because it's the other common platform-config trap on R740xd: any PCIe-attached NVMe carrier requires bifurcation enabled in BIOS before the drives will enumerate. Default BIOS does not enable bifurcation. We set this at burn-in for any R740xd shipped with PCIe NVMe; if you're commissioning a unit from another source, check the BIOS first.

Workload sizing guidance: SDS nodes (vSAN OSA, Ceph OSDs) benefit significantly from memory bandwidth and capacity; spec generously. Backup targets benefit modestly; 96 to 192 GB is usually sufficient. File servers benefit least; 64 to 128 GB is honest for most NL-SAS file workloads. Spec to the workload, not to the chassis ceiling: a 12-drive backup target with 128 GB is honest; the same target with 768 GB is over-spent and we will tell you so.

Networking and PCIe Expansion

The R740xd uses Dell's Network Daughter Card (NDC) mezzanine standard, the equivalent of HPE's FlexibleLOM. The NDC slot is dedicated and does not consume a PCIe slot, which is one of the small architectural advantages of the 14th gen Dell platform over comparable HPE Gen10 designs. NDC options are factory-installed or field-swappable.

NDC port options:

• 4x 1 GbE: The base option. Acceptable for management-network-only or for very light workloads. Not our recommendation for any storage-dense deployment because the network becomes the bottleneck on backup or SDS traffic.
• 2x 10 GbE + 2x 1 GbE: The pragmatic mixed option. 10 GbE for the data plane, 1 GbE for management. Acceptable when 10 GbE is sufficient bandwidth.
• 4x 10 GbE (Intel X710 or Broadcom 57414): Our baseline recommendation for backup targets where multiple Veeam proxies or Commvault MediaAgents write to the same chassis simultaneously. The four ports give you bonding flexibility and headroom.
• 2x 25 GbE (Mellanox ConnectX-4 Lx): The right call for SDS deployments specifically. vSAN OSA cache-tier, Ceph OSD east-west replication, and Storage Spaces Direct all benefit from 25 GbE over 10 GbE. 25 GbE switching is mature and price-competitive in 2026.

100 GbE: Not available as an NDC option on the R740xd. If 100 GbE is the requirement, it goes in a PCIe slot (Mellanox ConnectX-5 or ConnectX-6 dual-port 100 GbE). ConnectX-6 needs PCIe Gen4 host bandwidth to hit line rate, which the R740xd cannot provide (Gen3 ceiling); ConnectX-5 is the right card for this platform.

PCIe expansion: Up to 8 PCIe 3.0 slots depending on riser configuration (riser 1A, 1B, 2A, 2B options). Base 12-Bay 3.5" with no mid-bay or rear-bay gives the full slot count. Mid-bay populated drops to roughly 6 effective slots because riser 3 is consumed by mid-bay cabling. Rear-bay populated (the +RFB variant) consumes the rear riser entirely. The bays-vs-PCIe tradeoff is the central architectural decision on R740xd configuration; confirm your PCIe card list at quote time before locking the chassis. Riser config is order-time locked because field reconfiguration requires chassis disassembly.

GPU Support

The honest answer on the 12-Bay 3.5" specifically: this chassis does not support GPUs as a practical matter. The mid-bay and rear-bay options that justify choosing the R740xd over the R740 in the first place consume the PCIe riser slots that would otherwise host GPU cards. A 12-Bay 3.5" base configuration with no mid-bay and no rear-bay can technically host a low-profile GPU in a riser slot, but at that point you have given up the bay expansion that is the R740xd's reason to exist, and the R740 is the cleaner spec for that workload.

If you need GPU on an R740xd-class platform, the 24-Bay 2.5" SAS/SATA companion is the right call: up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs, or FPGA configurations. The 24-Bay 2.5" NVMe companion has tighter constraints (PCIe lane budget is consumed by NVMe drives), typically capping at 2 GPUs maximum.

If you need GPU plus bulk LFF storage in the same chassis, the answer is the T640 tower (4.5U, more permissive GPU envelope) or a dedicated GPU server with external SAS storage via PERC H840. The 2U LFF + GPU combination is genuinely constrained on this platform generation and we will say so honestly.

Management - iDRAC9 Generation

iDRAC9 Enterprise is the production spec. Full remote KVM with HTML5 console, virtual media for ISO mounting, group management via OpenManage Enterprise, Lifecycle Controller for firmware updates without OS involvement, and Quick Sync 2 wireless management for at-the-rack diagnostics. The Express tier is insufficient for unattended deployment because it lacks the virtual console; we spec Enterprise on every R740xd BOM by default.

Silicon Root of Trust via the Intel platform. TPM 2.0 module supported and recommended for any compliance-bound deployment. Cryptographically signed firmware verification at boot. The R740xd meets HIPAA, PCI DSS, CMMC, and federal civilian compliance requirements in 2026.

The R740xd supports Secure Boot, BIOS recovery from a known-good image, signed firmware updates, and System Erase (full media wipe including drives and SSDs). These are not optional features for FedRAMP, DoD, or financial services environments; the R740xd meets the bar without third-party add-ons.

For volume deployments, OpenManage Enterprise gives you fleet-wide firmware management, configuration templates, and compliance reporting. The 14th gen iDRAC9 plus OpenManage stack is mature and well-documented; this is one of the operational advantages of the 14th gen platform over earlier generations.

Power and Cooling

Hot-swap redundant Dell Flex Slot PSUs in 495W, 750W (Platinum and Titanium), 1100W (Platinum), 1600W (Platinum), 2000W, and 2400W tiers. R740xd 12-Bay 3.5" configurations draw more than equivalent R740 configurations because of the additional spinning drives and (potentially) mid-bay or rear-bay populations.

Spin-up current at scale on multi-unit LFF deployments is the under-spec'd PSU trap. Twelve LFF spindles spinning up simultaneously can exceed steady-state draw by 30 to 40 percent for 30 to 60 seconds on a cold boot. The 750W Platinum option is borderline for a fully populated 12-drive cold start; we recommend 1100W Platinum as the floor for any fully populated 12-Bay 3.5" deployment. For mid-bay populated configurations, 1600W Platinum is the realistic minimum. At rack-level, multiple R740xd chassis booting simultaneously (which happens after a UPS event or a planned maintenance window) is one of the most common causes of breaker trips in storage-dense deployments; coordinate boot sequencing if you have more than three or four chassis on the same PDU.

Cooling is provided by the standard 14th gen 2U fan kit, hot-swap fans, N+1 redundancy. Ambient temperature ceiling for storage-dense configurations is 35°C with standard fans; high-ambient configurations are available for environments above 35°C but we rarely encounter them on customer specs.

Physical Specs & Platform Notes

• Form factor: 2U rack. Approximate dimensions 86.8 mm x 482.0 mm x 715.5 mm (H x W x D) with bezel. Identical chassis envelope to the R740. Depth fits standard 1000 mm cabinet rails with cable management arm; tighter cabinets may require service offset planning.
• PCIe expansion: Up to 8 PCIe Gen3 slots in the base 12-Bay 3.5" configuration, dropping to roughly 6 when mid-bay is populated and further when the rear flex bay variant is chosen. Both full-height and low-profile slots are available depending on riser config (1A / 1B / 2A / 2B); riser choice is order-time locked because field reconfiguration requires chassis disassembly.
• Parts availability: Excellent through 2030 minimum. The R740xd 12-Bay 3.5" is one of the highest-volume 14th gen storage SKUs on the secondary market and Dell ProSupport channels remain active in 2026. Common consumables (fans, PSUs, drive caddies, backplane assemblies) are abundant; third-party maintenance for 14th gen Dell is mature and competitive.
• Accessories we recommend: Dell ReadyRails II sliding rail kit for the R740xd (confirm part number at quote time against your chassis revision and cabinet depth), cable management arm for the 2U envelope, and the Dell LCD bezel for the R740xd 2U chassis (confirm part number at quote time against your chassis revision; the LCD bezel is worth the upgrade on production deployments for at-the-rack diagnostics without firing up a console).
• Platform notes: CPU hot-plug is not supported (CPU swap is a powered-down operation). NVMe bifurcation must be set in BIOS before installing PCIe-attached NVMe carriers; the default BIOS setting does not enable bifurcation. NVDIMM-N has the GPU-shroud and mid-bay compatibility constraint covered in the Memory section. Riser configuration is locked at order time.

Our Assessment

Where it excels: Bulk LFF capacity at the best cost-per-TB available on a current-supported Dell platform. The R740xd 12-Bay 3.5" is our reference configuration for Veeam and Commvault backup targets (12x 16 TB NL-SAS in RAID 60 is the textbook spec we ship most often), vSAN OSA capacity-tier nodes, Ceph OSD nodes, large file servers, media archive and cold storage, and any deployment where 100+ TB of local raw capacity is needed in a single 2U chassis. Mid-bay expansion to 16 LFF or rear-bay expansion to 14 LFF makes it the densest mainstream LFF chassis in the 14th gen Dell lineup.

Where to look instead: If the workload is random-IOPS-sensitive, NL-SAS 7.2K is the wrong drive class and the 24-Bay 2.5" SSD companion is the right answer. If the workload specifically requires native NVMe across all front bays (vSAN ESA, NVMe-oF targets, ultra-low-latency databases), the 24-Bay 2.5" NVMe companion is the dedicated NVMe specialist. If you need GPU support, the 24-Bay 2.5" SAS/SATA variant is the only R740xd that supports meaningful GPU configurations; the LFF chassis cannot. If you need maximum SFF density with rear bays, the 24-Bay 2.5" + 4-Bay RFB is the 28-SFF maximum-density configuration. If your workload will outlive 2030 or specifically needs current-gen Dell support, the 15th gen R750xd or 16th gen R760xd2 is the right step up and we will tell you so honestly.

Bottom line: The R740xd 12-Bay 3.5" is the default 2U LFF recommendation in our catalog for 2026. The typical buyer is an IT director or storage architect refreshing a backup target, building out a capacity-tier SDS cluster, or consolidating file servers, with a 4 to 6 year deployment horizon and a budget that favors significant TCO savings vs current-generation hardware. The platform is mature, parts are abundant, the failure-mode profile is well-characterized at this generation age, and the supply on the secondary market is the deepest of any 14th gen storage chassis. For that customer profile and that deployment context, this is the configuration we reach for first.

Where the R740xd Fits in 2026

The R740xd is 14th gen Dell PowerEdge (Skylake-SP launch 2017, Cascade Lake refresh 2019). In 2026 it is mature, well-supported on the secondary market, and our highest-velocity storage-dense 14th gen SKU. Dell ProSupport on the R740xd is approaching end-of-extended-support; third-party maintenance is the standard production support path in 2026, and the third-party support market for 14th gen Dell is competitive and well-staffed.

vs. 13th gen R730xd (Broadwell, 2014): Skip the R730xd unless you have a hard cost ceiling and a short deployment horizon. The R740xd brings Skylake-SP or Cascade Lake (vs Broadwell), DDR4 (vs DDR3), iDRAC9 with Silicon Root of Trust (R730xd is iDRAC8 with no Root of Trust), and a 4 to 6 year longer parts availability runway.

vs. 15th gen R750xd (Ice Lake, 2021): The R750xd adds PCIe Gen4 (doubled bandwidth, material for NVMe-heavy or 100 GbE deployments), DDR4-3200 memory, 32 DIMM slots, and 3rd Gen Xeon Scalable. If your workload is NVMe-heavy or memory-bandwidth-bound, R750xd is the upgrade path. For bulk LFF capacity at lowest cost, the R740xd is still competitive.

vs. 16th gen R760xd2 (Sapphire / Emerald Rapids, 2023-2024): The R760xd2 is the current production storage-dense 2U: DDR5-5600, PCIe Gen5, up to 64 cores per socket on Emerald, BOSS-N1 NVMe boot, and PERC H965i tri-mode NVMe RAID. For workloads in production past 2030 or specifically needing current-gen Dell support contracts, the R760xd2 is the right call. For volume bulk storage at a fraction of the cost, the R740xd 12-Bay 3.5" still wins.

vs. HPE counterpart: The cross-vendor analog is the HPE ProLiant DL380 Gen10 12 LFF chassis. Same 2U Purley dual-socket platform vocabulary, comparable management (iLO 5 in place of iDRAC9), comparable PSU and PCIe envelope. The Dell-side advantage in 2026 is depth of secondary-market supply on the storage-dense variant and the maturity of the OpenManage tooling for fleet management; the HPE-side advantage is iLO 5 if your fleet is HPE-standardized. The DL380 Gen10 family caps at 12 LFF front bays with no direct HPE equivalent to the R740xd's mid-bay or rear-bay expansion to 18 LFF, which is one of the practical reasons LFF-density buyers end up on the Dell side of the cross-vendor comparison.

Honest Limitations

Every platform has tradeoffs. Here is what we tell buyers upfront on the R740xd 12-Bay 3.5":

• No meaningful GPU support on the LFF chassis. The mid-bay and rear-bay options consume the PCIe riser slots that would host GPU cards. If you need GPU plus bulk LFF storage, this is not the right chassis.
• PCIe slot count drops when mid-bay or rear-bay is populated. Base 12-Bay 3.5" gives up to 8 PCIe slots. Mid-bay populated drops to roughly 6 effective slots. Rear-bay populated (the +RFB variant) drops further. Confirm your PCIe card list before locking the chassis configuration.
• NVDIMM-N has chassis compatibility constraints. NVDIMM-N battery on GPU shroud is incompatible with full-length GPUs on riser 2 and with the 2.5" mid-drive tray. NVDIMM-N + 3.5" mid-bay is supported; NVDIMM-N + 2.5" mid-bay is not.
• RAID 5 is unsafe on large-capacity LFF. 16 TB and 20 TB drive rebuilds on a degraded RAID 6 take 24 to 36 hours under load. RAID 5 on multi-TB NL-SAS is not configured by us; RAID 6 or RAID 60 only above 4 TB per drive.
• PCIe Gen3 ceiling. All slots and all backplane lanes are PCIe 3.0. NVMe-heavy workloads, 100 GbE adapters at line rate, and accelerators with PCIe Gen4 host requirements will be bottlenecked. The upgrade path is 15th gen (R750xd) for Gen4 or 16th gen (R760xd2) for Gen5.
• Memory speed drops at 2 DPC on V2. 2933 MT/s at 1 DPC, 2666 MT/s at 2 DPC on Cascade Lake. Full population is still the right call for SDS workloads where capacity beats marginal speed.
• High-TDP heatsink mandatory above 150W. Storage-dense chassis configurations also run thermally hotter; plan accordingly.
• Single-socket disables half the platform. Don't spec single-socket on this chassis without a deliberate reason.
• Bay configuration is order-time locked. You cannot field-upgrade a 12-Bay 3.5" R740xd to a 24-Bay 2.5" by adding a backplane; the front bay cage is part of the physical chassis. Pick the right front-bay variant at order time.
• Spin-up current at scale. Multi-unit LFF deployments need PDU and UPS sizing that accounts for simultaneous cold-boot spin-up surge, which can exceed steady-state by 30 to 40 percent for 30 to 60 seconds.

Workload Fit

Where to Look Instead

• R740xd 12-Bay 3.5" + 2-Bay LFF RFB: Same front bays as this page, plus 2 rear-mounted 3.5" bays. Choose when you need 14 LFF total in a single chassis and can accept the reduced PCIe slot count from the rear-riser consumption.
• R740xd 24-Bay 2.5": SFF density companion. Choose for SDS at scale with SSDs, performance-sensitive virtualization, or when GPU support is needed.
• R740xd 24-Bay 2.5" + 4-Bay RFB: Maximum-density SFF variant. 28 SFF total. Choose when you need maximum SFF in a single chassis and can accept reduced PCIe.
• R740xd 24-Bay 2.5" NVMe: All-NVMe specialist. Choose for NVMe-required workloads (vSAN ESA, NVMe-oF targets, ultra-low-latency databases). Different controller architecture (no hardware RAID on the data path); see the variant page.
• R740 16-Bay 2.5": The compute-balanced 2U companion. Choose when 8 to 16 front bays is sufficient and you do not need mid-bay or rear-bay expansion.
