Step 5: Storage Drives
Select up to 24 drives
(0/24 Slots Used)
Recommended Drives
Show New SAS SSDs 2.5"
Show New SATA SSDs 2.5"
Show New SAS HDDs 2.5"
Show Refurbished SAS SSDs 2.5"
Show Refurbished SAS HDDs 2.5"
Show New NVMe U.2 SSDs
Drive trays are included and matched to your chassis automatically
Step 6: Remote Access
Please select a remote access option.
Step 7: Power Supply2x included in build
Please select a power supply option.
Step 8: Network Cards
Please select a network card option.
Step 9: Operating System
Operating System
Please select an operating system.
Server Warranty

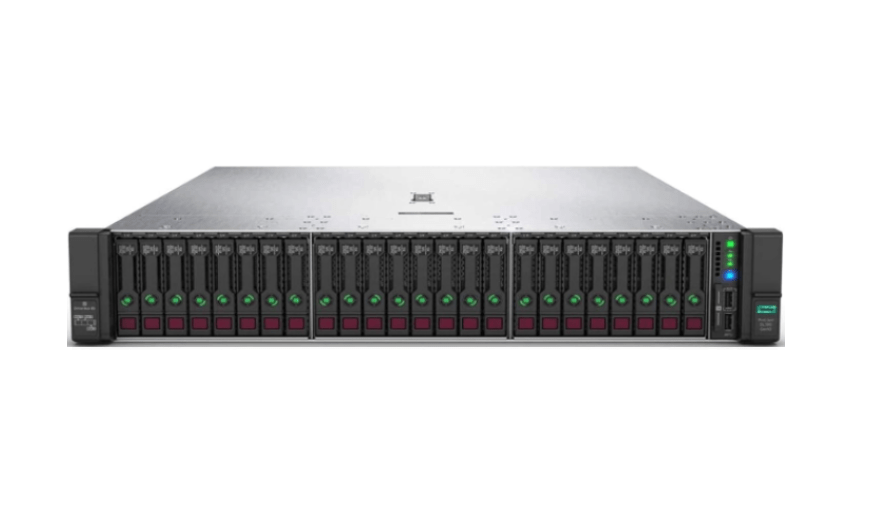

The DL380 Gen10+ 24-Bay 2.5" is the maximum SFF density configuration on the Gen10+ platform — twenty-four hot-swap bays with PCIe Gen4 NVMe backplane support, Ice Lake Xeon, 32 DIMM slots, and vSAN ESA compatibility. For HPE shops building the largest vSAN ESA clusters, high-density NVMe-oF storage targets, or Ceph deployments at maximum per-node drive count with the newest platform generation, this is the configuration.
Twenty-four 2.5" hot-swap bays with PCIe Gen4 NVMe backplane. At full NVMe population, Gen4 NVMe SSDs at 24 bays deliver aggregate sequential read throughput exceeding 100 GB/s — a scale of storage performance not achievable on Gen10 platforms. Common configurations:
vSAN ESA all-flash: 24 Gen4 NVMe drives in unified ESA storage pool. Maximum vSAN ESA capacity and IOPS per node in the DL380 Gen10+ family. ESA requires Smart Array E208i-a HBA mode for direct drive pass-through.
NVMe-oF storage targets: 24 Gen4 NVMe drives as a disaggregated storage target serving multiple compute hosts via NVMe over Fabrics. 100 GbE required to avoid network becoming the throughput ceiling.
Ceph NVMe OSD nodes: 24 Gen4 NVMe OSDs per node at maximum per-node drive density. HBA mode for direct drive access by Ceph processes.
All-SAS SSD or hybrid: SAS/SATA drives continue to work on Gen10+ backplanes for shops not requiring NVMe — same 24-bay flexibility as Gen10 but with Gen10+ compute advantages.
24-Bay vs. 16-Bay Gen10+: If 16 NVMe drives per node covers your vSAN ESA or storage design, the 16-Bay is the lower-cost choice. The 24-Bay earns its premium when maximum per-node drive count is a specific design requirement — typically for large vSAN clusters optimizing per-node storage cost/TB or NVMe-oF targets where aggregate per-node throughput is the design variable.
Our Assessment
The most capable SFF storage configuration in the HPE DL380 Gen10+ family. Justified when maximum Gen4 NVMe drive density per 2U node is the design target. For most Gen10+ deployments, the 8-Bay or 16-Bay covers the storage requirement at lower cost — the 24-Bay is for large-scale storage-primary deployments where every additional NVMe drive per node improves cluster economics.
Tell us your storage architecture (vSAN ESA, NVMe-oF, Ceph), drive type, Ice Lake CPU preference, memory target, and quantity. Volume pricing at 5 units and above.
Estimated TDP:
100W
HPE Proliant DL380 Gen10+ 24-Bay 2.5"
24-Bay 2.5"
Subtotal
$10,184.70
Power TDP
100W
Subtotal
$10,184.70
RAM FAQ
What Memory Types and Speeds Are Supported
This server supports both ECC Registered RDIMM and LRDIMM [DDR4 OR DDR5] memory. ECC registered memory includes a purpose-built chip that ensures parity between the memory modules and the memory controller within the processor(s). ECC functionality is built into most server memory, and helps in notifying the system if there is an error within the memory regarding data corruption on the module.
The maximum supported memory speed in any given server is dictated by the system's Processor(s). This [Server Model] can read memory at the following speeds:
( SELECT from: 2133MHz, 2400MHz, 2666MHz, 2933MHz, 3200MHz )
**See Memory Speed Reference Below
What Memory Types and Speeds Are Supported (TEST)
This server supports both ECC Registered RDIMM and LRDIMM [DDR4 OR DDR5] memory. ECC registered memory includes a purpose-built chip that ensures parity between the memory modules and the memory controller within the processor(s). ECC functionality is built into most server memory, and helps in notifying the system if there is an error within the memory regarding data corruption on the module.
The maximum supported memory speed in any given server is dictated by the system's Processor(s). This [Server Model] can read memory at the following speeds:
( SELECT from: 2133MHz, 2400MHz, 2666MHz, 2933MHz, 3200MHz )
**See Memory Speed Reference Below
Is An Enterprise License Right For Me?
Determining if an iDRAC Enterprise License is right for you depends on your IT management needs and infrastructure complexity. Here are key considerations:
When an iDRAC Enterprise License is a Good Fit:
- Advanced Remote Management: You need features like virtual media, automated firmware updates, or remote console access for managing servers efficiently.
- 24/7 Monitoring: You require constant, secure access to monitor and control servers, even when the operating system is down.
-Large or Distributed Infrastructure: You manage multiple servers across locations and need centralized, reliable remote access to reduce downtime.
- Time-Saving Operations: You value tools that simplify and automate maintenance tasks, minimizing the need for physical server visits.
- Enhanced Security: You need advanced features like two-factor authentication or secure erase capabilities for compliance.
- Cost of Downtime: The cost of server downtime outweighs the investment in advanced management tools.
When You May Not Need It:
- Small Scale Operations: If you manage only a few servers and can easily access them physically when needed.
- Basic Needs: If you only require essential monitoring and management features available in the iDRAC Express license.
Recommendation:
If uptime, remote management, and advanced capabilities are critical to your operations, the iDRAC Enterprise License is a worthwhile investment. For smaller environments with fewer demands, a standard iDRAC license may suffice.
Choosing The Right Power Supply
Choosing the right server power supply is crucial for optimizing performance, efficiency, and reliability. Here’s a guide to help you make the right decision:
1. Understand Your Power Requirements:
Server Configuration: Calculate the total power needs of all components, including CPUs, GPUs, RAM, storage, and networking cards.
Future Scalability: Account for potential upgrades to ensure the power supply can handle increased loads.
2. Efficiency Rating
Look for 80 PLUS Certification (Bronze, Silver, Gold, Platinum, or Titanium). Higher efficiency reduces energy costs and heat output.
3. Redundancy Options
Consider redundant power supplies for critical systems to ensure uninterrupted operation during a failure.
4. Form Factor Compatibility
Ensure the power supply fits the physical dimensions and connections required by your server chassis.
5. Power Capacity
Choose a power supply that provides 20-30% headroom above your calculated requirements for optimal efficiency and reliability.
6. Hot-Swap Capability
For enterprise environments, select hot-swappable units to minimize downtime during maintenance or replacements.
Key Tip:
Always consult the server’s technical documentation for recommended power supply specifications, and choose models certified for your hardware. Properly matching your power supply ensures stable operation and reduces long-term operational costs.
Save Your Design
Click the Add to Quote button at the bottom of your screen to save your design as a draft order for future reference and to check for discounts, lead time, and availability. Most servers ship within 1-3 days.
