The HPE ProLiant DL180 Gen9 LFF is HPE's value-tier 2U dual-socket Gen9 platform, the cost-optimized counterpart to the DL380 Gen9 mainstream tier. It is built around Intel Xeon E5-2600 v3 (Haswell-EP) or v4 (Broadwell-EP) processors on the Grantley platform with the C610 chipset, the same silicon family as the DL380 and DL360 Gen9. Two sockets, up to 22 cores per CPU on v4, 16 DDR4 DIMM slots (8 per CPU, half the DL380 Gen9's 24-slot count and the primary value-tier delta), a 1 TB memory ceiling, and LFF (3.5") drive bays in 8 LFF or 15 LFF configurations depending on chassis variant. Storage controllers are PCIe plug-in cards rather than the modular "ar" form factor, networking is embedded 4-port 1 GbE, and management is iLO 4. This is the HPE counterpart to the Dell PowerEdge R530 (2U dual-socket Grantley value-tier), positioned for budget-driven bulk-storage, branch, ROBO, and SMB workloads where the DL380 Gen9's mainstream feature set is more than the workload requires.

The DL180 Gen9 is a generation behind the Gen10 line (Skylake-SP and Cascade Lake-SP, launched 2017) and two generations behind the Gen10 Plus and Gen11 platforms. It launched across the 2014 to 2016 window with the Haswell-EP and Broadwell-EP E5-2600 refresh. As of 2026, HPE active warranty and standard ProLiant support on Gen9 hardware has ended, and third-party maintenance is the standard production support path. We are not going to soft-pedal Gen9's age: for new mission-critical deployments that need iLO 5 with Silicon Root of Trust, faster DDR4, or an active vendor support contract, the Gen10 step is the right answer. Where the DL180 Gen9 still earns its place is in budget-driven capacity and branch workloads where acquisition cost per usable terabyte is the deciding factor.

To configure a build, call 1-800-778-1545 or use the quote form below. Every refurbished unit ships under our 180-day warranty with 12+ hour burn-in testing, and volume pricing starts at 5 units.

Where the DL180 Gen9 Fits in the Family

HPE positions the DL180 Gen9 as the value-tier 2U dual-socket Gen9 platform, the budget-driven alternative to the DL380 Gen9 mainstream. The platform-fact differences from the DL380 Gen9:

• 16 DIMM slots versus 24. 8 DIMMs per CPU on the DL180 Gen9 versus 12 on the DL380 Gen9. Both use the same four memory channels per CPU; the DL180 Gen9 populates two DIMMs per channel (2 DPC) where the DL380 Gen9 reaches three DIMMs per channel (3 DPC). Maximum memory is 1 TB with 64 GB RDIMMs versus the DL380 Gen9's 3 TB ceiling.
• Smart Array PCIe plug-in only, no modular "ar" slot. The DL180 Gen9 does not have the dedicated modular controller slot the DL380 Gen9 introduced. The storage controller consumes a PCIe slot. P440 (2 GB FBWC) and P840 (4 GB FBWC) in PCIe form factor are the production controllers; H241 is the HBA for software-defined storage.
• Reduced PCIe expansion. Three PCIe Gen3 slots standard with one riser, expandable to six with the secondary riser kit, which requires the second CPU. The six-slot maximum matches the DL380 Gen9, but the default is fewer slots and the riser requirements differ.
• FlexibleLOM is optional via a separate riser kit. Unlike the DL380 Gen9, where FlexibleLOM sits on a dedicated mezzanine, on the DL180 Gen9 the FlexibleLOM riser kit adds FlexLOM capability but consumes one of the available PCIe positions. Embedded 4-port 1 GbE is standard.
• Drive bay configurations. Two main LFF chassis variants: 8 LFF and 15 LFF. The 8 LFF chassis is the standard value-tier configuration; the 15 LFF chassis (12 front LFF plus 3 rear LFF) is the high-density option. Specify the chassis variant at quote time based on the bay-count requirement.
• iLO 4 Standard. The same iLO 4 generation as the rest of the Gen9 line, but the DL180 Gen9 typically ships with iLO Standard licensing; iLO Advanced is a separate cost when a full graphical remote console is needed.

Storage - LFF Chassis Variants

The DL180 Gen9 chassis is available in multiple LFF configurations:

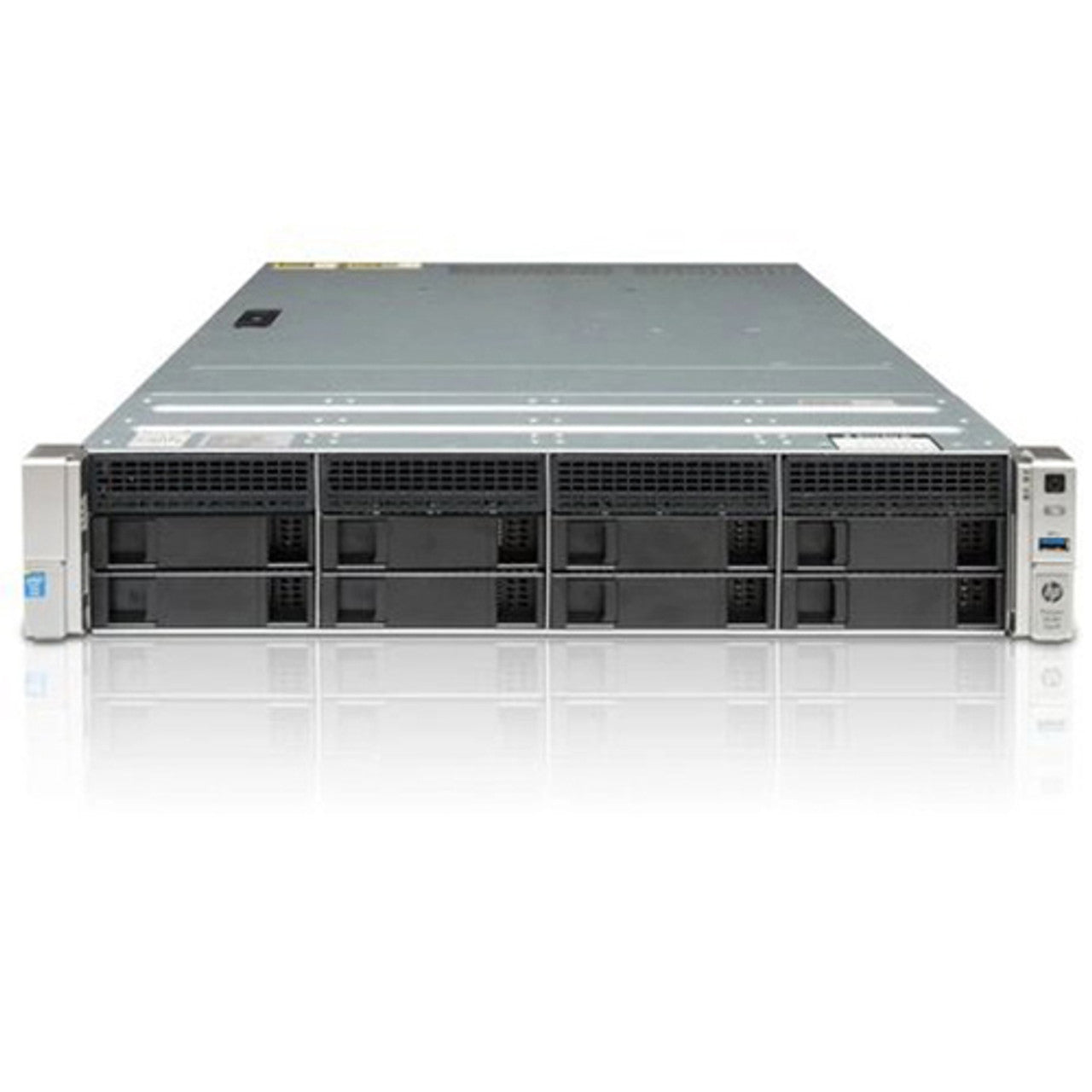

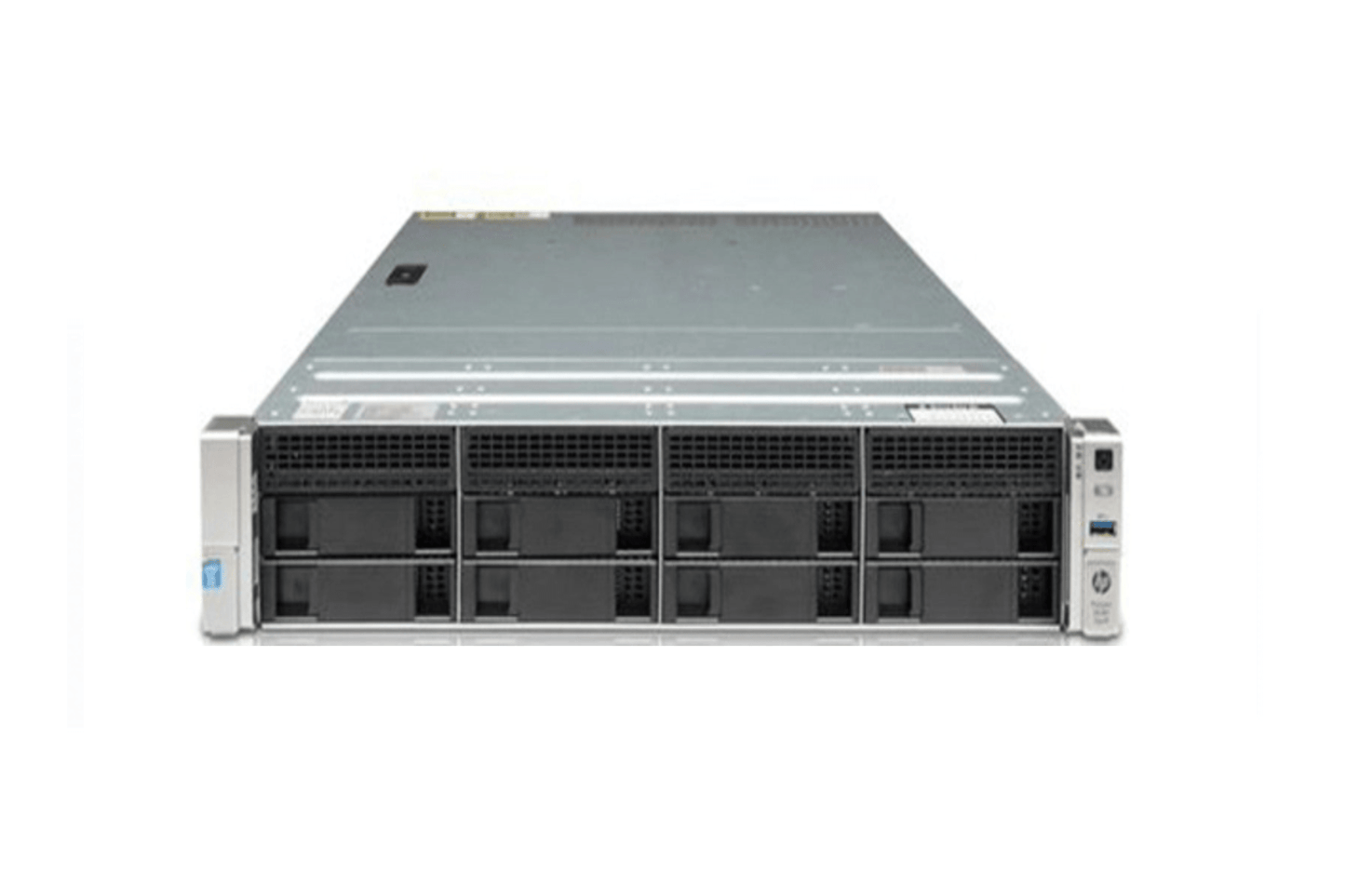

• 8 LFF chassis (standard value-tier). Eight 3.5" front bays. The most common DL180 Gen9 configuration, delivering branch-scale and SMB-scale bulk capacity at the lowest acquisition cost.
• 15 LFF chassis (high-density variant). Twelve 3.5" front bays plus three rear 3.5" bays. The maximum LFF configuration on the DL180 Gen9, approaching DL380 Gen9 12-Bay capacity at value pricing.
• Mixed LFF plus rear SFF variants. Some chassis configurations support 8 LFF plus 2 rear SFF for OS boot. This is build-spec dependent.

Drive options span the standard Gen9 LFF portfolio: NL-SAS HDDs (4 to 14 TB MDL across the Gen9 lifecycle), 10K and 15K SAS HDDs (lower capacity ceiling), LFF SSDs (rarely the right choice at this tier), and SED variants for compliance.

Common DL180 Gen9 storage profiles:

• Branch office file server (8 LFF chassis). Eight 8 to 12 TB NL-SAS HDDs in RAID 6 deliver roughly 48 to 72 TB usable for branch SMB/NFS shares, document storage, and archive at lower cost than the DL380 Gen9 alternative.
• Veeam backup repository (15 LFF chassis). Twelve front plus three rear LFF. RAID 6 across the twelve front bays plus a RAID 1 mirror on the rear bays for repository metadata, or a full 15-drive RAID 60. A strong pick for branch and mid-size backup deployments.
• Archive and compliance retention (8 LFF or 15 LFF). Long-term sequential-write workloads where capacity-per-dollar matters more than per-host feature set.
• Surveillance NVR (small to mid scale, 15 LFF). Twelve to fifteen LFF bays for multi-camera video retention.
• Distributed file system nodes at value pricing (Ceph, MinIO). Lower per-node cost for capacity-tier deployments where total cluster capacity matters more than per-node feature set.
• SMB primary server with bulk capacity. A single 2U LFF host combining file services, application hosting, and modest virtualization for a small business.

RAID at LFF Scale

The LFF RAID guidance matches the DL380 Gen9 12-Bay LFF: RAID 6 is strongly preferred for production bulk storage because dual parity tolerates a second-drive failure during multi-day rebuild windows; RAID 60 suits larger drive capacities (10 to 14 TB) where reducing rebuild scope matters; RAID 10 fits write-intensive workloads where the 50 percent capacity overhead is acceptable; RAID 5 is not recommended at LFF capacity. JBOD and HBA pass-through via the H241 controller serve ZFS, Ceph, MinIO, and other software-defined storage stacks.

Boot Drives

Boot options on the LFF chassis: M.2 SATA via the HPE M.2 enablement card in a PCIe slot (preserves all front bays); a rear 2 SFF bay kit (on chassis variants that support it); or two front LFF bays in RAID 1 (consuming 2 of 8 or 2 of 15 LFF bays). On the 8 LFF chassis, consuming two bays for boot is 25 percent of the storage budget, so M.2 boot is strongly preferred. On the 15 LFF chassis, the rear-bay SFF kit is the standard pattern. We default to M.2 boot on 8 LFF quotes and rear-bay 2 SFF on 15 LFF quotes.

Storage Controllers

The DL180 Gen9 uses PCIe plug-in Smart Array controllers; there is no modular "ar" slot, which is a DL380 Gen9 family feature. Controller options:

• Smart Array P440 (PCIe, 2 GB FBWC). The mainstream production controller. Full hardware RAID 0/1/5/6/10/50/60. The right pick for 8 LFF builds with traditional hardware RAID.
• Smart Array P840 (PCIe, 4 GB FBWC). The premium controller. The larger cache suits write-intensive workloads such as Veeam backup ingest and sustained-write archive. The right pick for 15 LFF builds with heavy sustained write.
• Smart Array H241 (PCIe, HBA mode). A clean SAS pass-through HBA for software-defined storage (ZFS, Ceph, MinIO).
• Dynamic Smart Array B140i (embedded software RAID). Chipset-integrated software RAID, acceptable for M.2 boot mirroring only and not appropriate for production data.

An HPE Smart Storage Battery is required with the P-series controllers. The FBWC battery is a documented Gen9 wear item; we disclose battery state on every quote and replace cache modules carrying past-spec batteries as part of build prep. Because the controller is PCIe rather than modular, it consumes one of the available slots: on a three-slot configuration the storage controller, a FlexibleLOM riser, and any additional expansion card need careful slot allocation. The six-slot maximum with the secondary riser gives more headroom for combined storage, networking, and expansion builds.

Processors

One or two sockets of Intel Xeon E5-2600 v3 (Haswell-EP, 2014) or v4 (Broadwell-EP, 2016) on the C610 Grantley platform, socket LGA 2011-3, up to 22 cores per CPU on v4. This is the same processor stack as the DL380 and DL360 Gen9, so CPU sourcing and field experience carry across the Gen9 fleet. v3 and v4 cannot be mixed in one system, and a v3-to-v4 field upgrade replaces both CPUs together.

DL180 Gen9 CPU selection skews toward the lower-bin and mid-tier parts (E5-2620 v4, E5-2640 v4, E5-2650 v4), consistent with the value-tier positioning and the branch, backup, and archive workloads the platform serves. Top-bin parts such as the E5-2699 v4 (22 cores, 145W) or E5-2667 v4 (135W) are supported but require the performance heatsink and fan kit, and they are rarely the right economics on a value-tier 2U. The configuration trap to avoid is the single-socket build: populating only one CPU strands half the DIMM slots and the riser positions that depend on the second processor, so a single-socket DL180 Gen9 is the right call only when the workload genuinely will not grow into the second socket.

Memory

Sixteen DDR4 DIMM slots, eight per CPU. This is the defining value-tier delta against the DL380 Gen9's 24 slots. The architecture is four memory channels per CPU populated at two DIMMs per channel (2 DPC); the DL380 Gen9 reaches three DIMMs per channel (3 DPC) across the same four channels, which is how it gets to 24 slots. Maximum memory on the DL180 Gen9 is 1 TB with 64 GB RDIMMs.

RDIMM is the mainstream choice; LRDIMM is available where the largest module capacities are needed to approach the 1 TB ceiling, and RDIMM and LRDIMM cannot be mixed. Rated speeds are DDR4-2400 on v4 and DDR4-2133 on v3, and full DIMM population steps the speed down under the standard Gen9 population rules. HPE DDR4 Smart Memory is required to reach rated speeds; third-party DDR4 drops to a lower bus speed. A single-CPU configuration exposes only the eight slots on the populated socket, the other reason the single-socket build is usually a false economy on this platform.

Networking and PCIe Expansion

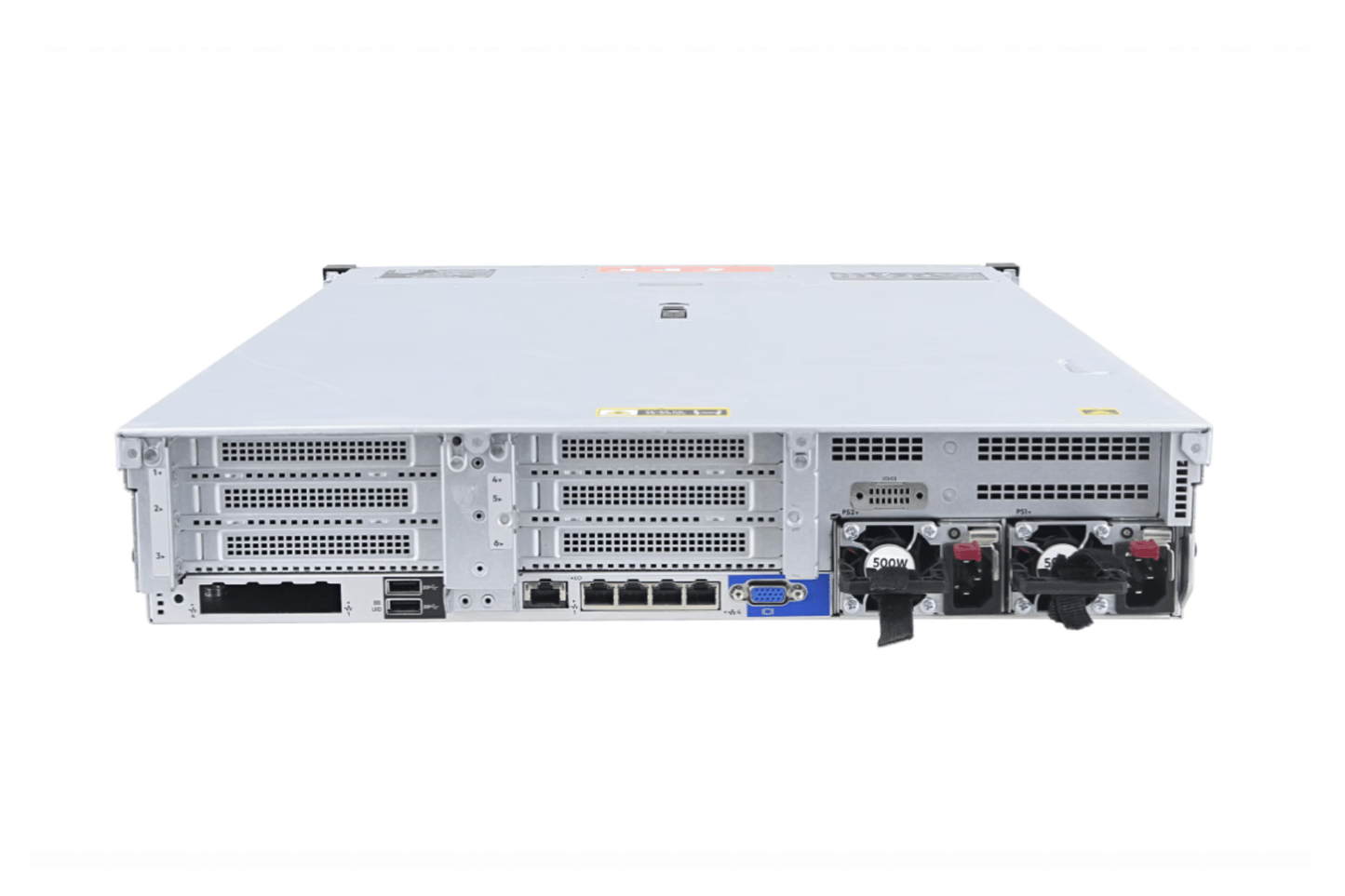

Embedded 4-port 1 GbE (the 331i adapter) is standard. FlexibleLOM is optional through the FlexibleLOM riser kit, which adds the FlexLOM slot but consumes one of the available PCIe positions; this differs from the DL380 Gen9, where FlexLOM lives on a dedicated mezzanine that does not cost a PCIe slot. For deployments that need 10 GbE or 25 GbE, the FlexLOM riser is the typical path; for the 1 GbE-sufficient workloads that drive most DL180 Gen9 deployments (branch file servers, modest backup targets), the embedded ports are enough.

PCIe expansion is three Gen3 slots by default, expandable to six with the secondary riser kit, which requires the second CPU. Because the storage controller and any FlexibleLOM riser draw from the same pool of slots, plan the slot budget up front: a typical production build allocates one slot to the Smart Array controller, one to the FlexLOM riser when 10 GbE is required, and leaves the remainder for HBAs or additional NICs.

GPU Support

The DL180 Gen9 is not a GPU platform. The value-tier 2U chassis allocates its PCIe and power budget to storage and networking, it does not support double-wide accelerators, and the workloads it is built for (bulk capacity, backup, archive) do not call for GPU compute. If a build needs GPU acceleration, the right answer is a platform with the thermal envelope and PCIe budget for the cards: for a current-generation 2U, see the HPE ProLiant DL380 Gen10 12-Bay 3.5" Drives, or tell us the accelerator at quote time and we will size a GPU-capable chassis instead.

Management - iLO 4 Generation

Management is HPE Integrated Lights-Out 4 (iLO 4). The DL180 Gen9 ships with iLO Standard, which covers health monitoring, the Active Health System log, IPMI, and basic remote management; iLO Advanced licensing is a separate cost and unlocks the full graphical remote console and virtual media. There is no Silicon Root of Trust at this generation, that hardware-anchored firmware verification arrived with iLO 5 on Gen10, so UEFI Secure Boot is the firmware-integrity baseline here. The practical upside is fleet consistency: the same iLO 4 generation runs across every Gen9 ProLiant, so a shop already operating Gen9 hardware manages the DL180 Gen9 with the tools and runbooks it already has.

Power and Cooling

HPE Flex Slot power supplies in 1+1 redundant configurations. PSU selection skews to the lower wattages (500W and 800W) that match the value-tier workload mix; the 1400W high-output supplies are rarely needed because branch file servers, backup targets, and archive storage are not high-TDP. Two 800W Platinum supplies in 1+1 redundancy cover most production DL180 Gen9 configurations. The 2U chassis with LFF storage runs comfortably in standard data-center cooling, supports ASHRAE A3 (40 C) extended ambient, and the lower CPU TDP typical of these deployments sits well inside the 2U thermal envelope.

Physical Specs & Platform Notes

• Form factor: 2U rack chassis at standard rack depth; an HPE 2U cable management arm is available for serviceable cable routing.
• PCIe expansion: three Gen3 slots by default and up to six with the secondary riser (requires the second CPU), in a mix of full-height and low-profile positions depending on riser configuration.
• Parts availability: Gen9 secondary-market supply is mature and strong; drives, PSUs, risers, rail kits, and FBWC cache modules are all readily sourced. HPE active support has ended, so third-party maintenance is the production support path.
• Accessories we recommend: the matching HPE 2U LFF sliding rail kit (P/N 737413-001), a cable management arm, an M.2 enablement card for boot, and the FlexibleLOM riser kit when 10 GbE networking is required.
• Platform notes: the 8 LFF versus 15 LFF chassis choice is a build-spec decision and not practically field-upgradable; the FBWC battery is a Gen9 wear item we disclose and replace during build prep; and HPE Smart Memory is required for rated DDR4 speeds.

Our Assessment

Where it excels: The DL180 Gen9 is at its best in budget-driven capacity roles: branch and ROBO file servers, Veeam backup repositories at moderate scale, archive and compliance retention, small-to-mid surveillance NVR, and capacity-tier distributed-storage nodes (Ceph, MinIO) where per-node cost is what matters. In each of these the platform delivers genuine work at materially lower acquisition cost than the mainstream tier, because the workload fits comfortably inside 1 TB of memory and modest PCIe expansion.

Where to look instead: When the workload needs more than 1 TB of memory or a modular "ar" Smart Array controller, the HPE ProLiant DL380 Gen9 12-Bay 3.5" Drives is the right step up. For 1U LFF at the edge or branch, the HPE ProLiant DL360 Gen9 4-Bay 3.5" Drives or the value-tier 1U HPE ProLiant DL160 Gen9 4-Bay 3.5" Drives fit a smaller footprint. For a current generation with iLO 5, move to the HPE ProLiant DL380 Gen10 12-Bay 3.5" Drives. Buyers shopping Dell will find the equivalent in the Dell PowerEdge R530 8-Bay 3.5" Drives.

Bottom line: The DL180 Gen9 is the value 2U LFF box for an organization buying branch, backup, and archive capacity where dollars-per-usable-terabyte is the deciding number and the per-host feature set of the mainstream tier would go unused. The typical buyer is a budget-conscious IT team standing up or expanding bulk storage, comfortable running on third-party maintenance, and choosing the platform precisely because it does less than a DL380 and costs less to match. If that describes the deployment, the DL180 Gen9 is the correct, defensible choice.

Where the DL180 Gen9 Fits in 2026

The DL180 Gen9 launched on Haswell-EP (E5-2600 v3) in 2014 and carried the Broadwell-EP (v4) refresh in 2016. The Gen10 line that sits above it arrived in 2017 on the Skylake-SP and Cascade Lake-SP platform. As of 2026, HPE active warranty and standard ProLiant support on Gen9 hardware has ended, and third-party maintenance is the standard, well-supported production path for the platform.

What sits above the DL180 Gen9 in HPE's roadmap is the Gen10 mainstream (the DL380 Gen10, with iLO 5 and Silicon Root of Trust, faster DDR4, and the 24-DIMM, 3 TB memory topology) and beyond it the Gen10 Plus and Gen11 platforms on Ice Lake and Sapphire Rapids. The generational step up is the right answer for new mission-critical workloads, for anything that needs hardware-anchored firmware security, and for memory or expansion requirements the value tier cannot meet. The Gen8 predecessor is end-of-support and not something we stock or recommend in 2026.

The DL180 Gen9 earns its place in 2026 specifically when one of these patterns applies: a capacity-add to an existing Gen9 fleet where operational standardization and matching spares matter; a lab, dev, or staging tier mirroring Gen9 production at the lowest cost; a budget-driven branch, backup, or archive deployment where capacity-per-dollar is the deciding factor; a certified or fixed-image workload validated on the Gen9 platform; or a bulk-storage role where the mainstream tier's features would simply go unused. Outside those patterns, price the Gen10 step and compare.

Honest Limitations

• The standard Gen9 platform limitations apply. HPE active warranty has ended; iLO 4 has no Silicon Root of Trust; DDR4 speeds cap below the Gen10 line; PCIe is Gen3 only; the FBWC battery is a wear item; and HPE Smart Memory is required for rated speeds.
• 16 DIMM slots, 1 TB memory ceiling. Eight fewer DIMMs per system than the DL380 Gen9. Workloads needing more than 1 TB belong on the DL380 Gen9.
• No modular "ar" Smart Array slot. The storage controller consumes a PCIe slot; allocate carefully on three-slot default configurations.
• FlexibleLOM via a separate riser kit only. FlexLOM requires the riser kit and consumes a PCIe position; the DL380 Gen9's dedicated FlexLOM mezzanine does not exist here.
• iLO Advanced is typically a separate cost. The DL180 Gen9 ships with iLO Standard; the full remote graphical console requires Advanced licensing.
• LFF rebuild times run into days at production load. RAID 6 or RAID 60 is strongly preferred; RAID 5 is high-risk at LFF capacity.
• Boot-drive consumption hits the 8 LFF chassis hard. Two bays for an OS RAID 1 mirror is 25 percent of the 8 LFF budget; M.2 boot is strongly preferred.
• Chassis-variant selection is a build-time decision. Moving between 8 LFF and 15 LFF chassis is not a practical field upgrade.

Workload Fit

Where to Look Instead

• Need more than 1 TB of memory at Gen9 LFF? The HPE ProLiant DL380 Gen9 12-Bay 3.5" Drives is the mainstream 2U LFF with 24 DIMMs and a 3 TB ceiling.
• Need a modular Smart Array "ar" controller? The same DL380 Gen9 12-Bay 3.5" carries the modular controller slot.
• Need 1U LFF for edge or branch? The HPE ProLiant DL360 Gen9 4-Bay 3.5" Drives is the 1U dual-socket LFF with a smaller footprint.
• Want the value-tier 1U at Gen9? The HPE ProLiant DL160 Gen9 4-Bay 3.5" Drives is the 1U value-tier counterpart.
• Shopping Dell at the same value-tier 2U? The Dell PowerEdge R530 8-Bay 3.5" Drives is the equivalent 2U dual-socket Grantley value-tier on the Dell side.
• Need Gen10 LFF with iLO 5? The HPE ProLiant DL380 Gen10 12-Bay 3.5" Drives is the current-generation LFF mainstream.
