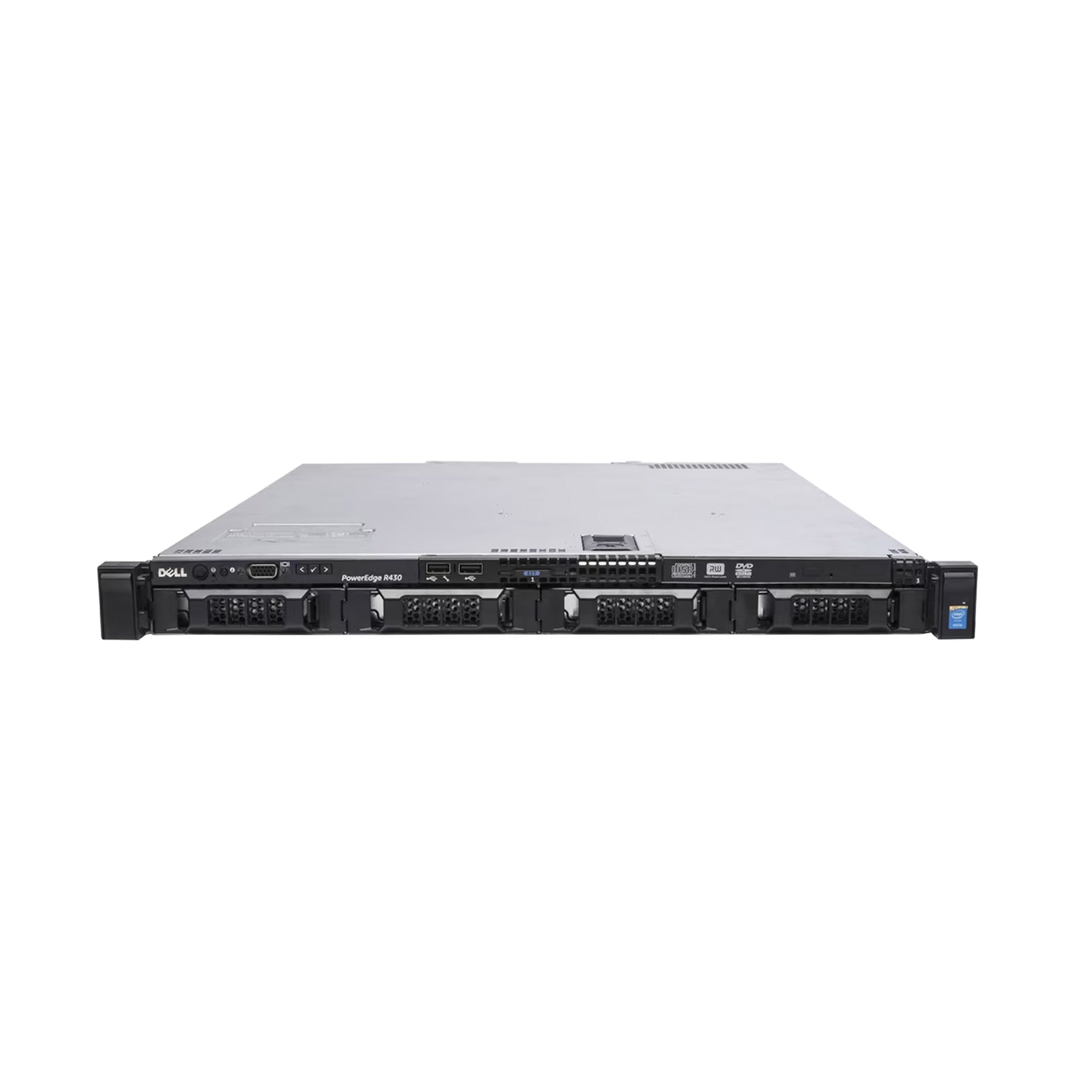

Dell PowerEdge R430 4-Bay 3.5" Hotswap

The refurbished Dell PowerEdge R430 4-Bay 3.5" Hot-Swap is Dell's 13th-generation 1U entry-tier rack server: four 3.5" hot-swap LFF front bays, single-socket or dual-socket Intel Xeon E5-2600 v3/v4 compute, 12 DDR4 DIMM slots, PERC H730P hardware RAID, and iDRAC8 Enterprise out-of-band management. It is the entry-tier member of the same 13th gen 1U family as the R630, configured deliberately for lower acquisition cost: a smaller memory ceiling, a lower CPU thermal envelope, fewer PCIe slots, and single-PSU options the mid-range platform does not emphasize.

In 2026 the R430 is the cost-correct call for branch-office file and application servers, small backup targets at remote sites, retail back-office workhorses, departmental file shares, small-business primary servers, and any 13th gen 1U workload that fits inside the entry-tier envelope. Where the R630 is the mid-range workhorse of the generation, the R430 is the platform you reach for when the R630's dual-socket, 24-DIMM envelope is more than the workload needs and acquisition cost is the dominant procurement driver. The 4-bay LFF chassis suits a small number of high-capacity spinning disks more than it suits dense flash, which is the shape most entry-tier branch and SMB workloads actually take.

To configure an R430 build, call 1-800-778-1545 or use the quote form on this page, and our account team responds within 24 hours. Volume pricing applies at 5 units and above. Every R430 we ship completes a 12+ hour burn-in that exercises every PCIe slot, every memory channel, and every drive bay before it leaves the building, and it carries a standard 180-day warranty with Premium 1-Year, 2-Year, and 3-Year coverage available for longer deployment horizons.

Where the R430 Fits in the Family

The R430 sits at the entry of Dell's 13th gen rack line. It shares the platform foundation (LGA-2011-3 socket, Intel Xeon E5-2600 v3/v4, DDR4, PERC H730-family RAID, iDRAC8) with the rest of the generation but is sized down for cost-sensitive deployments.

• Versus the R630 (13th gen mid-range 1U): The R630 carries 24 DIMM slots to the R430's 12, a 1.5 TB memory ceiling to the R430's 384 GB, eight to ten 2.5" SFF bays to the R430's four 3.5" LFF, and a fuller PCIe budget. When the R430 envelope is over-provisioned for the workload, the R430 saves real money; when it is under-provisioned, the R630 10-Bay 2.5" or the R630 8-Bay 2.5" is the next step inside the same generation.
• Versus the R730 (13th gen 2U): The 2U R730 8-Bay 2.5" adds PCIe slots, larger PSUs, GPU capacity, and more storage variants on the identical CPU and memory platform. Choose the R430 for 1U density and low cost; choose the R730 when expansion or GPU support matters.
• Versus the R440 (14th gen successor): The R440 4-Bay 3.5" is the direct 14th gen entry-tier replacement, bringing iDRAC9, DDR4 2666 MT/s, and the BOSS boot module. For production lines planned to run several years, the R440 is frequently the better long-horizon buy.
• Versus the R340 (14th gen single-socket entry): The R340 4-Bay 3.5" is a single-socket Xeon E platform for the smallest workloads. When dual-socket is genuinely unnecessary, the R340 covers similar territory at a lower platform class.
• Cross-vendor counterpart: The HPE ProLiant DL360 Gen9 4-Bay 3.5" is the closest HPE equivalent: a Gen9 1U LFF platform in the same market position and generation.

Storage - 4 LFF Hot-Swap Bays

Four 3.5" SAS/SATA hot-swap front bays. This is the hot-swap variant; the lower-cost cabled variant uses non-hot-swap drives on a separate listing. For any production deployment where a failed drive needs to be replaced without taking the server down, hot-swap is the right call. Four large-form-factor bays is the storage ceiling of this chassis and cannot be expanded; for more spindles, a 2U platform is the next step.

Common 4-bay 3.5" configurations:

• 4 x 4-8 TB NL-SAS HDD: The volume branch-office file server and small backup target build. 16-32 TB raw, roughly 10-20 TB usable at RAID 6 with a hot spare folded in.
• 4 x 12-16 TB NL-SAS HDD: Higher-capacity branch deployments. 48-64 TB raw, roughly 30-40 TB usable at RAID 6.
• 4 x 20 TB NL-SAS HDD: Maximum-capacity 4-bay build at 80 TB raw, roughly 52 TB usable at RAID 6.
• 4 x SAS SSD (1.92 TB / 3.84 TB): Performance-tier branch storage. Less common at this bay count but fully supported where random IOPS matter more than capacity.
• 2 x SAS SSD boot/OS + 2 x SAS HDD data: Tiered build for an application server needing fast OS response and moderate data capacity.

RAID guidance for 4-drive arrays

RAID 6 across four drives is two data plus two parity, 50 percent capacity efficiency, the right choice when fault tolerance leads the design. RAID 5 across four drives is three data plus one parity, 75 percent efficiency, defensible at smaller drive sizes (under 8 TB) where rebuild windows stay reasonable but not defensible at 12 TB and above where rebuild exposure exceeds tolerable risk. RAID 10 is two mirrored pairs striped, 50 percent efficiency, excellent random write performance and short rebuilds, the right call for performance-sensitive small arrays. For the typical 4-8 TB NL-SAS branch build, RAID 5 is acceptable; at 12 TB and up, RAID 6 is the only defensible parity choice.

Boot options

The R430 predates the BOSS module (a 14th gen feature), so OS boot uses one of these paths:

• Front-bay RAID 1 mirror: A dedicated mirrored pair on the front bays. Hardware-protected and simple, but it consumes 2 of the 4 LFF bays and leaves only 2 for data. Often acceptable given the small data footprints typical of R430 deployments.
• IDSDM dual SD module: An internal mirrored dual-SD module for hypervisor-only boot (ESXi, Hyper-V Server). Preserves all four front bays for data and is the right path for hypervisor hosts.
• Internal SATA M.2 (configuration-dependent): Some R430 builds support an internal M.2 SATA SSD for OS boot. Not standardized across every SKU, so we confirm it at quote time rather than assume it.

Storage Controllers

The R430 uses the same PERC H730-family controllers as the rest of 13th gen, topping out at the H730P rather than the 14th gen H740P.

• PERC H730P (2 GB cache, battery-backed): The top controller on this platform. RAID 0/1/5/6/10/50/60, with battery-backed write cache protecting in-flight data through a power event. Our default for any R430 build with a meaningful storage workload. The 2 GB cache is a real step below the 14th gen H740P's 8 GB; for sustained write-heavy workloads, that gap is the platform-generational difference.
• PERC H730 (1 GB cache, battery-backed): Lower-tier hardware RAID for mixed I/O with moderate write demand. The cost-effective choice when the H730P's larger cache is not justified by the workload.
• PERC H330 (no cache): Entry hardware RAID for dev/test or for organizations that standardize on hardware RAID without needing cache-driven performance.
• HBA330 (pass-through): Direct drive access for software-defined storage stacks (ZFS, Ceph, Storage Spaces) that handle redundancy in software rather than in the controller.
• S130 software RAID (SATA only): Chipset-level software RAID. Functional for boot or low-cost SATA configurations, but it is not a production recommendation for data arrays; specify a hardware controller for anything load-bearing.

Processors

The R430 is a two-socket LGA-2011-3 platform that also runs comfortably single-socket, which is how most units in the field are actually deployed. It accepts Intel Xeon E5-2600 v3 (Haswell, 2014) and v4 (Broadwell, 2016) processors, which are pin-compatible; a v3 board takes v4 CPUs with a BIOS update. Core counts run from entry 6-8 core parts up to the 20-core E5-2698 v4 per socket, with TDPs from 85W to 135W.

For a new R430 build in 2026, v4 Broadwell is the right call over v3 Haswell for better per-core performance and longer serviceability. Because the entry-tier chassis cooling is sized for modest parts, volume R430 deployments cluster on mid-tier SKUs rather than the top bins:

• E5-2620 v4 (8C, 2.1 GHz, 85W): The cost-floor choice for light branch and ROBO workloads.
• E5-2630 v4 (10C, 2.2 GHz, 85W): The volume mid-tier part, the most common R430 specification.
• E5-2640 v4 (10C, 2.4 GHz, 90W): The balanced step up where a little more clock helps.
• E5-2660 v4 (14C, 2.0 GHz, 105W): The higher-core option for modest consolidation.

Where the workload is licensed per core (SQL Server, Oracle), the frequency-optimized parts are the better economics: the E5-2643 v4 (6C, 3.4 GHz, 135W) and E5-2667 v4 (8C, 3.2 GHz, 135W) deliver the highest clocks available on this platform from the fewest cores, which keeps licence counts down.

We specify the R430 to a 135W TDP ceiling. Parts above that (E5-2697 v4 and E5-2699 v4 at 145W, E5-2687W at 160W) exceed the thermal envelope we are willing to stand behind in this 1U entry chassis under sustained load, so we do not configure them here. When you genuinely need that much compute, the R630 or a 2U R730 is the better-cooled home for it. For any high-TDP CPU choice, specify the high-performance heatsink at configuration time.

Memory

12 DDR4 DIMM slots, half the count of the R630, supporting registered (RDIMM) and load-reduced (LRDIMM) modules. Maximum capacity is 384 GB using 32 GB RDIMMs across all twelve slots. Note that the slot allocation is asymmetric: processor 1 owns eight slots and processor 2 owns four, so a single-processor build tops out at 256 GB. Memory runs at DDR4-2400 MT/s on v4 SKUs at lower population and steps down at full population, in line with the rest of the 13th gen platform. There is no support for UDIMM, no mixing of RDIMM and LRDIMM, and no Intel Optane Persistent Memory (a 14th gen capability).

Practical R430 memory points:

• 64 GB (4 x 16 GB RDIMM): Light single-socket branch and application builds.
• 128 GB (8 x 16 GB RDIMM): The common branch-office and SMB primary-server capacity.
• 256 GB (8 x 32 GB RDIMM): Modest virtualization hosts and mid-size application servers, and the ceiling for a single-processor build.
• 384 GB (12 x 32 GB RDIMM): The platform ceiling, dual-processor only. Above this, the R630 (1.5 TB) is the platform.

Networking and PCIe Expansion

The R430 ships with four onboard 1 GbE LOM ports as standard, which cover management plus modest production traffic for most branch and SMB roles. For higher bandwidth, a PCIe network card adds 10 GbE: Intel X550-T4 (10GBASE-T) and X520 (SFP+) are the common upgrades we fit, and both are sourceable as part of the build.

PCIe is Gen3 throughout. The 1U entry chassis provides 2 to 3 usable PCIe slots depending on riser configuration, a mix of full-height and low-profile. That budget is enough for a storage controller plus one expansion card (a 10 GbE NIC or an external HBA), but it is genuinely tight: a build that needs a NIC, an HBA, and a GPU at the same time has outgrown this platform and belongs on a 2U R730.

GPU Support

GPU support on the R430 is minimal by design. The 1U entry chassis, its thermal envelope, and the constrained PCIe budget mean that at most a single low-profile, single-width accelerator (NVIDIA T4 class, around 70W) fits in some riser configurations, and even that is uncommon on an entry-tier node. Double-width or high-wattage GPUs are not supported. For any real GPU-accelerated workload (inference at scale, VDI with graphics offload, compute), the 2U R730 or a 14th gen R740 is the correct platform.

Management - iDRAC8 Generation

The R430 uses iDRAC8 for out-of-band management, available in Express or Enterprise. Enterprise is the production specification and adds the features operators rely on: full remote KVM console redirection, virtual media (mount an ISO over the network), remote power control, hardware health and sensor telemetry, predictive failure analysis, Active Directory and LDAP integration, SNMP and email alerting, and the Lifecycle Controller for firmware and driver management.

What iDRAC8 lacks relative to the 14th gen iDRAC9 is worth stating plainly so the platform decision is informed:

• No Silicon Root of Trust: There is no hardware cryptographic verification of firmware from boot ROM through OS handoff. For environments under strict firmware-integrity mandates (NIST 800-193 and certain federal baselines), this is a real gap that iDRAC9 closes.
• No System Lockdown: The iDRAC9 configuration-protection feature is absent, so change control stays operational rather than enforced in firmware.
• No Group Manager: Cross-server management via iDRAC9 Group Manager is unavailable, though OpenManage Enterprise still manages a fleet of iDRAC8 nodes.

A TPM 1.2 or TPM 2.0 module is available for platforms with measured-boot or compliance requirements. For the branch, SMB, and lightweight roles where the R430 is the right platform, iDRAC8 Enterprise covers operational needs well.

Power and Cooling

The R430 offers a 450W cabled (non-redundant) supply for the lowest-cost builds, plus 550W hot-swap supplies for redundant (1+1) configurations. Cooling is handled by the chassis fan set sized for the entry-tier CPU and storage envelope.

For most production R430 deployments, 2 x 550W hot-swap redundant is the right specification. The 450W cabled supply is the cost-floor option for ultra-budget builds where PSU redundancy is not a requirement; note that the cabled supply requires the cabled chassis and is not an option on this hot-swap listing. For anything production, dual hot-swap is what we recommend.

Physical Specs and Platform Notes

• Form factor: 1U rack, standard 19-inch four-post mount. The shallow 1U entry chassis is well suited to branch racks and shorter-depth cabinets.
• PCIe expansion: 2 to 3 PCIe Gen3 slots by riser, a mix of full-height and low-profile. Plan one slot for storage and one for networking on most builds.
• Parts availability: Strong through 2026-2027. The 13th gen installed base is large and the secondary market for E5-2600 v3/v4 CPUs, DDR4, 3.5" SAS drives, PERC controllers, and PSUs is deep and competitive.
• Accessories we recommend: Sliding rail kit (A7-class ReadyRails, compatible across 12th, 13th, and 14th gen so rails often carry over in mixed-generation racks), an optional standard or LCD security bezel, and a TPM module where compliance requires one.
• Platform notes: No BOSS module (boot uses front-bay mirror, IDSDM, or internal M.2), no Optane Persistent Memory, PCIe Gen3 ceiling, and Dell ProSupport past end-of-service on most units (third-party maintenance is the standard production support path).

Our Assessment

Where it excels: The R430 4-Bay 3.5" Hot-Swap is the cost-correct entry-tier 13th gen 1U node for workloads that fit a modest envelope: branch-office file and print servers under about 30 users, lightweight application servers, small backup targets at remote sites, retail back-office workhorses running POS and inventory, departmental file shares, small-business primary servers, and light virtualization in the 5 to 10 VM range. Four large-capacity LFF drives, a mid-tier CPU, and 128-256 GB of memory is the shape that covers the large majority of these deployments well.

Where to look instead: When memory needs exceed 384 GB or the workload wants more than four spindles, step up to the R630 10-Bay 2.5" or a 2U R730 8-Bay 2.5". When a deployment is planned to run several production years and remote-management security matters, the 14th gen R440 4-Bay 3.5" with iDRAC9 and BOSS is the better horizon investment. When dual-socket is unnecessary entirely, the single-socket R340 4-Bay 3.5" may fit at a lower platform class.

Bottom line: Buy the R430 when acquisition cost is the dominant driver, the workload is genuinely entry-tier, and four LFF bays with up to 384 GB of memory cover the requirement. It is the right node for the branch office, the small backup target, and the SMB primary server where the R630's larger envelope would simply be money spent on headroom the workload never uses. When you ask, we will quote the R430 and the 14th gen R440 side by side at current pricing so the generation decision is made on real cost, not assumption.

Where the R430 Fits in 2026

The R430 is a 2015-era 13th gen platform, roughly eleven years into its life in 2026. That age is exactly why it is inexpensive, and for the right workload that is a feature rather than a flaw. Parts availability remains strong and is expected to stay sourceable through 2026-2027 before gradually tightening as the installed base retires. Dell ProSupport has reached end-of-service on most R430 configurations, so third-party hardware maintenance (Park Place, Curvature, and similar) is the standard production support path, and our Premium coverage options address the same window. Dell's active firmware development for the platform has concluded, though released BIOS and iDRAC firmware remain available for download. Choose the R430 when the workload fits and budget leads; choose the 14th gen R440 when platform currency, iDRAC9 security, and a multi-year production horizon carry more weight than the lower entry price.

Honest Limitations

• 12 DIMM slots, 384 GB ceiling. A quarter of the memory capacity of the R630, and the slot split is asymmetric (8 slots on processor 1, 4 on processor 2), so single-processor builds cap at 256 GB. Above 384 GB, this is the wrong platform.
• Four LFF bays is the chassis ceiling. It cannot be expanded. For more storage, an R630 (more SFF bays) or a 2U R730 is the next step.
• RAID 6 on four drives leaves only two data drives. A 50 percent capacity cost. Where capacity matters more than parity depth, RAID 10 or RAID 5 (at smaller drive sizes) is the alternative.
• Front-bay boot mirror consumes half the bays. A RAID 1 OS pair leaves only two bays for data. IDSDM avoids this for hypervisor hosts, but general-purpose OS builds usually accept the bay cost.
• Entry-tier thermal envelope. We cap this chassis at a 135W TDP ceiling. The 145W and 160W top-bin parts are outside what we configure here; volume builds use mid-tier parts for good reason.
• Constrained PCIe budget. 2 to 3 slots. A build needing GPU plus multiple NICs plus an external HBA at once has outgrown the platform.
• iDRAC8, not iDRAC9. No Silicon Root of Trust, System Lockdown, or Group Manager. Firmware-integrity compliance environments should look at the 14th gen R440.
• DDR4-2400 ceiling, no Optane, PCIe Gen3. Standard 13th gen platform limits. Memory-bandwidth-bound and Gen4 workloads belong on later generations.
• Single-PSU builds are possible but not for production. The 450W cabled supply saves cost but requires the cabled chassis; dual hot-swap is the production specification on this listing.
• OS support is narrowing. Recent OS releases (for example RHEL 10 and Windows Server 2025) may have limited or no support on this platform. We confirm OS compatibility at quote time.

Workload Fit

Where to Look Instead

• Same R430, lower cost: the R430 4-Bay 3.5" Cabled uses non-hot-swap drives at a lower price. Right only for very-low-utilization builds where in-operation drive replacement is not a requirement.
• Same generation, more room: the R630 10-Bay 2.5" and R630 8-Bay 2.5" add memory capacity, drive count, and PCIe budget in the same 13th gen 1U class.
• Same generation, 2U: the R730 8-Bay 2.5" for PCIe expansion, GPU support, and larger PSUs.
• Next generation up: the R440 4-Bay 3.5" (14th gen) for iDRAC9, DDR4 2666 MT/s, and BOSS boot on a multi-year horizon.
• Smaller single-socket alternative: the R340 4-Bay 3.5" single-socket Xeon E platform for the lightest workloads.
• Cross-vendor counterpart: the HPE ProLiant DL360 Gen9 4-Bay 3.5" as the closest Gen9 1U LFF equivalent.

Ready to Configure?

Tell us your workload, target CPU SKU, memory capacity, drive count and capacity (four maximum on this chassis), RAID requirement, boot configuration (front-bay mirror or IDSDM), PSU preference, networking speed, and quantity. If you would like the R430 and the 14th gen R440 quoted side by side at current secondary-market pricing, tell us and we will return both so the generational decision is informed by real cost.

Call 1-800-778-1545 or use the quote form on this page and our account team responds within 24 hours, with volume pricing at 5 units and above. Every R430 ships after a 12+ hour burn-in across every PCIe slot, memory channel, and drive bay, and carries a standard 180-day warranty with Premium 1-Year, 2-Year, and 3-Year coverage available.
