Dell PowerEdge R630 10-Bay 2.5"
Configure Your System:
1 Processor Required
Step 1: Choose a series
Intel Xeon E5-2600 v3 (Haswell) is the value play. Mature, plentiful, and the lowest cost per core we sell. Memory runs at 2133 MT/s.
Intel Xeon E5-2600 v4 (Broadwell) is the same socket a die shrink later: more cores at the top of the range, better performance per watt, and 2400 MT/s memory support. The price gap has narrowed enough that v4 is our default recommendation; take v3 when the budget is the whole story.
Whichever series you pick, populate both sockets. A single-CPU R630 loses half its memory channels, half its DIMM slots, and the PCIe lanes that route through the second processor.
Step 2: Choose your CPU
The R630 is the dense compute node of this generation, and most builds here are virtualization hosts or scale-out workers, so core count usually wins.
Running Windows Server 2022? Two 8-core CPUs land exactly on the 16-core base license. Our pick is the E5-2667 v4 (8 cores, 3.2 GHz): high clocks per core are exactly what Windows workloads reward, and the license covers the pair with nothing wasted.
Virtualizing on vSphere? VMware licenses a 16-core minimum per socket, so the 8-core strategy buys you nothing there. Take core count instead: the E5-2680 v4 (14 cores) is the workhorse pick, and the E5-2698 v4 (20 cores) is where dense consolidation lands.
General compute, Proxmox, and Linux duty: mid-range v4 parts in the 2650 to 2680 range cover the widest span of workloads per dollar.
Fair warning: a 13th generation platform is a value play, not a performance play. If per-core licensing or single-thread speed is load-bearing, newer silicon can cost less overall, and we will tell you so at quote time if that is your situation.
2 Heat Sink Optional
What matters more in a 1U chassis is airflow discipline, because there is no spare vertical space to forgive mistakes. Keep every drive bay blank and internal shroud installed; the R630 cools front to back through small high-speed fans, and an open path lets air skip the components that need it.
Also set expectations on noise: a 1U server under load sounds like a 1U server under load. It was engineered for datacenter intake air and a room where nobody is trying to think. It will run fine in an office closet, but if the rack shares a wall with a desk, a tower or 2U chassis is the kinder choice.
3 Memory (RAM) 24 DIMM slots, modules added in sets of 2 Required
The E5-2600 platform runs four memory channels per socket. Populate up to two DIMMs per channel (16 slots total) and memory runs at full speed: 2400 MT/s with v4 processors, 2133 with v3. Load the third DIMM on each channel to reach all 24 slots and the whole bank drops a speed tier. That is the trade: 16 slots for maximum bandwidth, 24 slots for maximum capacity per dollar.
Our default is 16 DIMMs at full speed. A virtualization host feels memory bandwidth more than it feels the last few slots.
Go to all 24 when capacity is the whole point: a budget consolidation host where 50 percent more RAM at a lower clock beats less RAM at a higher one. That is a real workload profile, and this platform serves it cheaply.
Whichever count you choose, buy it as one matched set, now. The instinct to leave slots open for a later upgrade rarely plays out well: a year from now you are hunting for DIMMs that match the rank and speed of what is in the box, and a mismatch either clocks the whole server down or refuses to train. The server is in production by then, so adding memory means a maintenance window you have to schedule and justify.
Common landing spots: 128 GB (16x 8 GB) for general duty, 256 GB (16x 16 GB) for a serious virtualization host at full speed, 384 GB (24x 16 GB) when capacity outranks bandwidth, and 512 GB (16x 32 GB) for database work.
4 RAID Controllers Optional
PERC H730P (2 GB battery-backed cache) is the configurator default and our pick for most builds. The cache is what keeps write performance respectable on parity RAID, and it is the difference between an array that performs and one that merely functions.
PERC H730 (1 GB cache) is the same controller family with half the cache. It is a fair savings on a light build; on a full ten-bay array with real write load, spend the small difference on the H730P.
PERC H330 has no cache. It handles RAID 1 boot mirrors and light duty, and nothing else well. Do not put it in front of a parity array you care about.
HBA330 (non-RAID) is the one to pick when the software owns the drives: vSAN, Storage Spaces Direct, Ceph, and ZFS all want direct drive access, and a RAID controller in the path actively hurts. If you are building any of those, the HBA330 is the correct and complete answer.
Array guidance regardless of controller: RAID 10 where write latency matters, RAID 6 over RAID 5 on large spinning drives, and a hot spare on any array whose rebuild you would rather not race.
5 Storage Drives Select up to 10 drives (0/10 Slots Used) Optional
The R630 takes 2.5" SAS and SATA drives in both flavors: solid state and spinning. Our guidance by workload: SSDs for anything latency-sensitive (virtualization datastores, databases, application volumes), 10K SAS spinning drives where capacity per dollar matters more than IOPS, and a mix is often the honest answer, fast tier in the first bays, bulk behind it. A 1U compute node usually wants its hot data local and its bulk storage elsewhere, so most R630 builds lean SSD.
Buy new. We steer you away from refurbished on drives specifically, and we say that as a company that sells refurbished servers all day. The chassis, board, and power supplies in a refurbished R630 have proven themselves through our burn-in; a used drive with unknown hours is a different bet, and a rebuild is exactly when you do not want to lose a second one.
The R630 predates Dell's dedicated boot card, so plan the boot volume out of your data bays: a small RAID 1 pair of SSDs in two bays is the standard pattern. It costs you two bays and it is worth it; a boot failure and a data failure should never be the same event.
Fair warning on capacity math: RAID overhead, hot spares, and filesystem headroom mean usable space lands well under the sum of the labels. Size for the usable number, and when in doubt, one drive size up is cheap insurance.
6 Remote Access Required
The dividing line is the remote console. iDRAC8 Enterprise gives you remote KVM and virtual media, meaning you can reach the server's screen, mount an ISO, and rebuild an OS from anywhere, even when the operating system is down. Express does not include the remote console, so any problem below the OS level means walking to the rack.
Our pick is Enterprise, and on a 13th generation server the case is stronger, not weaker, than on new hardware. These servers typically go into branch racks, colos, labs, and secondary roles, places nobody visits on a schedule, and the license costs a fraction of one site trip.
Express is the right call only when the server sits down the hall and someone can physically reach it without ceremony.
One honest note on age: iDRAC8's interface is a product of its era, and some functions lean on older browser technology than iDRAC9 does. It works, we use it daily, but budget a few minutes of setup patience.
If you are deploying 5 or more units, take Enterprise on all of them. Fleet management without remote console access does not work in practice.
7 Power Supply 2x included in build Required
2x 495W is the configurator default and covers most R630 builds outright: dual mid-range CPUs, a sensible memory load, and a bay of SSDs land comfortably inside it.
2x 750W is our pick when the build fills out: top-TDP v4 processors, all 24 DIMM slots populated, or ten spinning drives. The price step is small and it buys you the 50 percent load target, where a PSU runs at peak efficiency, runs cooler, and lasts longer than one working near its limit.
2x 1100W is rarely necessary on this chassis and exists for the heaviest corner cases.
Watch the estimated TDP counter at the bottom of the page as you add components to see where your build lands, and when it sits between two tiers, size up; the price difference is a rounding error against the efficiency and headroom you get back.
8 Network Cards Required
Quad 1 GbE (Broadcom 5720, Intel i350) covers file, print, domain, and light application duty. If the server's clients are desktops on gigabit switching, this is honestly all you need, and it is the cheapest option on the list.
10 Gb becomes the floor the moment this server hosts a busy hypervisor, mounts shared storage, or moves backup traffic on a deadline. Most R630 builds are virtualization hosts, and a virtualization host on 1 Gb networking is bottlenecked at the card, not the CPUs. The 2x 10 Gb + 2x 1 Gb combo cards are the sweet spot: production on the fast pair, management on the slow pair.
Then port type, and this is the one that catches people. SFP+ ports take fiber or DAC cables and talk to datacenter-grade switches. BASE-T ports are 10 Gb copper on ordinary RJ45. Neither is better; they must simply match your switch. Order SFP+ against a copper-only switch and the server racks up with nothing to plug into.
Need more ports than the NDC provides? PCIe network cards stack on top of whatever you choose here. Call 1-800-778-1545 and we will spec the whole path, switch ports included.
9 Operating System Required
First, an honest compatibility note for this platform. Windows Server 2025 is not certified for this processor generation, and current VMware ESXi releases no longer support it. A 13th generation server is a value platform, and the right OS choices lean the same way.
Windows Server 2022 is the version to buy. Standard licensing is per core with a 16-core base, which is why our processor guidance steers Windows buyers to two 8-core CPUs: the 16-Core license covers that build exactly. Past 16 total cores, you need the 24-Core option. On CALs, count your users and round up.
Fair warning on Evaluation Editions: free and fully functional for 180 days, then they expire. Right for labs and proof-of-concept, wrong for production.
VMware: we will install ESXi on request for hosts joining an existing licensed cluster, but we do not recommend starting a new VMware deployment on this platform given the support status.
Proxmox VE is our quiet favorite for the R630: open-source KVM virtualization with clustering and live migration, no per-core license math, and full current support on this hardware. A pair of R630s is one of the cheapest legitimate virtualization clusters money can buy.
Ubuntu Server LTS covers Linux application duty with five years of free updates and no licensing conversation at all.
No OS is there for teams imaging from their own deployment infrastructure.
Not sure which fits? Tell us the workload at quote time, or call 1-800-778-1545.
WServer Warranty
Dell PowerEdge R630 10-Bay 2.5" Drives [13th Gen] Detailed Review
The Dell PowerEdge R630 10-Bay 2.5" is Dell's 13th-generation 1U dual-socket workhorse, the platform that built much of today's installed enterprise infrastructure. In 2026, the R630 is the cost-correct call when budget is the primary procurement driver, when parts availability matters, and when the deployment fits within the 13th gen platform envelope. The 10-Bay 2.5" configuration is the densest SFF variant on the R630 chassis, offering ten hot-swap front bays in the 1U form factor.
The R630 is widely deployed across enterprise infrastructure with deep institutional operating knowledge and proven thermal and power envelopes. For dev/test infrastructure, CI/CD build clusters, lab environments, training infrastructure, short-lifecycle deployments, budget-constrained projects, and secondary or tertiary infrastructure where platform currency is not the primary driver, the R630 10-Bay delivers real value. Acquisition cost on the refurbished market in 2026 is meaningfully below the 14th gen R640 and the 15th gen R650; for the right workload, that cost delta funds other infrastructure priorities.
Wholesale Servers stocks the R630 with full component support: PERC H730P 2 GB RAID, Intel Xeon E5-2600 v4 Broadwell CPUs across the SKU range, DDR4 at 2400 MT/s, iDRAC8 Enterprise, and dual hot-swap PSUs. Every refurbished unit ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and includes a 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options that cover the post-ProSupport window. Volume pricing applies at 5 units and above. To configure a build, call 1-800-778-1545 or use the quote form on this page.
Processors
The R630 is dual-socket and supports Intel Xeon E5-2600 v3 (Haswell, 2014) and v4 (Broadwell, 2016) processors. Single-socket configurations are also supported. Total CPU compute envelope dual-socket v4: up to 44 cores and 88 threads with the highest-core-count SKUs. The two generations are pin-compatible (LGA-2011-3 socket); a v3 board accepts v4 CPUs with a BIOS update.
For any new R630 deployment in 2026, v4 Broadwell is strongly recommended over v3 Haswell. v4 delivers better per-core performance, higher core-count SKUs, improved power efficiency, and is the longer-serviceable generation. Common production SKU choices:
- E5-2680 v4 (14 cores, 2.4 GHz, 120W TDP): The volume balanced choice. Mid-range core count and clock speed; strong all-purpose virtualization, application server, and database CPU. The most-deployed v4 SKU we see in R630 specifications.
- E5-2690 v4 (14 cores, 2.6 GHz, 135W TDP): Higher clock speed at same core count as 2680 v4. For deployments where clock-speed-sensitive workloads benefit from the 200 MHz uplift.
- E5-2697 v4 (18 cores, 2.3 GHz, 145W TDP): Higher core-count balanced choice. For VM-dense virtualization deployments where total core count drives consolidation ratio.
- E5-2699 v4 (22 cores, 2.2 GHz, 145W TDP): Maximum-core-count v4 SKU. For workloads that benefit from highest single-socket core count.
- E5-2620 v4 (8 cores, 2.1 GHz, 85W TDP): Cost-floor option for light workloads. For ROBO or branch deployments where 8 cores per socket is sufficient.
- E5-2643 v4 (6 cores, 3.4 GHz, 135W TDP): High-frequency low-core-count SKU. For Microsoft SQL Server per-core licensing scenarios where higher per-core performance reduces total licensing cost.
- E5-2667 v4 (8 cores, 3.2 GHz, 135W TDP): Balanced frequency-and-core option for SQL Server licensing and frequency-sensitive workloads.
v3 Haswell SKUs remain functional for non-demanding workloads at lower acquisition cost. For deployments where the workload genuinely does not stress the platform, v3 is acceptable; for production workloads of any duration, v4 is the right call.
Memory
24 DDR4 DIMM slots: 12 per CPU, four memory channels per socket, three slots per channel. Maximum capacity 1.5 TB with LRDIMMs on v4 processors, or 768 GB on v3. Memory speed: 2400 MT/s on v4 SKUs and 2133 MT/s on v3 SKUs at one or two DIMMs per channel; populating the third slot on every channel derates the system to 1866 MT/s.
The 2400 MT/s ceiling is the R630's defining memory characteristic vs. the 14th gen R640 (2933 MT/s) and 15th gen R650 (3200 MT/s). For memory-bandwidth-sensitive workloads (in-memory databases, large VM farms with high cross-NUMA traffic, real-time analytics), this matters. For most general-purpose virtualization, application serving, file serving, and dev/test infrastructure, the bandwidth delta is invisible.
Practical R630 memory configurations:
- 128 GB (8 x 16 GB RDIMM): Single-CPU or light dual-CPU configurations. Modest virtualization (10-20 VMs), application server, dev/test infrastructure.
- 256 GB (16 x 16 GB or 8 x 32 GB RDIMM): Standard mid-range dual-CPU configuration. 20-40 VM virtualization host, database server with reasonable working set, mid-density CI/CD build cluster.
- 512 GB (16 x 32 GB RDIMM): Higher-density virtualization host or memory-tier database. The volume-sweet-spot for VM-dense R630 deployments. Two DIMMs per channel, so full rated speed is retained.
- 768 GB (24 x 32 GB RDIMM): Fully-populated three DIMMs per channel; memory speed drops to 1866 MT/s. For deployments where memory capacity dominates over memory speed.
- 1.5 TB (24 x 64 GB LRDIMM): Maximum R630 memory, v4 processors only. Also a three-DIMM-per-channel population, so the same 1866 MT/s derate applies. For memory-dense database or VDI configurations at the platform ceiling.
Mixed RDIMM/LRDIMM is not supported. UDIMM is not supported. Optane Persistent Memory is NOT supported on the R630 (that's a 14th gen feature). Population rules: the largest-capacity DIMM is placed first, a maximum of two different capacities and two different rank types are allowed per system, and if DIMM speeds are mixed every channel on both processors runs at the slowest common frequency.
Storage - 10 SFF Bays

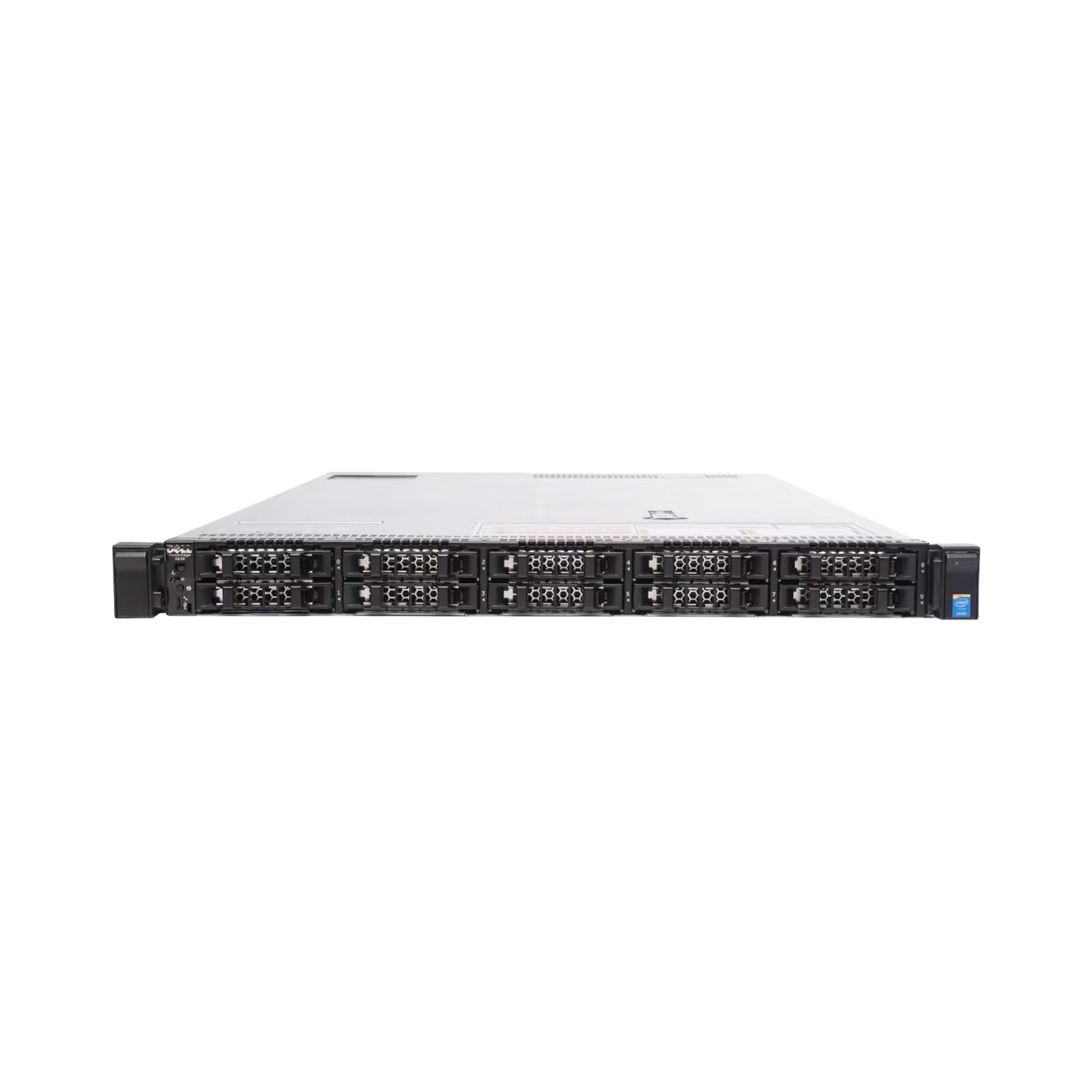

Ten 2.5" SAS/SATA hot-swap front bays. The 10-Bay configuration is the densest SFF storage variant of the R630 chassis. Capacity range from cost-optimized SAS HDDs through enterprise SAS/SATA SSDs.
Common 10-Bay configurations:
- 10 x 1.92 TB SAS SSD: Volume virtualization datastore configuration. ~17 TB usable at RAID 6 with hot spare. Strong random IOPS and sufficient capacity for dense VM hosts.
- 10 x 3.84 TB SAS SSD: Higher-capacity virtualization or database datastore. ~30 TB usable at RAID 6 with hot spare.
- 10 x 1.6 TB Mixed-Use SAS SSD: Write-intensive workloads (database transaction logs, VDI write cache, log aggregation). Higher write endurance at moderate capacity.
- 8 x SAS SSD + 2 x SAS HDD: Tiered storage with SSDs for hot data and HDDs for archive/log.
- 10 x 600 GB / 900 GB / 1.2 TB SAS 10K/15K HDDs: Legacy SAS configurations for organizations standardized on spinning disk. Less common in 2026 but still deployed.
NVMe note: The R630 does not support front-bay NVMe through the standard 10-Bay backplane. NVMe is possible via PCIe add-in cards but the R630's PCIe slot budget is constrained (3 slots typical) and the cards are typically slower than U.2 NVMe direct-attach available on later generations. For workloads that need front-bay NVMe density, the R640 or R650 is the right platform.
No BOSS module support: The Boot Optimized Storage Subsystem is a 14th gen feature and is not available on the R630. OS boot on the R630 uses one of these approaches: a dedicated RAID 1 mirror pair on the front bays (most common), an internal SD card or USB device via the IDSDM module, or an internal SATA M.2 SSD on some configurations. We typically configure a dedicated RAID 1 pair on the front bays for OS boot; this consumes 2 of the 10 bays but provides hardware-RAID-protected boot redundancy.
RAID Controllers
- PERC H730P (2 GB NV cache, battery-backed): The top RAID controller on the R630 platform. RAID 0/1/5/6/10/50/60 supported. Battery-backed write cache protects in-flight data through power events. Our default recommendation for any R630 deployment with meaningful storage workload. The 2 GB cache is a meaningful step down from the H740P (8 GB) on the 14th gen R640; for sustained write-intensive workloads, this is a real platform-generational difference.
- PERC H730 (1 GB NV cache, battery-backed): Lower-tier hardware RAID. Adequate for mixed I/O workloads with moderate write demand. Cost-effective when the H730P's 2 GB cache is not justified by the workload.
- PERC H330 (no cache): Entry-tier RAID. For dev/test or workloads where hardware RAID is configured for organizational consistency rather than performance.
- HBA330 (pass-through): Direct drive access for software-defined storage. For Ceph, GlusterFS, ZFS, or any storage stack that handles redundancy at the application layer.
No S130 software RAID on this chassis: PERC S130 chipset-level software RAID is offered only on the R630 8-Bay 2.5" configuration and is limited to eight SATA devices. It is not available on the 10-Bay backplane. If software RAID is a requirement, the 8-Bay variant is the chassis.
No H740P availability: The PERC H740P (8 GB NV cache) is a 14th gen controller and does not work on the R630. For sustained write-intensive workloads where the H740P's larger cache materially improves performance, the R640 is the right platform.
PCIe and Networking
PCIe 3.0 throughout. Slot configuration depends on riser selection: typical R630 deployments have 3 PCIe slots usable (mix of x8 and x16 full-height and low-profile). The 1U form factor constrains PCIe slot count; this is the structural limit of the chassis.
Networking is via OCP 2.0 mezzanine slot (rNDC, rack Network Daughter Card) plus PCIe NICs. Common networking configurations:
- 4-port 1 GbE rNDC: Baseline cost-floor option. Sufficient for management plus modest production traffic.
- 2-port 10 GbE Base-T rNDC: Standard for production R630 deployments. 10 GbE SFP+ via Intel X520 or Mellanox ConnectX-3 PCIe variants also common.
- 4-port 10 GbE rNDC: For deployments separating management, storage, and production traffic onto dedicated 10 GbE ports.
- 25 GbE PCIe NIC: Possible (Mellanox ConnectX-4 Lx supported) but uncommon on R630 deployments. If 25 GbE is required, the deployment is often being undersized; consider whether the R640 or R650 is the right platform.
GPU Support
The R630 is a 1U form factor and the GPU envelope is constrained accordingly. Single-width low-profile GPUs (NVIDIA T4, 70W) are supported on some riser configurations. Double-width GPUs are not supported in 1U; for GPU-accelerated workloads, the 2U R730 (up to 2x single-width or 1x double-width) or the R740 / R750 is the appropriate platform.
Power Supplies
| Workload Profile | Typical Draw | PSU Recommendation |
|---|---|---|
| Light: single CPU, 128 GB RAM, 4 SSDs, 1 GbE networking | 150-220W | 2 x 495W Platinum redundant |
| Balanced: dual v4 Gold CPU, 256-512 GB RAM, 8 SSDs, 10 GbE | 280-420W | 2 x 750W Platinum redundant |
| Heavy: dual high-TDP v4 CPU, 1 TB+ RAM, 10 SSDs, 10 GbE | 420-650W | 2 x 750W or 2 x 1100W Platinum redundant |
PSU options: 495W, 750W, 1100W hot-swap redundant (1+1). The 750W PSU covers the vast majority of R630 production deployments at appropriate efficiency. The 1100W is the headroom option for fully-loaded high-TDP-CPU configurations with substantial spinning-disk spin-up current; the 495W is the cost-floor option for light single-CPU configurations.
Management - iDRAC8 Enterprise
The R630 ships with iDRAC8 Enterprise out-of-band management. iDRAC8 provides: remote KVM console redirection, virtual media (ISO mount over network), power management and remote power cycle, hardware health monitoring, sensor and component telemetry, predictive failure analysis, Active Directory and LDAP integration, SNMP and email alerting, Lifecycle Controller for firmware management, vFlash SD card support for repository storage, and Quick Sync mobile management via NFC.
iDRAC8 functionally covers the operational needs of most enterprise R630 deployments. What iDRAC8 lacks vs. iDRAC9 (14th gen):
- No Silicon Root of Trust: Cryptographic verification of firmware from boot ROM through OS handoff is not present. For environments with strict firmware integrity compliance requirements (NIST 800-193, certain FedRAMP and DoD baselines), this is a meaningful gap.
- No System Lockdown: The iDRAC9 feature that protects configuration against unauthorized changes is not present. Configuration management discipline becomes more operational than enforceable.
- No Group Manager: iDRAC9 Group Manager for cross-server management is not available; OpenManage Enterprise still works for fleet management of iDRAC8 servers.
For the workloads where the R630 is the right platform (dev/test, lab, short-lifecycle, budget-constrained), iDRAC8 Enterprise functionally covers operational needs. For workloads requiring iDRAC9-specific security features, the 14th gen R640 is the platform.
Physical Specs & Platform Notes
- Form factor: 1U rack, standard 19" rack-mount, fits standard 4-post racks.
- PCIe expansion: up to 3 PCIe Gen3 slots depending on riser selection, in a mix of full-height and low-profile; the 1U chassis is the structural limit on slot count.
- Accessories we recommend: optional standard or LCD security bezel; A7 sliding rails, which are 12th/13th/14th gen rail-compatible so rail reuse is common in mixed-generation racks; optional cable management arm.
- Cooling and environment: 7 hot-swap dual-rotor fans; standard 10-35 degrees C ambient operating range; datacenter-class acoustics, not office-deployable.
- Parts availability: excellent through 2026-2027 on the strength of one of the largest installed bases in the PowerEdge line; full support-path detail in the next section.
- Platform notes: no BOSS module (OS boot uses a front-bay RAID 1 pair or IDSDM SD), no front-bay NVMe on the 10-Bay backplane, and top-bin 145W CPUs are supported but reduce thermal headroom under full memory and drive population.
Parts Availability and Support Path
R630 parts availability through 2026-2027 is excellent. The platform has one of the largest installed bases in the Dell PowerEdge product line, and the secondary market for CPUs (E5-2600 v3/v4 SKUs), DDR4 memory, 2.5" SAS drives, PERC controllers, PSUs, and rNDC NICs is deep and competitive. Beyond 2027, parts availability will gradually decline as the installed base retires, but core component categories remain widely sourceable.
Dell ProSupport for most R630 configurations has reached end-of-service. Third-party hardware maintenance is the standard production support path: IBM Hardware Maintenance Services, Curvature, Worldwide TechServices, and Park Place Technologies all support R630 platforms at competitive rates. Our standard warranty covers the immediate post-deployment period, and the Premium 1-Year, 2-Year, and 3-Year warranty options extend coverage across longer deployment horizons where third-party maintenance would otherwise be the path.
Dell's active firmware development for the R630 has concluded. Released BIOS, iDRAC, and component firmware versions remain available for download from Dell's support site, but new feature development and most non-critical security patches are not expected. Critical security firmware (severe iDRAC vulnerabilities, BMC compromise paths) has occasionally received post-EOL patches; this is not guaranteed forward.
Our Assessment
Where it excels: The R630 10-Bay is the cost-correct call when the workload profile genuinely fits the platform envelope and acquisition cost weighs more heavily in the procurement decision than platform currency. Dev/test and staging infrastructure where production-grade platform currency is not required, CI/CD build clusters running short-job pipelines, lab and training environments for organizational learning, short-lifecycle (2-3 year) application hosting, budget-constrained projects where the cost delta vs. the R640 funds other priorities, and secondary or tertiary infrastructure serving as backup or development capacity are all legitimate R630 deployment patterns in 2026.
Where to look instead: The R630 is not the right call for production deployments planned to run 4+ years (the 14th gen Dell PowerEdge R640 10-Bay 2.5" or 15th gen R650 are better long-horizon investments), workloads where memory bandwidth is genuinely the performance bottleneck (the 2400 MT/s ceiling matters here), environments with strict firmware integrity compliance requirements (iDRAC8 limitations bite), and deployments where the marginal cost of the R640 fits within procurement budget.
Bottom line: For procurement decisions that come down to R630 vs. R640 vs. R650, we show both R630 and R640 pricing side-by-side at quote time. The R630 is the right call when the cost delta materially funds other priorities; the R640 is the right call when platform currency, iDRAC9, and DDR4 2933 MT/s memory speed are worth the premium. We will not push one over the other; the workload context determines the right answer.
Workload Fit
| Excels at | Where to look elsewhere |
|---|---|
| ✅ Dev/test and staging infrastructure (2-3 year horizon) | ❌ Production deployments running 4+ years (use R640 or R650) |
| ✅ CI/CD build clusters and short-job pipelines | ❌ Memory-bandwidth-sensitive workloads (use R640 at 2933 MT/s) |
| ✅ Lab, training, and organizational learning infrastructure | ❌ Firmware integrity compliance (iDRAC9 required, use R640 or newer) |
| ✅ Budget-constrained application hosting | ❌ Optane Persistent Memory required (use R640 or newer) |
| ✅ Mid-density virtualization on dual v4 (20-40 VMs) | ❌ PCIe Gen4 storage or networking required (use R650) |
| ✅ Secondary or tertiary infrastructure | ❌ Front-bay NVMe required (use R640 NVMe variants) |
| ✅ Deep parts availability from a large installed base | ❌ Multi-GPU or double-width GPU compute (use 2U or larger) |
Honest Limitations
- iDRAC8, not iDRAC9. Functional remote management at the operational level; lacks Silicon Root of Trust, System Lockdown, and Group Manager. For environments with firmware integrity compliance requirements, this is a real gap that the 14th gen R640 (iDRAC9) addresses.
- DDR4 2400 MT/s memory speed ceiling. Below the 14th gen R640 (2933 MT/s) and 15th gen R650 (3200 MT/s). For memory-bandwidth-sensitive workloads (in-memory databases, real-time analytics, large NUMA-aware virtualization), this is a meaningful platform delta. For most general-purpose workloads, the difference is invisible.
- Full memory population derates speed. Filling all 24 slots means three DIMMs on every channel, which drops the whole system to 1866 MT/s. Capacity and speed trade against each other at the top of the memory range.
- No BOSS module support. BOSS is a 14th gen feature. OS boot on R630 requires dedicated front-bay RAID 1 pair (consumes 2 of 10 bays), internal SD card via IDSDM, or internal USB. Functional but less elegant than the 14th gen BOSS-S1 module.
- No Optane Persistent Memory support. PMem requires 14th gen R640 or newer. If your storage architecture includes a PMem tier, the R630 is the wrong platform.
- PERC H740P not available. The R630 tops out at H730P (2 GB cache); the 14th gen H740P (8 GB cache) is a meaningful step up for sustained write-intensive workloads. For write-heavy databases or backup-target ingestion, this matters.
- PCIe Gen3 ceiling. Throughout the platform. For Gen4-bandwidth applications (Gen4 NVMe at full speed, 100 GbE+ networking), the R630 cannot surface the bandwidth. PCIe Gen4 first appears on the 15th gen R650.
- PCIe slot count constrained. 3 slots typical in the 1U form factor. For deployments needing GPU plus high-speed networking plus external HBA, the 2U R730 has more slot budget.
- Dell ProSupport end-of-service. Most R630 configurations are past Dell's ProSupport service life. Third-party maintenance is the production support path; our Premium warranty options cover the same window for most deployments.
- Active firmware development has concluded. Released firmware versions remain available; new feature and most security patch development by Dell has ended. Critical iDRAC and BMC vulnerabilities have occasionally received post-EOL patches but this is not guaranteed.
- No front-bay NVMe on the 10-Bay backplane. NVMe is possible via PCIe add-in cards but PCIe slot budget is constrained and add-in NVMe cards are typically slower than U.2 direct-attach.
- OS support narrowing. Modern OS releases (RHEL 10, Windows Server 2025) may have limited or no support for the R630 platform. Verify OS compatibility for deployment horizons beyond 2026.
- 1U thermal envelope constrains high-TDP CPU operation. Top-end v4 SKUs (145W TDP) are supported but reduce thermal headroom for dense memory and storage configurations under sustained load. Top-end CPU + full memory + full drive populations may operate near thermal limits in warm-ambient datacenters.
Generation Context
vs. R640 (14th gen Skylake/Cascade Lake successor): The R640 is the direct 14th gen successor. Material improvements over the R630: DDR4 2666-2933 MT/s memory speed (vs. 2400 MT/s), iDRAC9 with Silicon Root of Trust and System Lockdown (vs. iDRAC8), PERC H740P with 8 GB NV cache (vs. H730P 2 GB), Optane Persistent Memory support, the BOSS-S1 boot module, and improved NVMe integration. The R640 cost premium over the R630 has narrowed in 2026 as both generations became widely available on the secondary market; for production-horizon deployments, the R640 is often the cost-correct call. See the Dell PowerEdge R640 10-Bay 2.5" for the 14th gen successor, or the Dell PowerEdge R640 8-Bay 2.5" for the lower-density 14th gen option.
vs. R650 (15th gen Ice Lake successor): The R650 brings PCIe Gen4 throughout, 3rd Gen Xeon Scalable (Ice Lake) processors with higher core counts, 32 DDR4 DIMM slots (vs. 24), DDR4 3200 MT/s memory speed, native PCIe Gen4 NVMe support, and the 15th gen iDRAC9 security baseline. For infrastructure planned to run 5+ years with current platform-class workload demands, the R650 is the longer-horizon investment.
vs. HPE ProLiant DL360 Gen9 (cross-vendor counterpart): The DL360 Gen9 is HPE's 1U dual-socket equivalent for the same generation, built on the same Intel Xeon E5-2600 v3/v4 platform. For organizations standardized on HPE iLO and ProLiant tooling rather than Dell iDRAC and OpenManage, it is the parallel 13th-gen-class choice. See the HPE ProLiant DL360 Gen9 10-Bay 2.5".
vs. R630 8-Bay 2.5": Same platform, two fewer SFF bays. The 8-Bay is the lower-cost variant when eight drives cover the storage requirement; the 10-Bay on this page is the right call when storage density per node matters. The 8-Bay is also slightly more flexible for OS boot mirror placement, since a 2-bay boot pair still leaves six bays for data, vs. the 10-Bay's eight-for-data after the boot pair. See the Dell PowerEdge R630 8-Bay 2.5".
vs. R730 (2U 13th gen companion): The R730 is the 2U member of the same generation: same Xeon E5-2600 v3/v4 platform, same 24 DDR4 DIMM slots, same iDRAC8, same PERC H730P controller family. The R730 adds more PCIe slots (6-7 vs. 3 in 1U), larger PSU options, GPU support (up to 2x single-width or 1x double-width), and more storage chassis variants including LFF. Pick the R630 when 1U density is the design driver; pick the R730 when PCIe expansion, GPU support, or LFF storage matters. See the Dell PowerEdge R730 8-Bay 2.5".
vs. R430 (1U entry-tier 13th gen companion): The R430 is the entry-tier 1U platform in the same generation: lower CPU TDP envelope, fewer DIMM slots (12 vs. 24), single-PSU configurations common, and 4-bay LFF or SFF chassis. For entry-tier 13th gen deployments where the R630's dual-socket envelope is over-provisioned, the R430 covers the same generation at lower cost. See the Dell PowerEdge R430 4-Bay 3.5".
Ready to Configure?
Tell us your workload, target CPU SKU (v3 cost-floor or v4 production), memory capacity, drive count and type (SAS SSD volume choice or HDD capacity), RAID requirement, networking speed, and quantity. We respond within 24 hours.
If you would like a side-by-side comparison against the R640 or R650 at current secondary-market pricing, tell us at quote time. We will return both options with formal pricing so the generational decision is informed by current cost reality, not by assumptions about either platform.
Every Wholesale Servers R630 ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and includes a 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options for the post-ProSupport period. Volume pricing applies at 5 units and above. Call 1-800-778-1545 or use the quote form on this page.
