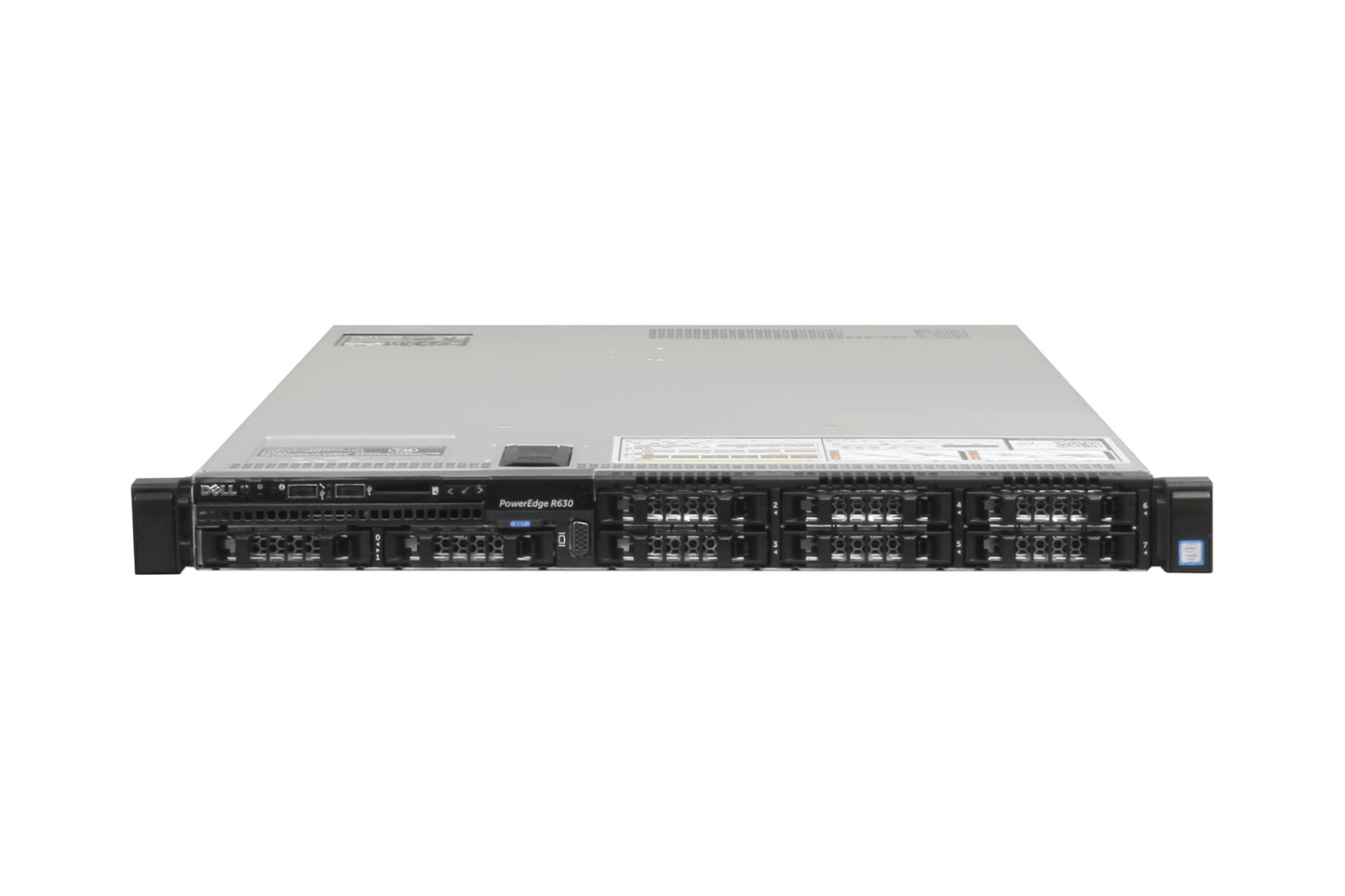

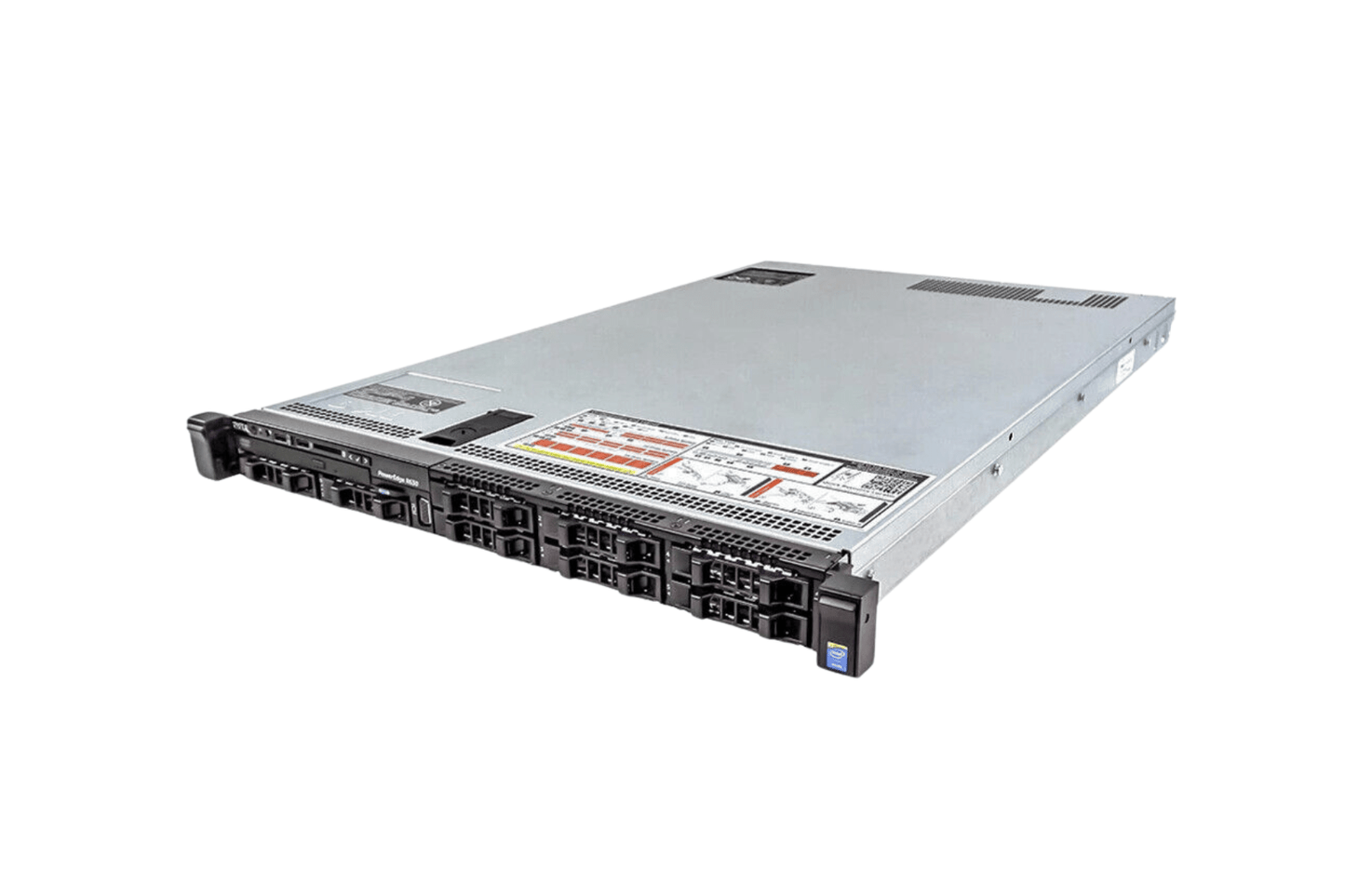

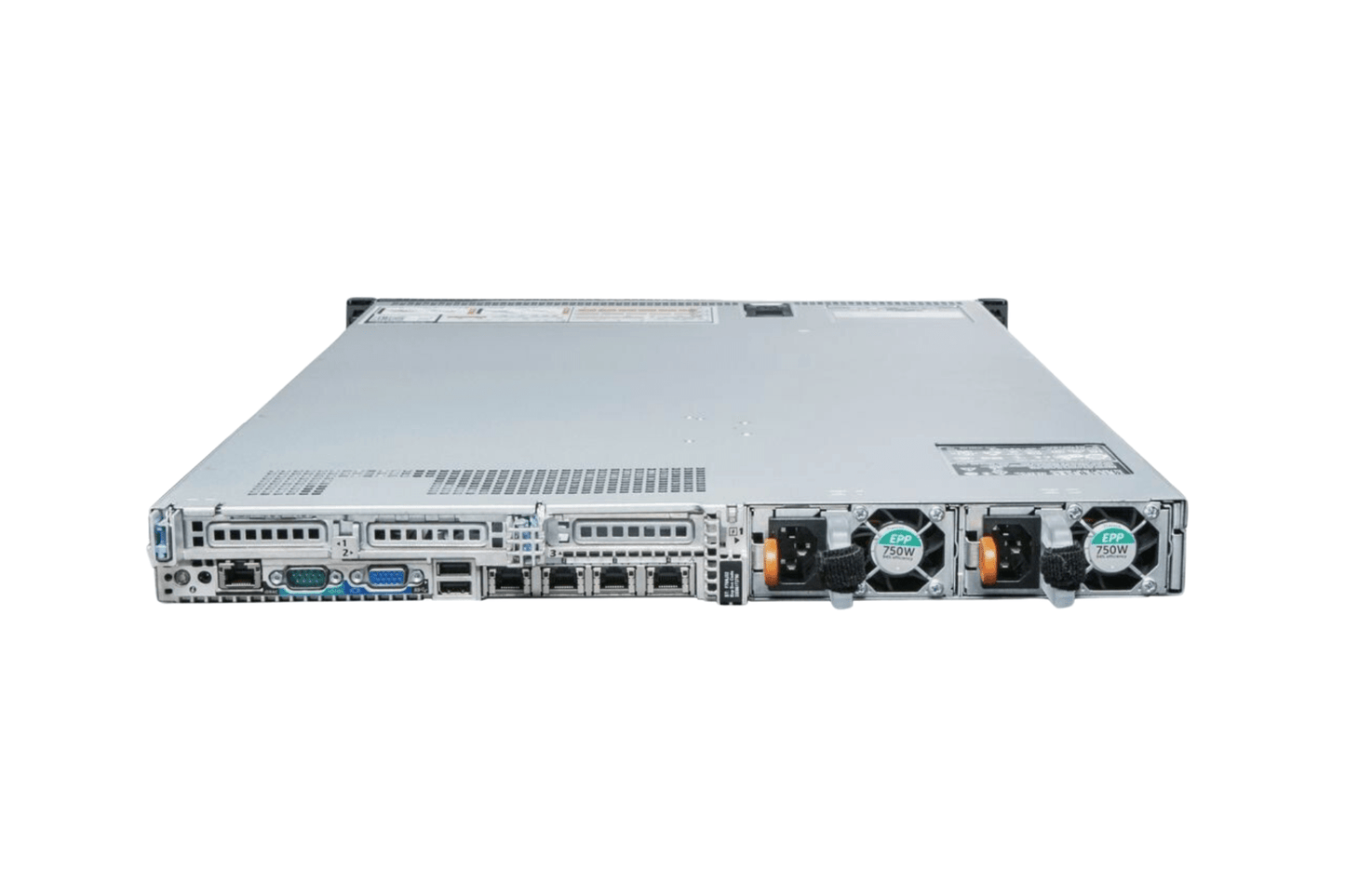

Dell PowerEdge R630 8-Bay 2.5"
Configure Your System:
1 Processor Required
Step 1: Choose a series
Intel Xeon E5-2600 v3 (Haswell) is the value play. Mature, plentiful, and the lowest cost per core we sell. Memory runs at 2133 MT/s.
Intel Xeon E5-2600 v4 (Broadwell) is the same socket a die shrink later: more cores at the top of the range, better performance per watt, and 2400 MT/s memory support. The price gap has narrowed enough that v4 is our default recommendation; take v3 when the budget is the whole story.
Whichever series you pick, populate both sockets. A single-CPU R630 loses half its memory channels, half its DIMM slots, and the PCIe lanes that route through the second processor.
Step 2: Choose your CPU
The R630 is the dense compute node of this generation, and most builds here are virtualization hosts or scale-out workers, so core count usually wins.
Running Windows Server 2022? Two 8-core CPUs land exactly on the 16-core base license. Our pick is the E5-2667 v4 (8 cores, 3.2 GHz): high clocks per core are exactly what Windows workloads reward, and the license covers the pair with nothing wasted.
Virtualizing on vSphere? VMware licenses a 16-core minimum per socket, so the 8-core strategy buys you nothing there. Take core count instead: the E5-2680 v4 (14 cores) is the workhorse pick, and the E5-2698 v4 (20 cores) is where dense consolidation lands.
General compute, Proxmox, and Linux duty: mid-range v4 parts in the 2650 to 2680 range cover the widest span of workloads per dollar.
Fair warning: a 13th generation platform is a value play, not a performance play. If per-core licensing or single-thread speed is load-bearing, newer silicon can cost less overall, and we will tell you so at quote time if that is your situation.
2 Heat Sink Optional
What matters more in a 1U chassis is airflow discipline, because there is no spare vertical space to forgive mistakes. Keep every drive bay blank and internal shroud installed; the R630 cools front to back through small high-speed fans, and an open path lets air skip the components that need it.
Also set expectations on noise: a 1U server under load sounds like a 1U server under load. It was engineered for datacenter intake air and a room where nobody is trying to think. It will run fine in an office closet, but if the rack shares a wall with a desk, a tower or 2U chassis is the kinder choice.
3 Memory (RAM) 24 DIMM slots, modules added in sets of 2 Required
The E5-2600 platform runs four memory channels per socket. Populate up to two DIMMs per channel (16 slots total) and memory runs at full speed: 2400 MT/s with v4 processors, 2133 with v3. Load the third DIMM on each channel to reach all 24 slots and the whole bank drops a speed tier. That is the trade: 16 slots for maximum bandwidth, 24 slots for maximum capacity per dollar.
Our default is 16 DIMMs at full speed. A virtualization host feels memory bandwidth more than it feels the last few slots.
Go to all 24 when capacity is the whole point: a budget consolidation host where 50 percent more RAM at a lower clock beats less RAM at a higher one. That is a real workload profile, and this platform serves it cheaply.
Whichever count you choose, buy it as one matched set, now. The instinct to leave slots open for a later upgrade rarely plays out well: a year from now you are hunting for DIMMs that match the rank and speed of what is in the box, and a mismatch either clocks the whole server down or refuses to train. The server is in production by then, so adding memory means a maintenance window you have to schedule and justify.
Common landing spots: 128 GB (16x 8 GB) for general duty, 256 GB (16x 16 GB) for a serious virtualization host at full speed, 384 GB (24x 16 GB) when capacity outranks bandwidth, and 512 GB (16x 32 GB) for database work.
4 RAID Controllers Optional
PERC H730P (2 GB battery-backed cache) is the configurator default and our pick for most builds. The cache is what keeps write performance respectable on parity RAID, and it is the difference between an array that performs and one that merely functions.
PERC H730 (1 GB cache) is the same controller family with half the cache. It is a fair savings on a light build; on a full ten-bay array with real write load, spend the small difference on the H730P.
PERC H330 has no cache. It handles RAID 1 boot mirrors and light duty, and nothing else well. Do not put it in front of a parity array you care about.
HBA330 (non-RAID) is the one to pick when the software owns the drives: vSAN, Storage Spaces Direct, Ceph, and ZFS all want direct drive access, and a RAID controller in the path actively hurts. If you are building any of those, the HBA330 is the correct and complete answer.
Array guidance regardless of controller: RAID 10 where write latency matters, RAID 6 over RAID 5 on large spinning drives, and a hot spare on any array whose rebuild you would rather not race.
5 Storage Drives Select up to 8 drives (0/8 Slots Used) Optional
The R630 takes 2.5" SAS and SATA drives in both flavors: solid state and spinning. Our guidance by workload: SSDs for anything latency-sensitive (virtualization datastores, databases, application volumes), 10K SAS spinning drives where capacity per dollar matters more than IOPS, and a mix is often the honest answer, fast tier in the first bays, bulk behind it. A 1U compute node usually wants its hot data local and its bulk storage elsewhere, so most R630 builds lean SSD.
Buy new. We steer you away from refurbished on drives specifically, and we say that as a company that sells refurbished servers all day. The chassis, board, and power supplies in a refurbished R630 have proven themselves through our burn-in; a used drive with unknown hours is a different bet, and a rebuild is exactly when you do not want to lose a second one.
The R630 predates Dell's dedicated boot card, so plan the boot volume out of your data bays: a small RAID 1 pair of SSDs in two bays is the standard pattern. It costs you two bays and it is worth it; a boot failure and a data failure should never be the same event.
Fair warning on capacity math: RAID overhead, hot spares, and filesystem headroom mean usable space lands well under the sum of the labels. Size for the usable number, and when in doubt, one drive size up is cheap insurance.
6 Remote Access Required
The dividing line is the remote console. iDRAC8 Enterprise gives you remote KVM and virtual media, meaning you can reach the server's screen, mount an ISO, and rebuild an OS from anywhere, even when the operating system is down. Express does not include the remote console, so any problem below the OS level means walking to the rack.
Our pick is Enterprise, and on a 13th generation server the case is stronger, not weaker, than on new hardware. These servers typically go into branch racks, colos, labs, and secondary roles, places nobody visits on a schedule, and the license costs a fraction of one site trip.
Express is the right call only when the server sits down the hall and someone can physically reach it without ceremony.
One honest note on age: iDRAC8's interface is a product of its era, and some functions lean on older browser technology than iDRAC9 does. It works, we use it daily, but budget a few minutes of setup patience.
If you are deploying 5 or more units, take Enterprise on all of them. Fleet management without remote console access does not work in practice.
7 Power Supply 2x included in build Required
2x 495W is the configurator default and covers most R630 builds outright: dual mid-range CPUs, a sensible memory load, and a bay of SSDs land comfortably inside it.
2x 750W is our pick when the build fills out: top-TDP v4 processors, all 24 DIMM slots populated, or ten spinning drives. The price step is small and it buys you the 50 percent load target, where a PSU runs at peak efficiency, runs cooler, and lasts longer than one working near its limit.
2x 1100W is rarely necessary on this chassis and exists for the heaviest corner cases.
Watch the estimated TDP counter at the bottom of the page as you add components to see where your build lands, and when it sits between two tiers, size up; the price difference is a rounding error against the efficiency and headroom you get back.
8 Network Cards Required
Quad 1 GbE (Broadcom 5720, Intel i350) covers file, print, domain, and light application duty. If the server's clients are desktops on gigabit switching, this is honestly all you need, and it is the cheapest option on the list.
10 Gb becomes the floor the moment this server hosts a busy hypervisor, mounts shared storage, or moves backup traffic on a deadline. Most R630 builds are virtualization hosts, and a virtualization host on 1 Gb networking is bottlenecked at the card, not the CPUs. The 2x 10 Gb + 2x 1 Gb combo cards are the sweet spot: production on the fast pair, management on the slow pair.
Then port type, and this is the one that catches people. SFP+ ports take fiber or DAC cables and talk to datacenter-grade switches. BASE-T ports are 10 Gb copper on ordinary RJ45. Neither is better; they must simply match your switch. Order SFP+ against a copper-only switch and the server racks up with nothing to plug into.
Need more ports than the NDC provides? PCIe network cards stack on top of whatever you choose here. Call 1-800-778-1545 and we will spec the whole path, switch ports included.
9 Operating System Required
First, an honest compatibility note for this platform. Windows Server 2025 is not certified for this processor generation, and current VMware ESXi releases no longer support it. A 13th generation server is a value platform, and the right OS choices lean the same way.
Windows Server 2022 is the version to buy. Standard licensing is per core with a 16-core base, which is why our processor guidance steers Windows buyers to two 8-core CPUs: the 16-Core license covers that build exactly. Past 16 total cores, you need the 24-Core option. On CALs, count your users and round up.
Fair warning on Evaluation Editions: free and fully functional for 180 days, then they expire. Right for labs and proof-of-concept, wrong for production.
VMware: we will install ESXi on request for hosts joining an existing licensed cluster, but we do not recommend starting a new VMware deployment on this platform given the support status.
Proxmox VE is our quiet favorite for the R630: open-source KVM virtualization with clustering and live migration, no per-core license math, and full current support on this hardware. A pair of R630s is one of the cheapest legitimate virtualization clusters money can buy.
Ubuntu Server LTS covers Linux application duty with five years of free updates and no licensing conversation at all.
No OS is there for teams imaging from their own deployment infrastructure.
Not sure which fits? Tell us the workload at quote time, or call 1-800-778-1545.
WServer Warranty
Dell PowerEdge R630 8-Bay 2.5" Drives [13th Gen] Detailed Review
The Dell PowerEdge R630 8-Bay 2.5" is the lower-density SFF configuration of Dell's 13th-generation 1U dual-socket platform: eight 2.5" hot-swap front bays alongside the same E5-2600 v3/v4 dual-socket compute, 24 DDR4 DIMM slots, PERC H730P RAID, and iDRAC8 Enterprise as the rest of the R630 family. This is the right R630 chassis when 8 SFF bays cover the storage requirement and the additional 2-bay capacity of the 10-Bay variant is not needed.
For full R630 platform documentation (E5-2600 v3/v4 processor selection, DDR4 memory architecture at 2400 MT/s, PERC controller options, PCIe Gen3 expansion, iDRAC8 Enterprise capabilities and limitations, parts availability and support path, and the full limitations and generation-context discussion), see the R630 10-Bay 2.5" page. This page focuses on what is specific to the 8-Bay chassis variant: storage configuration patterns, OS boot economy, and when 8 bays is the right call.
Wholesale Servers stocks the R630 8-Bay with the same component support, testing, and warranty as the rest of the line. Every refurbished unit ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and includes a 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options. Volume pricing applies at 5 units and above. To configure a build, call 1-800-778-1545 or use the quote form on this page.
What's Different About This Chassis
- 8 SFF bays vs. 10 on the R630 10-Bay. Two fewer drive bays in the same 1U chassis. Lower acquisition cost than the 10-Bay variant when the workload genuinely fits in 8 drives.
- OS boot mirror placement economics. The R630 has no BOSS module (14th gen feature). OS boot typically uses a dedicated front-bay RAID 1 pair. On the 8-Bay, the boot pair consumes 2 of 8 bays leaving 6 for data; on the 10-Bay, the boot pair leaves 8 for data. For deployments where the boot mirror is on the front bays AND the data array needs maximum spindle count, the 10-Bay is the right call. For deployments where 6 data drives is enough, the 8-Bay is fine.
- IDSDM boot alternative. The R630 supports internal SD card boot via the IDSDM module. When the OS is hypervisor-only (VMware ESXi, Hyper-V Server) and does not need persistent storage on dedicated drives, IDSDM frees up the front bays. The 8-Bay with IDSDM boot gives 8 data drives, equivalent to the 10-Bay with a front-bay boot pair. For ESXi-only deployments, the 8-Bay with IDSDM is a cost-effective configuration.
- Same platform underneath. Dual-socket E5-2600 v3/v4, 24 DIMM slots, PERC H730P storage controller, iDRAC8 Enterprise, OCP 2.0 networking, hot-swap redundant PSUs. The platform envelope is identical to the 10-Bay.
- Cannot be field-converted to 10-Bay. The chassis backplane and drive cage are 8-Bay-specific. If you outgrow the 8-Bay, the upgrade path is a different chassis purchase, not a backplane swap.
Storage Configuration Patterns
Eight 2.5" SAS/SATA hot-swap front bays. The fundamental drive selection mirrors the R630 10-Bay: SAS SSDs for performance and most production VM datastores, SAS HDDs for legacy spinning-disk configurations, mixed-use SAS SSDs for write-intensive workloads.
Common 8-Bay configurations
- 2 x SAS SSD boot mirror + 6 x SAS SSD data array: Volume R630 8-Bay production configuration. 2 x 240-960 GB boot SSDs in RAID 1; 6 x 1.92-3.84 TB SAS SSDs in RAID 6 for data. Typical for general-purpose VM hosts with moderate storage capacity requirements.
- IDSDM boot + 8 x SAS SSD data array: ESXi-only configuration. 8 data drives for maximum spindle count in RAID 6, RAID 10, or RAID 50 configurations. For density-sensitive virtualization where every bay counts.
- 2 x boot mirror + 4 x SAS SSD + 2 x SAS HDD tier: Mixed-tier configuration with SSDs for hot data and HDDs for cold/log data.
- 8 x 1.92 TB SAS SSD with IDSDM boot: Mid-density virtualization datastore. ~13 TB usable at RAID 6 with hot spare. Strong virtualization configuration with appropriate redundancy.
- 8 x 600 GB / 900 GB / 1.2 TB SAS 10K/15K HDDs: Legacy spinning-disk configurations for organizations standardized on SAS HDDs.
- Cost-floor configuration: 2 x boot mirror + 6 x lower-cost SATA SSDs for dev/test or lab deployments.
All other storage characteristics (RAID guidance, drive type recommendations, no BOSS module, no front-bay NVMe) match the 10-Bay page. See the R630 10-Bay 2.5" page for full discussion.
When 8 Bays Is the Right Call
The 8-Bay R630 is the right chassis variant when:
- The storage requirement is demonstrably bounded at 6-8 data drives. For deployments where the storage capacity and IOPS requirements are clearly within an 8-Bay configuration's envelope, the 8-Bay is the cost-correct choice.
- Hypervisor boot is on IDSDM or USB. Frees up the 2 bays that would otherwise be the front-bay boot mirror. ESXi-only configurations particularly benefit.
- Acquisition cost optimization matters. The 8-Bay is meaningfully lower-cost than the 10-Bay on the refurbished market.
- OS boot can use 2 front bays plus 6 data drives. For Linux or Windows Server deployments where front-bay boot mirror is preferred, the 8-Bay with 2 boot + 6 data is a clean configuration.
When the 10-Bay is the right call instead: deployments needing 8 data drives AFTER the OS boot mirror, vSAN-style configurations wanting all 10 bays for cache + capacity tier drives, or any deployment where growth from 6-8 to 8-10 drives is plausible.
Processors and Memory
Identical to the R630 10-Bay: dual-socket Intel Xeon E5-2600 v3/v4, with v4 Broadwell recommended for new deployments (common SKUs include the E5-2680 v4, E5-2690 v4, E5-2697 v4, and E5-2699 v4), and 24 DDR4 DIMM slots at a 2400 MT/s ceiling, up to 1.5 TB with LRDIMMs, no Optane Persistent Memory. See the R630 10-Bay 2.5" page for full processor and memory selection guidance.
RAID Controllers
The same controller ladder as the rest of the platform: PERC H730P (2 GB cache) as the top option, with H730, H330, HBA330 pass-through, and S130 software RAID below it. The H730P is our default for any 8-Bay build with a meaningful storage workload. Full guidance is on the R630 10-Bay 2.5" page.
Networking and PCIe
OCP 2.0 rNDC networking (1 GbE, 10 GbE Base-T, or 10 GbE SFP+) plus PCIe Gen3 expansion, with 3 PCIe slots typical in the 1U form factor. The 8-Bay carries the same networking and slot budget as the 10-Bay. See the R630 10-Bay 2.5" page for NIC options and slot detail.
Management - iDRAC8 Enterprise
iDRAC8 Enterprise out-of-band management: remote KVM, virtual media, power control, hardware health telemetry, and Lifecycle Controller. As with the rest of the generation, iDRAC8 does not include the Silicon Root of Trust, System Lockdown, or Group Manager features introduced with iDRAC9 on the 14th gen R640. See the R630 10-Bay 2.5" page for the full iDRAC8 capability and limitation discussion.
Power Supplies
Same PSU range as the 10-Bay. Power draw on 8-Bay configurations is typically slightly lower than 10-Bay equivalents due to fewer active drives, but the difference at production load is modest (10-20W).
| Workload Profile | Typical Draw | PSU Recommendation |
|---|---|---|
| Light: single CPU, 128 GB RAM, 4 SSDs, 1 GbE networking | 140-200W | 2 x 495W Platinum redundant |
| Balanced: dual v4 Gold CPU, 256-512 GB RAM, 6-8 SSDs, 10 GbE | 270-400W | 2 x 750W Platinum redundant |
| Heavy: dual high-TDP v4 CPU, 1 TB+ RAM, 8 SSDs, 10 GbE | 400-620W | 2 x 750W or 2 x 1100W Platinum redundant |
Physical Specs & Platform Notes
- Form factor: 1U rack, standard 19" rack-mount, fits standard 4-post racks.
- Drive bays: eight 2.5" SAS/SATA hot-swap front bays; not field-convertible to the 10-Bay backplane.
- PCIe expansion: up to 3 PCIe Gen3 slots depending on riser selection, in a mix of full-height and low-profile.
- Accessories we recommend: optional standard or LCD security bezel; A7 sliding rails (12th/13th/14th gen rail-compatible); optional cable management arm.
- Cooling and environment: 7 hot-swap dual-rotor fans; standard 10-35 degrees C ambient operating range; datacenter-class acoustics, not office-deployable.
- Platform notes: no BOSS module (boot via front-bay RAID 1 pair or IDSDM SD), no front-bay NVMe, and parts availability strong through 2026-2027.
Our Assessment
Where it excels: The R630 8-Bay 2.5" is the right call when storage requirements are clearly bounded at 6-8 data drives and acquisition cost optimization matters. The same dev/test, CI/CD, lab, training, and short-lifecycle workload profiles that justify the R630 platform generally also justify the 8-Bay variant when storage capacity is not the binding constraint.
Where to look instead: For deployments where storage might grow beyond 8 drives during the server's productive life, the 10-Bay at procurement is the right call, since chassis variants are not field-convertible. For workloads that need 14th gen platform currency, iDRAC9, or higher memory bandwidth, the R640 is the better long-horizon investment.
Bottom line: the cost-optimized R630 SFF variant for storage-bounded workloads. Same platform value as the 10-Bay; fewer bays. If storage growth is plausible, the 10-Bay is the right procurement decision.
Workload Fit
| Excels at | Where to look elsewhere |
|---|---|
| ✅ Dev/test and staging at 6-8 drive capacity | ❌ More than 8 drives needed (use R630 10-Bay) |
| ✅ ESXi-only with IDSDM boot, 8 data drives | ❌ LFF capacity drives needed (use R730 8-Bay 3.5") |
| ✅ CI/CD build clusters with modest storage | ❌ Production 4+ year deployments (use R640) |
| ✅ Lab and training infrastructure | ❌ Memory-bandwidth-sensitive workloads (use R640) |
| ✅ Cost-floor R630 SFF configurations | ❌ Storage growth plausible during lifecycle (use 10-Bay at procurement) |
Honest Limitations
- 8 bays is the chassis ceiling. Cannot be field-converted to 10-Bay. Plan storage capacity at procurement.
- Front-bay boot pair consumes 25% of bays. Unlike the 10-Bay where a boot pair consumes 20% of bays, the 8-Bay boot pair leaves only 6 data drives. For configurations where front-bay boot is preferred AND data spindle count matters, the 10-Bay is the right call.
- All R630 platform limitations apply. iDRAC8 (no Silicon Root of Trust), DDR4 2400 MT/s ceiling, no BOSS module, no Optane PMem, PERC H730P (no H740P availability), PCIe Gen3 ceiling, Dell ProSupport end-of-service, active firmware development concluded. See the R630 10-Bay 2.5" page for full discussion.
- No front-bay NVMe. Same constraint as the 10-Bay; NVMe via PCIe add-in cards only.
- OS support narrowing for the platform. Same constraint as the 10-Bay; modern OS releases may have limited support.
Generation Context
vs. R640 8-Bay (14th gen successor): The R640 8-Bay is the direct 14th gen successor. Material improvements: DDR4 2666-2933 MT/s memory speed, iDRAC9 with Silicon Root of Trust, PERC H740P 8 GB cache, Optane Persistent Memory support, BOSS-S1 boot module. See the Dell PowerEdge R640 8-Bay 2.5" for the 14th gen successor.
vs. R630 10-Bay: Same platform; two more bays on the 10-Bay. Pick the 8-Bay when storage is bounded at 6-8 data drives and cost optimization matters; pick the 10-Bay when storage density matters or growth is plausible. See the Dell PowerEdge R630 10-Bay 2.5".
vs. HPE ProLiant DL360 Gen9 (cross-vendor counterpart): The DL360 Gen9 is HPE's 1U dual-socket equivalent for the same generation, built on the same Intel Xeon E5-2600 v3/v4 platform. For organizations standardized on HPE iLO and ProLiant tooling, it is the parallel 13th-gen-class choice. See the HPE ProLiant DL360 Gen9 10-Bay 2.5".
vs. R430 4-Bay (13th gen entry-tier companion): The R430 is the entry-tier 13th gen 1U with lower CPU TDP envelope, fewer DIMM slots (12 vs. 24 on R630), and a 4-bay chassis. For entry-tier 13th gen deployments where the R630's dual-socket envelope is over-provisioned, the R430 at lower cost is the option. See the Dell PowerEdge R430 4-Bay 3.5".
vs. R730 (2U 13th gen companion): The R730 family adds 2U-specific advantages: more PCIe slots, GPU support, and more storage chassis variants including LFF. Pick the R630 8-Bay when 1U density is the design driver and 8 SFF bays is enough; pick the R730 when 2U expansion benefits matter. See the Dell PowerEdge R730 8-Bay 2.5".
Ready to Configure?
Tell us your workload, target CPU SKU, memory capacity, drive count and type (8 max on this chassis), boot configuration (front-bay mirror vs. IDSDM), RAID requirement, networking speed, and quantity. We respond within 24 hours.
If you want a side-by-side R630 10-Bay vs. R630 8-Bay vs. R640 8-Bay comparison at current secondary-market pricing, tell us at quote time. We will return all three options so the chassis and generational decisions are informed by current cost reality.
Every Wholesale Servers R630 ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and includes a 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options. Volume pricing applies at 5 units and above. Call 1-800-778-1545 or use the quote form on this page.
