The Refurbished Dell PowerEdge R540 occupies a specific and underappreciated position in the 14th gen lineup: it is Dell's deliberately price-tier-optimized 2U LFF platform, sitting architecturally between the 1U R440 and the flagship R740xd. The 12-Bay 3.5" configuration is the variant that most directly justifies the R540's reason for existing: bulk LFF capacity in a 2U body, with a memory and PCIe envelope sized for storage-centric workloads rather than compute-density or accelerator deployments. We deploy this most often as file servers, branch-office NAS, surveillance recording targets, small-to-medium backup repositories, and modest virtualization hosts where storage capacity matters more than VM density.

Where the R540 Fits in the Family

One thing to be clear about upfront: the R540 is not a junior R740xd. It shares the same LGA 3647 socket, the same Cascade Lake / Skylake-SP V2/V1 processor lineup, the same iDRAC9, the same PERC family, and the same BOSS-S1 boot module, but Dell deliberately trimmed the dual-socket expansion envelope to hit a lower price point. The R540 has 16 DDR4 DIMMs split asymmetrically across the two CPUs (10 on CPU1, 6 on CPU2) versus the symmetric 24-DIMM topology on the Dell PowerEdge R740xd 12-Bay 3.5". It does not support NVMe drives, does not support GPU accelerators, does not support NVDIMM-N, and tops out at 2 to 5 PCIe Gen3 slots depending on riser configuration. If a buyer needs any of those capabilities, they want the R740xd, not the R540. If a buyer wants bulk 3.5" capacity at a 2U price tier below the R740xd, they are in the right place.

Within the R540's own family, the 12-Bay 3.5" is the densest mainstream configuration. The entry-tier option is the Dell PowerEdge R540 8-Bay 3.5", which shares an identical platform and differs only in front-bay count and price. The chassis is welded, so bay count is a purchase-time decision, not a later upgrade.

To configure a build, call 1-800-778-1545 or use the quote form on this page. Every Wholesale Servers R540 ships after a 12+ hour burn-in and carries a 180-day warranty as standard. Volume pricing applies at 5 units and above.

Storage: 12 LFF Bays, the R540's Defining Characteristic

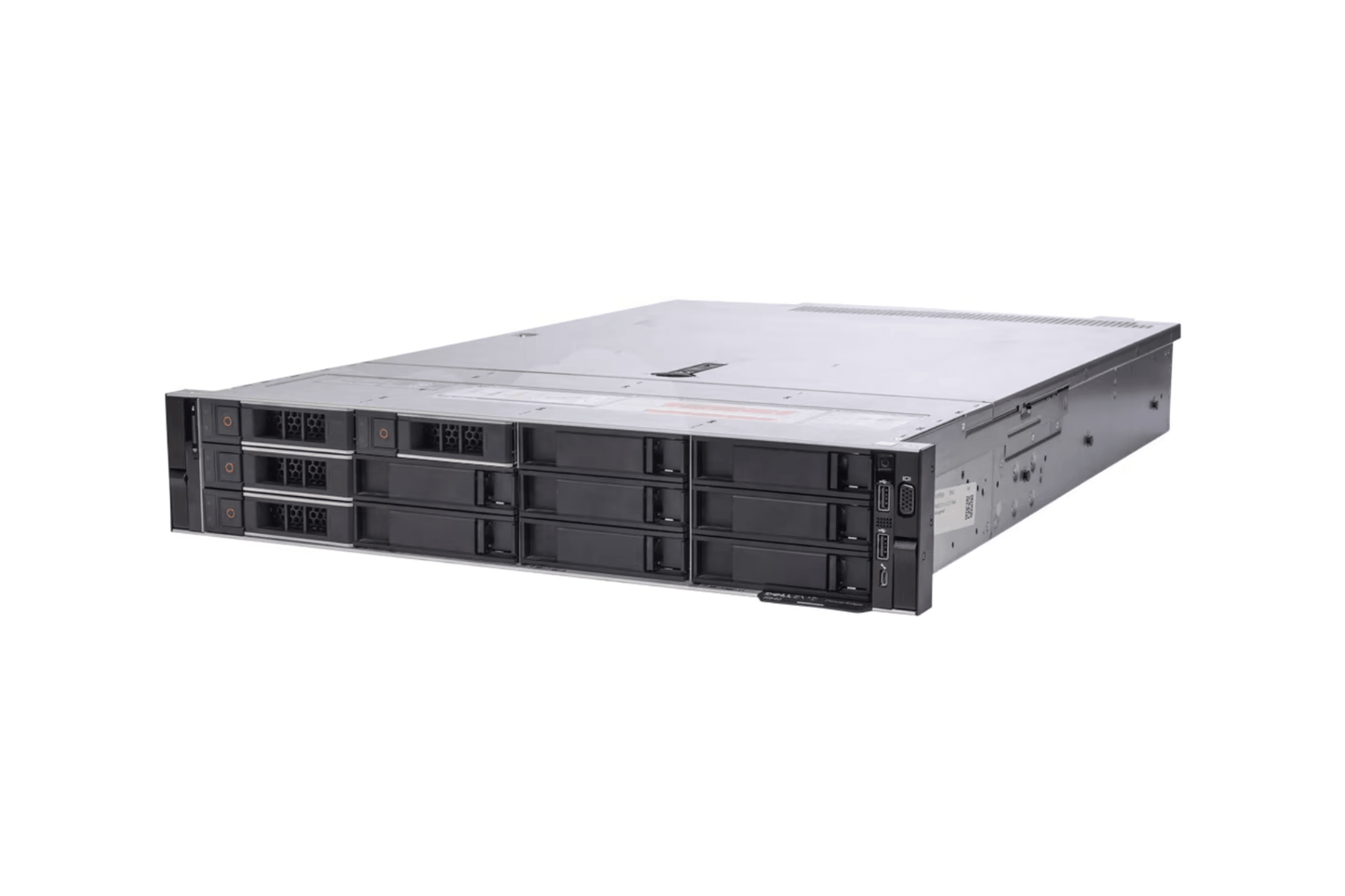

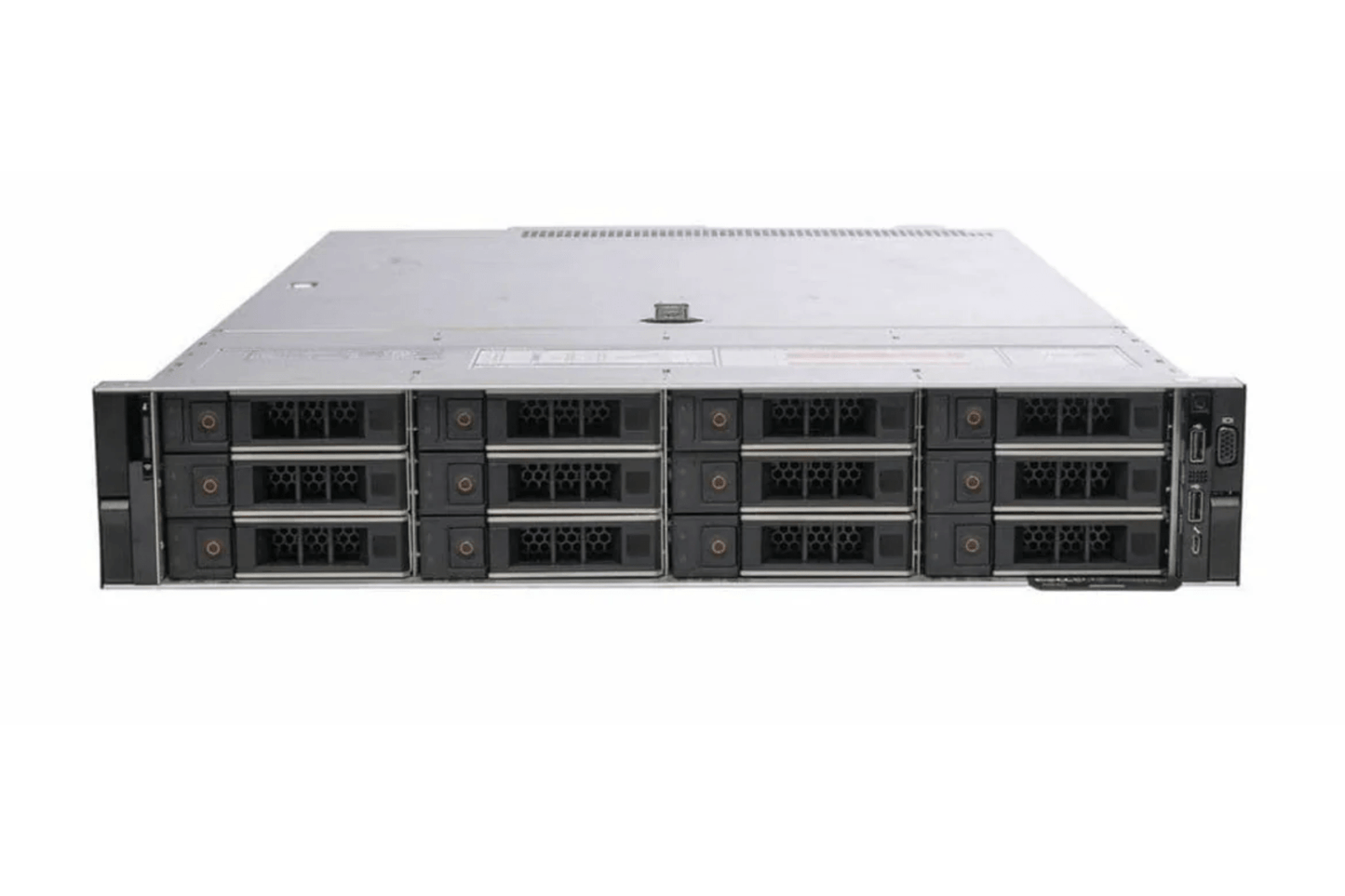

The 12-Bay 3.5" chassis is the R540's densest mainstream configuration: twelve front-accessible 3.5" hot-swap drive bays for SAS, SATA, or Nearline SAS drives. With 12 x 20 TB Nearline SAS drives, raw capacity reaches 240 TB in a 2U envelope. With high-capacity 22 TB or 24 TB drives where available, capacity continues to scale. This is real bulk-storage density at a price point well below the R740xd.

The 12-Bay chassis also supports an optional 2 x 3.5" rear drive cage for boot, hot-spares, or OS-tier separation. This is the only rear-bay option on the R540 family; there is no mid-bay variant equivalent to the R740xd's 24+4 or 12+4 layouts. Buyers who specifically need rear drive separation should mention the +2 rear configuration at quote time, but note that high-TDP CPUs (140W, 130W, 115W, 105W_4C) are not supported with the rear-drive variant. The rear-bay configuration also requires high-performance fans and reduces PCIe slot availability from 5 to 4. If the workload genuinely needs more than 14 LFF bays in 2U, the answer is the Dell PowerEdge R740xd 12-Bay 3.5" + 2-Bay LFF RFB, or stepping up to a 24-bay SFF chassis if 2.5" density is acceptable.

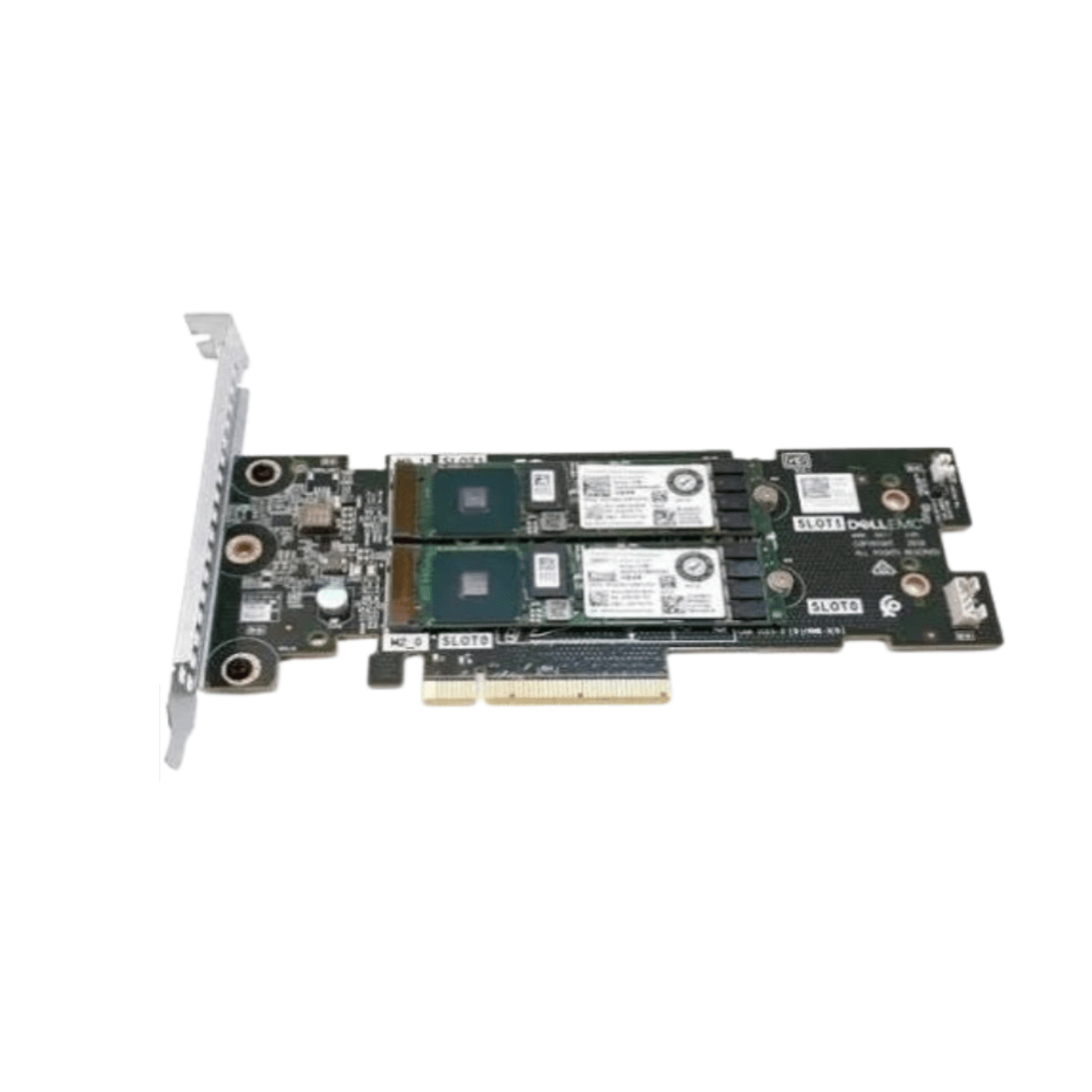

Boot drive: for boot we always spec the BOSS-S1 module (Boot Optimized Storage Solution, dual mirrored 240 GB SATA M.2 SSDs in hardware RAID 1). It uses an internal slot, does not consume a front bay, and keeps the OS off the data array. The R540 uses BOSS-S1 (SATA M.2, cold-swap), not the newer BOSS-S2 (15th gen, hot-swap) or BOSS-N1 (16th gen, NVMe). If the buyer specifically needs hot-swap boot or NVMe boot, neither is available on this platform; the answer is 15th gen R550 or 16th gen R560.

Important platform constraint: the R540 does not support NVMe drives. The 12-Bay backplane is SAS/SATA only. There is no NVMe-capable backplane option on this chassis at any variant. Buyers expecting NVMe capability are in the wrong family; the Dell PowerEdge R740xd 24-Bay 2.5" (flex-zoning up to 12 NVMe) or 16th gen R760xd2 (hardware NVMe RAID via PERC H965i) are the right platforms depending on capacity need.

Drive recommendations for the 12-Bay 3.5": for bulk capacity we spec 8 TB, 10 TB, 12 TB, 16 TB, or 20 TB Nearline SAS 7.2K drives. RAID 6 is mandatory on any array of 8 TB+ drives; rebuild times on large NL-SAS arrays put RAID 5 at unacceptable risk of double-disk failure during the rebuild window. For modest VM workloads or higher IOPS, mix in 1.92 TB or 3.84 TB SAS SSDs. We rarely spec SATA SSDs on enterprise R540 deployments; the price delta versus SAS SSDs is small enough that the dual-port reliability of SAS is worth the additional cost.

Storage Controllers: PERC H740P Is the Top Pick

The R540 supports the standard 14th gen PERC family: H740P (8 GB NV cache, battery-backed, hardware RAID 0/1/5/6/10/50/60), H730P (2 GB NV cache, the predecessor to H740P with smaller cache), H330 (no cache, entry-level), HBA330 (pass-through HBA mode for software-defined storage), and S140 (software RAID). External 12 Gbps SAS HBAs are also supported for shelf expansion.

For the 12-Bay 3.5", our default recommendation is the PERC H740P. The 8 GB non-volatile cache makes a measurable difference on write-heavy workloads (small-file file server, backup target ingest, video write recording), and the battery backup means the cache survives a power event. Drive the H740P in RAID 6 for bulk NL-SAS arrays, or split into two RAID 6 groups if the buyer wants tier separation (capacity plus hot-spares). The PERC H730P 2GB cache controller remains a credible budget option if cache size is not the bottleneck, though the H740P's 4x cache advantage is usually worth the modest price delta on refurbished hardware. The entry-level PERC H330 controller is fine for light, read-heavy arrays where battery-backed write cache is not load-bearing.

For software-defined storage scenarios (Ceph, ZFS, Storage Spaces Direct, vSAN OSA), the HBA330 in pass-through mode is the correct choice. The R540 with HBA330 makes a clean Ceph storage node or a ZFS NL-SAS bulk-storage host. Note: vSAN ESA requires NVMe and is therefore not supported on R540; vSAN OSA with SAS SSD cache and NL-SAS capacity tier is the only vSAN path on this platform. We do not quote S140 software RAID for production arrays; it is a dev/test and light-workload option only.

Processors: 14th Gen Cascade Lake and Skylake-SP, Same Socket

The R540 is a 14th generation Dell PowerEdge platform built around Intel's LGA 3647 socket. It supports up to two Intel Xeon Scalable processors from either the 1st generation Skylake-SP (V1) family or the 2nd generation Cascade Lake-SP (V2) family. Both generations share the same socket; a V1 and V2 board are physically identical, and a V2 CPU drops into a V1-era board with a BIOS update. This V1/V2 drop-in compatibility is the standard 14th gen narrative and matters at quote time, because the V2 generation is the right pick for any new deployment: roughly 9% better performance per watt, hardware Spectre/Meltdown mitigations baked in, and 2933 MT/s memory speed at 1 DPC instead of V1's 2666 MT/s ceiling.

For most R540 12-Bay deployments we spec the Intel Xeon Gold 6230 (20 cores, 2.1 GHz base, 125W TDP). It is the highest core-count mainstream V2 SKU the R540 thermal envelope supports without restriction, it is widely available on the secondary market at attractive pricing in 2026, and 20 cores per socket is the right amount of compute for the storage-centric workloads the 12-Bay LFF is built for. If the deployment is more storage-and-less-compute, the Silver 4210R (10 cores, 100W) and Silver 4216 (16 cores, 100W) are the budget-conscious picks. If compute matters more, the Gold 6226R (16 cores at 2.9 GHz, 150W) is a strong middle option, though buyers should be aware that 140W+ CPUs trigger thermal restrictions on the 12-Bay rear-drive variant.

The R540 caps at 20 cores per socket for mainstream Cascade Lake SKUs. It will accept the Platinum 8164 (26 cores, 150W) and similar Skylake-SP V1 high-core-count parts, but we rarely spec Platinum on the R540 in 2026: the price-per-core advantage of refurbished Gold 6230 or 6242R parts is significant, and the R540's PCIe Gen3 and storage-focused chassis design do not reward Platinum-class CPUs the way an R740xd does. Buyers wanting 24+ cores in a 14th gen 2U should look at the R740xd, where the full 24-DIMM memory topology and 8 PCIe slots actually justify the CPU investment.

Single-socket warning, in the buyer's favor: the R540 supports both single-socket and dual-socket configurations, and single-socket is genuinely useful here in a way it is not on the R740xd. A single CPU on the R540 gets 10 of the 16 DIMM slots and 512 GB max memory (LRDIMM), enough for many file-server and modest-VM workloads. Dell engineered the asymmetric DIMM layout (10 on CPU1, 6 on CPU2) specifically to make single-socket configurations less compromised. If a workload genuinely fits in 512 GB and 10 cores or so, a single-socket R540 is a real money-saver versus a dual-socket R740xd.

Memory: 16 DIMMs Asymmetric, 1 TB Max Dual-Socket

The R540 has 16 DDR4 DIMM slots arranged in Dell's 1U-style asymmetric topology: CPU1 owns 10 DIMM slots, CPU2 owns 6 DIMM slots. Six memory channels are allocated to each processor. On CPU1, four channels run 2 DIMMs per channel (2 DPC) and two channels run 1 DIMM per channel (1 DPC). On CPU2, all six channels run 1 DPC. This is the same asymmetric pattern Dell uses on the 1U R440, applied to the 2U R540 chassis. It is not the symmetric 12+12 layout of the R740xd, and it is the single biggest architectural compromise the R540 makes versus its 2U storage flagship.

The practical implications matter at quote time. The R540 supports up to 1 TB of memory with two CPUs installed using LRDIMM, or 512 GB with RDIMM only. With a single CPU installed, the ceiling is 512 GB LRDIMM (10 DIMM slots) or 256 GB RDIMM. Dell recommends 768 GB as the performance-optimized configuration for dual-socket; we agree that 768 GB is the sweet spot for memory-hungry workloads on this platform. Memory speeds: 2933 MT/s at 1 DPC on V2 Cascade Lake, 2666 MT/s at 1 DPC on V1 Skylake-SP, dropping to 2666 MT/s at 2 DPC on V2 and 2400 MT/s at 2 DPC on V1. This is identical to the R740 family, not the slower flat ceiling that some 1U platforms hit.

Population guidance: balance the channels. On a single-CPU R540, populate all six channels symmetrically before doubling up. Six identical DIMMs at 1 DPC outperform eight DIMMs at uneven channel population by a meaningful margin on memory-bandwidth-bound workloads (databases, in-memory caches). For dual-socket, the asymmetry imposes a real constraint: a fully populated 16-DIMM dual-socket R540 puts 10 DIMMs on CPU1 and 6 on CPU2, meaning CPU1 has 4 channels at 2 DPC and CPU2 has 6 channels at 1 DPC. NUMA-aware applications will see uneven per-socket memory bandwidth as a result. Most workloads will not notice; HPC kernels and tightly-NUMA-pinned databases will.

The R540 supports RDIMM and LRDIMM. It does not support NVDIMM-N or Optane PMem. Buyers needing persistent memory for in-memory database acceleration cannot use the R540 for it; the R740xd is the 14th gen platform with NVDIMM-N support, and 16th gen R760 is the right path for Optane-class persistent memory in 2026.

Networking and PCIe Expansion

The R540 ships with a 2 x 1 GbE rNDC (rack Network Daughter Card) as the standard onboard option. The rNDC mezzanine does not consume a PCIe slot. Optional rNDC choices are 2 x 10 GbE SFP+, 2 x 10 GbE BASE-T, or 4 x 1 GbE. For most modern deployments we recommend stepping up to a 2 x 10 GbE rNDC or adding a PCIe NIC; gigabit is no longer adequate for enterprise file server, backup target, or virtualization workloads.

For higher-throughput requirements, the R540 supports PCIe add-on NICs with the usual Dell-qualified options: Mellanox/NVIDIA ConnectX-4 Lx for 25 GbE, Intel X710 / X550 for 10 GbE, Broadcom 57414 for 25 GbE. The platform is PCIe Gen3 only, so 100 GbE is supported in principle but underutilized; if the deployment genuinely needs 100 GbE throughput, the R540 is the wrong platform and a 15th or 16th gen Gen4 / Gen5 host is the right answer.

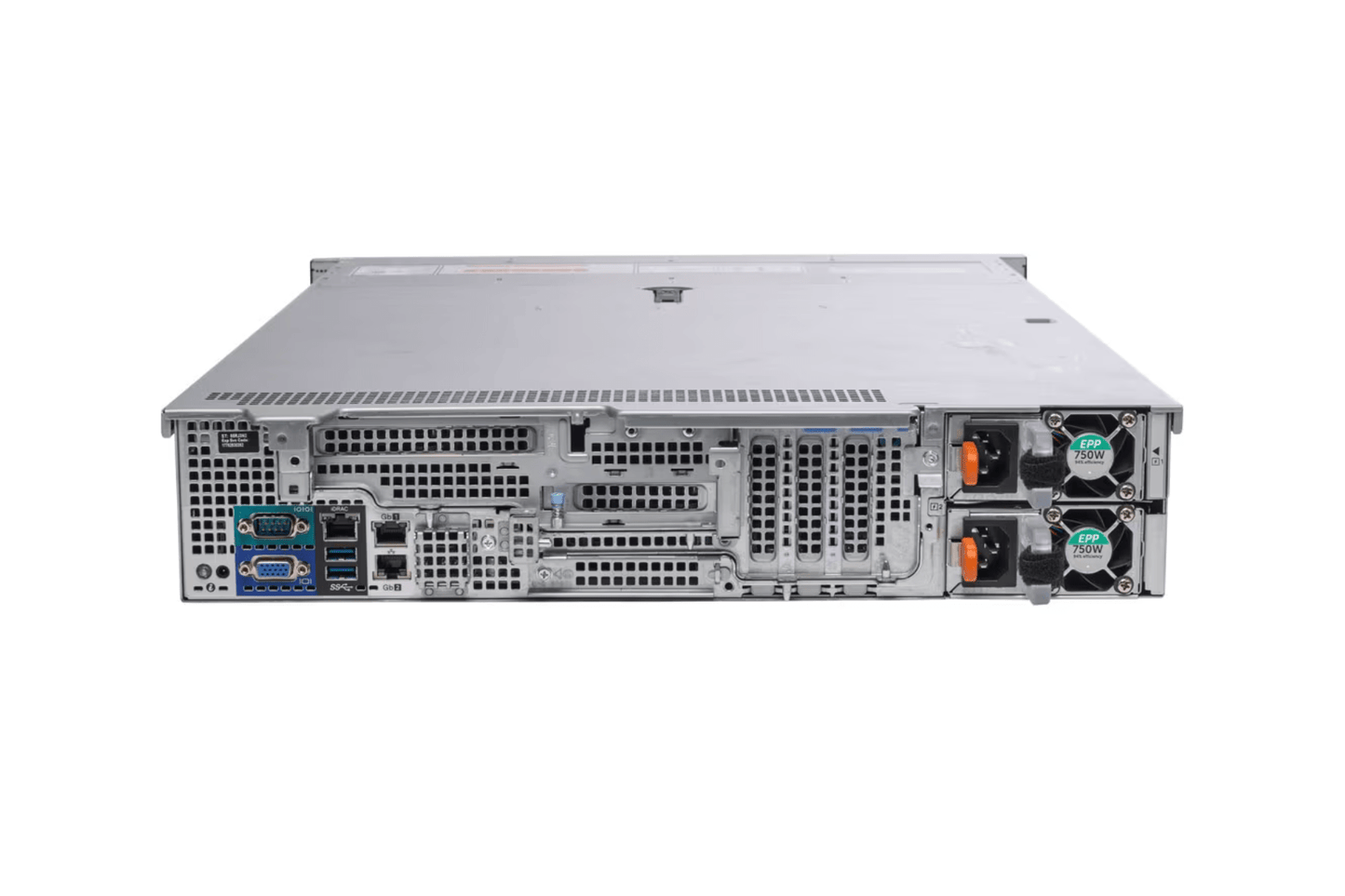

PCIe slot count: the 12-Bay 3.5" chassis supports up to 5 PCIe Gen3 expansion slots in the rear-bayless configuration, or 4 slots with the +2 rear drive cage installed. All slots are PCIe Gen3, x16 or x8 electrically. After a PERC and a rNDC take their share, plan on 2 to 3 effective free slots for NICs and HBAs.

GPU Support: Not a GPU Platform

The R540 is not a GPU platform. Dell's technical specifications state plainly that GPGPU cards are not supported, and that non-Dell-qualified peripheral cards or peripheral cards greater than 25 W are not supported. This rules out every accelerator we would typically discuss: no T4, no L4, no L40S, no A2, no A40. The R540's PSU envelope tops at 1100W, the riser layout does not present a double-wide GPU slot, and the thermal design does not provide the airflow margin a passive accelerator needs. There is no FPGA path on this chassis either.

If GPU support matters, the R540 is the wrong platform and we will say so directly. For 14th gen GPU deployments, the R740 supports up to three 300W double-wide or six 150W single-wide GPUs, or three to four FPGAs. For modern GPU workloads in 2026, even the R740 is bandwidth-limited at PCIe Gen3, and we would steer most serious GPU buyers to 15th gen R750 (Gen4) or 16th gen R760 (Gen5) instead.

Management: iDRAC9 Generation

Out-of-band management is iDRAC9, the standard for 14th gen Dell PowerEdge. We recommend the iDRAC9 Enterprise license for any production deployment: it adds virtual console redirection, virtual media, automated firmware updates via the Lifecycle Controller, group management via OpenManage Enterprise, and SupportAssist proactive diagnostics. iDRAC9 Express (or Basic) lacks virtual console and is insufficient for any deployment that needs remote troubleshooting. Add the Enterprise license at quote time; you will regret Express the first time you need to attach a recovery ISO from a remote office.

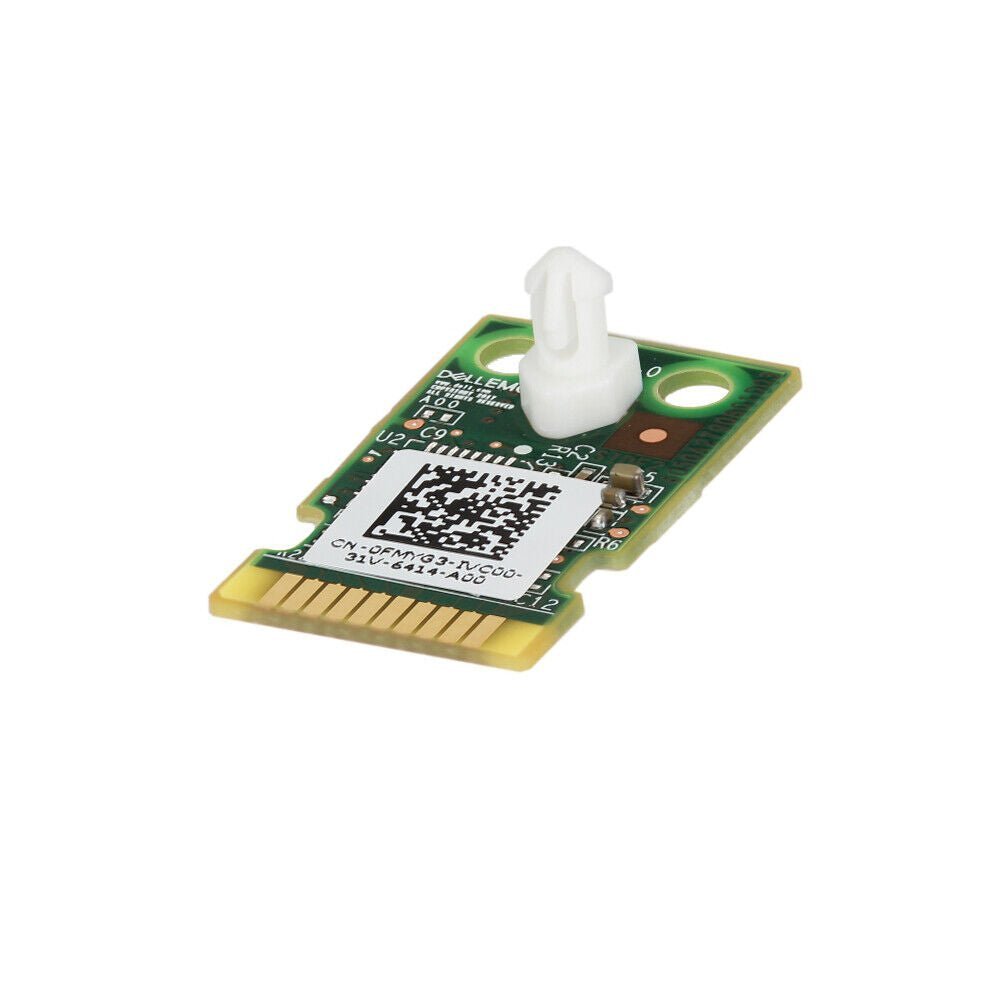

Hardware security features include TPM 2.0 (optional; TCM 2.0 for China-market deployments), cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Lockdown (requires iDRAC9 Enterprise plus OpenManage Enterprise license), and the System Erase data-sanitization feature. The Silicon Root of Trust is the meaningful upgrade over the 13th gen R530's iDRAC8 and is the single biggest security reason to choose a 14th gen R540 over a refurbished R530 in 2026.

Power and Cooling

The R540 supports hot-plug redundant power supplies in five wattage options, all Platinum-rated. Sizing guidance by workload profile:

The 1100W ceiling is real: there is no 1400W or higher PSU option on the R540, and no Titanium-class PSU option. The +2 rear-drive configuration requires high-performance fans. Datacenter buyers who care about Titanium efficiency or acoustic-sensitive deployments needing the quietest PSU profile should look at the R740 (broader PSU range) or the T560 tower (Titanium acoustic PSUs available).

Physical Specs & Platform Notes

• Form factor: 2U rack. Dimensions 86.8 mm (3.41") H x 434 mm (17.08") W x 703.76 mm (27.71") D. Loaded chassis weight approximately 29.68 kg (65.43 lbs). C620 chipset, PCIe Gen3 throughout.
• PCIe expansion: up to 5 PCIe Gen3 slots in the rear-bayless configuration, 4 slots with the +2 rear drive cage. Slots are x16 or x8 electrically; expect 2 to 3 effective free slots after a PERC and rNDC.
• Parts availability: strong. The R540 shares its CPU, memory, PERC, BOSS, and rail ecosystem with the high-volume R440 and R740xd, so refurbished parts and spares are widely available in 2026. Dell ProSupport on 14th gen is in the late-life window; third-party maintenance is the standard production support path.
• Accessories we recommend: Dell ReadyRails II sliding rails (sold separately, added to the BOM by default) via the Dell 2U B6 ReadyRails II Sliding Rail Kit; the standard Dell PowerEdge LCD bezel (Dell P/N 6KMM4 generic; confirm current refurb availability) for at-a-glance status in mixed racks; optional cable management arm.
• Platform notes: the chassis is welded, so an 8-Bay cannot be field-upgraded to a 12-Bay. CPU hot-plug is not supported. The +2 rear-drive variant excludes 140W, 130W, 115W, and 105W_4C CPUs per Dell's thermal restriction matrix; confirm V2 Platinum-tier 150W parts per SKU at quote time.

Our Assessment

Where it excels: the R540 12-Bay 3.5" is the right call when bulk LFF capacity in a 2U body is the primary requirement, compute and memory needs are modest-to-moderate, and the budget does not justify a full R740xd. It excels at branch-office file servers and NAS, small-to-medium backup targets (Veeam repositories at modest scale, retention-tier targets), surveillance recording back-ends for video management systems, content storage and media archives, modest VMware or Hyper-V deployments (10 to 30 VMs per host with capacity-tier disk), and Ceph or ZFS bulk-storage nodes at the small end. It is genuinely good at boring, reliable, capacity-focused 2U workloads.

Where to look instead: anything that wants GPUs, NVMe drives, NVDIMM-N, or more than 1 TB of memory belongs on the Dell PowerEdge R740xd 24-Bay 2.5" or a 15th/16th gen host. Workloads that need PCIe Gen4 bandwidth (high-throughput 25/100 GbE storage networking, NVMe-over-Fabric targets) want the 15th gen successor, the Dell PowerEdge R550 8-Bay 3.5". NUMA-balanced dual-socket compute that needs the symmetric 12+12 DIMM topology wants the R740xd. Cross-shopping HPE? The closest 2U LFF counterpart is the HPE ProLiant DL380 Gen10 12-Bay 3.5", though the DL380 Gen10 is a fuller-featured platform closer to the R740 than the R540.

Bottom line: the R540 12-Bay 3.5" is the volume bulk-storage workhorse of Dell's 14th gen 2U LFF lineup. Buy it when you want dollars-per-TB capacity, do not need NVMe or GPU, and want to stay below the R740xd price tier. We deploy roughly 3 to 4 R540 12-Bay servers for every R740xd 12-Bay; the R540 is the workhorse, the R740xd is the flagship. If the workload needs anything the R540 does not support, the answer is a different platform and we will tell you which one.

Where the R540 Fits in 2026

The R540 sits between the 13th gen Dell PowerEdge R530 8-Bay 3.5" (Broadwell, 2015) and the 15th gen Dell PowerEdge R550 8-Bay 3.5" (Ice Lake, 2021). The 16th gen successor is the R560 (Sapphire/Emerald Rapids, 2023), Dell's current-production 2U LFF.

Step down, vs R530 (13th gen): the R540 brings 12 LFF bays versus the R530's 8, modern Skylake/Cascade Lake architecture, iDRAC9 with Silicon Root of Trust, a 2933 MT/s memory ceiling, and BOSS-S1 internal boot. Buying a refurbished R530 in 2026 saves a small dollar amount and gives up real platform value (security, memory bandwidth, drive count). We recommend the R540 unless the budget is constrained well below the R540 floor.

Step up, vs R550 (15th gen): the R550 adds PCIe Gen4, DDR4 3200 MT/s memory, Ice Lake processors (up to 28 cores), and BOSS-S2 (hot-swap SATA M.2). The R550 is the right pick if PCIe Gen4 bandwidth matters (modern 25/100 GbE storage NIC throughput), if memory bandwidth matters, or if hot-swap boot is a requirement. Most bulk-storage R540 workloads do not see Gen4 / 3200 MT/s as a material upgrade; the R550 is mostly justified by networking throughput needs.

vs R560 (16th gen, current production): the R560 brings 4th Gen Sapphire Rapids and 5th Gen Emerald Rapids processors in the same socket, DDR5 up to 5600 MT/s, PCIe Gen5, and BOSS-N1 (NVMe M.2 hardware RAID 1 boot). For buyers with budget for current-generation hardware and a forward-investment horizon, the R560 is the right answer. For buyers with a 3 to 5 year deployment window where bulk capacity is the dominant cost driver, the R540's dollars-per-TB usually wins.

Honest Limitations

• No NVMe support at all. The 12-Bay backplane is SAS/SATA only. There is no NVMe-capable variant in the R540 family. If NVMe matters, this is the wrong platform.
• No GPU support. Dell's spec is explicit: GPGPU not supported, peripheral cards greater than 25W not supported. Any GPU need rules out the R540.
• 16 DIMMs asymmetric (10+6), not 24 symmetric. Single-CPU max memory is 512 GB; dual-CPU max is 1 TB. NUMA-aware applications will see uneven per-socket bandwidth on fully populated dual-socket configurations.
• No NVDIMM-N, no Optane PMem. Persistent memory workloads need the R740xd (14th gen NVDIMM-N) or 16th gen R760 (Optane PMem 300 series).
• PCIe Gen3 ceiling. No PCIe Gen4 expansion. Modern Gen4 NICs and HBAs will work but at half their native bandwidth. For 25/100 GbE storage networking, this matters.
• Welded chassis: bay configuration is fixed. An 8-Bay R540 cannot be field-upgraded to a 12-Bay; the drive cage is welded in. Choose the bay count correctly at purchase.
• 140W+ CPUs not supported in the 12-Bay rear-drive variant. Per Dell's thermal restriction matrix, the 12 x 3.5" +2 rear-bay configuration excludes 140W, 130W, 115W, and 105W_4C SKUs. Standard 12-Bay (no rear bays) clears 140W and lower; confirm V2 Platinum-tier 150W parts per SKU at quote time.
• No Titanium PSU option, 1100W ceiling. If your datacenter cares about Titanium efficiency or the quietest fan profile, the R540 does not offer it. Look at the R740 or the T560 tower.
• BOSS-S1 cold-swap only. Boot module is cold-swap on 14th gen. Hot-swap boot mirrors are a 15th gen (BOSS-S2) and 16th gen (BOSS-N1, NVMe) feature.
• iDRAC9 Express insufficient for production. Add the iDRAC9 Enterprise license at quote time. Express lacks virtual console and remote media.

Workload Fit

Where to Look Instead

If the 12-Bay capacity is more than you need, the entry-tier Dell PowerEdge R540 8-Bay 3.5" is the same platform with fewer front bays at a lower price. If you need NVMe, the full 24-DIMM topology, GPU support, or NVDIMM-N, step to the Dell PowerEdge R740xd 12-Bay 3.5" or the Dell PowerEdge R740xd 24-Bay 2.5". For PCIe Gen4 and a higher memory ceiling, the 15th gen Dell PowerEdge R550 8-Bay 3.5" is the successor. For the budget tier below the R540, the 13th gen Dell PowerEdge R530 8-Bay 3.5" trades platform security and capacity for a lower entry price. Comparing vendors, the HPE ProLiant DL380 Gen10 12-Bay 3.5" is the closest 2U LFF counterpart.

Ready to Configure?

Tell us your workload, target memory capacity, drive count and capacity per drive, single-socket or dual-socket preference, and quantity, and we will spec the right build. Common starting questions: bulk capacity or mixed capacity-plus-IOPS? Single-socket budget build or dual-socket for headroom? Standard 12-Bay or the +2 rear cage for boot separation?

Every Wholesale Servers R540 ships after a 12+ hour burn-in test covering every PCIe slot, every memory channel, and every drive bay. The standard 180-day warranty is included, with 1-Year, 2-Year, and 3-Year Premium options available. Volume pricing applies at 5 units and above. Call 1-800-778-1545 or use the quote form on this page and we respond within 24 hours.
