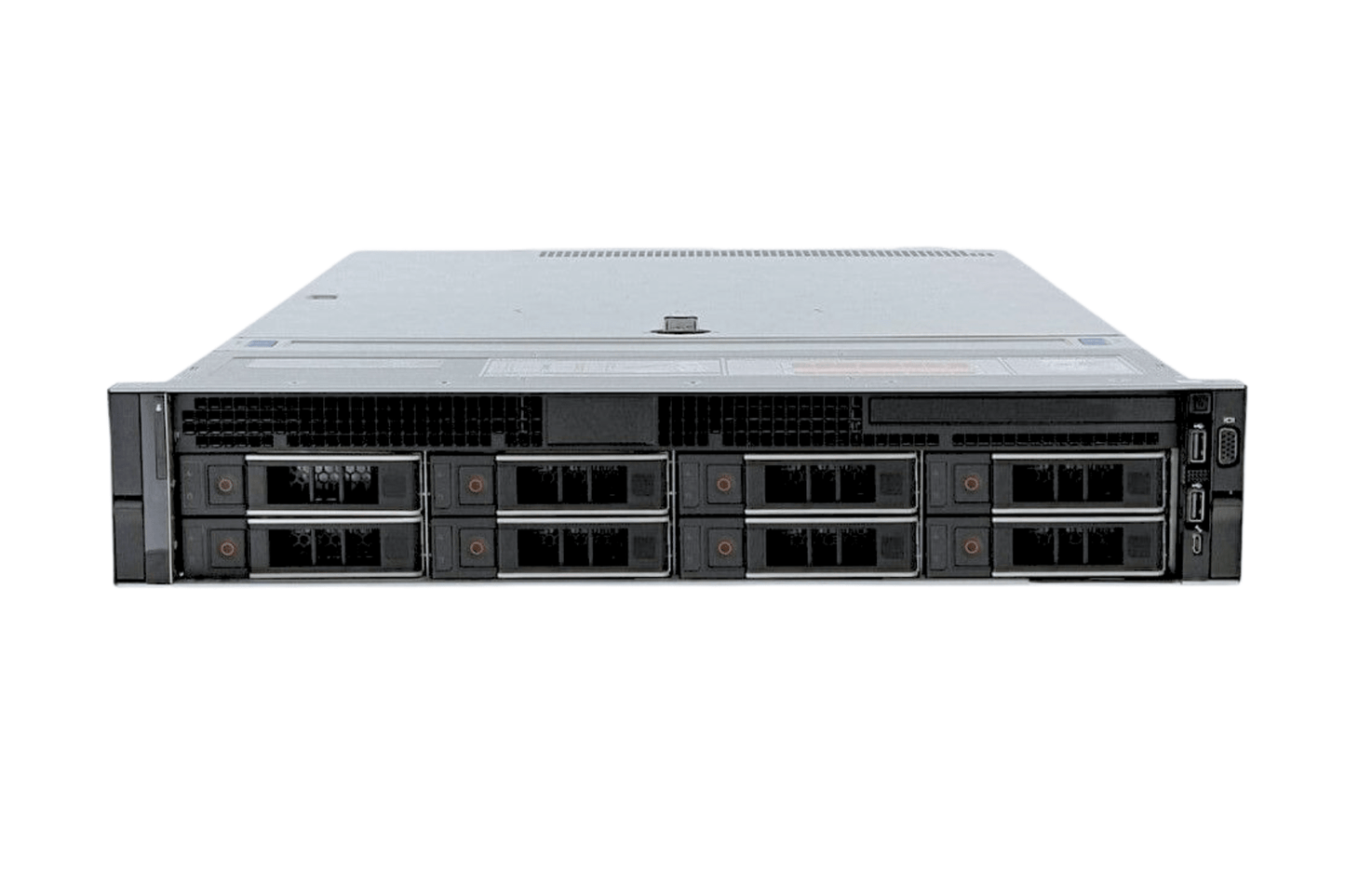

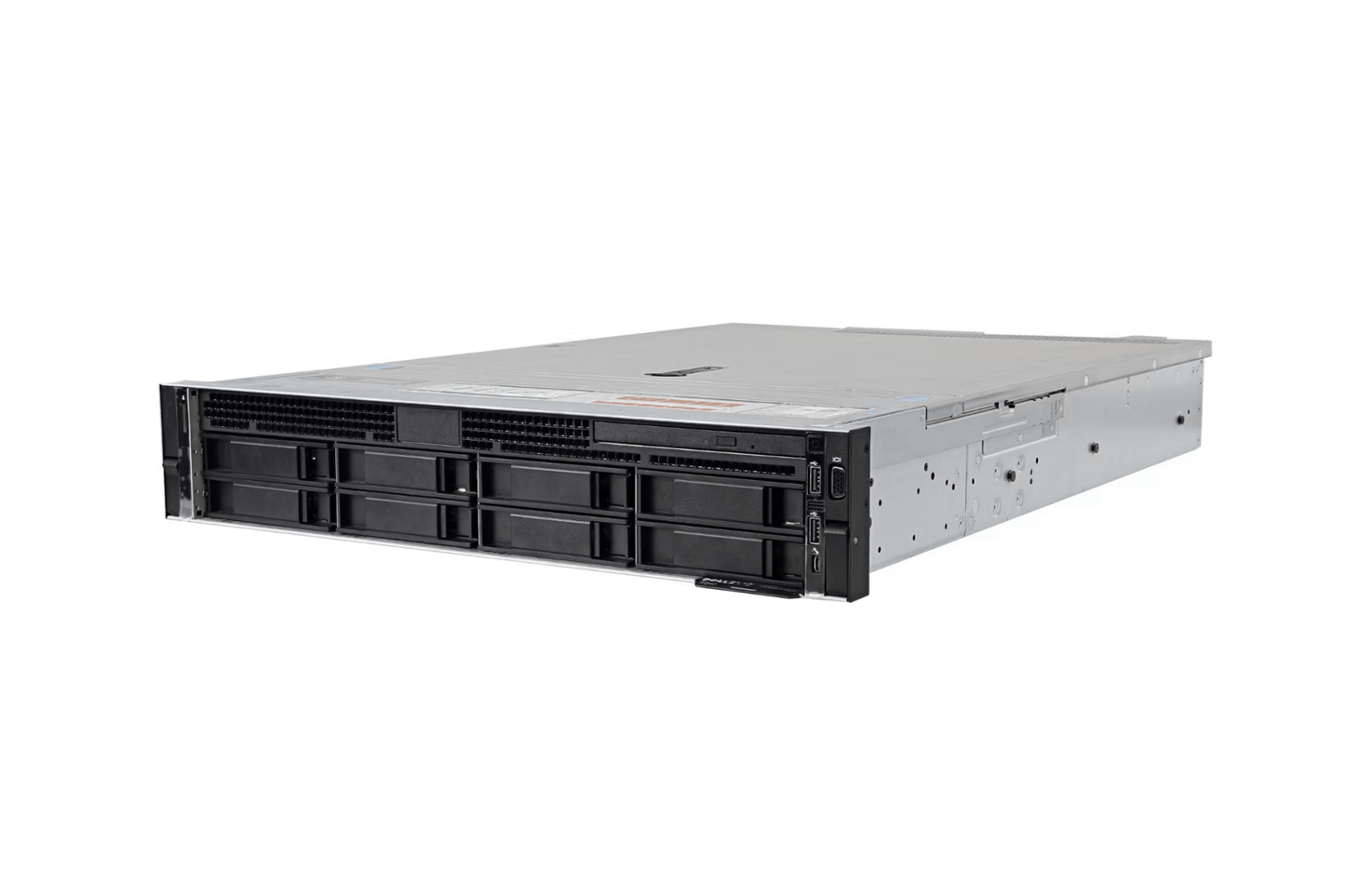

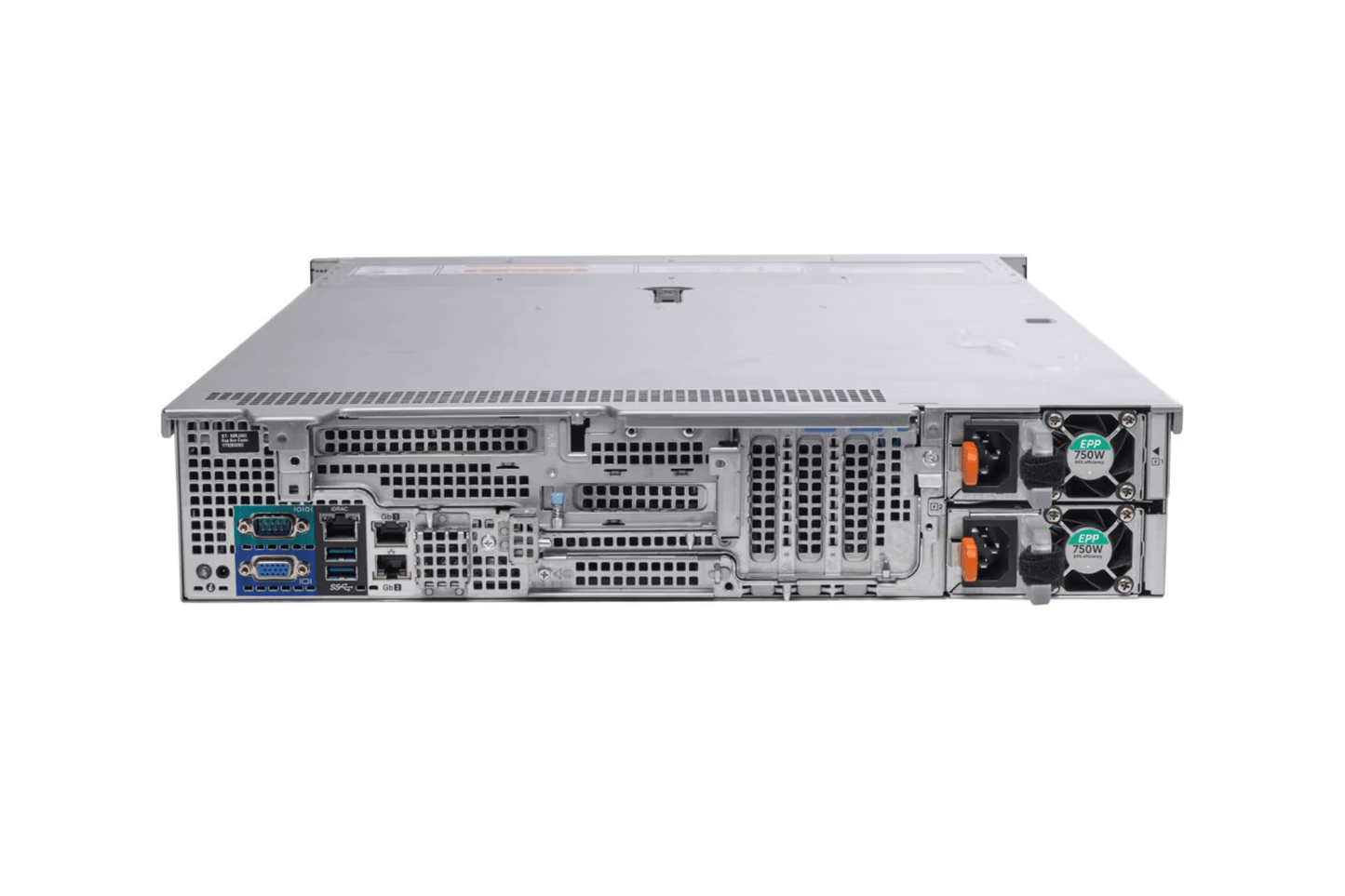

The Refurbished Dell PowerEdge R540 8-Bay 3.5" is the entry-tier LFF configuration of the 14th gen R540 family: eight 3.5" front-accessible hot-swap bays for SAS, SATA, or Nearline SAS drives on the same single-socket-friendly 2U platform as the 12-Bay. This variant is the right call when bulk LFF capacity matters but the workload genuinely fits in 8 drives, and the budget reward of stepping down from 12 bays is worth giving up the headroom to grow. We see the 8-Bay R540 most often in branch offices, small-business file servers, modest Veeam backup targets, and budget-constrained surveillance recorders where the storage projection over the deployment life fits inside 8 drives of currently shipping NL-SAS capacity (roughly 64 TB to 160 TB usable in RAID 6 depending on drive size).

When 8 Bays Is the Right Choice

One thing to be honest about upfront: the architectural difference between the 8-Bay and 12-Bay R540 is small. Both use the identical motherboard, the identical 16-DIMM asymmetric memory topology, the identical processor lineup, the identical PERC RAID family, the identical iDRAC9, the identical PSU options, and the same PCIe Gen3 slot count. The 8-Bay does not give up any platform capability versus the 12-Bay; it gives up four drive bays in exchange for a lower entry price and slightly easier thermal management.

The 8-Bay differs from the Dell PowerEdge R540 12-Bay 3.5" in exactly three ways that matter at quote time. First, drive count: eight 3.5" front bays instead of twelve, so with 20 TB NL-SAS drives raw capacity tops out at 160 TB (versus 240 TB on the 12-Bay), landing around 100 TB usable in RAID 6 with a hot spare versus roughly 180 TB. Second, no rear-bay option: the 8-Bay does not support the optional +2 rear drive cage the 12-Bay offers, so OS-tier separation is handled by BOSS-S1 internal boot instead (which is the right call anyway). Third, slightly better thermal headroom: eight drives generate less heat than twelve, giving marginally more margin for high-TDP CPUs in hot ambient deployments.

If your storage requirement genuinely fits in 8 LFF bays for the deployment's lifetime, the 8-Bay is the right call. If there is any chance the workload grows past 8 drives, pay the modest premium for the 12-Bay now, because the R540 chassis is welded and you cannot field-upgrade an 8-Bay to a 12-Bay later. To configure a build, call 1-800-778-1545 or use the quote form on this page. Every Wholesale Servers R540 ships after a 12+ hour burn-in and carries a 180-day warranty as standard. Volume pricing applies at 5 units and above.

Storage: 8 LFF Bays, SAS/SATA Only

The 8-Bay 3.5" chassis provides eight front-accessible 3.5" hot-swap drive bays for SAS, SATA, or Nearline SAS drives. With 8 x 20 TB Nearline SAS drives, raw capacity reaches 160 TB in a 2U envelope. In RAID 6 with one hot spare, usable capacity lands around 100 TB. For workloads where the storage projection over 3 to 5 years stays inside that envelope, the 8-Bay is the right pick; the 12-Bay's extra capacity would be wasted rack space and capital.

For boot we always spec the BOSS-S1 module (Boot Optimized Storage Solution, dual mirrored 240 GB SATA M.2 SSDs in hardware RAID 1). It uses an internal slot, does not consume a front bay, and keeps the OS off the data array. The R540 uses BOSS-S1 (SATA M.2, cold-swap), not the newer BOSS-S2 (15th gen, hot-swap) or BOSS-N1 (16th gen, NVMe). The 8-Bay does not offer the +2 rear drive cage, so BOSS-S1 internal boot is the only OS-tier separation path on this chassis. If hot-swap or NVMe boot is a hard requirement, the 15th gen R550 or 16th gen R560 are the platforms with it.

Important platform constraint: the R540 does not support NVMe drives. The backplane is SAS/SATA only on every R540 variant. Buyers expecting NVMe capability are in the wrong family; the Dell PowerEdge R740xd 24-Bay 2.5" (flex-zoning up to 12 NVMe) or 16th gen R760xd2 (hardware NVMe RAID via PERC H965i) are the right platforms depending on capacity need.

Drive recommendations: for bulk capacity we spec 8 TB, 10 TB, 12 TB, 16 TB, or 20 TB Nearline SAS 7.2K drives. RAID 6 is mandatory on any array of 8 TB+ drives; rebuild times on large NL-SAS arrays put RAID 5 at unacceptable risk of double-disk failure during the rebuild window. For modest VM workloads or higher IOPS, mix in 1.92 TB or 3.84 TB SAS SSDs. We rarely spec SATA SSDs on enterprise deployments; the dual-port reliability of SAS is worth the small price delta.

Storage Controllers: PERC H740P Is the Top Pick

The 8-Bay R540 supports the standard 14th gen PERC family: H740P (8 GB NV cache, battery-backed, hardware RAID 0/1/5/6/10/50/60), H730P (2 GB NV cache, the predecessor with smaller cache), H330 (no cache, entry-level), HBA330 (pass-through HBA for software-defined storage), and S140 (software RAID). External 12 Gbps SAS HBAs are supported for shelf expansion if a deployment outgrows 8 bays.

For the 8-Bay, our default recommendation is the PERC H740P. The 8 GB non-volatile cache makes a measurable difference on write-heavy workloads (small-file file server, backup target ingest, video write recording), and the battery backup means the cache survives a power event. Drive it in RAID 6 for bulk NL-SAS arrays. The PERC H730P 2GB cache controller remains a credible budget option when cache size is not the bottleneck, and the entry-level PERC H330 controller is fine for light, read-heavy arrays where battery-backed write cache is not load-bearing.

For software-defined storage (Ceph, ZFS, Storage Spaces Direct, vSAN OSA), the HBA330 in pass-through mode is the correct choice. Note that vSAN ESA requires NVMe and is not supported on R540; vSAN OSA with SAS SSD cache and NL-SAS capacity tier is the only vSAN path on this platform. We do not quote S140 software RAID for production arrays; it is a dev/test and light-workload option only.

Processors: 14th Gen Cascade Lake and Skylake-SP, Same Socket

The R540 is a 14th generation Dell PowerEdge platform built around Intel's LGA 3647 socket. It supports up to two Intel Xeon Scalable processors from either the 1st generation Skylake-SP (V1) family or the 2nd generation Cascade Lake-SP (V2) family. Both generations share the same socket; a V2 CPU drops into a V1-era board with a BIOS update. The V2 generation is the right pick for any new deployment: roughly 9% better performance per watt, hardware Spectre/Meltdown mitigations baked in, and 2933 MT/s memory at 1 DPC instead of V1's 2666 MT/s ceiling.

For most 8-Bay deployments we spec the Intel Xeon Gold 6230 (20 cores, 2.1 GHz base, 125W TDP) for dual-socket builds, or the Silver 4210R (10 cores, 100W) and Silver 4216 (16 cores, 100W) for budget and single-socket builds. The 8-Bay's lighter drive load gives it marginally more thermal margin than the 12-Bay: the Dell thermal restriction matrix shows the 8-Bay clearing all 125W mainstream Cascade Lake SKUs without restriction at 35C ambient. If compute matters more, the Gold 6226R (16 cores at 2.9 GHz, 150W) is a strong middle option; the practical thermal difference between the two variants is small unless you are running 150W parts in a hot ambient deployment.

The R540 caps at 20 cores per socket for mainstream Cascade Lake SKUs. It will accept the Platinum 8164 (26 cores, 150W) and similar V1 high-core-count parts, but we rarely spec Platinum on the R540 in 2026: the price-per-core advantage of refurbished Gold parts is significant, and the storage-focused chassis does not reward Platinum-class CPUs the way an R740xd does.

Single-socket warning, in the buyer's favor: single-socket is genuinely attractive on the 8-Bay because the workload sizing usually matches. A single Gold 6230 with 256 GB RAM and 8 NL-SAS drives is a clean, sufficient build we ship often. A single CPU gets 10 of the 16 DIMM slots and 512 GB max memory (LRDIMM), enough for most file-server and modest-VM workloads. Dell engineered the asymmetric DIMM layout (10 on CPU1, 6 on CPU2) specifically to make single-socket configurations less compromised.

Memory: 16 DIMMs Asymmetric, 1 TB Max Dual-Socket

The R540 has 16 DDR4 DIMM slots arranged in Dell's 1U-style asymmetric topology: CPU1 owns 10 DIMM slots, CPU2 owns 6 DIMM slots. Six channels are allocated to each processor. On CPU1, four channels run 2 DIMMs per channel (2 DPC) and two channels run 1 DPC. On CPU2, all six channels run 1 DPC. This is the same asymmetric pattern Dell uses on the 1U R440, applied to the 2U R540 chassis, and it is identical between the 8-Bay and 12-Bay.

The R540 supports up to 1 TB of memory with two CPUs installed using LRDIMM, or 512 GB with RDIMM only. With a single CPU installed, the ceiling is 512 GB LRDIMM (10 DIMM slots) or 256 GB RDIMM. Memory speeds: 2933 MT/s at 1 DPC on V2 Cascade Lake, 2666 MT/s at 1 DPC on V1 Skylake-SP, dropping to 2666 MT/s at 2 DPC on V2 and 2400 MT/s at 2 DPC on V1. On a typical single-socket 8-Bay build, 256 GB across the six CPU1 channels is the clean, balanced configuration.

Population guidance: balance the channels. On a single-CPU R540, populate all six channels symmetrically before doubling up. Six identical DIMMs at 1 DPC outperform eight DIMMs at uneven channel population on memory-bandwidth-bound workloads. For dual-socket, the asymmetry means a fully populated 16-DIMM build puts 10 DIMMs on CPU1 (4 channels at 2 DPC) and 6 on CPU2 (6 channels at 1 DPC); NUMA-aware applications will see uneven per-socket bandwidth, though most workloads will not notice.

The R540 supports RDIMM and LRDIMM. It does not support NVDIMM-N or Optane PMem. Buyers needing persistent memory cannot use the R540; the R740xd is the 14th gen platform with NVDIMM-N support, and 16th gen R760 is the path for Optane-class persistent memory in 2026.

Networking and PCIe Expansion

The R540 ships with a 2 x 1 GbE rNDC (rack Network Daughter Card) as standard; the rNDC mezzanine does not consume a PCIe slot. Optional rNDC choices are 2 x 10 GbE SFP+, 2 x 10 GbE BASE-T, or 4 x 1 GbE. For most modern deployments we recommend a 2 x 10 GbE rNDC or a PCIe NIC; gigabit is no longer adequate for enterprise file server, backup target, or virtualization workloads.

For higher throughput, the R540 supports PCIe add-on NICs with the usual Dell-qualified options: Mellanox/NVIDIA ConnectX-4 Lx for 25 GbE, Intel X710 / X550 for 10 GbE, Broadcom 57414 for 25 GbE. The platform is PCIe Gen3 only, so 100 GbE is supported in principle but underutilized; deployments that genuinely need 100 GbE throughput want a 15th or 16th gen Gen4 / Gen5 host instead.

PCIe slot count on the 8-Bay matches the 12-Bay rear-bayless configuration: up to 5 PCIe Gen3 slots, x16 or x8 electrically. After a PERC and a rNDC take their share, plan on 2 to 3 effective free slots for NICs and HBAs.

GPU Support: Not a GPU Platform

The R540 is not a GPU platform. Dell's technical specifications state plainly that GPGPU cards are not supported, and that non-Dell-qualified peripheral cards or peripheral cards greater than 25 W are not supported. This rules out every accelerator we would typically discuss: no T4, no L4, no L40S, no A2, no A40. The PSU envelope, riser layout, and thermal design do not provide a GPU path, and there is no FPGA path on this chassis either.

If GPU support matters, the R540 is the wrong platform and we will say so directly. For 14th gen GPU deployments, the R740 supports up to three 300W double-wide or six 150W single-wide GPUs. For modern GPU workloads in 2026, even the R740 is bandwidth-limited at PCIe Gen3, and we would steer serious GPU buyers to 15th gen R750 (Gen4) or 16th gen R760 (Gen5).

Management: iDRAC9 Generation

Out-of-band management is iDRAC9, the standard for 14th gen Dell PowerEdge. We recommend the iDRAC9 Enterprise license for any production deployment: it adds virtual console redirection, virtual media, automated firmware updates via the Lifecycle Controller, group management via OpenManage Enterprise, and SupportAssist proactive diagnostics. iDRAC9 Express (or Basic) lacks virtual console and is insufficient for any deployment that needs remote troubleshooting. Add the Enterprise license at quote time; you will regret Express the first time you need to attach a recovery ISO from a remote office.

Hardware security features include TPM 2.0 (optional; TCM 2.0 for China-market deployments), cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Lockdown (requires iDRAC9 Enterprise plus OpenManage Enterprise license), and the System Erase data-sanitization feature. The Silicon Root of Trust is the meaningful security upgrade over the 13th gen R530's iDRAC8.

Power and Cooling

Power configurations for the 8-Bay run lighter than the 12-Bay across the board, because four fewer drives is meaningful at the platform level. All PSU options are hot-plug redundant and Platinum-rated. Sizing guidance by workload profile:

The 2x 495W Platinum pair is sufficient for most 8-Bay deployments. Step up to 750W only when running dual high-core-count CPUs at full DIMM population, or when significant PCIe expansion (multiple 25 GbE NICs, external SAS HBA) is in the BOM. There is no Titanium-class PSU option and no 1400W+ option on the R540; the 1100W ceiling that exists on the 12-Bay is rarely relevant on the 8-Bay. Datacenter buyers who need Titanium efficiency or the quietest acoustic profile should look at the R740 or the T560 tower.

Physical Specs & Platform Notes

• Form factor: 2U rack. Dimensions 86.8 mm (3.41") H x 434 mm (17.08") W x 703.76 mm (27.71") D. C620 chipset, PCIe Gen3 throughout. The 8-Bay carries less drive weight than the 12-Bay, which is the source of its marginal thermal headroom advantage.
• PCIe expansion: up to 5 PCIe Gen3 slots, x16 or x8 electrically; expect 2 to 3 effective free slots after a PERC and rNDC. The 8-Bay has no rear drive cage, so it never trades a slot for rear bays the way the 12-Bay +2 configuration does.
• Parts availability: strong. The R540 shares its CPU, memory, PERC, BOSS, and rail ecosystem with the high-volume R440 and R740xd, so refurbished parts and spares are widely available in 2026. Dell ProSupport on 14th gen is in the late-life window; third-party maintenance is the standard production support path.
• Accessories we recommend: Dell ReadyRails II sliding rails (sold separately, added to the BOM by default) via the Dell 2U B6 ReadyRails II Sliding Rail Kit; the standard Dell PowerEdge LCD bezel (Dell P/N 6KMM4 generic; confirm current refurb availability); optional cable management arm.
• Platform notes: the chassis is welded, so an 8-Bay cannot be field-upgraded to a 12-Bay. CPU hot-plug is not supported. The 8-Bay has no +2 rear-drive option, so the 12-Bay's rear-bay thermal restrictions do not apply here; the 8-Bay clears 125W mainstream SKUs without restriction.

Our Assessment

Where it excels: the R540 8-Bay 3.5" is the right call in a narrower set of deployments than the 12-Bay. It excels at branch-office file servers where the storage projection stays under 100 TB usable, modest backup targets where retention is short and rotation handles the rest, surveillance recorders covering a single building or modest camera count, and small-business virtualization hosts running 10 to 20 VMs with modest disk requirements. The single-socket configuration is genuinely attractive here because the workload sizing usually matches: a single Gold 6230 with 256 GB RAM and 8 NL-SAS drives is a clean, sufficient build.

Where to look instead: any workload where storage growth is uncertain over the deployment life should start at the Dell PowerEdge R540 12-Bay 3.5" instead, because the welded chassis offers no upgrade path. If the only requirement is 8 LFF bays in 2U and the budget allows, the Dell PowerEdge R740 8-Bay 3.5" brings 24-DIMM symmetric memory, NVDIMM-N support, a GPU envelope, and 8 PCIe slots that are worth the premium on a long-horizon deployment. Anything needing NVMe, GPU, or PCIe Gen4 belongs on the Dell PowerEdge R740xd 24-Bay 2.5" or the 15th gen Dell PowerEdge R550 8-Bay 3.5". Cross-shopping HPE, the closest 2U LFF counterpart is the HPE ProLiant DL380 Gen10 12-Bay 3.5".

Bottom line: the R540 8-Bay 3.5" is the right 2U LFF when 8 drives is enough for the deployment's full life, the budget reward of stepping down from the 12-Bay matters, and the platform tradeoffs (no GPU, no NVMe, no NVDIMM-N, no PCIe Gen4) are acceptable for the workload. We deploy more R740 8-Bay servers than R540 8-Bay servers because many buyers value the headroom; the R540 8-Bay wins on dollars-per-TB for shorter-horizon, budget-constrained deployments where 8 drives genuinely suffices. If any of those assumptions are wrong for your situation, the 12-Bay, the R740 family, or a 15th/16th gen platform is a better fit and we will say so at quote time.

Honest Limitations

• Every platform-level R540 limitation applies. No NVMe, no GPU, no NVDIMM-N, 1 TB max memory, PCIe Gen3 ceiling, BOSS-S1 cold-swap only, iDRAC9 Express insufficient for production. These are platform constraints shared with the 12-Bay; the full discussion lives on the 12-Bay page.
• 8 bays is the ceiling, period. The chassis is welded. There is no field-upgrade path to 12 bays. If the workload outgrows 8 drives, the choices are an external SAS shelf (adds cost and rack U) or chassis replacement (full data migration). Spec the bay count for the deployment's full life, not day-one needs.
• No rear-bay option on the 8-Bay. If dedicated rear-drive OS separation matters, the 12-Bay is the variant with that option (with thermal caveats). On the 8-Bay, boot is BOSS-S1 internal only.
• Lower PSU envelope, fine for 8 drives but flag heavy PCIe expansion. Two 495W Platinum PSUs handle most 8-Bay deployments; step up to 750W only if dual high-TDP CPUs plus multiple PCIe NICs are in the BOM.
• The R740 8-Bay 3.5" is a real alternative. If the requirement is just 8 LFF bays in 2U and the budget allows, the R740 platform's 24-DIMM symmetric memory, NVDIMM-N support, GPU envelope, and 8 PCIe slots are worth the price delta for any long-horizon deployment.

Workload Fit

Where to Look Instead

If storage growth over the deployment life is at all uncertain, start at the Dell PowerEdge R540 12-Bay 3.5", the densest mainstream R540 with the same platform and an optional rear cage. If you want real platform headroom at the same 8-bay count, the Dell PowerEdge R740 8-Bay 3.5" is the flagship 2U LFF with 24-DIMM symmetric memory and a full PCIe and GPU envelope. For serious storage headroom, the Dell PowerEdge R740xd 24-Bay 2.5" adds NVMe via flex-zoning. For PCIe Gen4 and a higher memory ceiling, the 15th gen Dell PowerEdge R550 8-Bay 3.5" is the successor. For the budget tier below the R540, the 13th gen Dell PowerEdge R530 8-Bay 3.5" trades platform security and memory bandwidth for a lower entry price. If 4 LFF bays in 1U genuinely suffices, the Dell PowerEdge R440 4-Bay 3.5" is the rack-density option. Comparing vendors, the HPE ProLiant DL380 Gen10 12-Bay 3.5" is the closest 2U LFF counterpart.

Ready to Configure?

Tell us your workload, target memory capacity, drive count and capacity per drive, single-socket or dual-socket preference, and quantity, and we will spec the right build. Common starting questions for the 8-Bay: is 8 drives genuinely enough for the deployment's full life, or should you start at the 12-Bay? Single-socket budget build or dual-socket for headroom? Standard NL-SAS bulk capacity or a mixed capacity-plus-IOPS array?

Every Wholesale Servers R540 ships after a 12+ hour burn-in test covering every PCIe slot, every memory channel, and every drive bay. The standard 180-day warranty is included, with 1-Year, 2-Year, and 3-Year Premium options available. Volume pricing applies at 5 units and above. Call 1-800-778-1545 or use the quote form on this page and we respond within 24 hours.
