Dell PowerEdge R630 10-Bay | 2x E5-2667 v4 | 16 Cores 3.2GHz | 128GB | 2x 480GB SATA SSD [13th Gen]

⚠️ 13th Generation Platform — Read This First

The Dell PowerEdge R630 is a 13th-gen platform (2014) — 11–12 years old in 2026. This specific unit includes NVMe SSDs, but it is important to understand that NVMe on the R630 works differently than on 14th gen NVMe-native platforms. See the full generational context and limitations on the R630 10-Bay page before purchasing.

Configuration Details

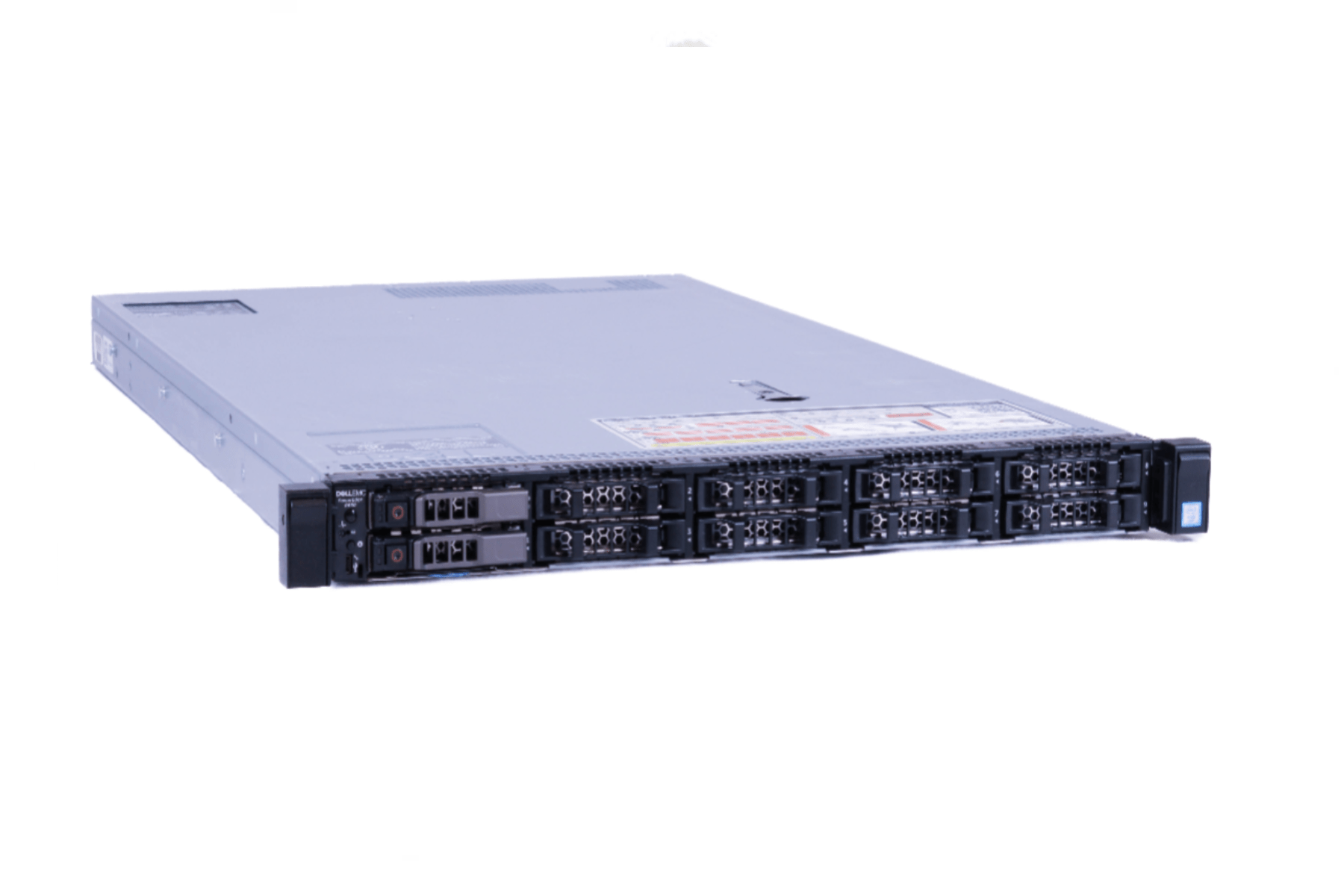

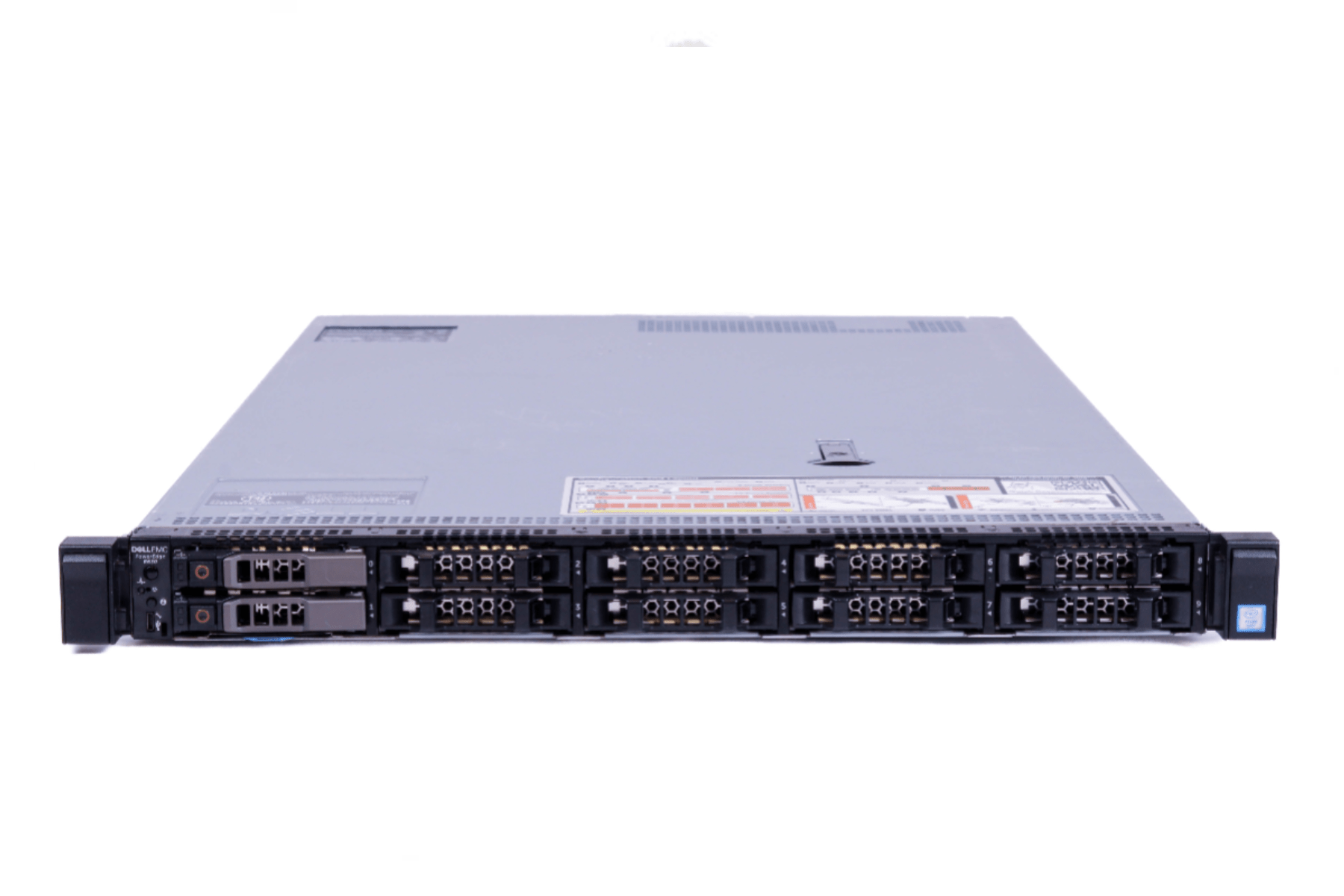

• Chassis: Dell PowerEdge R630 10-Bay 2.5", 1U rack
• Processors: 2x Intel Xeon E5-2667 v4 — 3.2 GHz base, 8 cores / 16 threads per CPU, 16 cores / 32 threads total, 135W TDP
• Memory: 128 GB DDR4 (8x 16 GB RDIMM)
• Storage: 2x 480 GB SATA SSD (not NVMe — see below)

What We Think of This Configuration

The E5-2667 v4 is an unusual CPU choice — 8 cores at 3.2 GHz base with 3.6 GHz turbo, 135W TDP. It's a high-frequency, lower-core-count Broadwell SKU optimized for single-threaded and lightly-threaded workloads rather than maximum throughput. The performance profile is well-suited for: legacy applications with poor thread scaling, latency-sensitive workloads where per-core frequency matters more than aggregate thread count, and high-frequency compute environments where a few fast cores outperform many slower ones.

For comparison: An E5-2680 v4 (14 cores, 2.4 GHz, 120W) provides nearly twice the total compute throughput for multi-threaded workloads at lower TDP. The E5-2667 v4 is a specialized choice, not a general-purpose recommendation. It makes sense when frequency matters over thread count.

On the memory: 128 GB across 8 DIMMs on a 24-slot platform is partial population — only 4 of the 6 memory channels per CPU are active, leaving memory bandwidth on the table. The bandwidth impact depends on workload sensitivity. For many application and compute workloads, partial population at this capacity is adequate. For memory-bandwidth-sensitive workloads (large VM farms, databases), additional DIMMs to full population (12 per CPU × 2 = 24 DIMMs) would improve throughput.

On the storage — important clarification: Despite this unit being listed with NVMe in the title, the 2x 480 GB drives are SATA SSDs, not NVMe. The R630 does not have a native NVMe backplane — NVMe capability on the R630, where it exists, is via PCIe adapter cards, not front-bay native NVMe. SATA SSDs at 480 GB each provide adequate OS and application storage for this platform. If NVMe performance is the requirement, the R640 or R740xd NVMe configurations are the appropriate platforms.

Ideal Workloads

• High-frequency, lightly-threaded applications: Applications or workloads that scale poorly to high thread counts but benefit from fast single-core performance. The E5-2667 v4 at 3.2–3.6 GHz is meaningfully faster per-core than most 14+ core Broadwell SKUs.
• Legacy application hosting: Older enterprise applications not designed for high thread counts — ERP systems, legacy databases with modest concurrency, applications with thread affinity constraints.
• Low-latency compute: Workloads where CPU latency per operation matters more than aggregate throughput. HPC applications with serial bottlenecks, certain financial computing workloads, and real-time processing pipelines can benefit from this CPU profile.
• Dev/test and lab environments: A capable 16-core, 128 GB platform at 13th gen acquisition pricing for non-production use.

Limitations to Know

• SATA SSDs, not NVMe: 480 GB SATA SSDs — adequate for OS and application storage, not an NVMe performance platform. Title notwithstanding.
• Partial memory population: 8 DIMMs across 24 slots — four of six channels active per CPU. Upgrade to full population for bandwidth-sensitive workloads.
• 8 cores per socket: Lower total thread count than most dual-socket configurations. Multi-threaded workloads should evaluate whether 16 total threads meets requirements.
• 13th gen platform limitations: iDRAC8, no H740P, no BOSS module, DDR4 2400 MT/s ceiling, no ProSupport, firmware development concluded. Same caveats as all R630 configurations.

Refurbished Context for 2026

The R630 / E5-2667 v4 platform has been in production since 2016. Every unit ships with documented testing covering CPU stress, memory validation, SSD health assessment (SMART data reviewed), and chassis verification. Third-party maintenance contracts are the production support path for this platform.

Workload Fit

Ordering This Configuration

Fixed-spec pre-configured unit — pricing is set. Lead time typically 3–5 business days after PO receipt. Volume pricing at 5 units and above. To modify configuration (additional memory, different RAID controller, drive changes), contact us for a quote through the Configure & Quote process.
