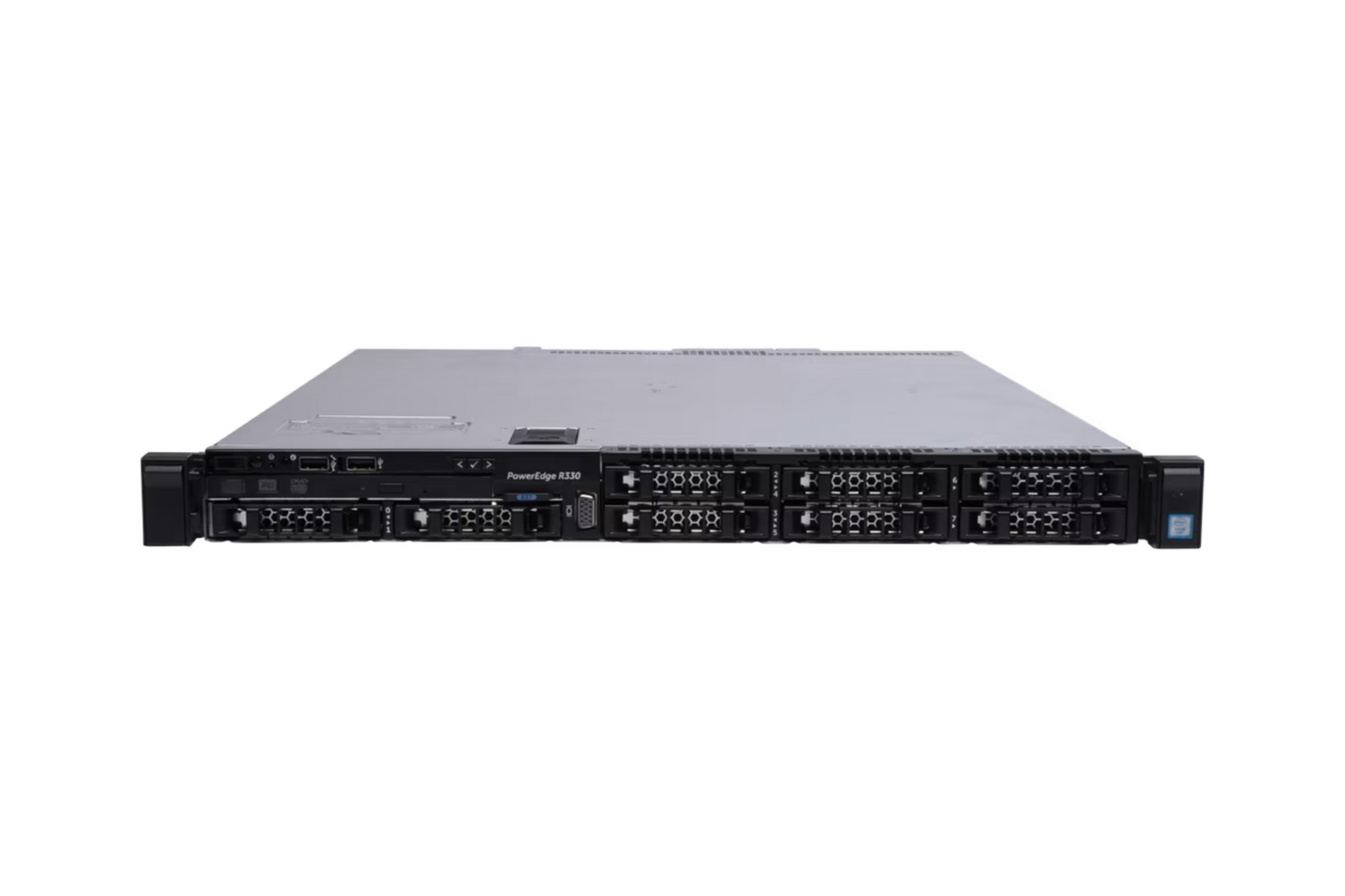

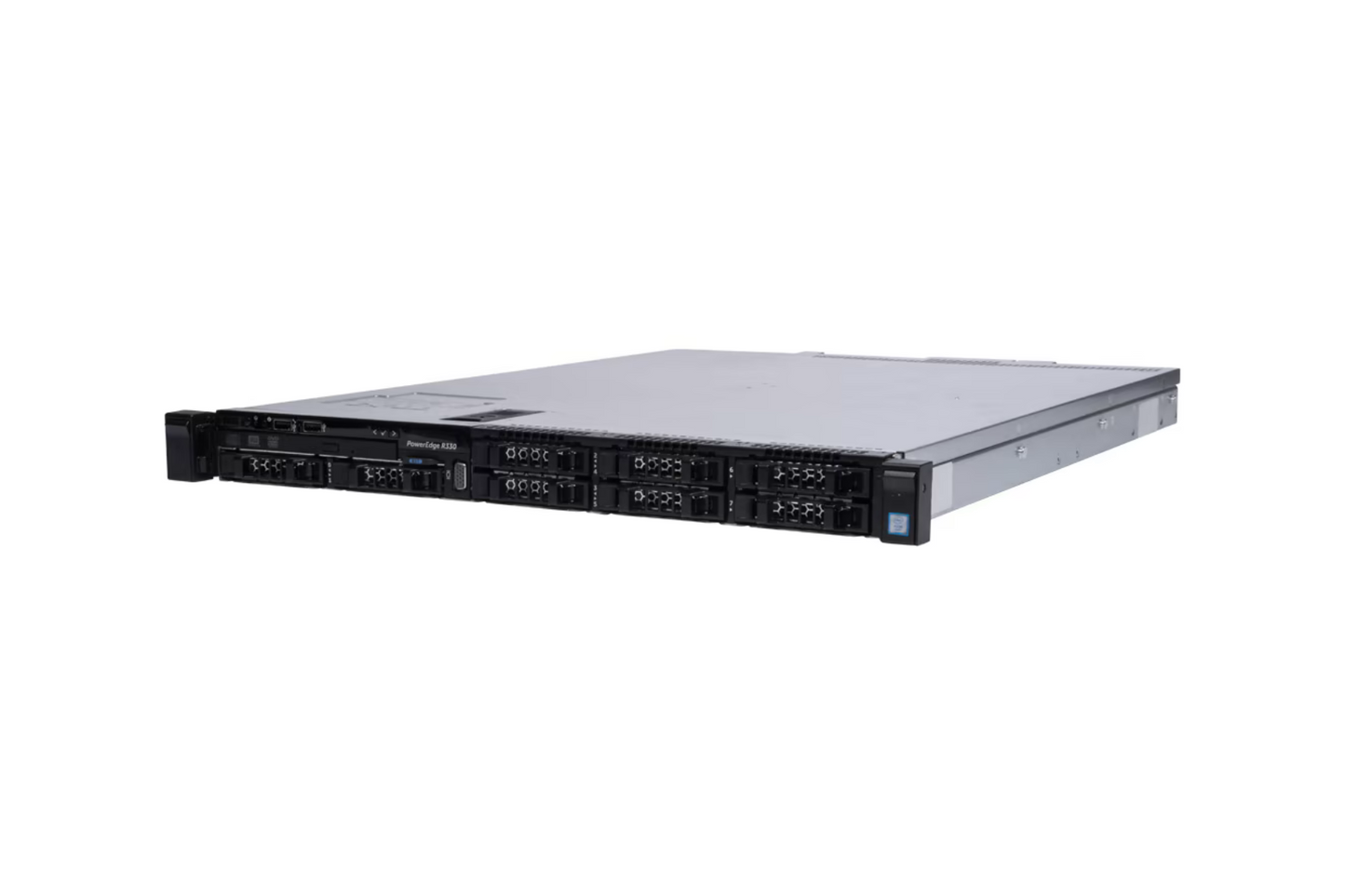

The Dell PowerEdge R330 8-Bay 2.5" is the refurbished, single-socket workhorse of Dell's 13th generation entry-tier rack line. It pairs one Intel Xeon E3-1200 v5 or v6 processor with eight 2.5" hot-swap bays in a compact 1U chassis, and it is aimed squarely at the small-business and remote-office workloads that need real hardware RAID, lights-out management, and redundant power without paying for a dual-socket platform.

This is a deliberately modest machine, and that is the point. Four cores, four DIMM slots, and a 64 GB memory ceiling draw a hard boundary around how far it scales. When a workload genuinely fits inside that boundary, you are not paying for sockets, channels, and PCIe lanes you will never light up. We are direct below about where the ceiling bites and when you are better served stepping up to a dual-socket or newer-generation platform.

To configure a build, call 1-800-778-1545 or request a quote online. Every R330 leaves our bench after a 12+ hour burn-in and a 40-point inspection, ships backed by our 180-day warranty, and qualifies for volume pricing on orders of 5 units or more.

Where the R330 8-Bay Fits in the Family

Within the 13th generation entry line, the R330 sits above the two-bay and four-bay R230 and below the dual-socket R430. The R230 is the cut-down version for the lightest single-purpose roles; the R430 is where you go when one E3 processor and 64 GB of memory are not enough. The R330 is the middle ground: a single E3 socket, but with eight 2.5" front bays, hardware RAID, and 1+1 redundant power.

The 8-Bay 2.5" reviewed here is the small-form-factor, high-spindle-count member of the R330 line. Its companion, the R330 4-Bay 3.5" configuration, trades drive count for large-form-factor capacity. Pick the 8-Bay when you want more, smaller, faster drives (SSD arrays, 10k or 15k SAS, mixed tiers); pick the 4-Bay when you want a handful of high-capacity 3.5" nearline disks for bulk storage.

Storage - 8 2.5" Bays

Eight 2.5" SAS/SATA hot-swap bays sit across the front. The backplane takes 2.5" SATA SSDs, 2.5" SATA 7.2k, 10k and 15k SAS, and nearline SAS, in any mix the controller supports. There is no front-bay NVMe on this platform; every bay is SAS/SATA. Maximum raw capacity is a function of the largest qualified 2.5" drives across the eight bays.

As a rough capacity guide, eight 1.92 TB SATA SSDs give about 15 TB raw, or roughly 11 TB usable in RAID 6 and 7.7 TB in RAID 10; eight 2.4 TB 10k SAS drives give about 19 TB raw. Size the array for the RAID level your workload needs, not just the raw total.

Common profiles we build: an all-SSD RAID 10 for a small SQL or line-of-business database; a 10k SAS RAID 10 for a general file and application server; or a mixed boot-plus-bulk layout. For a backup or archive target, the 4-Bay 3.5" chassis is usually the better fit on cost per terabyte.

Boot device: the R330 predates BOSS, so there is no dedicated M.2 boot card. The clean way to keep all eight front bays free for data is the internal dual SD module (IDSDM), which mirrors two SD cards for a resilient hypervisor boot. The alternative is to give up two front bays to a small RAID 1 SSD pair for the operating system. For ESXi and other hypervisor hosts, the IDSDM is the configuration we recommend so you do not spend data bays on the OS.

Storage Controllers

The R330 uses Dell's PERC9 controller generation in a dedicated internal slot. It accepts PCIe PERC cards only; it does not take the Mini Monolithic (Mini-PERC) controllers used by the larger PowerEdge chassis, so do not source a Mini-PERC for this server.

• PERC S130 (software RAID): chipset-based RAID through the Intel C236. Fine for dev, test, and very light mirrored roles. Not a production recommendation for anything write-sensitive.
• PERC H330: entry hardware RAID, no cache. The right pick for SSD arrays, where controller cache matters less, and for light read-oriented workloads on a budget.
• PERC H730 (1 GB cache, battery-backed): the production default on this platform. Battery-backed write cache is what you want for write-intensive or transactional spinning-disk and mixed arrays.
• PERC H830: external SAS, for attaching an external JBOD enclosure when eight internal bays are not enough. Not for internal drives.

Order the controller you need up front. Per Dell's own documentation, upgrading from software RAID (S130) to a hardware PERC after the fact is not a supported path on this platform. If you expect to run hardware RAID in production, specify the H330 or H730 at configuration time rather than planning to add it later.

Processors

A single LGA1151 socket on the Intel C236 chipset takes one Intel Xeon E3-1200 v5 (Skylake) or v6 (Kaby Lake) processor: up to four cores and eight threads, clocks up to roughly 3.9 GHz, and a maximum 80 W TDP. Entry Core i3, Pentium, and Celeron options also fit, but for a server role the Xeon E3 is the sensible floor because it brings ECC support and the full server feature set.

For SKU selection, the E3-1230 v6 (four cores, eight threads, 3.5 GHz, 72 W) is the sensible default for a general server role: full quad-core throughput without reaching for the top-bin clock. The E3-1220 v6 (four cores, no Hyper-Threading) trims cost for lighter roles, while the E3-1270 v6 and E3-1280 v6 push clocks toward 3.8 to 3.9 GHz for the few workloads that benefit from single-threaded speed. v5 (Skylake) and v6 (Kaby Lake) parts are drop-in compatible on this board; v6 is the newer stepping and the one we quote by default when available.

Two things to keep straight. First, this is single-socket by design. There is no second CPU and no second set of memory channels, so the dual-socket trap of populating both sockets to avoid losing channels does not apply here. Second, four cores is the hard ceiling. If your workload is core-bound (high VM density, parallel build farms, heavier databases), the platform cannot grow into it, and that is the signal to look at the dual-socket R430 or a newer generation.

Memory

Four DDR4 DIMM slots, ECC UDIMM only, up to 2400 MT/s, for a 64 GB maximum (four 16 GB modules). This is the single most misunderstood spec on the platform, so it is worth stating plainly: the E3-1200 v5/v6 memory controller does not support RDIMM or LRDIMM. Registered memory will not work here. Order ECC unbuffered DIMMs, not the registered modules you would use in an R430 or R630.

In practice the common populations are 16 GB (2x 8 GB), 32 GB (4x 8 GB or 2x 16 GB), and the 64 GB ceiling (4x 16 GB). Populate in matched pairs for best performance, and remember there is no path past 64 GB on this controller regardless of module density.

Because the ceiling is 64 GB, memory is usually the first constraint a growing workload hits, well before cores or storage. Size the deployment against that number honestly. If you are within it, the four-slot layout is simple and cheap to populate; if you are pushing against it, that is the platform telling you to step up.

Networking and PCIe Expansion

Networking is two onboard 1GbE LOM ports (RJ45). Unlike the mainstream PowerEdge lines, the R330 has no Network Daughter Card slot, so there is no mezzanine path to 10GbE or 25GbE. If you need faster networking, you spend one of the PCIe slots on an add-in NIC.

Expansion is two PCIe 3.0 slots plus one dedicated internal slot for the PERC storage controller. In a 1U chassis these are low-profile, half-length cards. Plan the two general slots carefully: a 10GbE NIC and an external SAS HBA, for example, will use both. There is no PCIe Gen4 on this platform.

GPU Support

The R330 does not support GPUs. The 1U entry chassis has no GPU-capable riser, no supplemental power for an accelerator, and an 80 W CPU thermal envelope built for light compute rather than acceleration. This is not a constraint to engineer around; the platform was never intended for GPU work. If you need even a single inferencing or transcoding accelerator, this is the wrong server, and so is any other entry 1U. For genuine GPU capacity, look at a GPU-capable tower or 2U platform such as the Dell PowerEdge T640 tower, which our account team can spec to your accelerator and power requirements.

Management - iDRAC8 Generation

Remote management is iDRAC8 with Lifecycle Controller. iDRAC8 Express is the default and covers IPMI 2.0, sensor monitoring, and basic remote control; iDRAC8 Enterprise is the upgrade that adds the full virtual console, virtual media, and vFlash SD support (8 GB or 16 GB). For any server you will not stand in front of, specify Enterprise so you get true lights-out access.

Two honest notes. This is iDRAC8, not iDRAC9, so it predates the iDRAC9 security baseline and conveniences like Quick Sync 2 wireless setup; the remote experience is a generation behind what a 14th gen machine gives you. The platform also supports an optional TPM 1.2 or 2.0 module for Secure Boot and compliance frameworks, which we can include when your environment requires it. Systems management integrates with Dell OpenManage Essentials, Mobile, and Power Center.

Power and Cooling

The R330 takes up to two 350 W hot-plug power supplies in a 1+1 redundant configuration. A single 350 W PSU runs the system non-redundant (1+0) with a blank in the empty bay; a matched pair gives you supply redundancy so a single PSU failure does not drop the server. Both PSUs must match in type and output. The thermal envelope is modest by design, sized for the 80 W single-socket CPU and a handful of 2.5" drives.

Even fully loaded, the R330 stays well within a single 350 W supply, which is why the second PSU is there for redundancy rather than capacity.

Physical Specs & Platform Notes

• Form factor: 1U rack chassis, roughly 677 mm deep with the redundant power supply and bezel, and about 13.4 kg fully populated. Fits a standard 4-post rack.
• PCIe expansion: two PCIe 3.0 slots (low-profile, half-length) plus one dedicated internal slot for the PERC controller. No riser-driven slot expansion beyond that.
• Parts availability: the 13th generation ecosystem is mature and parts are abundant on the secondary market. Dell ProSupport has ended for this platform, so third-party maintenance is the standard production support path in 2026.
• Accessories we recommend: ReadyRails II sliding rails for tool-less 4-post mounting, the optional cable management arm for clean rear routing, and the internal dual SD module (IDSDM) for hypervisor boot. An optional LCD bezel is available where front-panel diagnostics matter.
• Platform notes: PCIe PERC cards only (no Mini-PERC); software-RAID-to-hardware-RAID conversion is not a supported after-the-fact upgrade; no BOSS and no front-bay NVMe; memory is ECC UDIMM only. Specify the storage and memory you need at order time.

Our Assessment

Where it excels: The R330 8-Bay is at its best as a single-purpose or light-consolidation server for small sites: Active Directory, DNS and DHCP, file and print, a small SQL Server or line-of-business database, a branch firewall or UTM, light internal web, and very light virtualization running a handful of VMs on one host. The eight 2.5" bays make it a capable small all-flash or 10k SAS array for that class of workload, and the 1+1 power and iDRAC management give it real production manners a tower or whitebox does not.

Where to look instead: Anything core-bound or memory-hungry outgrows it quickly. For dense virtualization, in-memory work, or any workload that wants more than four cores or 64 GB, step up to the same-generation dual-socket R430, which brings Xeon E5 processors and registered memory. For a current-generation entry platform with iDRAC9 and newer CPUs, the R340 8-Bay (14th gen) and R350 8-Bay (15th gen) are the direct successors. If your needs are even lighter, the smaller R230 4-Bay costs less.

Bottom line: Buy the R330 8-Bay when you have a defined, modest workload that fits comfortably inside four cores and 64 GB and you want enterprise serviceability at an entry price. It is a sound, honest choice for SMB and remote-office roles and for expanding an existing R330 footprint with matching hardware. It is the wrong choice as a growth platform: if you expect the workload to scale, buy the headroom now in a dual-socket or newer-generation server rather than hitting the ceiling in a year.

Where the R330 Fits in 2026

The R330 is a 13th generation platform, roughly a decade into its life in 2026. Its cross-vendor parallel is the HPE ProLiant DL20 Gen9, the equivalent 1U single-socket Xeon E3-1200 v5/v6 entry server; we do not currently stock it, but it is the comparable machine if you are evaluating both vendors.

The successor path is clear: the 14th generation R340 (Xeon E-2100 and E-2200, iDRAC9, BOSS) and the 15th generation R350 (Xeon E-2300, PCIe Gen4) are the modern equivalents, with the 16th generation R360 beyond them. In 2026 the R330 makes sense in two situations: you are extending an existing R330 deployment with matching hardware, or you have a genuinely short-lifecycle, cost-first need where the platform age is understood and accepted. For any new long-lived deployment, ask us for an R340 or R350 comparison before you commit, and we will give you both numbers honestly.

Honest Limitations

• Hard 64 GB memory ceiling across four DIMM slots, and ECC UDIMM only. Registered (RDIMM or LRDIMM) memory is not supported.
• Four-core maximum. The platform cannot grow for core-bound workloads.
• iDRAC8, not iDRAC9. The management generation and its security baseline are a step behind 14th gen and newer machines.
• No BOSS, no front-bay NVMe, PCIe Gen3 only, and onboard networking limited to 1GbE (faster NICs consume a PCIe slot).
• Software RAID cannot be field-upgraded to hardware RAID later; the controller must be specified up front.
• Dell ProSupport has ended; production support relies on third-party maintenance.

Workload Fit

Where to Look Instead

• Dell PowerEdge R330 4-Bay 3.5" - the large-form-factor companion, for fewer but higher-capacity 3.5" drives.
• Dell PowerEdge R230 4-Bay 3.5" - the smaller, lower-cost 13th gen entry server for the lightest roles.
• Dell PowerEdge R430 4-Bay 3.5" - the same-generation dual-socket step-up, with Xeon E5 cores and registered memory when four cores and 64 GB are not enough.
• Dell PowerEdge R340 8-Bay 2.5" - the 14th generation successor with iDRAC9, Xeon E-2100 and E-2200, and BOSS boot.
• Dell PowerEdge R350 8-Bay 2.5" - the 15th generation successor on Xeon E-2300 with PCIe Gen4.

Ready to Configure?

Tell us your workload and quantity and we will return a tailored R330 8-Bay build, along with R340 and R350 comparison pricing, within 24 hours. Call 1-800-778-1545 or request a quote online. Every unit ships after a 12+ hour burn-in and a 40-point inspection, is backed by our 180-day warranty, and qualifies for volume pricing on orders of 5 units or more.
