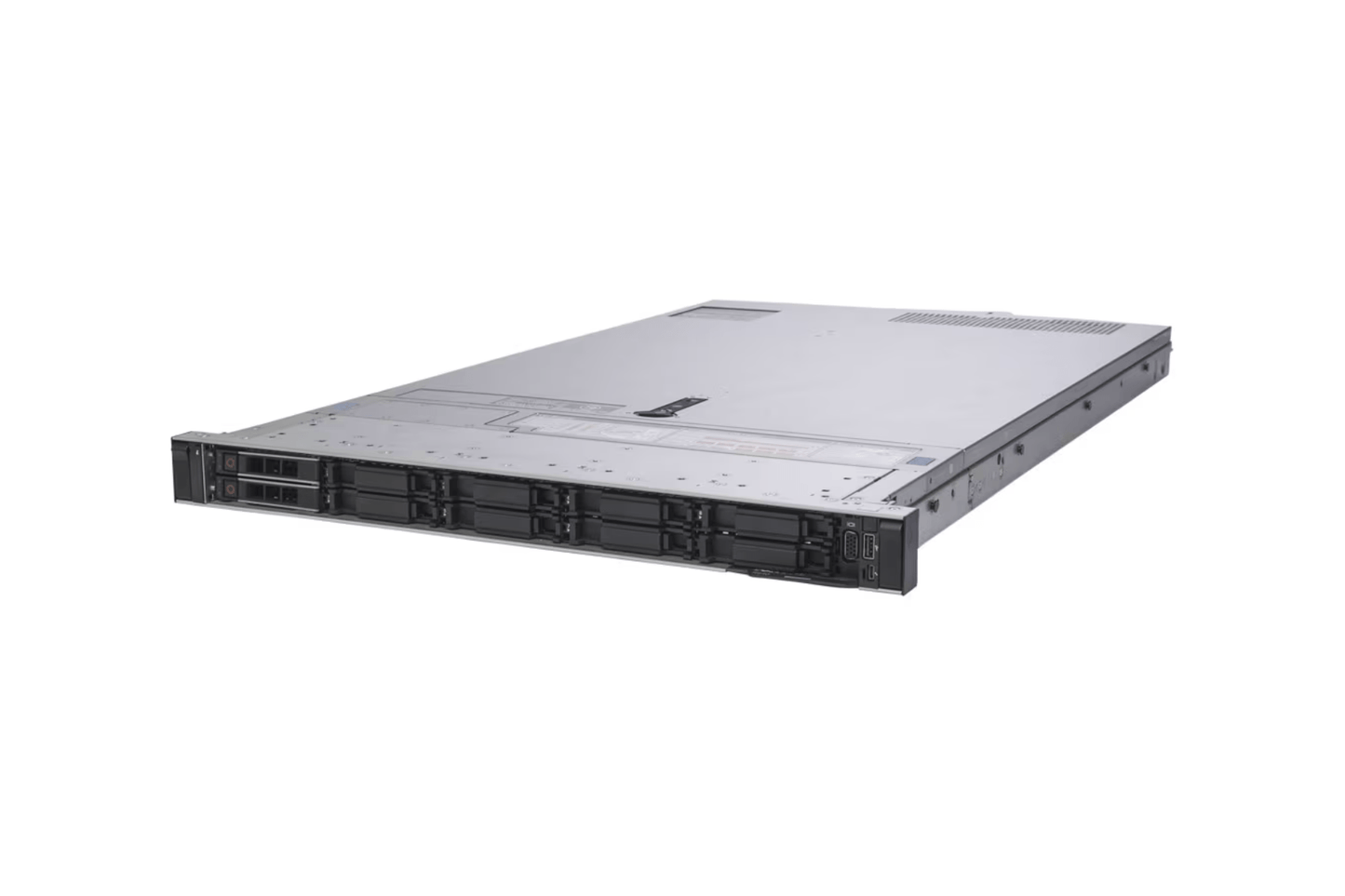

The R640 10-Bay 2.5" Standard Chassis is the refurbished 1U Dell PowerEdge configuration we treat as the default build for general enterprise production. Ten 2.5" hot-swap front bays on a SAS/SATA backplane, dual 1st or 2nd Generation Intel Xeon Scalable processors, 24 DDR4 DIMM slots, and a full Network Daughter Card mezzanine that leaves every PCIe slot available for cards. This is the chassis we recommend when the workload calls for the full ten front bays of local storage and an unconstrained PCIe slot budget at the rear of the chassis.

The Standard chassis is one of three 10-bay R640 configurations on our site. The two alternates trade storage flexibility against backplane choice and rear-bay availability: the 10-Bay 2.5" + RFB adds two rear drive slots at the cost of riser flexibility, and the 10-Bay 2.5" NVMe replaces SAS/SATA with PCIe-attached NVMe across the entire front backplane. We treat the Standard chassis as the primary R640 build on the site because it is the one customers reach for most often when SAS/SATA flexibility plus full PCIe slot availability is the design point.

To configure a build, call 1-800-778-1545 or use the quote form below. Every refurbished unit ships under our 180-day warranty with 12+ hour burn-in testing, and volume pricing starts at 5 units.

Where the R640 10-Bay Standard Fits in the Family

The R640 is Dell's 14th gen 1U dual-socket mainstream platform, the direct counterpart of the HPE ProLiant DL360 Gen10 on the Intel Purley platform. Across the R640 family, the four chassis variants we stock are differentiated by front-bay configuration and backplane type. The Standard 10-Bay is the SAS/SATA workhorse: ten front bays, no rear drive constraints on the riser, and the platform's full storage controller and PCIe slot flexibility intact.

The 10-Bay + RFB shares the same front backplane and adds two rear 2.5" SAS/SATA bays at the cost of secondary riser flexibility. The 10-Bay NVMe uses a PCIe-attached front backplane and changes the storage architecture entirely. The 8-Bay 2.5" drops two front bays for a wider thermal envelope on top-bin CPUs. The 4-Bay 3.5" is the LFF capacity variant for bulk spinning disk in a 1U. The VxRail E560F is the pre-validated vSAN HCI node built on the same R640 chassis.

This is the HPE counterpart to the HPE ProLiant DL360 Gen10 10-Bay 2.5": 1U dual-socket Purley, same generation, same workload positioning, equivalent feature set. If you cross-shop HPE and Dell, the two platforms are direct equivalents for the same set of decisions. The choice usually comes down to existing fleet standardization (iDRAC9 vs iLO 5, OpenManage vs HPE OneView) rather than platform capability.

Storage - 10 2.5" Bays

Ten 2.5" hot-swap front bays on a SAS/SATA backplane. The backplane supports the full range of SAS and SATA drives - spinning disk, SATA SSDs, and SAS SSDs - in any combination. No rear drive bays in this chassis; that is what defines this configuration vs the + RFB variant. Common storage profiles we quote:

• All-SAS SSD: High-endurance, dual-port storage for converged workloads running databases and applications on local storage. SAS SSDs deliver better write endurance and reliability than SATA equivalents in sustained-write environments.
• Mixed SAS HDD + SATA SSD: Cost-effective tiered storage. SSD for hot data and OS, spinning disk for warm or cold data. Appropriate for file servers, backup targets, and general application workloads.
• All-SATA SSD: Good balance of performance and cost for read-dominant workloads. Lower endurance than SAS SSD but adequate for most enterprise application serving scenarios.
• NVMe via PCIe expansion: If NVMe performance is needed alongside SAS/SATA, a PCIe NVMe expansion card can be added in a rear slot. This works but adds complexity and consumes a PCIe slot. If NVMe is the primary storage architecture rather than an add-on, the 10-Bay NVMe chassis is the cleaner solution.

Boot drive recommendation - BOSS module: Dell's Boot Optimized Storage Subsystem is a hardware-RAID 1 pair of M.2 SATA SSDs (120 GB or 240 GB) mounted on a dedicated PCIe card. We recommend it as the standard boot device on every R640 production build. It keeps the OS separate from the data pool, frees all ten front bays for data, and provides hardware-mirrored boot redundancy without consuming a front bay or a RAID controller channel.

Storage Controllers

The R640 storage controller family covers the full range from boot-only software RAID through high-end battery-backed hardware RAID with non-volatile cache. Pick the controller against the workload, not the budget:

• PERC H740P (8 GB NV cache, battery-backed): The production storage default. Non-volatile write cache with battery protection delivers the best write latency and protects cached data through power events. Essential for databases and transactional workloads on local storage.
• PERC H730P (2 GB cache, battery-backed): Solid general-purpose choice for mixed or read-heavy workloads where the H740P premium is not warranted.
• PERC H730 (1 GB cache, battery-backed): Viable budget option, generally a downgrade vs the H730P or H740P on Cascade Lake workloads. Appears on the secondary market frequently as a 13th-gen carryover (Dell maintained Mini-PERC slot compatibility into 14th gen, so refurbished R640 units sometimes ship with the H730 already installed from prior deployments). Quote it when budget is the constraint and write performance is not load-bearing; otherwise the H730P is the better small step up.
• PERC H330 (no cache): Entry-tier hardware RAID for light workloads where write performance is not a primary concern.
• HBA330 (pass-through HBA): For software-defined storage (vSAN, Storage Spaces Direct, Ceph) where the software manages redundancy. Never use hardware RAID on top of a software RAID stack.
• S140 (software RAID via chipset): Dev/test and light workloads only. Not a production storage recommendation.

The controller mounts in a dedicated internal slot (not a general PCIe slot), so on this chassis you keep the full PCIe slot count available for networking, HBAs, or GPUs regardless of which controller you select.

Processors

CPU options: Dual 1st Generation Intel Xeon Scalable (Skylake-SP, 2017) or 2nd Generation Intel Xeon Scalable (Cascade Lake-SP, 2019), socket LGA 3647 on the Intel C620-series (Lewisburg) chipset. Skylake and Cascade Lake are drop-in compatible on the same R640 motherboard; the difference is generation, not platform. Up to 28 cores per CPU for a maximum 56 cores and 112 threads dual-socket. TDP range 85W (Bronze 3104) through 205W (Platinum 8280). Same Purley platform as the HPE ProLiant DL360 Gen10 and DL380 Gen10.

Our SKU recommendations: Intel Xeon Gold 6230 (20 cores, 2.1 GHz base, 125W TDP) for balanced compute and thermal management in a 1U chassis. For storage-heavy converged-infrastructure workloads, higher core counts like Gold 6248 (20 cores, 150W) or Gold 6254 (18 cores, 200W) may be appropriate, with correct heatsink and fan configuration. For pure compute hosts with light local storage, Silver 4214R (12 cores, 100W) or Silver 4216 (16 cores, 100W) deliver the best price-per-core in the family.

Heatsink requirement on top-bin CPUs: Any CPU above 150W TDP - including the 165W Gold 6146, 6144, 6244, and 6246 - requires Dell's high-performance heatsink kit and high-performance fan kit. The standard heatsink will boot the system but throttle under sustained load. We specify this correctly on every high-TDP build; it is the most common configuration error we see on self-built R640 systems and the one most likely to result in a "the server runs fine for the first hour and then performance falls off a cliff" support call.

Single-socket warning: A single-CPU R640 build is supported but cuts the platform in half. With one CPU populated only 12 of the 24 DIMM slots are accessible, half the PCIe lanes are inactive, and the NDC and several PCIe slots route through the second CPU and become unavailable. Single-socket is a real option for development, lab, and lightly-used edge nodes, but it is not a cost-saving move for production. If the workload justifies the chassis, it justifies the second CPU.

Memory

Architecture: 24 DDR4 DIMM slots organized as 12 slots per CPU across 6 memory channels at 2 DIMMs per channel. The 6-channel layout is the Purley platform's defining memory feature and the reason full DIMM population at 2 DPC consistently outperforms partial population at higher speed on memory-bandwidth-sensitive workloads.

Supported DIMM types:

• RDIMM (registered): The standard enterprise choice. Up to 64 GB per DIMM, 1.5 TB total with full population. Best price per gigabyte for capacities up to 1.5 TB.
• LRDIMM (load-reduced): For builds that need more than 1.5 TB. Up to 128 GB per DIMM, 3 TB total. Modest latency premium vs RDIMM but the only path to greater than 1.5 TB on this platform without Optane.
• Intel Optane Persistent Memory (PMem): Cascade Lake L-series CPUs only (Gold 5215L, 6240L, 6248L, etc.). App Direct mode for persistent storage tier, Memory Mode for transparent capacity expansion. Up to 7.68 TB combined with LRDIMM. Use case is specific (large in-memory databases, SAP HANA scale-up); we will tell you directly when Optane is the right answer and when it is not.
• NVDIMM-N: Niche persistent memory option, paired with RDIMM only, far less commonly deployed than Optane. Rarely the right answer in 2026.

Memory speed by population: DDR4-2933 on Cascade Lake Gold 6200 and 5222 SKUs at 1 DPC, DDR4-2666 on other Cascade Lake SKUs and at full 2 DPC population, DDR4-2666 on all Skylake SKUs. Full 24-DIMM population at 2 DIMMs per channel drops effective speed to DDR4-2666 from the 2933 MT/s peak even on Gold 6200 / 5222 CPUs. The full-channel bandwidth advantage over partial population is measurable under load and consistently worth the speed-step tradeoff; this is the call we make almost every time.

Mixing rules: Within a channel, DIMM ranks must match, capacity must match, and timing must match. Across channels Dell allows broader mixing but we do not quote mixed configurations for production; matched-set DIMMs avoid subtle stability issues and make later memory expansion straightforward.

Networking and PCIe Expansion

Network Daughter Card (NDC): Dell's NDC is the R640's primary networking position, the architectural equivalent of HPE's FlexibleLOM on the DL360 Gen10. The NDC mounts in a dedicated mezzanine slot and does not consume any PCIe slot. NDC options:

• 4x 1 GbE: Entry-tier, suitable for management networks, branch office deployments, or workloads where 1 GbE is genuinely sufficient. Not recommended for primary enterprise production traffic.
• 2x 10 GbE SFP+ + 2x 1 GbE: The baseline for most enterprise virtualization and application servers. 10 GbE for production traffic, 1 GbE ports available for management or backup networks.
• 4x 10 GbE SFP+: Quad-port 10 GbE for environments requiring storage fabric separation, dedicated vMotion and backup networks, or aggregated bandwidth.
• 2x 25 GbE SFP28: Recommended for storage-intensive workloads, high-density VDI, or any environment where local storage I/O competes with application traffic on shared links. The right NDC for vSAN ReadyNode and NVMe-heavy builds even on the Standard SAS/SATA chassis.

PCIe expansion: Up to 3 PCIe Gen3 slots depending on riser configuration. The R640 supports four riser variants (Riser 1A, 1B, 2A, 2B) that trade slot count against form factor (low-profile vs full-height). The Standard 10-Bay chassis preserves the full PCIe slot budget because no rear riser space is consumed by an RFB drive assembly. Common PCIe builds on this chassis: dual 25 GbE NIC plus external SAS HBA plus GPU, or quad 10 GbE NIC plus two NVMe expansion cards, or full PCIe budget allocated to GPU compute.

GPU Support

The 1U thermal envelope is the gating constraint on R640 GPU configurations. The chassis supports up to three single-width low-profile GPUs (NVIDIA T4 is the standard choice in this class) or a single FPGA accelerator. Power budget and thermal validation are required for any GPU configuration; the 1100W Platinum or 1600W Platinum PSU pairing is recommended on multi-GPU builds.

Note that Dell's thermal restriction tables do not permit the 3-GPU T4 configuration on the 10x 2.5" SAS chassis - that combination is supported only on the 4-bay LFF or 8-bay SFF chassis where front-to-rear airflow is less restricted. For dual-T4 or single-T4 inference workloads the 10-Bay Standard works cleanly. For heavier GPU compute, A100 or H100 class accelerators, or any double-width GPU, the 2U R740 is the right call. The R640 is a serious server with serious GPU limits; we will not pretend the 1U is a GPU compute platform.

Management - iDRAC9 Generation

iDRAC9 Enterprise: Required for production deployment. Remote KVM, virtual media, predictive analytics, Group Manager for fleet-scale operations, Quick Sync 2 (wireless mobile management), and Silicon Root of Trust. iDRAC9 Express is not suitable for unattended datacenter deployment because the remote console functionality is restricted to local console access only.

Security baseline: Silicon Root of Trust anchors firmware verification in immutable silicon (the Dell equivalent of HPE iLO 5's hardware-anchored trust chain). System Lockdown mode prevents unauthorized firmware changes after deployment. TPM 2.0 module supported and recommended for any deployment with NIST 800-171, CMMC, FedRAMP, HIPAA, or PCI DSS compliance framework requirements.

Lifecycle Controller: Bundled with iDRAC9. Provides BIOS and firmware update orchestration, hardware inventory reporting, and OS deployment via integrated drivers. Worth taking the time to learn on first deployment; it saves real time at every subsequent firmware refresh.

OpenManage Enterprise: The Dell fleet management plane. Integrates with iDRAC9 and Lifecycle Controller across the fleet for centralized firmware compliance, configuration drift detection, and warranty status tracking. Worth the integration effort on any fleet over 20 R640 units.

Power and Cooling

PSU options: Hot-swap redundant Dell Flex Slot PSUs in 495W Platinum, 750W Platinum, 750W Titanium, 1100W Platinum, or 1600W Platinum. Always spec redundant; we do not quote single-PSU R640 builds for production. Right-sizing depends on CPU TDP, memory population, and drive count:

• Light (Silver CPUs, partial RAM, HDDs): 2x 495W Platinum, peak draw approximately 290W
• Balanced (Gold 6230, full RAM, SAS SSD): 2x 750W Platinum, peak draw approximately 490W
• Heavy (Gold 6248, full RAM, all-SSD plus GPU): 2x 1100W Platinum, peak draw approximately 720W
• Multi-GPU or full-population top-bin CPUs: 2x 1600W Platinum for headroom on the largest builds

On efficiency tier: 750W Titanium-rated PSUs are worth the modest premium for large multi-unit deployments. Efficiency savings at scale add up quickly, and a PSU running at 50 percent capacity runs cooler and lasts longer than one running at 90 percent. When in doubt on sizing, size up.

Thermal: Eight hot-plug redundant fans standard. ASHRAE A3 (40C) extended ambient support with the high-performance fan kit. The 1U thermal envelope is the primary constraint on top-bin CPU and GPU configurations; Dell's thermal restriction tables in the R640 Technical Guide are the authoritative reference for any borderline build, and we work through that table with you at quote time when the configuration is close to a limit.

Physical Specs & Platform Notes

• Form factor: 1U rack server. 42.8mm H x 434mm W x 735-760mm D (28.9-29.9 inches) depending on bezel and cable management options. Standard 19-inch rack mount with Dell ReadyRails II.
• PCIe expansion: Up to 3 PCIe Gen3 slots across four supported riser configurations (1A, 1B, 2A, 2B). Riser choice trades slot count against full-height vs low-profile form factor; the Standard 10-Bay preserves the full riser budget because no RFB assembly consumes rear chassis volume.
• Parts availability: Excellent. The R640 is one of the highest-volume Dell PowerEdge platforms ever shipped. PERC controllers, NDC cards, riser kits, backplanes, fan modules, and PSUs are all readily available in the secondary market, and Dell ProSupport parts coverage remains active on most R640 service contracts in 2026.
• Accessories we recommend: Dell LCD bezel (P/N 521RX security bezel, 7M3F1 LCD bezel without security, 9NN24 with security - confirm part at quote time against your chassis revision), Dell ReadyRails II static or sliding rails, and the Dell cable management arm (CMA) for serviceability in any deployment where the server will be pulled forward in the rack for service. The CMA is genuinely worth the cost on production deployments.
• Platform notes: CPU hot-plug is not supported (system must be powered down for CPU replacement). NDC swap requires powered-down access. BIOS configuration for NVMe bifurcation must be set correctly if NVMe expansion cards are added to a SAS/SATA chassis. Thermal restriction tables in the R640 Technical Guide govern any top-bin CPU plus GPU or top-bin CPU plus high-ambient deployment.

Our Assessment

Where it excels: General enterprise virtualization clusters running vSphere or Hyper-V where local SAS/SATA storage is the primary tier and PCIe expansion flexibility matters. SQL Server consolidation hosts with local production data on SAS SSD and a PERC H740P. File and object storage nodes (Ceph, MinIO, ZFS on Linux) where 10 SFF bays of mixed SSD plus spinning disk is the right capacity. Application and middleware hosts where the workload mix is broad and the chassis needs to be flexible across CPU, memory, NDC, and PCIe choices. Capacity-add nodes to an existing R640 fleet where iDRAC9 firmware version, PERC controller family, and OpenManage tooling are already standardized.

Where to look instead: If you need rear drive bays for boot or cache separation, the 10-Bay + RFB is the right call. If your storage tier is NVMe-first across all front bays, the 10-Bay NVMe is the cleaner architecture. If the workload is compute-first with storage on a SAN or NAS, the 8-Bay 2.5" gives you slightly better thermal headroom for top-bin CPUs. If your workload needs PCIe Gen4, DDR5, CXL coherency, or Sapphire Rapids per-core gains, step up to the R650 (15th gen) or R660 (16th gen).

Bottom line: The 10-Bay Standard is the R640 we recommend by default. A senior IT technician building a 14th gen Dell 1U for general enterprise production, with mixed SAS/SATA storage and a normal PCIe expansion mix, lands on this chassis nine times out of ten. The other R640 variants exist because there are real workloads where rear bays, NVMe, fewer bays for thermal headroom, or LFF capacity is the better answer, but for "give me a reliable 1U Dell that does the job," this is the build.

Where the R640 Fits in 2026

The R640 launched in 2017 and received its 2nd Generation Intel Xeon Scalable refresh in 2019. As of 2026 the platform is 2 generations behind the R650 (15th gen, Ice Lake-SP, 2021) and 3 generations behind the current production R660 (16th gen, Sapphire Rapids, 2023). Dell ProSupport contracts on R640 hardware are still available on most config tiers but are approaching end-of-extended-support; third-party maintenance is the standard production support path for most R640 deployments in 2026. We are not going to soft-pedal the R640's age: for greenfield mission-critical deployments where PCIe Gen4 bandwidth, DDR5 memory speed, or Sapphire Rapids per-core gains materially change the workload economics, the R660 step is the right answer.

The R640 10-Bay Standard earns its place in 2026 when one of these patterns applies: capacity-add to an existing 14th gen Dell fleet where iDRAC9 firmware version, PERC controller family, and ProSupport contract terms are already standardized; lab, dev, and staging mirrors of production R640 fleets where matching the production platform is more valuable than running newer hardware; budget-driven workloads where the price delta vs R650 or R660 (typically $1,000 to $2,500 per unit on the secondary market) materially changes the deployment math; certified workload contexts where the application vendor has explicitly validated the 14th gen platform and re-certification on Ice Lake or Sapphire Rapids is not yet complete; operational standardization in environments where the existing fleet runs on iDRAC9, Lifecycle Controller, and OpenManage and the operations team has invested in 14th gen tooling.

Honest Limitations

• No rear drive bays. Ten front bays is the total drive count in this chassis. If you need 12 total drives (10 front plus 2 rear) in a single 1U, the 10-Bay + RFB is the right configuration.
• SAS/SATA backplane only. No native front-bay NVMe. NVMe is possible via PCIe expansion cards in rear slots, but if NVMe is the primary storage tier, the 10-Bay NVMe chassis is the right answer, not this one with an NVMe workaround.
• PCIe Gen3, not Gen4. The R640 predates PCIe Gen4. For workloads where per-slot bandwidth matters (high-end NICs, GPUs, NVMe expansion), the R650 or R660 are the better long-term call.
• 2 DPC throttles memory speed. Full 24-DIMM population drops effective memory speed to DDR4-2666 from the 2933 MT/s peak on Cascade Lake Gold 6200/5222 SKUs. We consider this an acceptable tradeoff for the bandwidth gain from full-channel population, but it is a real number worth knowing.
• High-TDP CPUs require performance heatsinks. Any CPU above 150W TDP, including 165W SKUs like the Gold 6146 and Gold 6244, needs the high-performance heatsink plus high-performance fans. The standard heatsink will boot the system but throttle under sustained load.
• Not a GPU compute platform. The 1U thermal envelope limits configurations to single-width low-profile cards like the NVIDIA T4. If your workload needs A100s, H100s, or any double-width GPU, look at the Dell PowerEdge R740 16-Bay 2.5" or other 2U platforms.
• 3 PCIe slot ceiling. Even with no RFB constraint, the R640 maxes out at 2 to 3 full-height slots depending on riser configuration. If your build needs 4 or more cards, you have outgrown the 1U chassis.
• 14th gen, not current production. Dell's current 1U production platform is the R660. The R640 represents strong refurbished value in 2026 but is not new hardware; we are transparent about that and would rather state it upfront than after a purchase order is issued.

Workload Fit

Where to Look Instead

• Need rear drive bays in 1U? The R640 10-Bay 2.5" + RFB adds two rear 2.5" SAS/SATA bays for a 12-total-drive 1U.
• NVMe-first storage architecture? The R640 10-Bay 2.5" NVMe replaces the SAS/SATA backplane with PCIe-attached NVMe across all ten front bays.
• Compute-first, fewer drives? The R640 8-Bay 2.5" trades two front bays for a wider thermal envelope; the right call for top-bin CPU configurations where drive count is not the constraint.
• Bulk LFF capacity in 1U? The R640 4-Bay 3.5" takes four 3.5" hot-swap LFF drives in the 1U R640 chassis for high-capacity spinning disk builds.
• Pre-validated vSAN HCI node? The R640 VxRail E560F is the vSAN-certified version of this chassis for VxRail cluster expansion and dev/test HCI.
• HPE-side equivalent? The HPE ProLiant DL360 Gen10 10-Bay 2.5" is the direct counterpart on the same Intel Purley platform.
• Need 2U for more PCIe or GPU? The Dell PowerEdge R740 16-Bay 2.5" is the 2U companion to the R640; same generation, same Purley CPUs, 6 PCIe slots, double-width GPU support.
• Step up to 15th gen? The Dell PowerEdge R650 8-Bay 2.5" is the Ice Lake-SP successor with PCIe Gen4, 32 DDR4 slots, and improved NVMe density.
• Step down to 13th gen for budget builds? The Dell PowerEdge R630 10-Bay 2.5" is the 13th gen predecessor at a lower price point for lab and dev workloads where 2019-era Cascade Lake platform improvements are not required.
