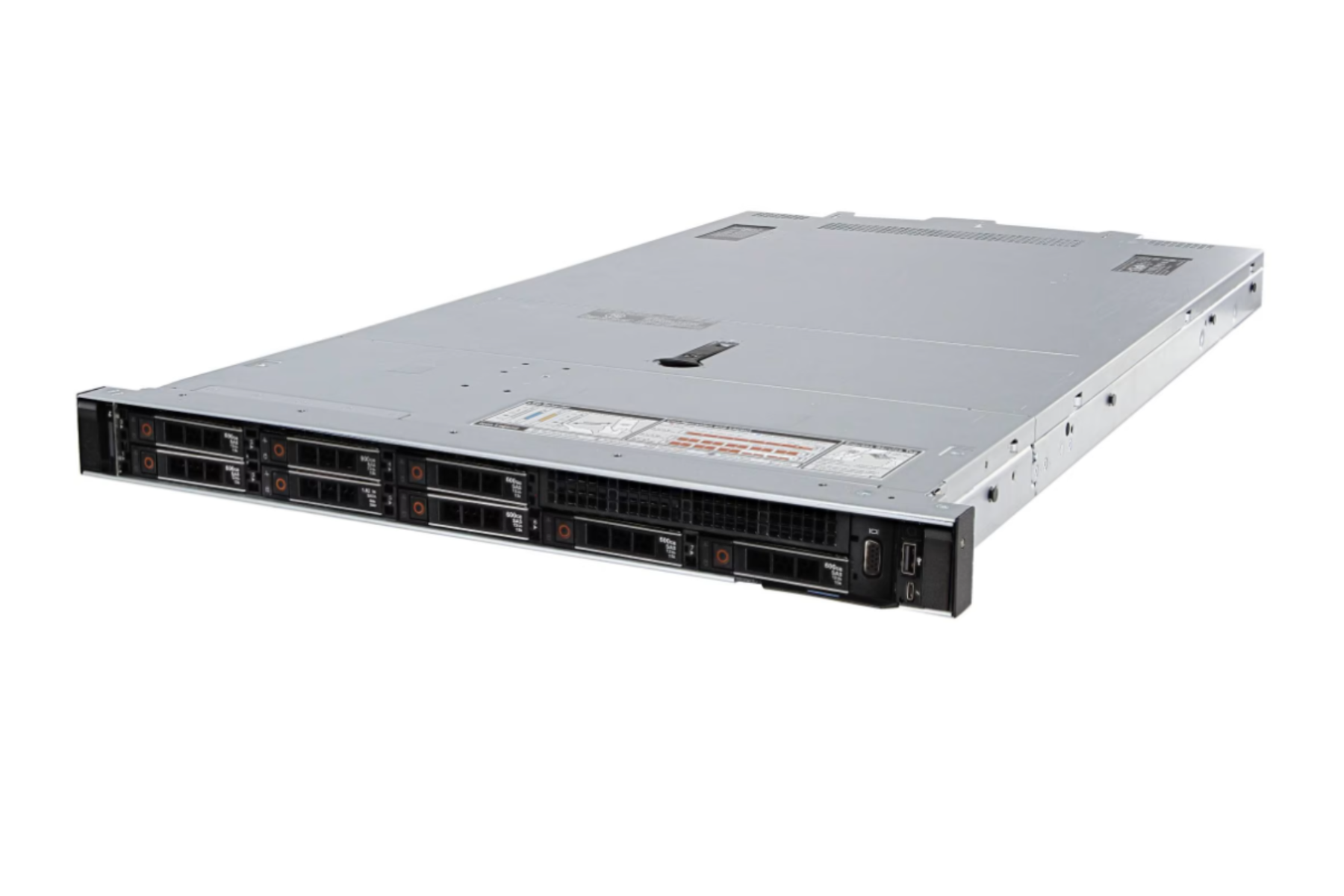

Dell PowerEdge R650 8-Bay 2.5"

The Dell PowerEdge R650 8-Bay 2.5" Hot-Swap is the standard configuration of Dell's 15th gen 1U rack platform: eight 2.5" hot-plug bays on the Universal Backplane with native NVMe support, dual 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA-4189), up to 32 DDR4-3200 DIMM slots, and PCIe Gen4 throughout. This is the mid-range 1U Ice Lake platform in Dell's lineup, the architectural step up from the entry R450 and value R550, and it earns its premium with the additions that matter: native front-bay NVMe, double the DIMM slots, a wider PCIe budget, vSAN ESA certification, and the full Ice Lake SKU stack up to the 40-core Platinum.

The R650 is current-production silicon, not a legacy box. We position the 8-Bay 2.5" SFF as the primary R650 configuration because the capabilities that define the platform, native front-bay NVMe through the Universal Backplane and vSAN ESA certification, are SFF-only and are not available on the LFF chassis. For the R650, the SFF variant is the platform's identity. If your sizing points at bulk spinning capacity, the R650 4-Bay 3.5" LFF covers that case; if you need the maximum 1U spindle count, the R650 10-Bay 2.5" extends the same backplane to ten bays.

Wholesale Servers stocks the R650 as Surplus New and Refurbished. Every unit ships after a 12+ hour burn-in that exercises every memory channel, every PCIe lane, and every drive bay, and it carries our standard 180-day warranty. Volume pricing starts at 5 units. To scope a build or request a quote, call 1-800-778-1545 or use the form on this page.

Where the R650 8-Bay Fits in the Family

The R650 is the dual-socket Ice Lake flagship of Dell's 15th gen 1U class. Within that class the 8-Bay 2.5" is the configuration with the largest installed base and the cleanest Dell documentation and parts story, which is why it is the build most buyers actually want unless they specifically need ten bays or LFF capacity.

Three nearby platforms frame the decision. If your workload does not genuinely use native NVMe or the 32-slot memory topology, the R450 8-Bay 2.5" gives you dual-socket Ice Lake at the value tier with a 16-slot memory ceiling and no NVMe, at a lower acquisition cost. If a single socket covers the compute requirement, the R650xs 8-Bay 2.5" offers the same chassis and storage flexibility at the cost-optimized tier. And when 1U is not a hard requirement, the 2U R750 16-Bay 2.5" doubles the front bays and the PCIe budget on the same Ice Lake platform. The R650 8-Bay sits in the middle of that map: the full dual-socket platform, native NVMe, in the densest practical 1U envelope.

Storage - Eight 2.5" Bays

The 8-Bay configuration provides eight front-accessible 2.5" hot-plug bays on the Universal Backplane. The Universal Backplane is one of the R650's defining features: all eight front bays accept SAS, SATA, or PCIe Gen4 x4 NVMe natively, with no PCIe expansion card consumed for the NVMe path. That is a real improvement over the 14th gen R640, where front-bay NVMe required a riser card that ate an expansion slot.

Common storage profiles at Wholesale Servers:

• All-NVMe. Eight PCIe Gen4 NVMe drives. Standard builds run 8x 3.84 TB (30.72 TB raw), 8x 7.68 TB (61.44 TB raw), or 8x 15.36 TB (122.88 TB raw, the current ceiling). With Gen4 SSDs at 7 GB/s sequential per drive, the aggregate bandwidth in a single 1U chassis is substantial.
• Mixed NVMe plus SAS/SATA. Two to four NVMe for a hot tier alongside four to six SAS or SATA SSDs for warm or capacity tiers. The common shape for database hosts with explicit tiering, hot data on NVMe and cold tablespaces on SAS SSD.
• All-SAS/SATA. Eight 2.5" SAS or SATA SSDs to 7.68 TB each, a cost-reduced alternative when the workload does not genuinely use NVMe latency or IOPS.
• vSAN ESA nodes. The R650 8-Bay with Gen4 NVMe and an HBA355i pass-through is certified for VMware vSAN 8.x Express Storage Architecture. This is the 1U platform for shops moving to vSAN ESA; the R450 and R550 are not ESA-certified.

Boot is handled by BOSS-S2, the second-generation Boot Optimized Storage Solution: two redundant M.2 NVMe SSDs in hardware RAID 1 on a dedicated card, which keeps the OS off the front bays and leaves all eight available for data. Typical BOSS-S2 builds are 2x 240 GB or 2x 480 GB M.2 NVMe. The chassis also supports an optional rear 2x 2.5" drive kit (NVMe-capable on the SFF chassis) for hot spares or dedicated log volumes; add it at quote time if the design uses it.

Storage Controllers

The R650 runs the PERC 11 controller family plus the HBA355i:

• PERC H755 (SAS/SATA). 12 Gbps SAS-3 with 8 GB flash-backed write cache, full RAID 0/1/5/6/10/50/60. The production default for hardware-RAID SAS or SATA builds.
• PERC H755N (NVMe). Hardware RAID across PCIe Gen4 NVMe drives at RAID 0/1/5/6/10. The controller to specify when you want hardware-RAID protection on NVMe rather than a software-defined layer.
• PERC H745. A lower-cache flash-backed hardware-RAID alternative for cost-sensitive SAS/SATA builds.
• PERC H355 and H345. Entry-tier hardware RAID, RAID 0/1/10 only. These do not provide RAID 5 or RAID 6; if you need parity RAID, specify the H755 or H745. This is a frequent field mistake, so we confirm the controller against the RAID level at build time.
• HBA355i. SAS-3 and NVMe pass-through, no RAID. Required for vSAN ESA, Ceph, ZFS, and Storage Spaces Direct, where the storage layer wants raw devices.
• S150 software RAID. Intel VROC at the chipset level. Adequate for boot or light mirrors; we do not quote it for production data arrays where a hardware controller or a software-defined storage layer is the right answer.

Processors

The R650 takes up to two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA-4189), the full Ice Lake stack up to 40 cores per socket, with TDPs from 85W Silver through 270W Platinum. Both single-socket and dual-socket builds are supported. SKUs we recommend most often:

• Xeon Silver 4314 (16C, 2.4 GHz, 135W). The economical dual-socket entry: 32 cores and 64 threads, for cases where platform headroom matters more than core count.
• Xeon Silver 4316 (20C, 2.3 GHz, 150W). The most common refurbished R650 build here, 40 cores and 80 threads, for general virtualization.
• Xeon Gold 6326 (16C, 2.9 GHz, 185W). Higher per-core frequency for licensing-bound workloads (SQL Server Standard, Oracle, per-core ISV licensing) and OLTP single-thread performance.
• Xeon Gold 6338 (32C, 2.0 GHz, 205W). The high-density pick, 64 cores and 128 threads dual-socket, for dense virtualization and Kubernetes nodes sized on thread count.
• Xeon Platinum 8380 (40C, 2.3 GHz, 270W). The platform ceiling, 80 cores and 160 threads dual-socket, for maximum-density VDI and large consolidation hosts.

Two field notes. Ice Lake CPUs above 165W TDP require Dell's high-performance heatsink and fan configuration; every build we ship at Gold 6326 or above includes the correct thermal hardware, verified against the CPU. And a single-socket R650 only wires half the memory channels and a reduced PCIe budget, so if a workload needs the full 8-channel-per-socket bandwidth or the wider slot count, populate both sockets rather than running one high-core CPU.

Memory

The R650 carries up to 32 DDR4 DIMM slots: 16 per CPU, 8 channels per socket, 2 DIMMs per channel. The 8-channel architecture and the 32-slot count are the central memory advantages over the R450 and R550, both 16-slot platforms, and over the 14th gen R640's 6-channel, 24-slot topology.

• RDIMM ceiling: 2 TB with 32x 64 GB dual-rank RDIMMs.
• LRDIMM ceiling: 4 TB with 32x 128 GB LRDIMMs, available on request.
• Optane PMem 200-series: up to 8 TB of combined platform memory in App-Direct or Memory Mode. The R650 is one of the 15th gen rack platforms that supports persistent memory, which matters for SAP HANA, large Redis, and memory-tier-extended workloads.
• Common mid-tier builds: 256 GB, 512 GB (the most common refurbished R650 spec here), 768 GB, 1 TB, and 2 TB.

Speed is DDR4-3200 MT/s at 1 DIMM per channel with a 3200-capable CPU. Populating all 32 slots at 2 DPC can step the rate to 2933 MT/s depending on CPU SKU and DIMM rank, so for workloads that want both maximum capacity and maximum bandwidth, populate 1 DPC with higher-density RDIMMs rather than 2 DPC with smaller modules. The R650 takes registered ECC modules only (RDIMM, LRDIMM, or PMem); it does not accept unbuffered DIMMs. We recommend the population pattern at quote time.

Networking and PCIe Expansion

The R650 provides up to 3 PCIe Gen4 slots, all low-profile and half-length, since the 1U envelope does not accommodate full-height cards. Typical 8-Bay builds expose all three slots with both sockets populated; single-socket builds may present two, depending on the riser SKU.

Networking attaches through one OCP NIC 3.0 slot connected over PCIe Gen4 x8, independent of the three expansion slots. The move to OCP NIC 3.0 is the generational shift on this platform: the 13th and 14th gen Dells used the rack Network Daughter Card, while 15th gen standardizes on OCP 3.0. Common attaches we build:

• 2x 25 GbE SFP28 (Mellanox ConnectX-5 or Intel E810) on OCP 3.0, the standard production fabric attach.
• 2x 100 GbE QSFP28 (Mellanox ConnectX-6) in a PCIe Gen4 slot, for NVMe storage nodes, vSAN ESA clusters, and data-heavy pipelines.
• 2x 10 GbE SFP+ (Intel X710), adequate where storage lives on a SAN.
• 2x 32G Fibre Channel (Emulex LPe35002) for SAN-attached deployments.

GPU Support

The R650 genuinely supports GPUs in the 1U envelope, within the single-width 75W class: up to three NVIDIA T4, A2, or L4 accelerators drawing power from the slot, no supplemental power cabling. That makes it a real platform for light inference, virtual workstation, and transcode workloads at the 1U tier, where the R450 and R550 offer nothing comparable.

What the 1U chassis cannot do is host double-width or full-height GPUs; there is neither the thermal headroom nor the slot height for an A100, an L40S, or similar accelerators. For multi-GPU training, full-height inference cards, or any double-width configuration, the GPU-optimized 2U R750xa is the right platform, and we will quote it instead when the GPU requirement exceeds what 1U single-width can deliver.

Management - iDRAC9 Generation

The R650 ships with iDRAC9, the 15th-generation Dell remote-management controller. Builds here include iDRAC9 Enterprise by default unless you specify otherwise; Enterprise enables virtual console and virtual media redirection, full SNMP and Redfish API access, Lifecycle Controller integration, and per-drive NVMe health telemetry. iDRAC9 Datacenter, the tier above Enterprise, is available on request for deployments that need advanced firmware-update orchestration and expanded telemetry retention.

On the 15th gen platform iDRAC9 brings enhanced Secured Component Verification for supply-chain assurance, system-level signed BIOS updates, a hardware Silicon Root of Trust, standard TPM 2.0, and full Redfish coverage including NVMe-specific metrics. OpenManage Enterprise integration is consistent across the 15th gen family, so Ansible modules, Redfish-native monitoring, and infrastructure-as-code workflows behave the same on every node.

Power and Cooling

The R650 supports two redundant power supplies in a 1+1 configuration. Available wattages and the builds they fit:

Cooling is front-to-rear air, standard or high-performance fan kit by CPU TDP; the 1U chassis handles 270W Platinum SKUs with the high-performance configuration. The R650 does not offer direct liquid cooling. ASHRAE class A2 (10-35°C) is fully supported across standard builds; A3 (5-40°C) and A4 (5-45°C) are supported with CPU and NIC deratings, which we verify against Dell's thermal restriction tables for any deployment outside conventional data-center ambient.

Physical Specs and Platform Notes

• Form factor. 1U rack, roughly 558.9 mm chassis depth, Dell regulatory model E69S. Standard 19-inch rack mounting.
• PCIe expansion. Up to three Gen4 slots, all low-profile and half-length, count varying by riser SKU and socket population; one independent OCP NIC 3.0 slot.
• Parts availability. Excellent. The R650 is current Dell production with full ProSupport parts coverage, so drives, PSUs, risers, heatsinks, and fans are readily sourced.
• Accessories we recommend. The R650/R660 A15 sliding rail kit for tool-less racking, and the optional rear 2x 2.5" drive kit for hot spares or dedicated log volumes. A high-performance heatsink and fan kit is required for CPUs above 165W and is included on those builds.
• Platform notes. CPUs are not hot-pluggable; the OCP 3.0 NIC slot is independent of the three PCIe expansion slots, so a network card does not cost an expansion slot; and high-ambient deployments follow Dell's per-SKU thermal restriction tables, which we check at quote time.

Our Assessment

Where it excels: The R650 8-Bay 2.5" is the right call for mid-range and flagship 1U workloads at the 15th gen tier: high-density virtualization with Ice Lake core counts, dense Kubernetes worker pools, vSAN ESA 1U nodes built on Gen4 NVMe and HBA355i, NVMe-primary database hosts (SQL Server, Postgres, Oracle), and mid-tier single-width GPU inference. Any 1U dual-socket workload that genuinely uses the platform's memory, PCIe, or NVMe headroom lands here.

Where to look instead: If a single socket covers the compute, the R650xs 8-Bay 2.5" delivers the same chassis and NVMe flexibility at a lower cost, and we will say so at quote time. If the workload never touches NVMe or the 32-slot memory topology, the value-tier R450 is the cost-correct box. If you need more than three PCIe slots or more front bays, step to the 2U R750. The premium over the value platforms is real, and it is only justified by a workload that uses what it buys.

Bottom line: Most R650 8-Bay deployments here are mid-range virtualization hosts, vSAN ESA cluster nodes, NVMe-tier database or application hosts, and Kubernetes worker pools where both the dual-socket Ice Lake compute and the native NVMe storage are genuinely in use. That is the workload this chassis was engineered for, and for the buyer who fits that profile, refurbished 15th gen R650 is the cost-correct platform in 2026.

Where the R650 Fits in 2026

The R650 is a current-production Dell platform, not an end-of-life one, so this is a generational-position note rather than a sunset warning. It is the direct successor to the 14th gen R640 8-Bay 2.5", and the deltas are concrete: 3rd Gen Ice Lake-SP versus 2nd Gen Cascade Lake, up to 40 cores per socket against the R640's 28, 8 memory channels versus 6, 32 DIMM slots versus 24, DDR4-3200 versus 2933, PCIe Gen4 throughout versus Gen3, native front-bay NVMe versus riser-card NVMe, BOSS-S2 NVMe boot versus BOSS-S1 SATA, and vSAN ESA certification where the R640 is OSA-only. For fleets on a five-year horizon or a VMware roadmap targeting vSAN ESA, those advantages are worth the step.

Above the R650 sits the 16th gen R660 8-Bay 2.5" (Sapphire and Emerald Rapids, DDR5, PCIe Gen5, CXL). We recommend stepping up only when the workload genuinely uses those deltas: CXL memory expansion, PCIe Gen5 for the newest NICs and accelerators, or DDR5 bandwidth for memory-bandwidth-bound jobs. For the large majority of 1U dual-socket workloads, the 15th gen capability profile is fully adequate and the refurbished R650 is the better economics. The HPE cross-vendor counterpart at this tier is the ProLiant DL360 Gen11.

Honest Limitations

• The 1U PCIe budget is the platform's tightest constraint: three Gen4 slots against the 2U R750's eight. I/O-dense designs feel this first.
• Fully populating all 32 DIMM slots at 2 DPC can step memory to 2933 MT/s; maximum capacity and maximum bandwidth pull in opposite directions.
• No direct liquid cooling, and a 270W Platinum 8380 dual-socket build consumes the available 1U thermal budget under sustained load.
• DDR4 platform, so there is no CXL memory expansion and no DDR5 bandwidth; those arrive only at the 16th gen step.
• The 40-core-per-socket Ice Lake ceiling trails the 16th gen R660's higher core counts for the densest consolidation targets.

Workload Fit

Where to Look Instead

• Maximum 1U spindle density. The R650 10-Bay 2.5" extends the Universal Backplane to ten bays for the highest per-node NVMe capacity in the 1U class.
• Bulk LFF capacity in 1U. The R650 4-Bay 3.5" trades NVMe for large 3.5" drives in branch, backup, and edge roles.
• More slots and more storage in 2U. The R750 16-Bay 2.5" is the same Ice Lake platform with twice the front bays and an eight-slot PCIe budget.

Ready to Configure?

Tell us your workload, whether it is single-socket or dual-socket, your memory target (and whether Optane PMem is in scope), your CPU SKU preference or a workload description so we can recommend one, your storage profile (all-NVMe, mixed-tier, SAS/SATA, or vSAN ESA), your networking attach (10, 25, or 100 GbE), any GPU requirement, and quantity. We respond within 24 hours, and volume pricing applies at 5 units and above. Every build ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, backed by the 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options available. Call 1-800-778-1545 or use the quote form on this page.
