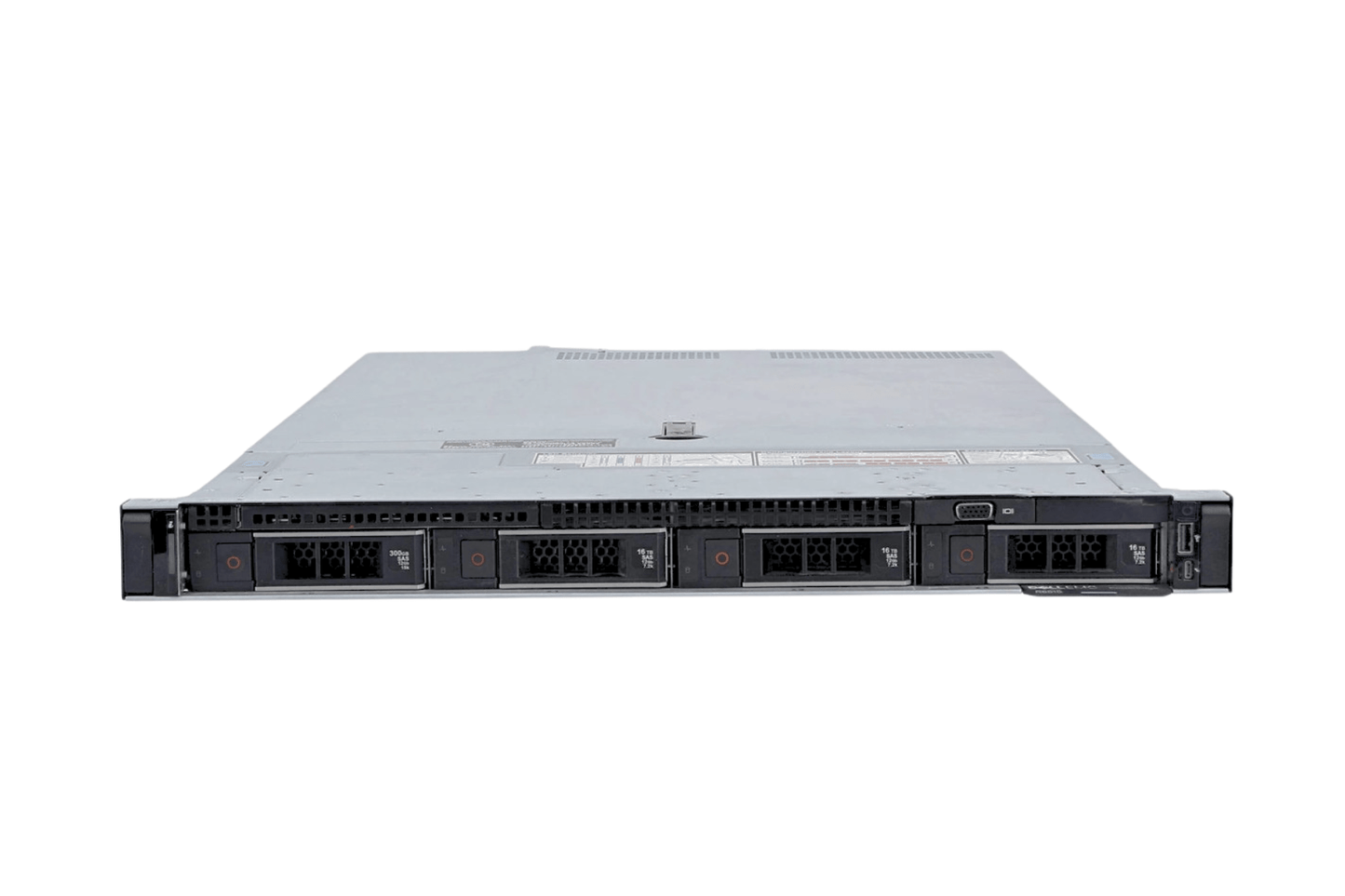

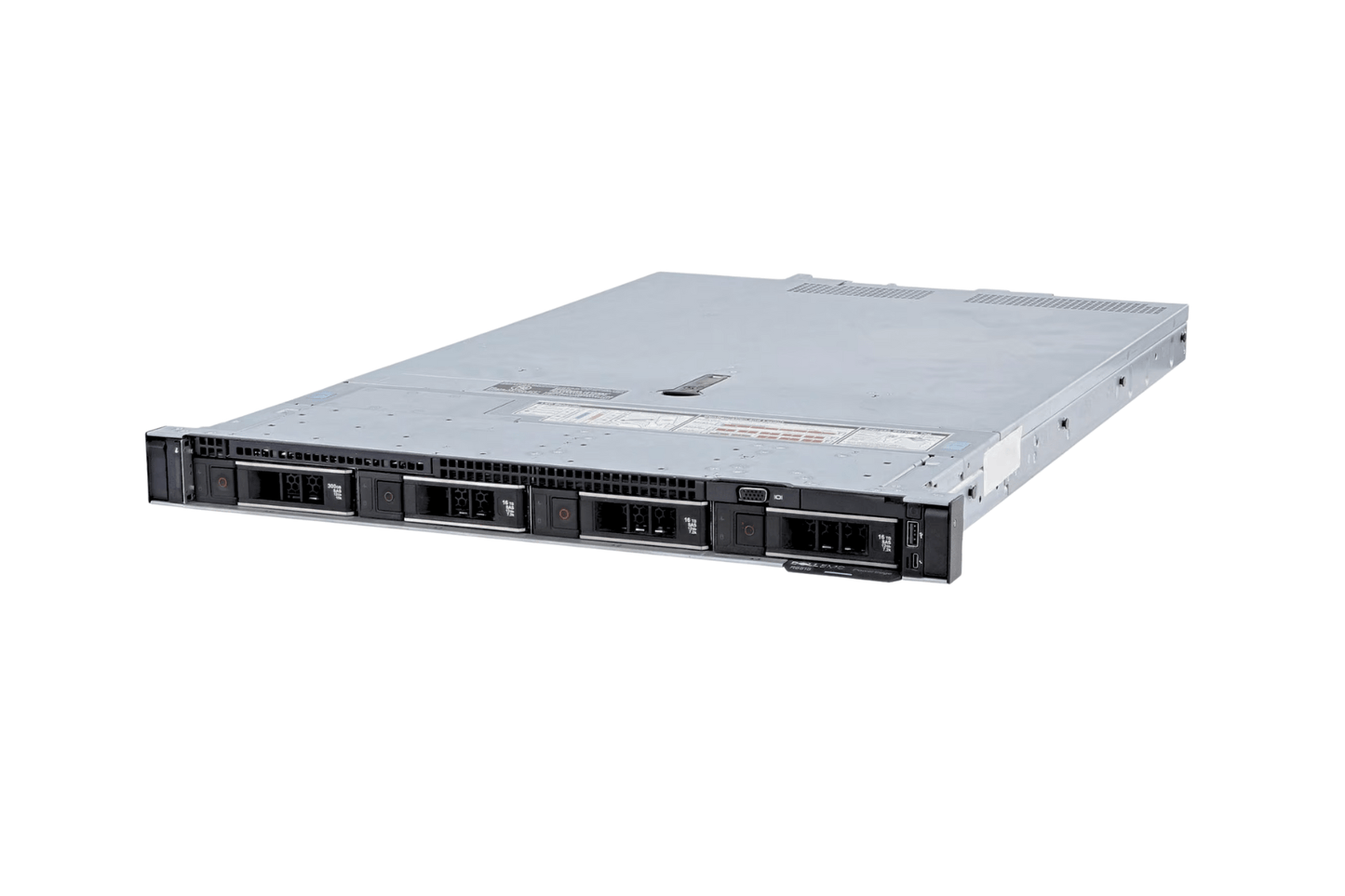

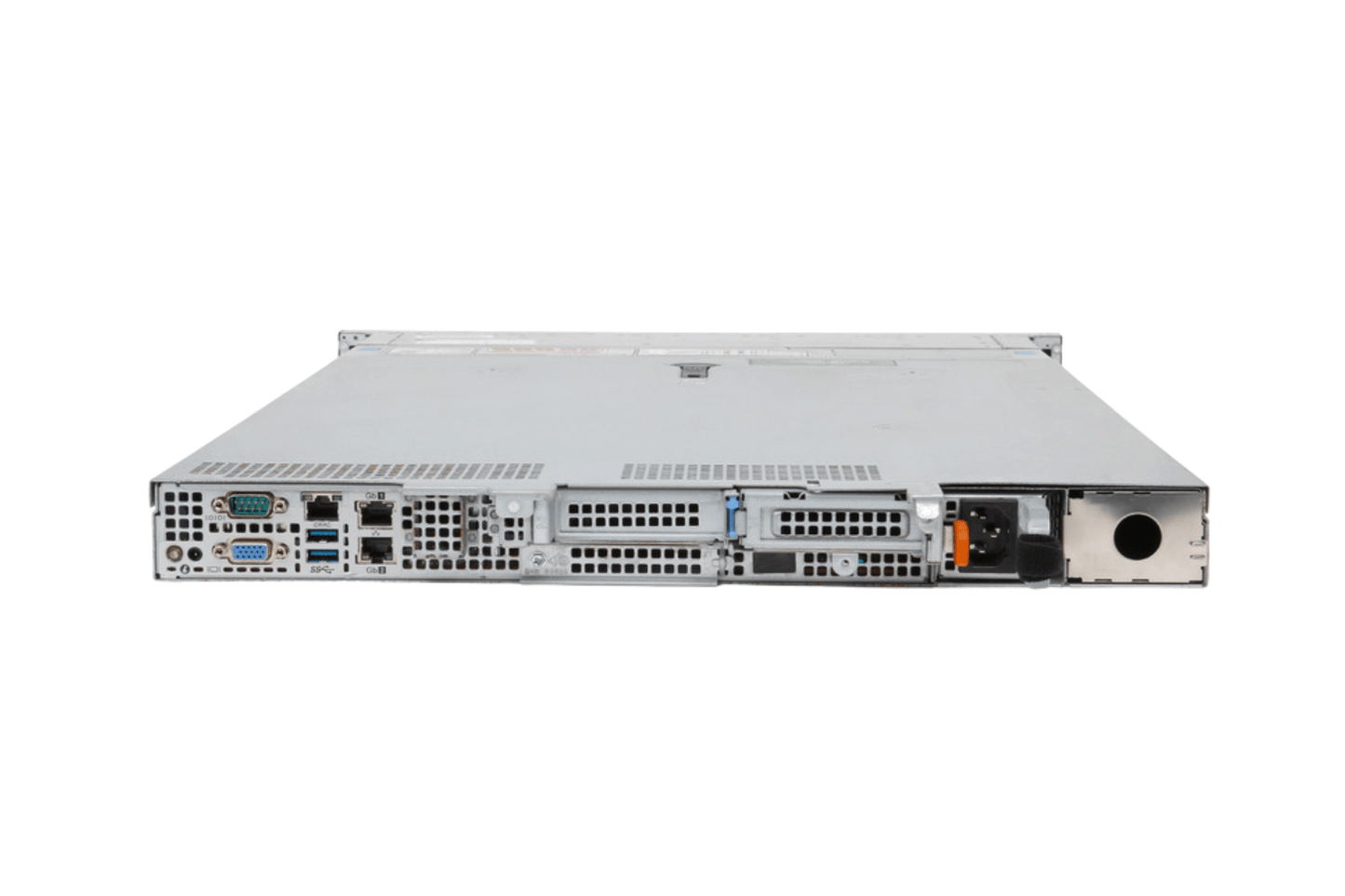

Dell PowerEdge R650 4-Bay 3.5"

The Dell PowerEdge R650 4-Bay 3.5" Hot-Swap is the large-form-factor capacity configuration of Dell's 15th gen mainstream 1U platform: four 3.5" SAS/SATA hot-plug bays paired with the full R650 board, one or two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA 4189), up to 32 DDR4-3200 DIMM slots, Optane Persistent Memory support, and PCIe Gen4 throughout. It is the configuration for the narrow set of workloads that need the complete R650 compute and memory architecture in 1U alongside bulk 3.5" capacity, rather than the native-NVMe SFF storage profile the rest of the family is built around.

This is a deliberately specialized chassis. The native-NVMe Universal Backplane, vSAN ESA support, and high SFF drive density that define the R650 platform live on the 8-Bay and 10-Bay 2.5" configurations; the 4-Bay 3.5" trades that storage profile for nearline-SAS bulk capacity while keeping every bit of the dual-socket Ice Lake compute, the 32-slot memory topology, and the iDRAC9 management stack. For the complete R650 platform write-up covering the Ice Lake silicon, the 32-DIMM ceiling, the PCIe Gen4 budget, BOSS-S2 boot, and the vSAN ESA story, see the primary Dell PowerEdge R650 8-Bay 2.5" page.

To configure a build, call us at 1-800-778-1545 or use the quote form on this page; we respond within 24 hours. Volume pricing applies at 5 units and above. Every Refurbished Dell PowerEdge R650 ships after a 12+ hour burn-in that exercises every memory channel, every PCIe lane, and every drive bay, and it carries our standard 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options available.

When 4 LFF Bays in 1U Is the Right Design

Four 3.5" bays is the smallest large-form-factor profile in the 15th gen lineup, and the 4-Bay R650 is a chassis you choose for a specific reason rather than as a default. The case for it rests on a three-way intersection that has to hold at the same time:

• 1U is a hard form-factor constraint. The rack is shallow or space-constrained, or the deployment standard is 1U per node, so a 2U LFF chassis with more bays is not an option.
• The workload genuinely uses the full R650 platform: dual-socket Ice Lake beyond 24 cores per socket, more than 16 DIMM slots, Optane Persistent Memory, or the full PCIe Gen4 slot budget. If it does not, the entry-tier R450 4-Bay delivers the same LFF profile for less.
• The storage requirement is bulk 3.5" capacity in four drives, not NVMe performance. If the workload needs NVMe, the SFF 8-Bay or 10-Bay is the correct chassis, because the LFF backplane does not carry NVMe.

When all three hold, the 4-Bay LFF is the right and only fit. When any one of them does not, there is a better-matched chassis, and the cross-references throughout this page name it. The most common real deployments are converged branch-office hosts, edge nodes that pair meaningful compute with a bulk data tier, and NAS or file-server heads that also run application workloads on the same box.

Storage - Four 3.5" LFF Bays

Four front-accessible 3.5" SAS/SATA hot-plug bays. This is the defining difference from the SFF configurations in the family: the 4-Bay uses a SAS/SATA large-form-factor backplane, and there is no front-bay NVMe on this chassis. The native-NVMe Universal Backplane and the vSAN ESA all-NVMe story are SFF-only and belong to the 8-Bay and 10-Bay 2.5" variants. On the 4-Bay, the storage value is bulk nearline capacity, not flash IOPS. Practical capacity at full population:

• Four 24 TB nearline-SAS HDDs: 96 TB raw, the current LFF nearline ceiling we stock. RAID 6 leaves two drives usable (48 TB) with double-parity protection; RAID 10 yields the same 48 TB usable with stronger write performance and faster rebuilds.
• Four 16 TB or 20 TB nearline-SAS HDDs: 64 TB or 80 TB raw, the common backup-target and bulk-archive band.
• Four 7.68 TB SAS or SATA SSDs: roughly 30 TB raw for an all-flash bulk tier where capacity matters more than the NVMe latency the LFF chassis cannot provide.
• Mixed tiering: two SAS SSDs mirrored for a hot tier plus two nearline-SAS HDDs mirrored for capacity, the typical converged branch-office layout on four bays.

Boot is handled by the BOSS-S2 card, the device the full R650 ships: dual M.2 NVMe SSDs in hardware RAID 1 on a dedicated card. It keeps the operating system off the four front bays and leaves all of them available for data, which matters more on a 4-bay chassis than anywhere else, because surrendering a quarter of the front capacity to boot would be expensive. A factory BOSS-S2 with dual 480 GB M.2 SSDs is the configuration we recommend for most builds. An optional rear two-bay 2.5" drive kit is available for a hot spare or a dedicated mirror volume; populate it as SAS or SATA, and confirm any rear NVMe requirement at quote time, since rear support varies by riser configuration.

Storage Controllers

Controller options run the Dell PERC 11 family, the same set as the rest of the R650 lineup, scoped here to the SAS/SATA LFF backplane:

• PERC H755 (8 GB cache, battery-backed): the production SAS and SATA RAID default for write-intensive and parity workloads. This is the controller most 4-Bay builds ship with, because bulk-capacity arrays usually want hardware RAID 5 or RAID 6.
• PERC H745 (battery-backed): mainstream SAS and SATA RAID for mixed and read-heavy profiles, a step below the H755 on cache and queue depth.
• PERC H355 and H345 (entry-tier): RAID 0, 1, and 10 only. These controllers do not provide RAID 5 or RAID 6; for the parity RAID that most bulk LFF arrays need, quote the H755 or H745. Assuming parity support on the H355 is one of the most common configuration traps on 15th gen platforms.
• HBA355i (pass-through HBA): raw device access for software-defined and host-managed storage such as ZFS, Storage Spaces, or a software NAS layer.
• S150 (software RAID via the chipset): dev, test, and light boot mirroring only, never a production data recommendation.

The NVMe-specific PERC H755N is not relevant on this chassis, since the LFF backplane carries no NVMe drives; that controller belongs on the SFF all-NVMe builds.

Processors

One or two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, 2021) on socket LGA 4189, the full R650 CPU stack up to 40 cores per socket and 270 W TDP. The 4-Bay LFF chassis runs the same processor options as the SFF R650; nothing in the storage profile constrains the compute. Configurations we commonly quote:

• Xeon Silver 4314 (16 cores, 2.4 GHz, 135 W). Economical dual-socket entry for converged branch hosts where the LFF capacity, not the core count, is the driver.
• Xeon Gold 6330 (28 cores, 2.0 GHz, 205 W). The general-purpose dual-socket workhorse: strong virtualization and file-plus-application consolidation density.
• Xeon Gold 6342 (24 cores, 2.8 GHz, 230 W). Higher per-core frequency for licensing-bound or latency-sensitive application tiers running alongside the bulk store.
• Xeon Platinum 8380 (40 cores, 2.3 GHz, 270 W). The platform ceiling, for the rare 4-Bay deployment that pairs maximum 1U compute with bulk capacity. Ships with the performance heatsink and the matching high-airflow fan complement.

A single-socket build runs eight memory channels and roughly half the PCIe budget; populate both sockets for memory-bandwidth-sensitive or I/O-heavy roles. Top-bin parts at or near 270 W require the performance heatsink, and a build that misses the high-TDP heatsink is the most common thermal configuration error we correct in the field.

Memory

The full R650 board carries up to 32 DDR4 DIMM slots: sixteen per socket, eight channels per socket, two DIMMs per channel. This is the headroom that separates the R650 from the entry-tier R450 4-Bay, which stops at 16 slots and 1 TB. Memory options:

• Registered ECC RDIMM to 2 TB (32x 64 GB) for the mainstream high-memory build.
• Load-reduced LRDIMM to 4 TB (32x 128 GB) for the maximum-density memory configuration.
• Intel Optane Persistent Memory 200 series, up to 16 modules interleaved with DRAM, taking the addressable tier to roughly 8 TB for memory-extended workloads such as large in-memory databases and SAP HANA.
• Common builds: 256 GB (8x 32 GB single-socket), 512 GB (16x 32 GB), and 1 TB (16x 64 GB or 32x 32 GB) cover most converged 4-Bay deployments.

Speed is DDR4-3200 with 3200-capable processors at one DIMM per channel. At two DIMMs per channel with certain dual-rank populations the platform steps to 2933 MT/s; size the population to the bandwidth target rather than reflexively filling all 32 slots. Registered ECC is required throughout; unbuffered DIMMs are not supported.

Networking and PCIe Expansion

Production networking attaches through the OCP NIC 3.0 slot (PCIe Gen4 x8), the 15th gen replacement for the rNDC mezzanine used on 13th and 14th gen Dell platforms. The OCP card carries the primary network function without consuming a PCIe expansion slot. Common attach:

• Dual-port 1 GbE or 10 GbE BASE-T for branch-office and general file-server roles
• Dual-port 10 GbE or 25 GbE SFP for data-center fabrics and converged hosts
• Dual-port 100 GbE QSFP28 by PCIe add-in card where a backup or replication target needs the throughput, though this is uncommon on a 4-Bay build

PCIe is Gen4 throughout, with up to three PCIe Gen4 expansion slots by riser, plus the dedicated PERC slot and the OCP 3.0 slot. With both sockets populated the full slot and lane budget is available; a single-socket build reduces it. The 1U riser geometry limits cards to low-profile and half-length form factors.

GPU Support

The R650 4-Bay is not a GPU compute platform. The 1U thermal envelope supports at most one or two single-width, low-profile accelerators in the 75 W class, such as an NVIDIA A2 or a T4-class card, which covers light inference, modest VDI acceleration, or transcode offload, but nothing approaching training or double-width compute. There is no room for a 300 W double-width card in this chassis, and the LFF front configuration does not change that.

If the workload needs real GPU compute alongside storage, step to the 2U Dell PowerEdge R750 12-Bay 3.5", which carries both the thermal and slot budget for multiple double-width accelerators and the LFF bay count for the data tier in the same Ice Lake generation.

Management - iDRAC9 Generation

The R650 4-Bay ships iDRAC9 (the 15th gen management generation) with the Lifecycle Controller. Our refurbished builds include iDRAC9 Enterprise unless otherwise specified, which production fleets depend on for full remote KVM, virtual media, the Redfish API, and OpenManage Enterprise, Ansible, and Terraform automation. The 15th gen security baseline is the cyber-resilient stack: a Silicon Root of Trust anchoring a signed firmware chain, Secure Boot, optional Secure Erase, and System Lockdown. TPM 2.0 is standard for deployments under NIST, CMMC, FedRAMP, HIPAA, or PCI DSS frameworks.

Power and Cooling

Up to two redundant power supplies in a 1+1 configuration. Because the 4-Bay LFF draws no all-NVMe array power, its sizing sits at the lower end of the R650 range:

Cooling is front-to-rear air for the standard 19-inch rack. ASHRAE A2 is supported across standard configurations, with A3 and A4 supported under documented restrictions. Top-bin CPUs require the high-performance fan complement; specify the workload at quote so the correct heatsink and fan kit ship with the build.

Physical Specs & Platform Notes

• Form factor: 1U rack, Dell regulatory model E69S, four 3.5" front bays. Chassis depth is the standard R650 depth; confirm rack-rail clearance for shallow cabinets.
• PCIe expansion: up to three PCIe Gen4 slots by riser, low-profile and half-length, plus the dedicated PERC slot and the OCP NIC 3.0 slot.
• Parts availability: 15th gen Ice Lake parts are current and well-stocked. PERC 11 controllers, OCP 3.0 NICs, BOSS-S2 cards, DDR4-3200 RDIMMs and LRDIMMs, 3.5" carriers, and PSUs are all readily sourced, with Dell ProSupport still available on the platform.

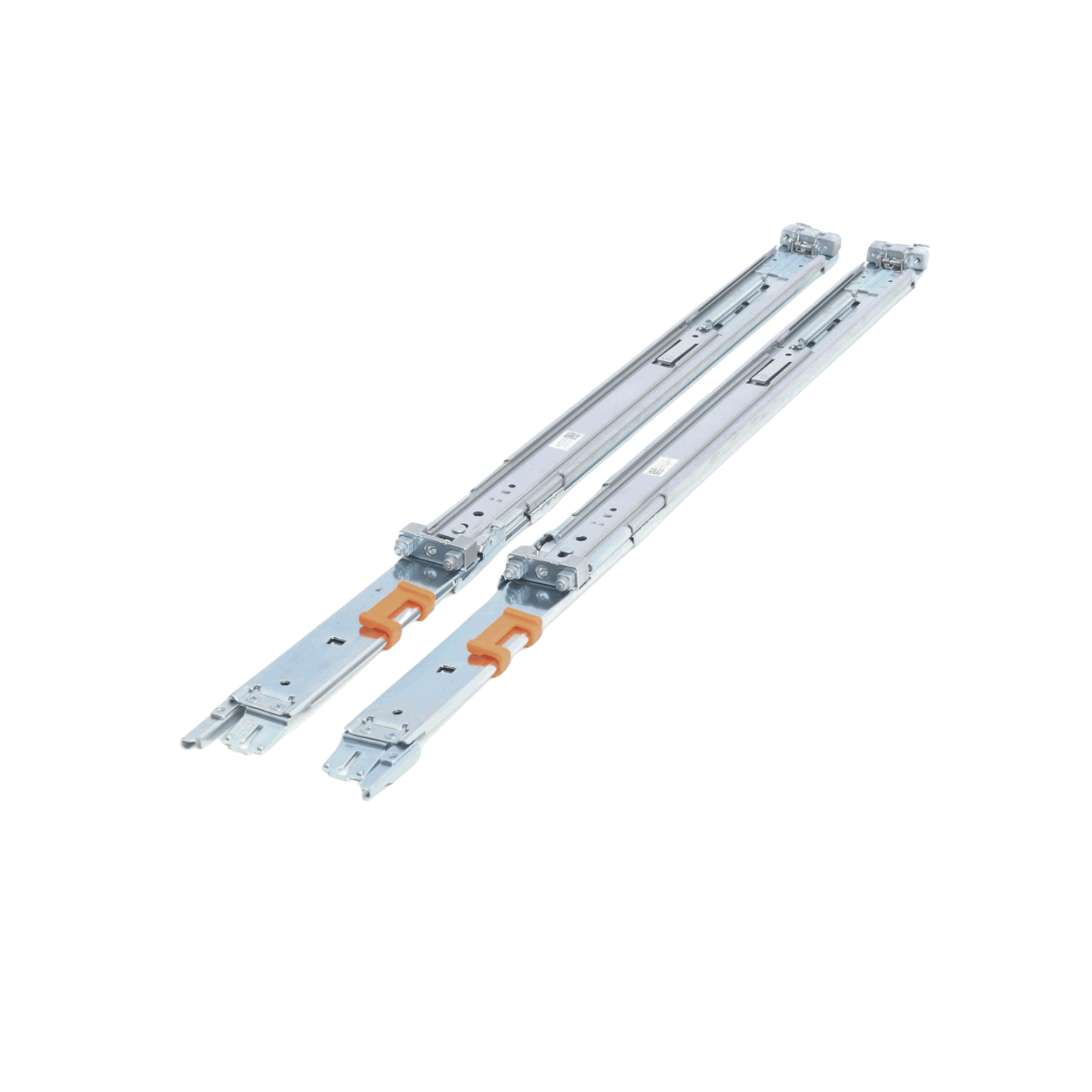

• Accessories we recommend: the Dell A15 sliding rail kit for the R650 and R660 chassis, a cable management arm for serviceability, and a factory BOSS-S2 boot card so the operating system stays off the four front bays.
• Platform notes: the LFF backplane is SAS/SATA only with no front NVMe; CPU hot-plug is not supported; the front carriers are 3.5" and do not accept 2.5" drives without an adapter; and the high-TDP heatsink is mandatory on top-bin CPUs.

Our Assessment

Where it excels: The R650 4-Bay LFF is the right answer for the narrow intersection of three requirements held at once: a hard 1U form factor, genuine use of the full R650 dual-socket Ice Lake compute and 32-DIMM memory, and a bulk 3.5" capacity tier. Converged branch-office hosts running directory, file, application, and local-backup roles on one box; edge nodes that pair real compute with a nearline data tier; and NAS or file-server heads with co-located application workloads are the deployments where it fits cleanly.

Where to look instead: When the R450's lighter compute envelope is sufficient, the entry-tier R450 4-Bay 3.5" delivers the same LFF profile for less. When more than four LFF bays are needed, the 2U R550 8-Bay 3.5" is the cost-efficient capacity step. When the workload needs NVMe or vSAN ESA, the SFF R650 10-Bay 2.5" is the correct chassis. When single-socket compute is enough, the R650xs 4-Bay 3.5" trims cost. The Where to Look Instead section below links each of these directly.

Bottom line: Buy the R650 4-Bay LFF when 1U is non-negotiable, the workload truly uses the full R650 platform, and the storage need is bulk 3.5" in four drives. That intersection is narrow, and we will say so at quote: if your sizing would be equally well served by the R450 4-Bay or by stepping to a 2U LFF chassis, we will recommend the alternative and quote both for comparison. The typical buyer is an infrastructure team standardizing on 1U nodes that have to do real compute work and hold bulk local data without a separate storage shelf.

Where the R650 4-Bay Fits in 2026

The R650 is Dell's 15th gen Ice Lake-SP mainstream platform, current and fully supported in 2026, with Dell ProSupport still available and a deep refurbished and surplus parts supply. The 14th gen predecessor is the Dell PowerEdge R640 8-Bay 2.5", a strong buy where Cascade Lake compute and PCIe Gen3 still meet the requirement and the lower acquisition cost matters. The 16th gen successor is the Dell PowerEdge R660 8-Bay 2.5", which moves to DDR5, PCIe Gen5, and Sapphire Rapids or Emerald Rapids silicon when those deltas materially improve the outcome. The cross-vendor counterpart is the HPE ProLiant DL360 Gen11; we can quote against it on request, though it is a separate platform with its own controller and management ecosystem. For most buyers in 2026, the 15th gen R650 is the sweet spot of current support, mature parts supply, and price.

Honest Limitations

• No front-bay NVMe. The LFF backplane is SAS/SATA only, so the native-NVMe and vSAN ESA capabilities that define the SFF R650 are not available on this variant.
• Only four front bays. Bulk-capacity workloads frequently outgrow four 3.5" drives; a 2U LFF chassis is usually the more cost-efficient capacity platform once more than four bays are in play.
• 1U thermal envelope rules out GPU compute beyond low-profile single-width 75 W accelerators.
• The 1U riser limits PCIe to up to three low-profile, half-length slots; heavy add-in-card builds exhaust the budget quickly.
• The narrow fit means many prospective buyers are better served by the R450 4-Bay or a 2U LFF platform; the chassis only earns its premium when all three of its defining requirements are present.

Workload Fit

Where to Look Instead

• Entry-tier LFF in 1U: the Dell PowerEdge R450 4-Bay 3.5" gives the same four-bay LFF profile at value-tier compute and price, the right call when the workload does not use the R650's 32 DIMM slots, 40-core ceiling, or full PCIe budget.
• More LFF bays in 2U: the Dell PowerEdge R550 8-Bay 3.5" doubles the bay count for storage-primary roles, and the 2U R750 12-Bay 3.5" linked in the GPU section above is the flagship LFF platform with GPU headroom.
• NVMe and maximum SFF density: the Dell PowerEdge R650 10-Bay 2.5" is the native-NVMe, vSAN ESA, high-density configuration of the same platform.
• Full platform reference: the Dell PowerEdge R650xs 4-Bay 3.5" is the single-socket-optimized version of this exact LFF profile at lower per-node cost.

Ready to Configure?

Tell us your workload, your single-socket or dual-socket requirement, your memory target (including any Optane Persistent Memory need), your CPU SKU preference or a workload description so we can recommend, your LFF drive mix (nearline-SAS, SAS SSD, or SATA SSD), your network attach (10 GbE or 25 GbE), and quantity. Volume pricing applies at 5 units and above, and we respond within 24 hours. Every Refurbished Dell PowerEdge R650 ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and it carries our standard 180-day warranty with extended options available. Call 1-800-778-1545 or use the quote form on this page. The R650 4-Bay LFF is a deliberately niche configuration; if your sizing would be equally well served by the R450 4-Bay or by a 2U LFF platform, we will recommend the alternative and quote both, because matching the chassis to the workload is the call that earns repeat business.
