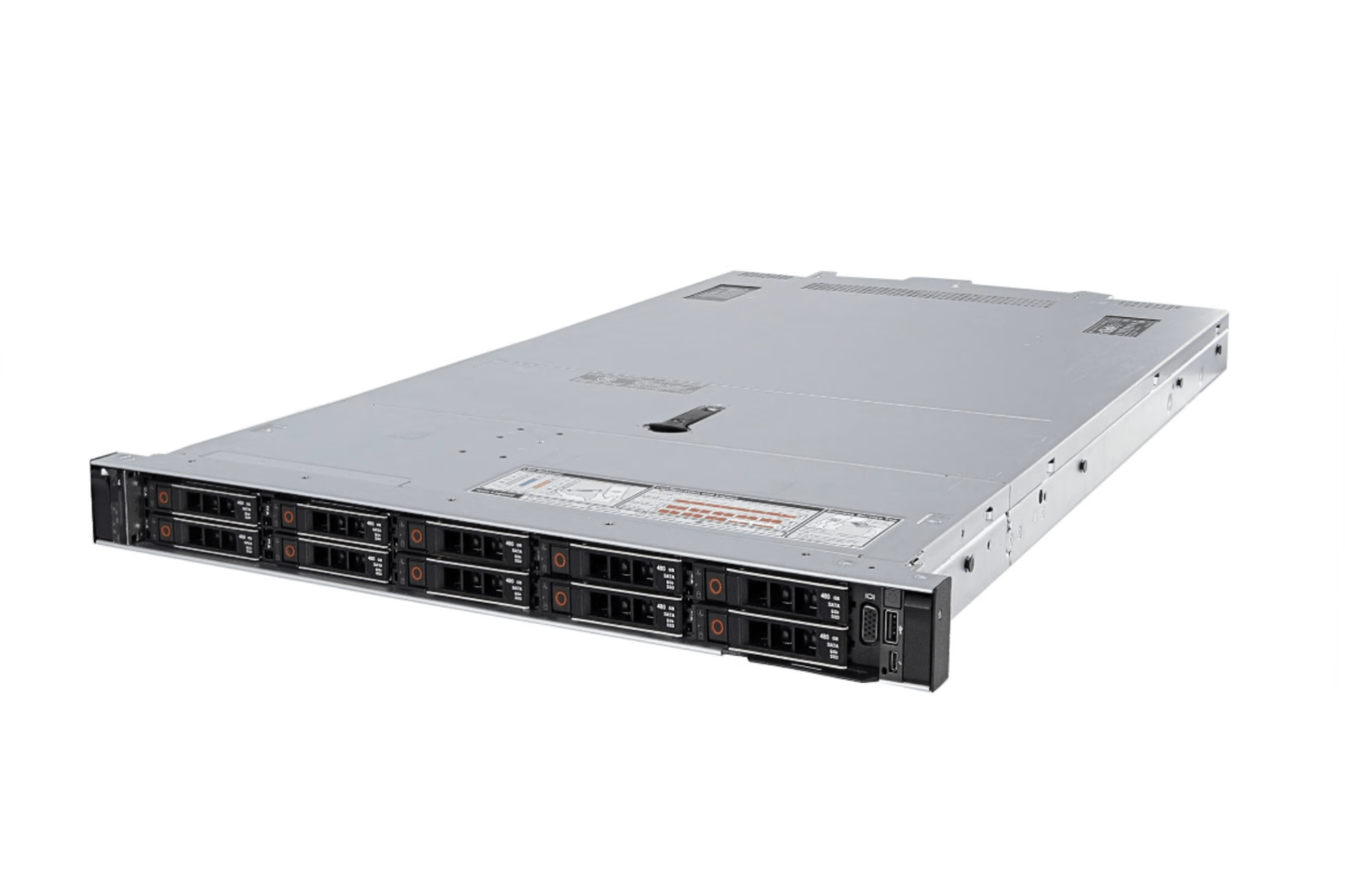

Dell PowerEdge R650 10-Bay 2.5"

The Dell PowerEdge R650 10-Bay 2.5" Hot-Swap is the maximum-density SFF configuration of Dell's 15th gen 1U platform: ten 2.5" hot-plug bays on the Universal Backplane, all NVMe-capable, with dual 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA-4189), up to 32 DDR4-3200 DIMM slots, and PCIe Gen4 throughout. This is the R650 variant for converged compute-plus-storage workloads where the extra two SFF bays over the 8-Bay genuinely change the deployment math: vSAN ESA at ten NVMe per 1U node, Ceph OSD nodes optimizing drives per rack unit, and dense storage-plus-application builds where per-chassis spindle count drives cluster economics.

The platform fundamentals (Ice Lake silicon, the 32-slot memory topology, the PCIe Gen4 budget, BOSS-S2 boot, the Universal Backplane, vSAN ESA certification, and the full R650-versus-R450/R550/R650xs/R750 positioning) are identical across every R650 chassis. The full platform write-up lives on the R650 8-Bay 2.5", the primary R650 page; this page covers them in full as well, with the framing centered on what ten bays changes.

Wholesale Servers stocks the R650 as Surplus New and Refurbished. Every unit ships after a 12+ hour burn-in that exercises every memory channel, every PCIe lane, and every drive bay, and it carries our standard 180-day warranty. Volume pricing starts at 5 units. To scope a build or request a quote, call 1-800-778-1545 or use the form on this page.

When Ten Bays Is the Right Choice

The 10-Bay is the dense-SFF R650. The 25% bay-count uplift over the 8-Bay is not a marketing number; at cluster scale it changes node counts. Ten NVMe per node instead of eight means fewer nodes for a given vSAN ESA capacity tier, more Ceph OSDs per rack unit, and more room for explicit storage tiering on a single chassis (hot NVMe, warm SAS SSD, capacity drives) without compromising the layout. The compute, memory, networking, and management are identical to the 8-Bay; the decision is purely whether the workload uses the additional two bays. If it does not, the 8-Bay is the more cost-efficient build and the honest recommendation.

Storage - Ten 2.5" Bays

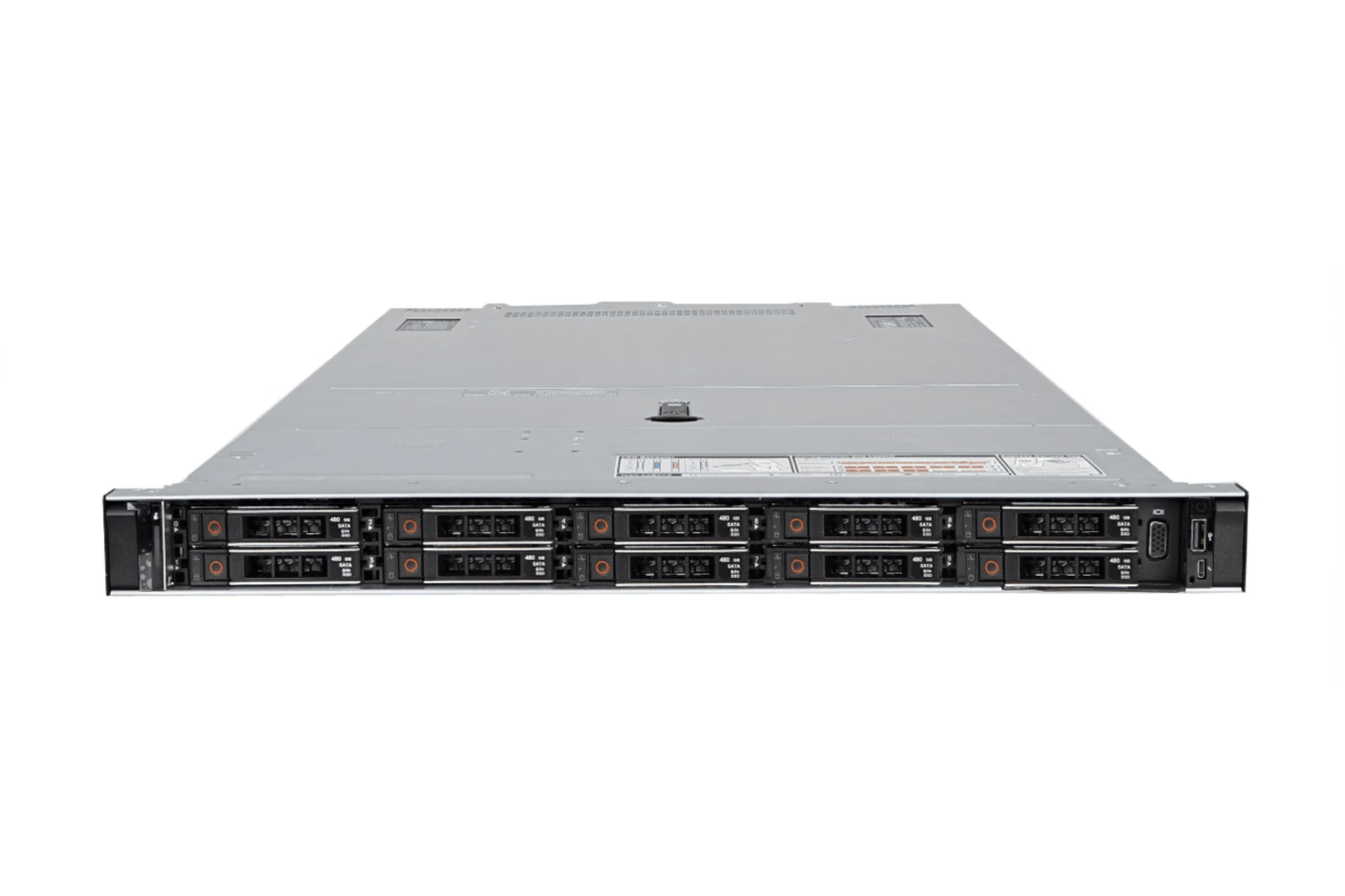

Ten front-accessible 2.5" hot-plug bays on the Universal Backplane, every bay accepting SAS, SATA, or PCIe Gen4 x4 NVMe natively, with no PCIe expansion card consumed for the NVMe path. Common profiles at Wholesale Servers:

• All-NVMe at ten bays. 10x 3.84 TB (38.4 TB raw), 10x 7.68 TB (76.8 TB raw), or 10x 15.36 TB (153.6 TB raw, the current ceiling). For vSAN ESA this is the highest per-node capacity available in 1U on the 15th gen platform.
• Mixed NVMe plus SAS SSD. Four NVMe for a hot tier alongside six SAS SSDs for warm or capacity tiers. The ten-bay count maps cleanly to a three-tier layout that the 8-Bay has to compromise.
• All-SAS/SATA. 10x 2.5" SAS or SATA SSD for cost-reduced builds where NVMe latency is not the constraint; 10x 7.68 TB is 76.8 TB raw, 61.44 TB usable at RAID 6.
• Ceph OSD nodes. Ten OSDs per 1U via HBA355i pass-through. At meaningful cluster sizes, ten versus eight OSDs per node shifts the node count by roughly 20% for equivalent total capacity, which flows straight into rack space, licensing, and rebalance speed.

Boot is handled by BOSS-S2: two redundant M.2 NVMe SSDs in hardware RAID 1 on a dedicated card, keeping the OS off the front bays so all ten remain available for data. Typical builds are 2x 240 GB or 2x 480 GB M.2 NVMe. An optional rear 2x 2.5" kit (NVMe-capable) is available for hot spares or dedicated log volumes; add it at quote time.

Storage Controllers

The R650 runs the PERC 11 family plus the HBA355i, and the high-bay-count builds lean harder on the choice between hardware RAID and a software-defined layer:

• PERC H755 (SAS/SATA). 12 Gbps SAS-3, 8 GB flash-backed write cache, full RAID 0/1/5/6/10/50/60. The production default for hardware-RAID SAS or SATA arrays.
• PERC H755N (NVMe). Hardware RAID across Gen4 NVMe at RAID 0/1/5/6/10, for ten-bay NVMe builds that want hardware parity rather than a software layer.
• PERC H355 and H345. Entry-tier hardware RAID, RAID 0/1/10 only. No RAID 5 or RAID 6; for parity RAID specify the H755 or H745. We confirm the controller against the RAID level at build time.
• HBA355i. SAS-3 and NVMe pass-through, no RAID. The standard attach for vSAN ESA, Ceph, ZFS, and Storage Spaces Direct, which want raw devices, and the natural fit for a ten-OSD storage node.
• S150 software RAID. Intel VROC at the chipset level, adequate for boot or light mirrors; not what we quote for a production ten-drive data array.

Processors

Up to two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA-4189), the full Ice Lake stack to 40 cores per socket, TDPs from 85W Silver to 270W Platinum. For a storage-dense node the compute is often sized to drive the storage rather than maxed out, so the common picks skew mid-stack:

• Xeon Silver 4316 (20C, 2.3 GHz, 150W). 40 cores and 80 threads dual-socket; a balanced default for a storage node that also runs co-located services.
• Xeon Gold 6326 (16C, 2.9 GHz, 185W). Higher per-core frequency for licensing-bound or latency-sensitive data services.
• Xeon Gold 6338 (32C, 2.0 GHz, 205W). 64 cores and 128 threads for converged nodes running heavy application compute alongside the storage role.
• Xeon Platinum 8380 (40C, 2.3 GHz, 270W). The ceiling, for nodes that genuinely use both the full storage density and maximum compute.

CPUs above 165W TDP require Dell's high-performance heatsink and fan configuration; we include the correct thermal hardware on those builds and verify it against the CPU. A single-socket build wires only half the memory channels and a narrower PCIe budget, which matters more on a storage-dense node that wants bandwidth, so populate both sockets unless the workload is genuinely light on compute.

Memory

Up to 32 DDR4 DIMM slots: 16 per CPU, 8 channels per socket, 2 DIMMs per channel. The 8-channel topology is a real bandwidth advantage for storage-and-cache-heavy workloads.

• RDIMM ceiling: 2 TB with 32x 64 GB dual-rank RDIMMs.
• LRDIMM ceiling: 4 TB with 32x 128 GB LRDIMMs, on request.
• Optane PMem 200-series: up to 8 TB combined, for persistent-memory-tier workloads.
• Common builds: 256 GB, 512 GB, 768 GB, 1 TB, 2 TB. vSAN ESA and Ceph nodes commonly run 256 GB to 512 GB depending on the caching and dedup footprint.

Speed is DDR4-3200 MT/s at 1 DIMM per channel with a 3200-capable CPU; populating all 32 slots at 2 DPC can step to 2933 MT/s by CPU SKU and DIMM rank, so for maximum bandwidth populate 1 DPC with higher-density modules. Registered ECC modules only (RDIMM, LRDIMM, or PMem); no unbuffered DIMMs.

Networking and PCIe Expansion

Up to 3 PCIe Gen4 slots, all low-profile and half-length. On a ten-bay storage node the PCIe budget is precious, because the network attach is what keeps a dense NVMe array from being throttled at the wire. Networking runs through one OCP NIC 3.0 slot on PCIe Gen4 x8, independent of the three expansion slots. The shift to OCP NIC 3.0 is the 15th gen generational change; the 13th and 14th gen Dells used the rack Network Daughter Card. Common attaches:

• 2x 25 GbE SFP28 (Mellanox ConnectX-5 or Intel E810) on OCP 3.0, the standard fabric attach.
• 2x 100 GbE QSFP28 (Mellanox ConnectX-6) in a Gen4 slot, the right attach for a ten-NVMe vSAN ESA or Ceph node so the network is not the bottleneck.
• 2x 10 GbE SFP+ (Intel X710) where the storage traffic stays modest.

GPU Support

The R650 supports up to three single-width 75W GPUs (NVIDIA T4, A2, or L4) drawing power from the slot, but a ten-bay all-NVMe build usually spends its limited PCIe and thermal budget on storage and networking rather than accelerators. Where a node needs both dense local storage and a light inference GPU, one single-width card is feasible; for multi-GPU or any double-width or full-height accelerator the 1U chassis has neither the slot height nor the thermal headroom, and the GPU-optimized 2U R750xa is the right platform.

Management - iDRAC9 Generation

The R650 ships with iDRAC9, the 15th-generation Dell controller, and builds here include iDRAC9 Enterprise by default: virtual console and media redirection, full SNMP and Redfish API access, Lifecycle Controller integration, and per-drive Gen4 NVMe health telemetry, which is genuinely useful on a ten-drive node where per-device wear and health visibility matters. iDRAC9 Datacenter is available on request. The platform carries enhanced Secured Component Verification, signed BIOS updates, a hardware Silicon Root of Trust, and TPM 2.0, with consistent OpenManage Enterprise integration across the 15th gen family.

Power and Cooling

Two redundant power supplies in 1+1. A fully populated ten-NVMe build draws meaningfully more than a SAS build, so size the PSU to the drive complement:

Cooling is front-to-rear air, standard or high-performance fan kit by CPU TDP; the 1U chassis handles 270W Platinum SKUs with the high-performance configuration. No direct liquid cooling. ASHRAE A2 (10-35°C) is fully supported; A3 and A4 carry CPU and NIC deratings we verify against Dell's thermal tables, and a fully loaded ten-NVMe node sits at the warmer end of the envelope.

Physical Specs and Platform Notes

• Form factor. 1U rack, roughly 558.9 mm chassis depth, Dell regulatory model E69S. Standard 19-inch mounting.
• PCIe expansion. Up to three Gen4 slots, low-profile half-length, count by riser SKU and socket population; one independent OCP NIC 3.0 slot.
• Parts availability. Excellent. Current Dell production with full ProSupport parts coverage for drives, PSUs, risers, heatsinks, and fans.
• Accessories we recommend. The R650/R660 A15 sliding rail kit for tool-less racking, and the rear 2x 2.5" drive kit for hot spares or dedicated log volumes. A high-performance heatsink and fan kit is required above 165W and is included on those builds.
• Platform notes. CPUs are not hot-pluggable; the OCP 3.0 NIC slot does not consume a PCIe expansion slot; a fully populated ten-NVMe build is the chassis configuration most likely to hit the thermal and PCIe ceilings, so the riser and PSU choices want checking against the drive and NIC plan at quote time.

Our Assessment

Where it excels: The 10-Bay is the 15th gen 1U ceiling for converged compute-plus-NVMe-storage: vSAN ESA at maximum 1U per-node capacity (ten NVMe), Ceph nodes with co-located application compute, Storage Spaces Direct hyper-converged nodes, and dense application or database hosts with explicit hot-warm-capacity tiering across ten bays.

Where to look instead: For most R650 workloads the 8-Bay is sufficient and more cost-efficient, and we will say so. If a single socket covers the compute, the R650xs 10-Bay 2.5" delivers the same ten-bay density at the cost-optimized tier. If the workload wants more than three PCIe slots or more than ten bays, the 2U R750 is the better-provisioned platform. The 10-Bay premium over the 8-Bay is only justified when the additional two bays change the cluster design.

Bottom line: The 10-Bay earns its pick when 25% more spindles per node genuinely shifts node count, rack footprint, or tier layout. If your sizing sits between the 8-Bay and the 2U R750 16-Bay, the 10-Bay is frequently the right middle ground, and we will quote it alongside both for a direct comparison on density, PCIe budget, and total cost of ownership.

Where the R650 Fits in 2026

The R650 is current Dell production, not an end-of-life platform, so this is a positioning note. The 16th gen R660 8-Bay 2.5" (Sapphire and Emerald Rapids, DDR5, PCIe Gen5, CXL) is the step up, and it matters for a storage node specifically where PCIe Gen5 NVMe or higher network bandwidth changes the throughput ceiling; for most 15th gen deployments the refurbished R650 is the better economics. The HPE cross-vendor counterpart at this tier is the ProLiant DL360 Gen11.

Honest Limitations

• Ten Gen4 NVMe drives can saturate the 1U PCIe and network budget before the CPUs are busy; the three-slot expansion ceiling is the first constraint on a dense storage node.
• Fully populating all 32 DIMM slots at 2 DPC can step memory to 2933 MT/s.
• No direct liquid cooling, and a fully loaded ten-NVMe plus high-TDP-CPU build sits at the warm end of the 1U thermal envelope under sustained load.
• DDR4 and PCIe Gen4 platform; Gen5 NVMe and DDR5 bandwidth arrive only at the 16th gen step.
• If the workload fits comfortably in eight bays, the 10-Bay premium buys density the deployment does not use.

Workload Fit

Where to Look Instead

• Standard SFF density at lower cost. The R650 8-Bay 2.5" is the primary R650 configuration and the right call whenever eight bays cover the workload.
• Bulk LFF capacity in 1U. The R650 4-Bay 3.5" trades NVMe for large 3.5" drives in branch, backup, and edge roles.
• More slots and more storage in 2U. The R750 16-Bay 2.5" is the same Ice Lake platform with up to sixteen bays and an eight-slot PCIe budget.

Ready to Configure?

Tell us your workload, single-socket or dual-socket, your memory target (and whether Optane PMem is in scope), your CPU SKU preference or a workload description, your storage profile (all-NVMe, mixed-tier, SAS/SATA, Ceph, vSAN ESA, or S2D), your networking attach (10, 25, or 100 GbE), any GPU requirement, and quantity. We respond within 24 hours, and volume pricing applies at 5 units and above. Every build ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, backed by the 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options available. Call 1-800-778-1545 or use the quote form on this page.
