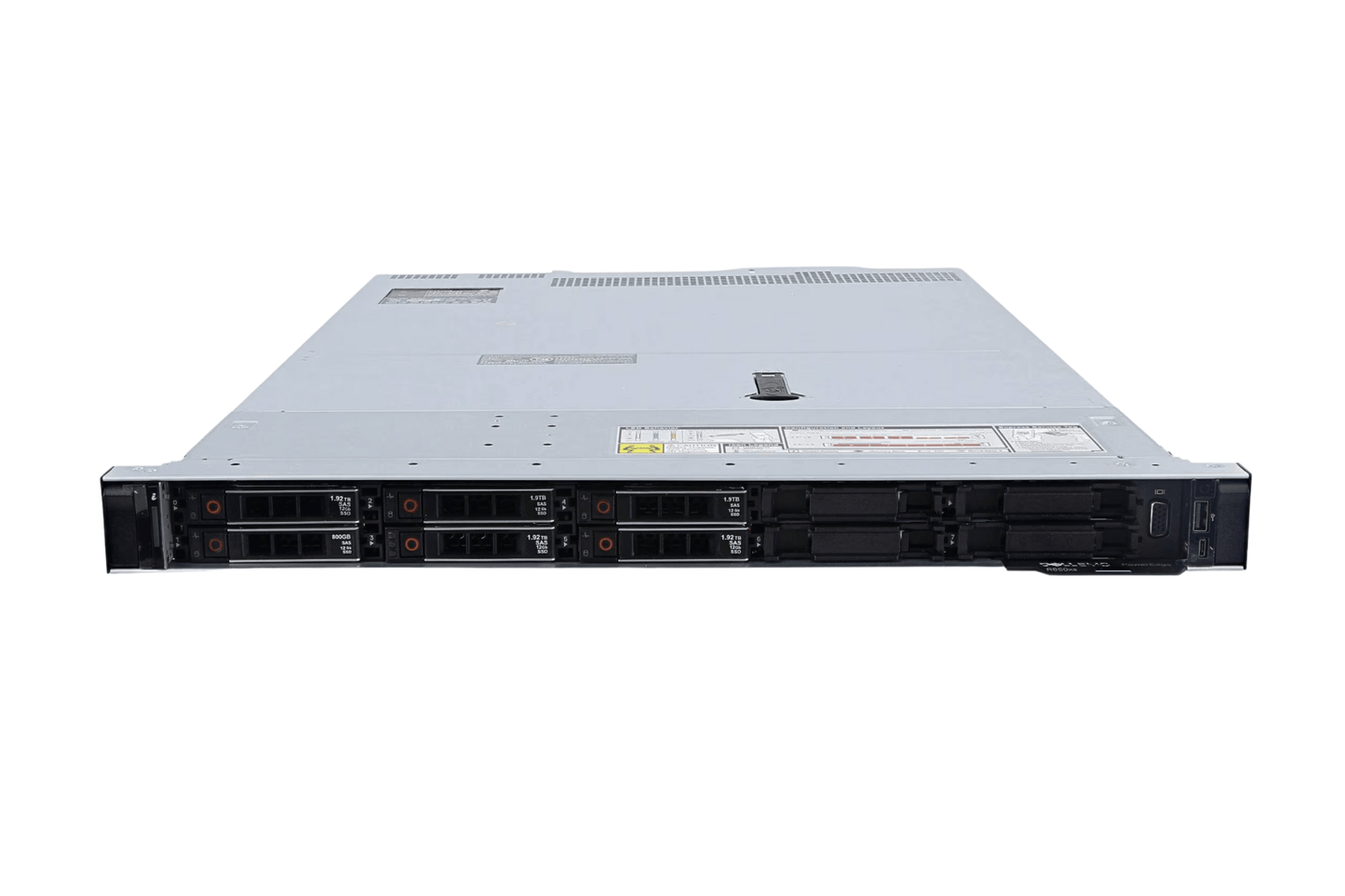

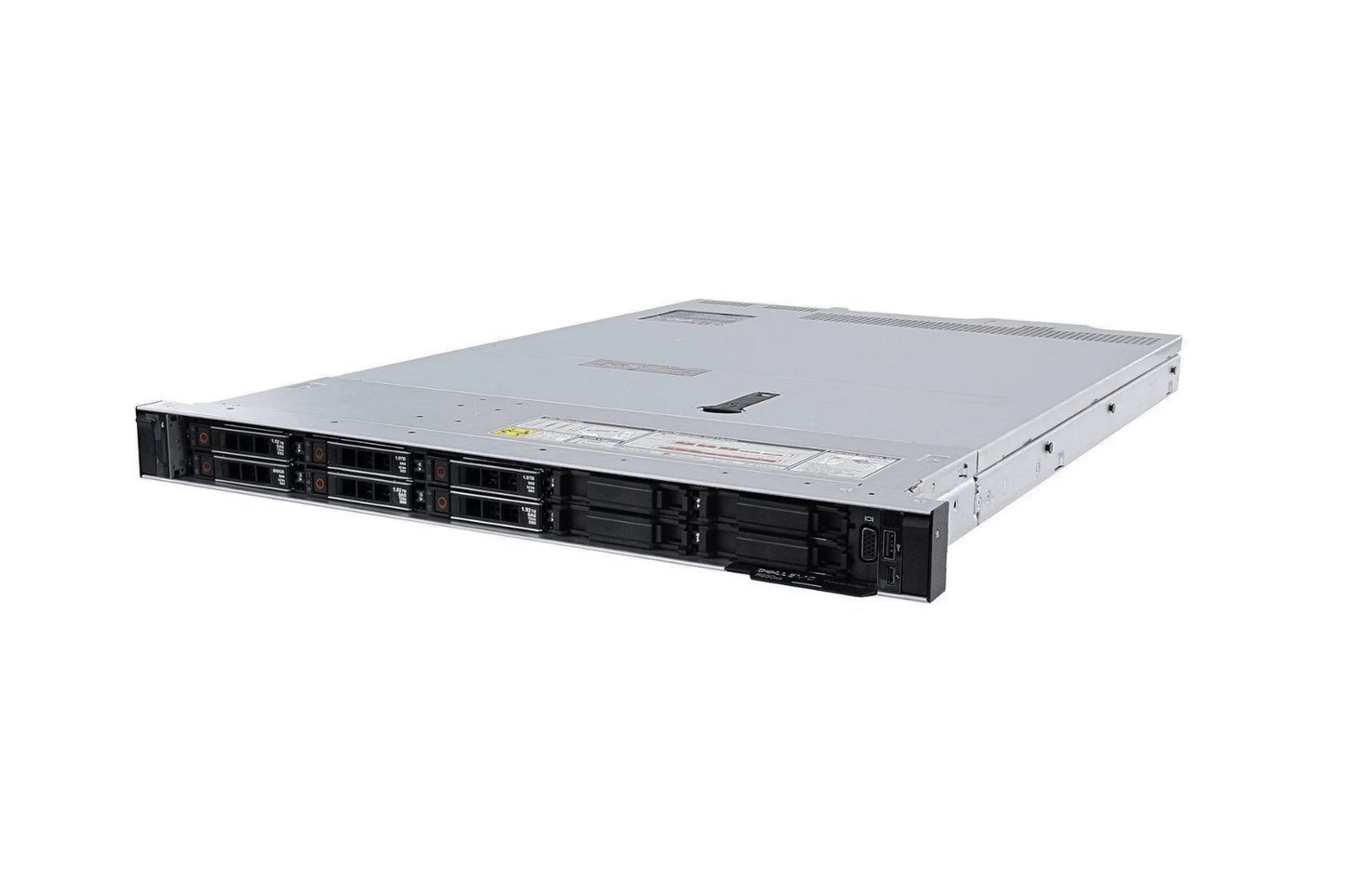

The Dell PowerEdge R650xs 10-Bay 2.5" is the maximum-density SFF configuration of Dell's 15th gen cost-optimized 1U platform: ten 2.5" hot-plug bays on the Universal Backplane (all NVMe-capable), one or two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, socket LGA 4189), up to 16 DDR4-3200 RDIMM slots, and PCIe Gen4 throughout. The "xs" designation is the cost-optimized cut of the R650 chassis: same 1U body, same Ice Lake silicon, same drive-bay options, but a leaner memory topology (16 DIMM slots at one DIMM per channel rather than the full R650's 32) and a CPU ceiling capped near 32 cores per socket. It is the right answer when per-node acquisition cost is the procurement metric and the workload does not need the full R650's 32-slot memory or Optane Persistent Memory support.

This is the primary R650xs page. The two companion variants, the R650xs 8-Bay 2.5" and the R650xs 4-Bay 3.5" LFF, share this platform exactly and differ only in front-bay storage profile and density. The 10-Bay is the dense-SFF ceiling of the 1U chassis, and it is the variant that changes cluster economics for scale-out storage and converged workloads, where the additional two SFF bays over the 8-Bay materially affect cost-per-TB-per-node: vSAN ESA at ten NVMe per 1U node, Ceph OSD nodes optimizing drives per rack unit, and dense Kubernetes worker pools with heavy local persistent-volume demand.

To configure a build, call us at 1-800-778-1545 or use the quote form on this page; we respond within 24 hours. Volume pricing applies at 5 units and above. Every Refurbished Dell PowerEdge R650xs ships after a 12+ hour burn-in that exercises every memory channel, every PCIe lane, and every drive bay, and it is backed by our standard 180-day warranty with 1-Year, 2-Year, and 3-Year Premium options available.

Where the R650xs 10-Bay Fits in the Family

The R650xs sits one step below the full R650 in Dell's 15th gen 1U lineup. Both use the same Ice Lake-SP platform and the same chassis; the R650xs trades the R650's 32-DIMM memory board and 40-core CPU ceiling for a lower acquisition cost, a 16-DIMM board, and a CPU ceiling near 32 cores per socket. Within the R650xs family itself, the three chassis variants differ only at the front bays:

• 10-Bay 2.5" (this page): maximum SFF density in 1U, all ten bays NVMe-capable. The configuration for scale-out storage where drives per node drive the cluster math.
• R650xs 8-Bay 2.5": the standard NVMe-capable SFF configuration at lower cost. The right pick when eight bays cover the storage budget.
• R650xs 4-Bay 3.5" LFF: large-form-factor bulk capacity in 1U for branch NAS, backup, and edge roles; SAS and SATA only, no NVMe.

The R650xs is a dual-socket-capable platform throughout. The single decision that separates it from the full R650 is the memory ceiling: if a node needs more than 16 DIMM slots, LRDIMM capacity, or Optane Persistent Memory, the xs is the wrong chassis and the full R650 is the right one. Everything else, including the chassis, the drive bays, the PCIe generation, and the management stack, is shared.

Storage - Ten 2.5" Bays

Ten 2.5" hot-swap bays on the Universal Backplane. Every bay accepts SAS, SATA, or PCIe Gen4 NVMe natively, which is what makes the 10-Bay the density ceiling of the 1U chassis. Common configurations we quote:

• All-NVMe at ten bays. 10x 3.84 TB (38.4 TB raw), 10x 7.68 TB (76.8 TB raw), or 10x 15.36 TB (153.6 TB raw, the current ceiling). For vSAN ESA at the R650xs price point, ten-bay all-NVMe is the highest-density-per-node option in 1U.
• Mixed NVMe plus SAS SSD tiered. Four NVMe for the hot tier plus six SAS SSD for the warm and capacity tier. The ten-bay budget accommodates explicit tier separation without compromise.
• All-SAS SSD. 10x 7.68 TB SAS SSD is 76.8 TB raw; RAID 6 yields roughly 61 TB usable for cost-reduced capacity builds.
• Ceph OSD nodes. Ten OSDs per 1U attached through the HBA355i in pass-through mode. At fifty-plus-node cluster scale, the R650xs per-node cost advantage compounds across the deployment.

Boot is handled by the BOSS-S1 card, the device the xs ships: a dual M.2 SATA module in hardware RAID 1 that keeps the operating system off the front bays and leaves all ten bays available for data. A factory Dell BOSS-S1 with dual 240 GB M.2 SSDs is the configuration we recommend for most builds.

Storage Controllers

The R650xs runs the Dell PERC 11 controller family. We quote by workload:

• PERC H755 (8 GB cache, battery-backed): the production SAS and SATA RAID default for write-intensive and transactional workloads.
• PERC H755N: NVMe hardware RAID for all-NVMe builds that want RAID 5 or RAID 6 protection across NVMe drives.
• PERC H745 (battery-backed): mainstream SAS and SATA RAID for mixed and read-heavy profiles.
• HBA355i (pass-through HBA): the correct choice for software-defined storage that wants raw devices, including vSAN ESA, Ceph, Storage Spaces Direct, and ZFS.
• PERC H355 and H345 (entry-tier): RAID 0, 1, and 10 only. These do not provide RAID 5 or RAID 6; for parity RAID, quote the H755 or H745. We call this out because assuming parity support on the H355 is a common configuration trap on 15th gen platforms.
• S150 (software RAID via chipset): dev, test, and light boot mirroring only, never a production data recommendation.

Processors

One or two 3rd Generation Intel Xeon Scalable processors (Ice Lake-SP, 2021) on socket LGA 4189, on the Intel C621A chipset. The R650xs is a dual-socket-capable platform; the "xs" cost optimization caps the CPU ceiling near 32 cores per socket rather than the full R650's 40-core Platinum parts, which is the right tradeoff for scale-out roles where core count per node is deliberately moderate and node count carries the workload.

Guidance we give at quote time:

• Single-socket builds lose half the memory channels and PCIe lanes. Ice Lake provides eight memory channels per socket; a one-CPU R650xs runs eight channels and roughly half the platform's PCIe budget. For memory-bandwidth-sensitive or I/O-heavy roles, populate both sockets.
• Match the CPU to the role. Frequency-optimized SKUs suit latency-sensitive databases; higher-core mid-bin parts suit virtualization and container density. We size the SKU to the workload rather than defaulting to the top bin.
• Thermals. The 1U envelope carries the xs TDP range comfortably; higher-TDP parts ship with the performance heatsink and the matching fan complement.

Memory

This is the defining difference between the R650xs and the full R650. The R650xs board carries 16 DDR4 DIMM slots, eight per socket, populated at one DIMM per channel, against the full R650's 32 slots at two DIMMs per channel. The practical consequences:

• Registered ECC RDIMM only. No LRDIMM and no Intel Optane Persistent Memory on the xs board. If the workload needs PMem or LRDIMM-class capacity, that is the signal to step up to the full R650.
• Maximum capacity is roughly 1 TB (16x 64 GB RDIMM), against up to 2 TB RDIMM or 4 TB LRDIMM on the full R650. For the scale-out roles the xs targets, 256 GB to 512 GB per node is the common sizing.
• DDR4-3200 at one DIMM per channel. Because the xs runs one DIMM per channel, it holds the rated 3200 MT/s across a full population rather than stepping down the way a two-DIMM-per-channel board does at full load.

The memory ceiling, not the core count, is usually what pushes a buyer from the R650xs to the R650. Size the RAM honestly against the workload; if the answer is above 1 TB per node, the xs is the wrong chassis.

Networking and PCIe Expansion

Networking is handled through the OCP NIC 3.0 slot, the 15th gen replacement for the rNDC mezzanine used on 13th and 14th gen Dell platforms. The OCP 3.0 card carries the primary network function without consuming a PCIe expansion slot. Common options:

• Quad-port 1 GbE for management-plane and light-traffic roles
• Dual-port 10 GbE (SFP+ or BASE-T) for mainstream virtualization and storage front-end traffic
• Dual-port 25 GbE (SFP28) for vSAN ESA, Ceph, and Storage Spaces Direct east-west fabric, which is the typical attach for the dense-storage roles this chassis targets

PCIe is Gen4 throughout. The 1U R650xs provides up to three PCIe Gen4 expansion slots depending on riser configuration, plus the dedicated PERC slot and the OCP 3.0 slot. With both sockets populated the full slot and lane budget is available; a single-socket build reduces it. Plan the riser around the add-in card mix of NIC, HBA, and optional accelerator before finalizing the configuration.

GPU Support

The R650xs is not a GPU compute platform, and we are direct about that. The 1U thermal envelope and the cost-optimized power budget support at most one or two single-width, low-profile accelerators in the 75 W class, an NVIDIA A2 or a T4-class card, which is enough for light inference, modest VDI acceleration, or transcode offload, but nothing approaching training or double-width compute. There is no room for a 300 W double-width card in this chassis.

If the workload needs real GPU compute, the 1U R650xs is the wrong box. For double-width accelerators in the same Ice Lake generation, step to the 2U R750xs 16-Bay 2.5", which carries the thermal and slot budget for multiple double-width GPUs. Size the GPU platform to the model, not the rack-unit count.

Management - iDRAC9 Generation

The R650xs ships iDRAC9 with the Lifecycle Controller; this is the 15th gen management generation. iDRAC9 Express covers basic out-of-band management, while iDRAC9 Enterprise adds full remote KVM, virtual media, and the automation surface that production fleets depend on. Enterprise is what we recommend for any deployment that will be managed at scale.

The 15th gen security baseline is the cyber-resilient stack: a Silicon Root of Trust anchoring a signed firmware chain, Secure Boot, optional Secure Erase, and System Lockdown to prevent configuration drift. TPM 2.0 is available for deployments under NIST, CMMC, FedRAMP, HIPAA, or PCI DSS frameworks. OpenManage Enterprise integrates the box into existing Dell fleet management.

Power and Cooling

The R650xs uses hot-plug redundant power supplies from the Dell 15th gen Platinum and Titanium line. Typical tiers we quote:

For the ten-bay all-NVMe configurations this chassis is built for, size the PSU to the 1100 W class or above; NVMe drives draw materially more than SAS SSDs at load, and a full ten-drive NVMe population with two high-core CPUs can approach the headroom of an 800 W supply. A redundant 1+1 configuration is standard for production. The 1U cooling design carries the xs TDP range without the high-static-pressure fan kits the full R650 needs at its 40-core, higher-TDP ceiling.

Physical Specs & Platform Notes

• Form factor: 1U rack, Dell regulatory model E69S, full-depth chassis (roughly 760 mm rail-to-rail with cable management); fits standard four-post racks with the Dell sliding rail kit.
• PCIe expansion: up to three PCIe Gen4 slots by riser configuration, full-height and low-profile depending on riser, plus the dedicated PERC slot and the OCP NIC 3.0 slot.
• Parts availability: 15th gen Ice Lake parts are current and well-stocked; PERC 11 controllers, OCP 3.0 NICs, BOSS-S1 cards, DDR4-3200 RDIMMs, and PSUs are all readily sourced, and Dell ProSupport remains available on the platform.
• Accessories we recommend: the Dell R450/R650xs BOSS-S1 boot card with dual 240 GB M.2 SSDs for OS-off-the-front-bays boot redundancy, the Dell sliding rail kit, and the cable management arm for serviced racks.
• Platform notes: the xs board is fixed at 16 DIMM slots and does not accept the full R650's 32-DIMM or Optane PMem configuration; CPU hot-plug is not supported; the Universal Backplane requires the matching PERC or HBA depending on whether the build wants NVMe hardware RAID or pass-through.

Our Assessment

Where it excels: The R650xs 10-Bay is the 15th gen 1U ceiling for scale-out storage-plus-compute at value-tier acquisition cost. vSAN ESA scale-out clusters at ten NVMe per node, Ceph OSD nodes at the 1U tier, Storage Spaces Direct hyper-converged nodes, and Kubernetes workers with heavy local persistent-volume demand are the natural fits, especially when the cluster is dozens to hundreds of nodes and per-node cost compounds across the deployment.

Where to look instead: When eight bays are sufficient, the R650xs 8-Bay is more cost-efficient. When a node needs more than 1 TB of memory, LRDIMM, Optane PMem, or CPUs above the 32-core xs ceiling, the full R650 is the right platform. When 2U is acceptable and storage density is the primary sizing factor, the R750xs carries sixteen 2.5" bays and more PCIe headroom. When the workload genuinely needs GPU compute, neither 1U platform fits and the R750-class box is the answer.

Bottom line: Buy the R650xs 10-Bay when you are building dense 1U storage or hyper-converged nodes at scale and per-node cost is the procurement metric, and when no node needs more than 1 TB of RAM or parts above the xs CPU ceiling. The typical buyer is a software-defined-storage or virtualization team standing up a multi-node cluster who wants maximum NVMe density per rack unit at the lowest defensible per-node price. If your sizing lands between the R650xs 10-Bay and the R650 10-Bay, we will run the per-node and cluster-level economics with you; the xs is usually the better economic call when many nodes per cluster is the deployment pattern.

Where the R650xs Fits in 2026

The R650xs is current 15th gen Ice Lake-SP hardware. Dell ProSupport remains available on the platform, and 15th gen parts are in full supply, so this is not an end-of-life platform decision the way a 13th or 14th gen purchase is. The honest framing for 2026 is a value one rather than a lifecycle one: the R650xs is offered as Refurbished and Surplus New stock outside Dell's factory-new channel, which is what brings a current-generation Ice Lake platform to a value-tier price.

Above it, the 16th gen R660xs brings PCIe Gen5, DDR5, and Sapphire Rapids or Emerald Rapids silicon. That step matters when the workload is bandwidth-bound on memory or NVMe; for the scale-out roles the R650xs targets, the 15th gen platform delivers the density and the per-node economics without the 16th gen price. The R650xs earns its place in 2026 specifically when one of these patterns applies: scale-out storage where node count carries the workload and per-node cost is the metric, hyper-converged clusters that fit inside 1 TB of RAM per node, lab and staging fleets mirroring an Ice Lake production tier, or capacity adds to an existing 15th gen estate where operational standardization on a single platform generation is the point.

Honest Limitations

• The 16-DIMM board caps node memory at roughly 1 TB and excludes LRDIMM and Optane Persistent Memory. Memory-heavy consolidation belongs on the full R650.
• The CPU ceiling near 32 cores per socket is below the full R650's 40-core Platinum parts; compute-dense single-node roles may want the full R650 or a 2U platform.
• The 1U chassis is not a GPU compute platform; it supports only low-profile single-width accelerators in the 75 W class.
• At one DIMM per channel, there is no room to add memory by populating a second DIMM per channel later; the 16-slot board is the ceiling, not a starting point.
• PCIe slot count is modest at up to three slots; heavy add-in-card builds (multiple HBAs plus high-speed NICs plus accelerators) can exhaust the riser budget and point toward the 2U R750-class chassis.

Workload Fit

Where to Look Instead

• Full memory and CPU headroom: the Dell PowerEdge R650 10-Bay 2.5" is the same chassis with the full 32-DIMM Ice Lake memory board, Optane Persistent Memory support, and CPUs to 40 cores per socket. This is the step-up when the xs memory or core ceiling is the constraint.
• 16th gen platform step: the Dell PowerEdge R660xs 10-Bay 2.5" moves to PCIe Gen5, DDR5, and Sapphire Rapids or Emerald Rapids silicon for workloads where those changes materially improve the outcome.
• Prior-generation value: the 14th gen Dell PowerEdge R640 10-Bay 2.5" remains a strong buy where Ice Lake bandwidth and PCIe Gen4 are not required and the budget is the priority.
• Cross-vendor counterpart: the HPE ProLiant DL360 Gen11 is the equivalent 1U dual-socket platform on the HPE side; ask us if you are standardizing a mixed-vendor fleet.

Ready to Configure?

Tell us your workload, your single-socket or dual-socket requirement, your memory and storage architecture (all-NVMe, mixed-tier, Ceph, vSAN ESA, or S2D), your CPU SKU preference, your network attach (10 GbE, 25 GbE, or 100 GbE), and quantity. Volume pricing applies at 5 units and above, and we respond within 24 hours. Every Refurbished Dell PowerEdge R650xs ships after a 12+ hour burn-in covering every PCIe slot, every memory channel, and every drive bay, and it carries our standard 180-day warranty with extended options available. Call 1-800-778-1545 or use the quote form on this page. For large software-defined-storage rollouts we regularly work with teams planning 30 to 150-plus unit Ceph and vSAN ESA clusters; tell us the target cluster size and we will run the per-node and total cluster economics alongside the full R650 10-Bay for a direct comparison.
