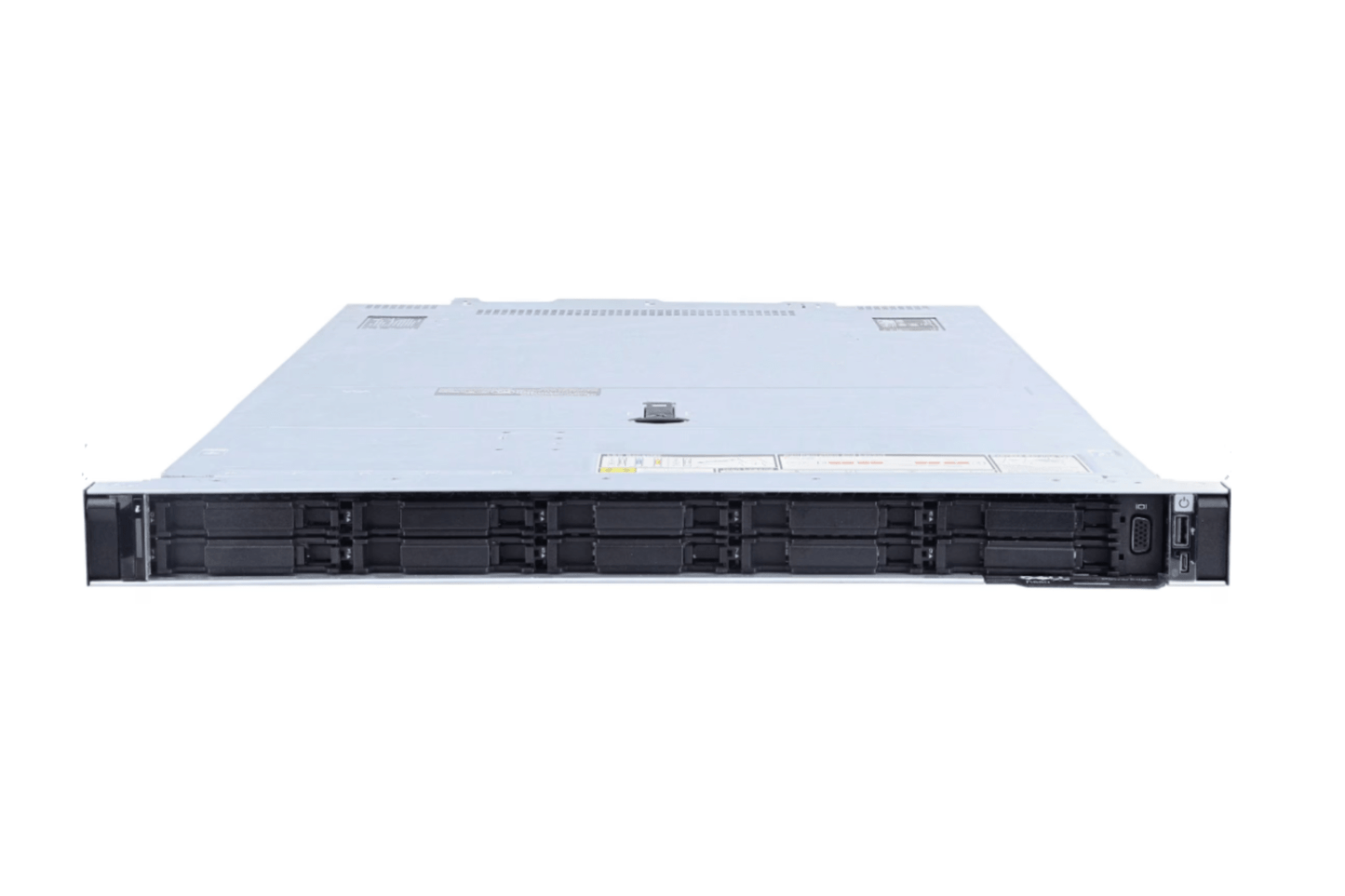

Dell PowerEdge R660 10-Bay 2.5"

The Dell PowerEdge R660 is the 16th-generation 1U dual-socket rack server and currently the price-anchor 1U platform in the Wholesale Servers catalog. The 10-Bay 2.5" configuration is the densest local-storage option on this chassis, and the one we recommend when local NVMe density on a current-generation platform matters for vSAN ESA, database tiers, or high-density virtualization.

Sold primarily as New at below-list pricing with Dell manufacturer warranty; Surplus New and certified-refurbished configurations are available where the budget calls for it. The R660 pairs 4th Gen (Sapphire Rapids) or 5th Gen (Emerald Rapids) Xeon Scalable processors with DDR5, a universal SAS/SATA/NVMe backplane, PCIe Gen5, and the full 16th-gen security baseline (iDRAC9, Silicon Root of Trust).

To configure a build or get volume pricing, call 1-800-778-1545 or request a quote online. Every server ships after a 12+ hour burn-in and inspection process and carries our 180-day warranty as standard, with volume pricing starting at 5 units and up.

Where the R660 10-Bay Fits in the Family

The R660 10-Bay sits at the top of the 16th-gen 1U dense-storage line. Against its in-family siblings: the R660 8-Bay trades two SFF bays for the Smart Flow cooling option (the 8-Bay is the only R660 chassis that offers it), so the 8-Bay is the compute-primary pick and the 10-Bay is the storage-density pick. The EDSFF E3.S chassis (14 or 16 all-NVMe drives) is a separate front-bay architecture for maximum flash density.

Stepping sideways: if a single socket and a leaner board are sufficient, the cost-optimized R660xs 8-Bay keeps the 16th-gen platform at a lower price. For 2U expansion and proper GPU support, the R760 8-Bay (full-fat) and R760xs 8-Bay are the companions in the same generation. The 15th-gen predecessor is the R650 10-Bay, which is the value play when Gen5 NVMe and DDR5 bandwidth are not requirements. The HPE counterpart is the ProLiant DL360 Gen11 (we do not currently stock the HPE Gen11 line).

Storage: 10 SFF Bays, Universal Backplane

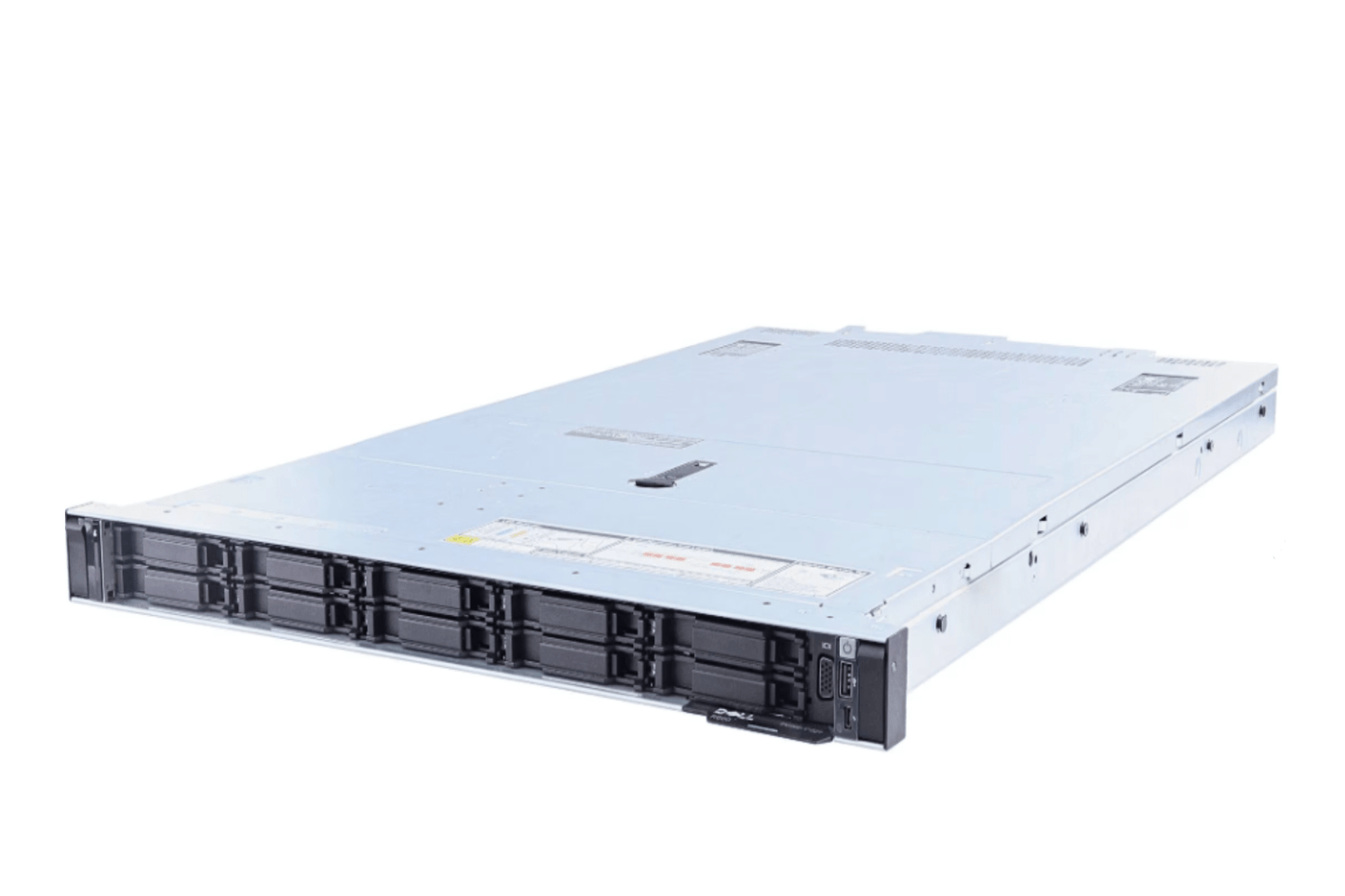

Ten 2.5" hot-swap bays on the front, supporting any mix of SAS, SATA, and Gen5 NVMe via the universal backplane. Two optional rear 2.5" bays via the rear riser kit (covered below in tradeoffs). The 10-Bay is the densest 2.5" SFF configuration available on the R660 chassis.

• Gen5 NVMe (direct-attach): Up to 14 GB/s per drive. The headline capability of this platform. For vSAN ESA, NVMe-oF, AI training data tiers, and latency-sensitive databases.
• SAS4 (22.5 Gb/s): Via PERC H965i (PERC 12, 8 GB flash-backed cache, the top RAID pick) or HBA355i pass-through. The H965i is the right call for write-heavy block storage; HBA355i for software-defined storage that wants direct drive access.
• SATA: Supported on the same backplane. For boot-from-SATA or low-cost capacity tiers.
• Boot: BOSS-N1. Two M.2 NVMe SSDs, hardware RAID 1, rear hot-plug. The 16th gen successor to the 15th-gen BOSS-S1 (SATA M.2). Specify it; the cost is small and running the OS on data drives is bad practice.

Universal backplane note: The R660 10-Bay uses one backplane SKU that handles all three protocols. This is a meaningful improvement over 14th and 15th gen, where SAS/SATA-only and NVMe-only backplanes were separate chassis decisions at order time. On the R660 you can populate today with SAS SSDs and migrate to NVMe later without backplane replacement.

Storage Controllers

• PERC H965i (PERC 12, Front): 8 GB flash-backed cache. PERC 12-generation tri-mode controller (SAS4 / SATA / NVMe RAID). The top pick for hardware RAID on this platform. Supports RAID 0/1/5/6/10/50/60.
• PERC H755: 8 GB cache, PERC 11. Carryover from 15th gen, still supported. Lower cost than the H965i if you do not need PERC 12-specific features.
• PERC H355: Entry-level RAID, no cache. RAID 0/1/10 only (no parity RAID). Boot and light workloads. If you need RAID 5 or 6, that is the H755 or H965i, not the H355.
• HBA355i: Pass-through, no RAID. The right choice for vSAN, Ceph, and any storage stack that does its own redundancy.
• S160: Chipset software RAID, boot and OS volumes only, not production data.

For vSAN ESA specifically, the HBA355i is mandatory. ESA requires direct drive access, not a RAID controller in front of the drives.

Processors: 4th or 5th Gen Xeon Scalable

The R660 is a dual-socket platform (socket E1 / LGA 4677) with two supported processor generations in the same socket. This is the same V1/V2 pattern Dell used on earlier platforms (the 14th gen R640 supported Skylake-SP and Cascade Lake-SP in one socket), and the configuration question matters for both performance and price:

• 4th Gen Xeon Scalable (Sapphire Rapids): Up to 56 cores per socket. DDR5 up to 4800 MT/s. The original 16th gen processor; widely available in the channel, lower price per core. On-die AMX and QuickAssist (QAT) acceleration.
• 5th Gen Xeon Scalable (Emerald Rapids): Up to 64 cores per socket. DDR5 up to 5600 MT/s at 1 DPC. Drop-in compatible. Higher core count, better memory bandwidth, modest power efficiency gain. The right pick for 5600 MT/s memory bandwidth or 60-plus cores per socket.
• Intel Xeon Max (HBM): Supported. Niche; specify only for HPC and AI workloads that benefit from on-package HBM2e.

Our default recommendation: For most enterprise workloads, dual Gold 6442Y (4th gen, 24-core, 2.6 GHz, 225W) is the sweet spot. For 5th gen, dual Gold 6542Y (24-core, 2.9 GHz) is the equivalent. For high-density virtualization where core count dominates, the Platinum 8568Y+ (5th gen, 48-core, 350W) is the configuration to ask about.

Thermal note: CPUs at 300W and above require the higher-capacity heatsink and, depending on ambient temperature, either the Smart Flow chassis (8-Bay only) or Direct Liquid Cooling. The 10-Bay chassis air-cools 300W CPUs reliably up to roughly 30 degrees C ambient; above that, DLC is the answer. We confirm exact thermal limits during the quote.

Memory: 32 DDR5 Slots, 8 Channels Per CPU

Thirty-two DDR5 RDIMM slots, 16 per CPU, across 8 memory channels per socket at 2 DIMMs per channel. Speed depends on processor generation: 4800 MT/s on 4th gen, 5600 MT/s on 5th gen. Maximum capacity 8 TB.

• Channel architecture: 8 channels per CPU, 2 DIMMs per channel maximum. Sapphire Rapids and Emerald Rapids are 8-channel designs; a higher channel count belongs to a different platform. Full population (16 DIMMs per CPU) at 2 DPC steps the bus speed down one notch on most SKUs.
• Practical configurations: 512 GB (16x 32GB RDIMM) is the volume sweet spot for general virtualization. 1 TB (16x 64GB) for memory-intensive databases. 2 TB and up for in-memory analytics or large VDI pools.
• RDIMM only. No LRDIMM on this platform. Registered ECC required. UDIMM is not supported.

Fair warning on 5th gen plus 5600 MT/s: The 5600 MT/s spec is for 1 DPC. At 2 DPC you will see 4400 MT/s. If you need full memory capacity AND full bandwidth, that constraint matters; otherwise full population at the lower speed is still faster than a half-populated bus.

Networking and PCIe Expansion

Primary networking is an OCP NIC 3.0 mezzanine slot. Dell offers Broadcom, Intel, and Mellanox cards from 1 GbE up through 100 GbE. An optional LOM card adds a separate out-of-band path beyond the dedicated iDRAC port, and PCIe NICs are supported in the expansion slots if you need a second or third high-speed port.

• 10 GbE baseline. The practical minimum for any current production 1U server. 4-port 10 GbE Base-T OCP is the volume spec for general virtualization.
• 25 GbE when storage traffic justifies it (vSAN clusters, dense NVMe-attached databases).
• 100 GbE for storage-heavy vSAN ESA, NVMe-oF targets, and AI/ML data movement.

PCIe: Up to 3 PCIe slots via risers, mixing Gen4 and Gen5 (Slot 1 is x16 Gen5). EDSFF E3.S front bays run Gen5; U.2 NVMe runs Gen4. Adding the optional 2x rear 2.5" bay kit consumes the center riser and reduces the available slot count, so plan the I/O layout before specifying rear bays.

GPU Support

The R660 supports up to 3 single-width 75W GPUs (L4-class or T4-class accelerators). That is enough for inference, VDI acceleration, and light AI use. For training, larger inference deployments, or any double-width card, this is the wrong platform: the 2U R760 takes double-width GPUs and is what you want.

Management: iDRAC9 Generation

• iDRAC9 Enterprise. Required for unattended deployment, remote console, virtual media, and the full Redfish API. Express is insufficient for production. The 16th-gen platform ships iDRAC9; iDRAC10 is the 17th-gen R670/R770, not the R660.
• Silicon Root of Trust. Standard on 16th gen; cryptographic verification from boot ROM through OS handoff. Required for federal compliance baselines. Paired with Secure Boot and System Lockdown.
• TPM 2.0. Standard.
• OpenManage Enterprise for fleet management; integrates with vCenter, SCCM, and Ansible.

Power and Cooling

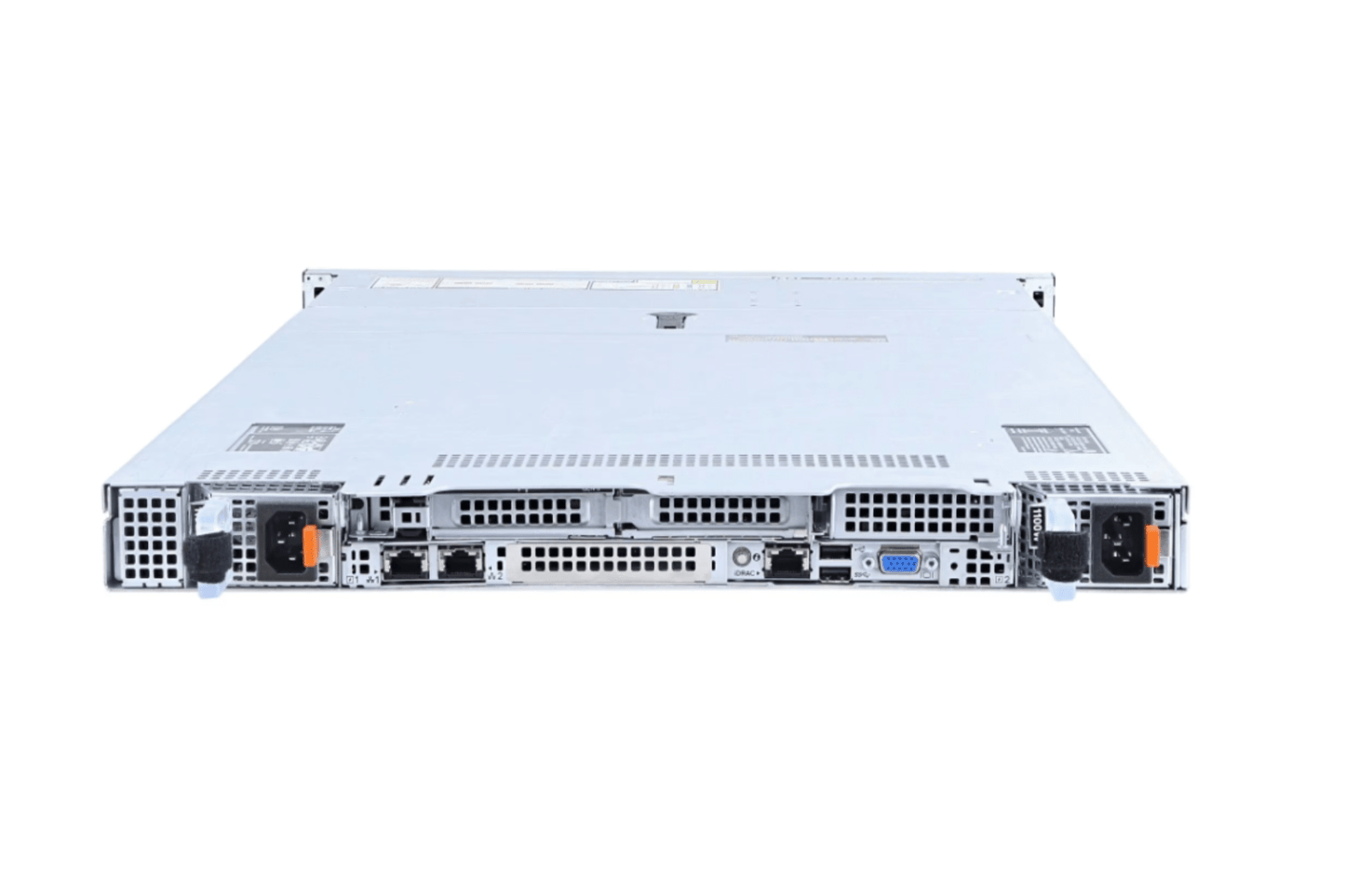

All R660 PSUs are hot-swap and configured redundant (1+1), drawn from Dell's 16G Platinum and Titanium line. The table below is representative; we confirm the exact PSU tier against the final configuration at quote.

A 1100W LVDC -48 VDC option is available for telco and DC-input datacenter environments. Cooling is 8 dual-rotor hot-swap fan modules in standard or high-performance trim; Direct Liquid Cooling is available for the highest-TDP configurations.

Physical Specs & Platform Notes

• Form factor: 1U rack (1.68" H x 18.97" W x 32.39" D with bezel).
• PCIe expansion: Up to 3 PCIe slots (Gen4/Gen5) via risers, configuration-dependent. The optional 2x rear 2.5" bay kit consumes the center riser position.
• Parts availability: Excellent. Current-generation Dell platform with full Dell parts and ProSupport availability; no end-of-life sourcing concerns.
• Accessories we recommend: BOSS-N1 boot card, ReadyRails sliding rail kit, optional cable management arm, and the optional LCD security bezel for colocation deployments.
• Platform notes: CPU and memory are not hot-plug. The 10-Bay chassis does not offer Smart Flow (that is an 8-Bay option); above roughly 30 degrees C ambient with 300W-plus CPUs, plan for DLC.

Our Assessment

Where it excels: The R660 10-Bay is the right call when local storage density on a current-generation 1U platform is the driver. The combination of universal backplane (SAS/SATA/NVMe in any mix), Gen5 NVMe support, and Dell new-server pricing makes this the platform we recommend for new vSAN ESA nodes, NVMe-backed database tiers at 5 to 10 drives per node, and high-density virtualization where local capacity matters.

Where to look instead: This is not a GPU platform beyond single-width 75W cards; for training or any double-width accelerator, go to the 2U R760. If you need dual-socket compute but local storage is modest, the R660 8-Bay (especially with Smart Flow) saves money and runs cooler. If a single socket is enough, the R660xs 8-Bay cuts cost again without losing the 16th-gen platform benefits.

Bottom line: The price-anchor 1U dense-storage 16th gen node, aimed at the buyer building vSAN ESA or NVMe database clusters on current-generation hardware with Dell warranty. Specify the HBA355i for vSAN ESA, the H965i for hardware RAID, and BOSS-N1 for boot, and do not skip iDRAC9 Enterprise.

Generation Context

vs. R650 (15th gen, Ice Lake): The R650 10-Bay is the previous-generation 1U dual-socket platform: PCIe Gen4, DDR4 at 3200 MT/s, iDRAC9. For workloads that do not need Gen5 NVMe or DDR5 bandwidth, the R650 is the value play, often meaningfully lower per unit. Where the R660 wins: Gen5 NVMe bandwidth, DDR5 capacity (8 TB vs 6 TB), the 16th-gen security baseline, BOSS-N1 NVMe boot, and Dell new-server warranty options. A cost-reduced R650 8-Bay is also stocked.

vs. R670 (17th gen, Granite Rapids): The 17th-gen platform brought Granite Rapids Xeon, a refined PCIe Gen5, DDR5 at 6400 MT/s, and iDRAC10. It is the forward path, but pricing in 2026 still carries a premium and channel supply is constrained. For most buyers the R660 is the right current-generation pick; the R670 makes sense when you specifically need iDRAC10, 6400 MT/s memory, or Granite Rapids AI acceleration. (We do not currently stock the 17th-gen line; ask if you want it sourced.)

vs. R660 8-Bay (sibling chassis): Same platform, two SFF bays fewer, Smart Flow option available. The 8-Bay is the right call when compute is primary and 8 bays covers local storage; the 10-Bay is the right call when storage density per node matters, especially for vSAN ESA.

Honest Limitations

• Rear bays cost a PCIe slot. The optional 2x rear 2.5" drive cage installs in the center riser position. If you need both rear bays AND maximum PCIe expansion, the 10-Bay is not the chassis. Plan the I/O layout before specifying rear bays.
• No Smart Flow on the 10-Bay. Smart Flow improves cooling by sacrificing 2 SFF bays for an airflow grill, and it is only available on the 8-Bay R660. If you are running 300W-plus CPUs at 30 degrees C-plus ambient on the 10-Bay, you need DLC; the 8-Bay Smart Flow handles the same thermal load air-cooled.
• 5600 MT/s requires 1 DPC. Populate all 32 DIMM slots (2 DPC) and memory drops to 4400 MT/s on 5th gen. The marketing speed is the 1 DPC speed. For most workloads this is fine; for memory-bandwidth-bound workloads, plan accordingly or stop at 16 DIMMs.
• GPU support is limited. Up to 3 single-width 75W cards is the ceiling. No A100, H100, L40S, or any double-width card. This is a deliberate 1U thermal constraint, not a configuration we can unlock.
• 4th gen vs 5th gen channel pricing. Emerald Rapids commands a price premium over Sapphire Rapids at equivalent core counts. For workloads that do not need 5600 MT/s memory or 60-plus cores, 4th gen is the value play on the same platform.
• EDSFF E3.S is a separate chassis SKU. The 14-bay and 16-bay EDSFF configurations are not field-convertible from this 10-Bay 2.5" SFF chassis. If E3.S density is the requirement, that is a different chassis order.

Workload Fit

Where to Look Instead

• Compute-primary, fewer bays: the R660 8-Bay with the Smart Flow cooling option.
• Single-socket, cost-optimized: the R660xs 8-Bay on the same 16th-gen platform.
• 2U for GPUs and expansion: the full-fat R760 8-Bay or the cost-optimized R760xs 8-Bay.
• Previous generation at lower cost: the R650 10-Bay (15th gen, Ice Lake).

Ready to Configure?

Tell us your CPU generation (4th vs 5th gen), core count, memory capacity, storage type (SAS/SATA/NVMe mix), boot configuration, networking speed, and quantity, and we respond within 24 hours with a formal quote. Not sure on the spec? Tell us the workload (vSAN ESA, database, virtualization) and we will recommend the configuration as part of the quote process.

Call 1-800-778-1545 or contact us to request a quote. Wholesale Servers is a Dell new and refurbished server reseller; every unit ships after a 12+ hour burn-in and carries a 180-day warranty as standard, with 1/2/3-year Premium options and volume pricing at 5 units and above.
