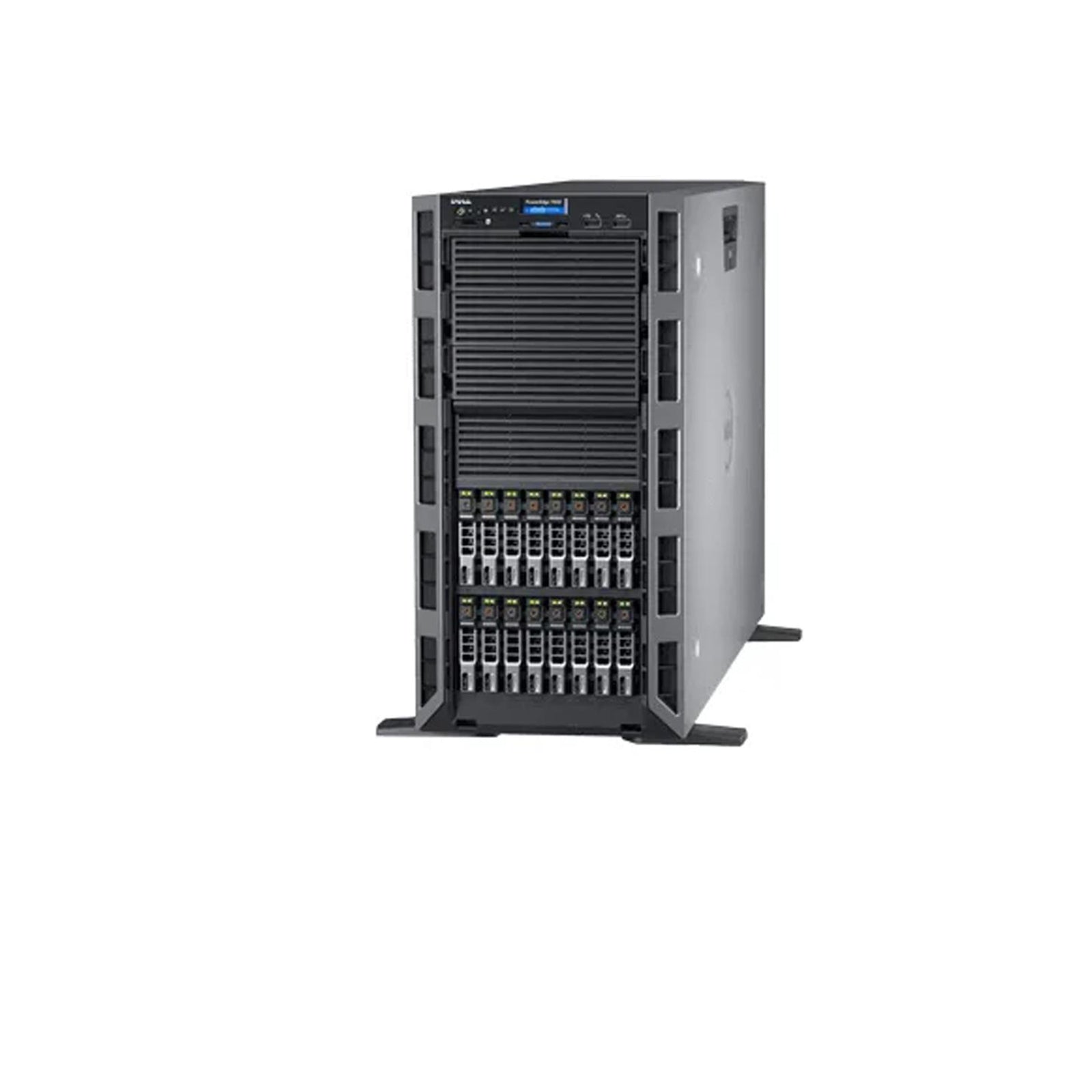

The refurbished Dell PowerEdge T430 16-Bay 2.5" is the SFF configuration of Dell's 13th-generation mid-range tower server: sixteen 2.5" hot-swap front bays on the same dual-socket Intel Xeon E5-2600 v3/v4 platform as the 8-Bay LFF model, 12 DDR4 DIMM slots, PERC H730P RAID, and iDRAC8 Enterprise. This is the T430 chassis for SMB virtualization with substantial local SAS SSD, dense small-business storage, and tower workloads where 2.5" performance-tier drives matter more than LFF capacity.

The platform underneath is identical to the T430 8-Bay 3.5" companion; this page carries the full per-component detail in its own right and calls out only what the 16-Bay SFF chassis changes. For the shared 13th-gen vocabulary it draws on, see the Dell PowerEdge R630 10-Bay 2.5" platform reference.

To configure a build or request volume pricing, call 1-800-778-1545 or use the quote form on this page; volume pricing applies at 5 units and above. Every unit ships after a 12+ hour burn-in test and carries a 180-day warranty.

When 16 SFF Bays Is the Right Choice

The 16-Bay SFF chassis exists for one reason: dense, performance-tier local storage in a tower. Where the 8-Bay LFF model is built around large 3.5" capacity drives, this chassis is built around sixteen 2.5" SAS SSDs and the IOPS scaling that comes with them.

• 16 SFF bays versus 8 LFF. Double the front-bay count in the SSD-optimized form factor. 2.5" is the performance-tier shape; 3.5" is the bulk-capacity shape.
• IOPS scaling. Sixteen SAS SSDs deliver roughly double the array-level random IOPS of an 8-drive build, which is what lifts VM density on a virtualization host.
• Same compute platform. Dual-socket E5-2600 v3/v4, 12 DDR4 slots, PERC H730P, iDRAC8 Enterprise. Nothing about the platform changes; only the backplane and bay count do.
• Form factor is fixed at the backplane. A 16-Bay SFF chassis cannot be field-converted to 8-Bay LFF. Choose storage form factor at procurement.
• SSD is the volume choice here. SFF HDDs are supported, but if spinning-disk capacity is the goal, the LFF companion is the correct chassis. This chassis earns its place with flash.

Storage: 16 SFF Bays

Sixteen 2.5" SAS/SATA hot-swap front bays. The volume use case is dense SAS SSD for SMB virtualization with substantial local storage, SMB database hosts, and tower-format performance-tier storage. The chassis ceiling is 16 drives; there is no expansion beyond it.

Common 16-Bay SFF configurations

• 16 x 1.92 TB SAS SSD: Volume SMB virtualization build. Roughly 21 TB usable at RAID 60 with a hot spare. Strong for VM-dense SMB hosts at 30-50 VMs.
• 16 x 3.84 TB SAS SSD: Higher-capacity all-flash datastore. Roughly 45 TB usable at RAID 60.
• 16 x 960 GB SAS SSD: Cost-optimized build on smaller enterprise SSDs with strong cost-per-GB.
• 2 x SAS SSD boot mirror + 14 x SAS SSD data: All-flash with front-bay boot, 14 data drives in RAID 6 or RAID 60.
• IDSDM boot + 16 x SAS SSD data: ESXi-only build preserving all 16 bays for the datastore.
• Mixed SSD + HDD tiering: 4-8 SAS SSD hot tier plus 8-12 SAS HDD warm tier. Less common in SMB but supported for tiered architectures.

RAID guidance

RAID 6 across 16 drives is acceptable, but RAID 60 (two RAID 6 sets of 8, striped) is the preferred specification at this density: double parity within each group and stronger rebuild behavior. RAID 10 across 16 drives gives 8 mirrored pairs at 50% capacity efficiency for write-intensive deployments. For most 16-Bay SFF builds, RAID 6 or RAID 60 with a hot spare is the right call.

Boot drive options

The T430 has no BOSS module. Boot options are a 2-drive RAID 1 SSD mirror in the front bays (consumes 2 of 16, leaving 14 for data, which is still strong), internal SSD mounts on configurations that support them (preserves all 16 bays, verify at quote time), IDSDM dual SD card for hypervisor-only installs, or internal USB. For ESXi-only deployments, IDSDM keeps all 16 bays for the datastore.

Storage Controllers

The same 13th-gen PERC family as the rest of the platform. SSD arrays at this density make controller choice matter more than on a capacity-tier build:

• PERC H730P (2 GB cache, battery-backed): The production default for the 16-Bay SFF. The right call for write-intensive virtualization and database arrays where the SSD IOPS need a capable controller behind them.
• PERC H730 (1 GB cache, battery-backed): Budget option for read-heavy SSD arrays. Half the cache of the H730P; quote it only when budget leads and writes are light.
• PERC H330 (no cache): Entry-tier only. Generally underpowered for a 16-SSD array; we steer write-heavy flash builds to the H730P.
• HBA330 (pass-through HBA): The right choice when software-defined storage (Storage Spaces, ZFS, Ceph) wants raw access to the 16 SSDs rather than hardware RAID.
• S140 (software RAID via chipset): Dev/test only. We do not quote S140 for a production all-flash array.

The platform tops out at the H730P. The H740P with 8 GB NV cache is a 14th-gen controller and is not part of the 13th-gen lineup.

Processors

Dual-socket-capable on the Intel Xeon E5-2600 v3 (Haswell-EP) and v4 (Broadwell-EP) platform. Dense SSD IOPS reward core count, so this chassis tends to be specified a tier higher than the capacity-oriented LFF model. Higher-TDP CPUs (120W and above) should be paired with the performance fan option to hold thermals under sustained load.

Common 16-Bay SFF CPU choices

• E5-2630 v4 (10 cores, 2.2 GHz, 85W): Sensible floor for a virtualization host that will run a meaningful VM count.
• E5-2640 v4 (10 cores, 2.4 GHz, 90W): Higher clock where per-VM responsiveness matters.
• E5-2650 v4 (12 cores, 2.2 GHz, 105W): Common upgrade for dense SMB virtualization on this chassis.
• E5-2660 v4 (14 cores, 2.0 GHz, 105W): Volume mid-range for higher VM density.
• E5-2680 v4 (14 cores, 2.4 GHz, 120W): Higher clock and core count for the busiest SMB virtualization or SQL hosts.

Single-socket builds are viable for lighter loads, but a fully populated 16-SSD virtualization host frequently justifies the second socket for both cores and the additional memory channels. Top-bin SKUs (E5-2697 v4, E5-2699 v4 at 145W) are supported but usually belong on the rack platforms, which offer more cooling headroom.

Memory

12 DDR4 DIMM slots, the same architecture as the rest of the 13th-gen mid-range platform and half the slot count of the R630/R730. Maximum capacity is 768 GB with 64 GB LRDIMMs. Speed is DDR4-2400 at 1 DIMM per channel on v4 CPUs and steps to 2133 MT/s at 2 DIMMs per channel. Virtualization density on 16 SSDs pushes memory higher than on the LFF model, so this chassis is commonly specified at 128 GB and up.

Practical 16-Bay SFF memory configurations

• 128 GB (4 x 32 GB RDIMM): Entry virtualization host, 15-25 VMs.
• 256 GB (8 x 32 GB RDIMM): Volume virtualization build for 30-50 VMs on the SSD datastore.
• 384 GB (12 x 32 GB RDIMM): Fully populated mid-tier, strong for VDI or memory-heavy SQL.
• 512 GB (8 x 64 GB LRDIMM): High-memory build where VM working sets are large.
• 768 GB (12 x 64 GB LRDIMM): Maximum T430 memory. At this tier the R630/R730 rack platforms are usually more appropriate.

Networking and PCIe Expansion

2 x 1 GbE LOM is standard, but at 16-SSD density 1 GbE is a real bottleneck for VM traffic and storage replication, so 10 GbE is strongly recommended here rather than optional. The Intel X550-T4 quad-port 10GBASE-T is the common add-in; SFP+ options are available where the switching is fiber. The tower carries roughly 5 PCIe Gen3 slots, comfortable for a 10 GbE NIC plus a storage HBA plus an optional single-width GPU. PCIe Gen3 is the platform ceiling; there is no Gen4 on 13th-gen hardware.

GPU Support

Single-width GPUs in low-profile or full-height form are supported, with the NVIDIA T4 (70W, single-width, passively cooled) as the practical option for light VDI or inference alongside the SSD datastore. Double-width 250-300W compute GPUs are not a realistic fit in the tower power and thermal envelope. For multi-GPU VDI or GPU compute, the T630 tower (up to four GPUs) or the R730/R740 rack platforms are the correct path. FPGA cards face the same power and thermal limits as GPUs.

Management: iDRAC8 Enterprise

iDRAC8, identical to the rest of the 13th-gen line. iDRAC8 Enterprise (recommended for any production host) provides full remote KVM, virtual media, and remote console; iDRAC8 Express covers basic out-of-band monitoring. Lifecycle Controller and OpenManage Enterprise integration are present. A TPM 2.0 module is supported for NIST, CMMC, HIPAA, and PCI DSS frameworks. iDRAC8 lacks the Silicon Root of Trust hardware boot verification introduced with 14th-gen iDRAC9; if that is a compliance requirement, the T440 successor is the platform to look at.

Power and Cooling

110V/220V auto-sensing power, so office electrical infrastructure handles it without a datacenter PDU. Sixteen active SAS SSDs plus dual CPUs plus a 10 GbE NIC push a loaded 16-Bay SFF host higher than a capacity LFF build, so PSU sizing leans toward the larger options.

For any production 16-SSD host, 2 x 750W hot-swap redundant is the right specification. The 450W cabled non-redundant supply is not appropriate for a fully loaded flash virtualization host. Tower cooling is tuned for office acoustics; a GPU plus a high-TDP CPU pair should be reviewed against the fan and PSU headroom at quote time.

Physical Specs & Platform Notes

• Form factor: 5U floor-standing tower, rack-convertible to 5U rack orientation with the dedicated conversion kit. Plan for a meaningful floor footprint in office deployment.
• PCIe expansion: Roughly 5 PCIe Gen3 slots in a mix of full-height and low-profile, enough to run a 10 GbE NIC, a storage HBA, and an optional single-width GPU concurrently.
• Parts availability: Strong. The 13th-gen E5-2600 v3/v4 ecosystem (CPUs, DDR4 RDIMM/LRDIMM, PERC controllers, 2.5" SAS SSD carriers, PSUs) is mature and well-stocked on the secondary market. Dell ProSupport on the platform has reached end-of-service, so third-party maintenance is the standard production support path in 2026.
• Accessories we recommend: The lockable front bezel for physical drive security in open-office placement, the tower-to-rack conversion kit if a rack move is on the roadmap, and matched 2.5" SFF SSD carriers for any field drive additions. We quote these by current part number at configuration time rather than listing fixed numbers here, since carrier and bezel revisions vary by chassis batch.
• Platform notes: No BOSS module and no Optane PMem on this generation. Memory should be populated channel-balanced for full bandwidth, which matters more on a memory-heavy virtualization host. Backplane is SFF-specific and not field-convertible to LFF.

Our Assessment

Where it excels: The T430 16-Bay 2.5" SFF is the right call for SMB and branch-office tower deployments where performance-tier SSD storage and IOPS scaling lead the decision. SMB VMware or Hyper-V hosts with substantial local flash at 30-50 VMs, departmental Hyper-V Server installs needing dense SSD, professional-services VDI at small scale, SQL Server deployments that need local SAS SSD performance, and tower-format all-flash storage are its strongest fits.

Where to look instead: If bulk capacity rather than IOPS is the driver, the T430 8-Bay 3.5" companion with large NL-SAS HDDs is the better dollar-per-terabyte buy. If a rack and datacenter cooling already exist, the same-density R730 16-Bay 2.5" is more space-efficient. If the workload needs more than 768 GB of memory, more than 16 bays, or multiple GPUs, step up to the T630 16-Bay SFF tower. If the deployment will run four or more years and Silicon Root of Trust or DDR4-2666 matters, the T440 14th-gen tower is worth the premium.

Bottom line: For an SMB or branch site that needs a dense all-flash virtualization or database host on the floor rather than in a rack, the T430 16-Bay SFF is the cost-correct buy. It pairs proven 13th-gen compute with sixteen SSD bays and office-grade deployment, and it is the chassis we reach for when the workload is IOPS-bound rather than capacity-bound and rack infrastructure is not in play.

Where the T430 Fits in 2026

The T430 is two generations behind the current Dell tower line and its factory support has wound down, which is exactly what makes it the value play for a flash host. The 13th-gen platform is mature, the parts ecosystem is deep, and pricing reflects fully depreciated hardware rather than a current-generation premium. For an SSD virtualization workload that does not need the newest platform features, the savings fund more or larger SSDs in the same budget.

Move up to the T440 when you need iDRAC9 with Silicon Root of Trust, DDR4-2666, the BOSS-S1 boot module (which frees both front bays that a boot mirror otherwise consumes), and a longer forward support runway. We will show both at quote time with current secondary-market pricing so the generational tradeoff is grounded in real numbers.

Honest Limitations

• 16 SFF bays is the chassis ceiling. Not expandable. For more drives in tower form, the T630 is the larger 13th-gen chassis.
• A full SSD load draws more power than an equivalent HDD count. Verify the PSU specification; 2 x 750W is the safe choice for a loaded flash host.
• 1 GbE will bottleneck this chassis. 10 GbE is effectively required at 16-SSD density, which adds a PCIe NIC and switch-port cost to the build.
• 5U floor footprint. A significant physical presence for office deployment. Confirm placement before ordering.
• No BOSS module. Boot redundancy costs two front bays or an internal SSD mount, unlike the 14th-gen BOSS-S1 approach.
• 12 DDR4 DIMM slots, 768 GB maximum. Half the slot count of the R630/R730, which can constrain a memory-dense virtualization host. For more memory in tower form, the T630 is the path.
• iDRAC8, not iDRAC9. No Silicon Root of Trust. DDR4 caps at 2400 MT/s, no Optane PMem, PERC tops at the H730P, and PCIe is Gen3.
• Narrowing OS support. Recent OS releases may have limited 13th-gen validation. Confirm OS compatibility at quote time.

Workload Fit

Where to Look Instead

• Need bulk capacity instead of SSD IOPS: the T430 8-Bay 3.5" companion is the same platform built around large NL-SAS HDDs.
• Need more memory, more bays, or GPUs in a tower: the T630 16-Bay 2.5" tower carries 24 DIMM slots and up to four GPUs.
• Stepping up a generation: the T440 8-Bay 3.5" tower is the 14th-gen successor with iDRAC9 and BOSS-S1.
• Rack infrastructure available: the same-generation, same-density R730 16-Bay 2.5" (2U) is more space-efficient.
• Shared platform reference: the R630 10-Bay 2.5" page documents the 13th-gen controller, networking, and management vocabulary in full.

Ready to Configure?

Tell us your workload, target CPU SKU, memory capacity, drive count and type (16 SFF maximum on this chassis), RAID requirement, boot configuration (front-bay mirror or IDSDM), networking speed, PSU preference, and quantity. We respond within 24 hours. For SMB virtualization sizing, share your target VM count, average VM memory, and storage IOPS expectations and we will configure CPU, memory, and SSD to hit the target with appropriate headroom.

Every Wholesale Servers T430 ships after a 12+ hour burn-in covering every PCIe slot, memory channel, and drive bay, and carries a 180-day warranty with optional 1-Year, 2-Year, and 3-Year Premium coverage. Volume pricing applies at 5 units and above. Call 1-800-778-1545 or use the quote form on this page.
