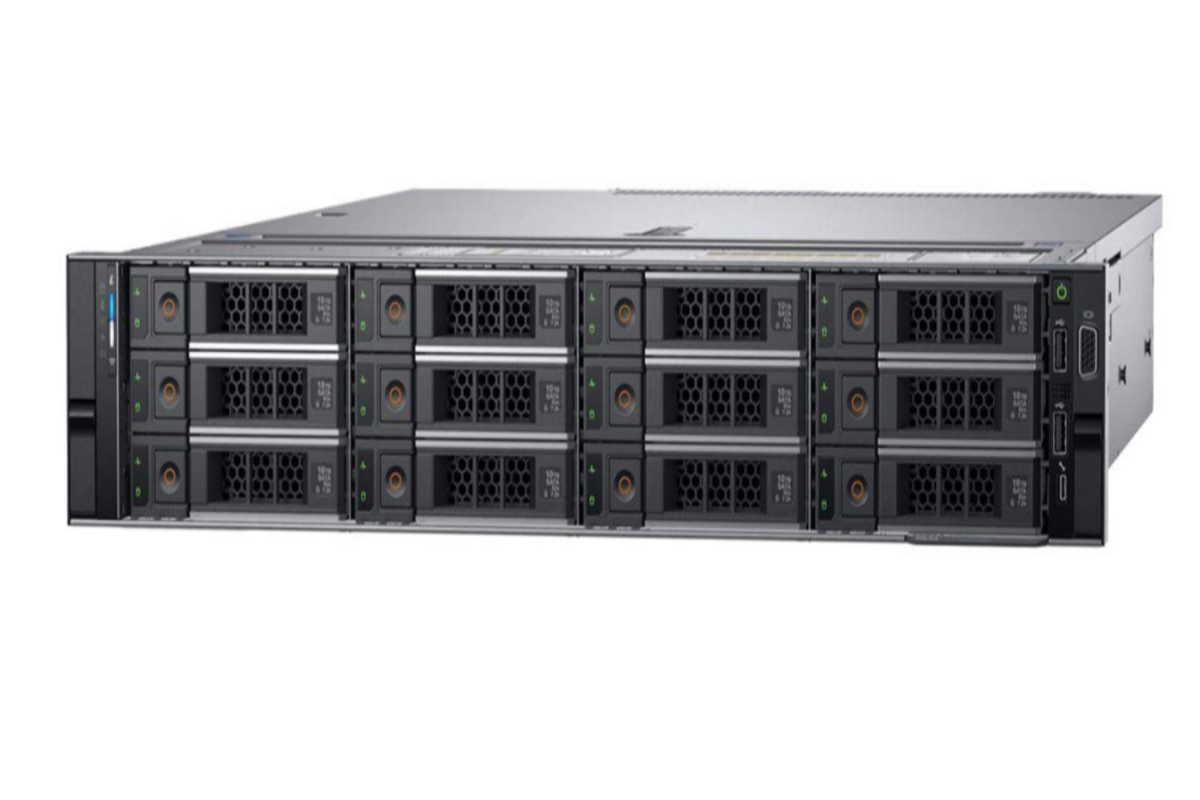

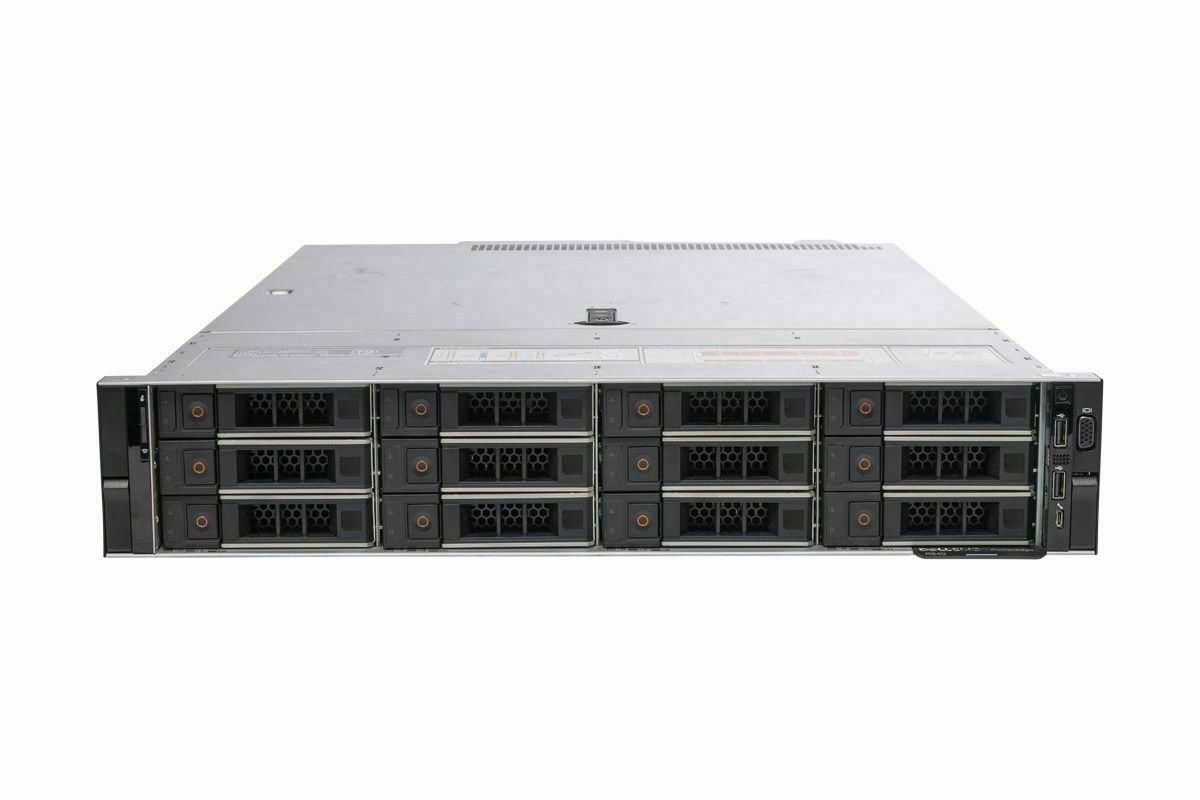

Dell PowerEdge R540 Servers

The Dell PowerEdge R540 is a powerful and versatile 2U rack server designed to deliver balanced performance, scalability, and storage flexibility for medium to large-sized businesses. Ideal for workloads such as virtualization, mail and messaging, data analytics, and file/print services, the R540 offers a blend of compute power and expandable capacity in a cost-efficient chassis. With support for dual Intel Xeon Scalable processors, large memory footprints, and broad storage configurations, the R540 adapts to a wide range of use cases across enterprise environments. Its thoughtful design and intelligent automation tools make it easy to manage, scale, and maintain for evolving business needs.

Performance

The Dell PowerEdge R540 is equipped with up to two Intel Xeon Scalable processors (1st or 2nd Gen), supporting up to 20 cores per CPU—offering a maximum of 40 cores per system. These processors deliver strong multi-threaded performance ideal for compute-heavy applications like virtualization, database hosting, and application delivery. With support for Intel AVX-512, high memory bandwidth, and turbo boost technologies, the R540 handles dynamic workloads efficiently. Compared to the 1U R440, the R540 offers more thermal headroom and better performance-per-watt for intensive, sustained workloads. This makes it a more suitable option for businesses looking to consolidate physical infrastructure while supporting higher processing demands.

Memory and Scalability

The R540 supports up to 512GB of DDR4 ECC Registered DIMM memory across 16 DIMM slots (8 per CPU), enabling consistent performance and improved reliability for memory-sensitive workloads. ECC memory automatically detects and corrects memory errors, making the server ideal for environments where data integrity is critical. Memory speed support up to 2933 MT/s ensures fast access to frequently used data, enhancing responsiveness for real-time applications and services. As your business grows, the R540’s memory scalability allows for seamless expansion without needing to invest in a new server. This flexibility makes it a strong fit for organizations with dynamic or scaling workloads.

Storage Flexibility

The Dell PowerEdge R540 offers broad storage options, including configurations for up to 8 or 12 x 3.5" hot-swappable drives. It supports SATA and SAS HDDs and SSDs, with additional support for up to 4 x NVMe SSDs in select configurations for high-speed, low-latency applications. Storage controllers such as the PERC H730P and H740P allow for advanced RAID configurations (0, 1, 5, 6, 10, 50, 60), ensuring data protection and optimized performance. The 12-bay configuration offers more total capacity than the 8-bay chassis, making it ideal for organizations with large data sets or backup/archive needs. With optional boot-optimized storage (BOSS) and M.2 devices, OS installation can be kept separate from primary storage, improving reliability and flexibility.

I/O and Expandability

The R540 features up to 5 PCIe Gen 3.0 slots, significantly more than smaller models like the R340 or R440, enabling a wide range of expansion options. These include high-speed NICs (1GbE, 10GbE, 25GbE), RAID controllers, GPU accelerators (in select models), and FC HBAs for SAN connectivity. The modular LOM (LAN on Motherboard) design provides network flexibility, allowing businesses to tailor I/O to current and future needs. It also includes dual embedded 1GbE NICs, front/rear USB 3.0 ports, and VGA/serial access for seamless integration into modern data centers. This level of expansion makes the R540 ideal for mid-sized environments that anticipate growth and require customization.

Virtualization and Workload Optimization

The PowerEdge R540 is optimized for virtualization platforms like VMware, Microsoft Hyper-V, and Red Hat KVM, offering high core density and large memory capacity to support multiple virtual machines. Its large storage footprint and optional NVMe capability make it ideal for I/O-intensive applications such as virtual desktop infrastructure (VDI), software-defined storage, or Microsoft SQL Server. Dell’s workload-optimized BIOS settings allow users to tune system configurations to match specific workloads, improving performance and efficiency. For organizations consolidating services onto fewer physical hosts, the R540 delivers dependable performance and workload isolation. Its broad configurability ensures it can be adapted to specialized IT environments.

Management and Automation

The R540 includes Dell’s iDRAC9 with Lifecycle Controller for robust, agent-free server management. This integrated solution provides real-time health monitoring, remote access, firmware updates, and automated provisioning from anywhere, reducing the need for on-site IT intervention. Dell OpenManage Enterprise enables centralized infrastructure management across server fleets, offering efficiency for growing environments or multiple-site deployments. Additional tools like OpenManage Mobile and PowerEdge Quick Sync 2 (via optional wireless module) enable on-the-go administration. These features help IT staff reduce downtime, maintain compliance, and simplify operations across hybrid infrastructures. For IT teams managing multiple systems, the R540’s automation and integration capabilities offer long-term value.

Energy Efficiency

The Dell PowerEdge R540 is built for energy-conscious performance, featuring high-efficiency platinum-rated power supplies (up to 750W) and thermal tuning via multi-vector cooling. Intelligent fan algorithms and airflow management optimize cooling efficiency based on real-time workload requirements. This reduces energy usage without sacrificing system stability or uptime. The 2U design allows better airflow compared to 1U models, improving cooling effectiveness and prolonging component life. These design efficiencies reduce the server’s total cost of ownership (TCO) while supporting sustainability goals.

Reliability and Availability

The R540 is engineered with high availability in mind, featuring redundant power supply options, hot-swappable drive support, and predictive failure analytics. Dell’s ProSupport and ProSupport Plus services offer automated case creation, priority support, and proactive issue resolution—ensuring minimal disruption to mission-critical operations. Support for RAID redundancy and OS mirroring across BOSS modules enhances data protection and system resilience. Optional TPM modules and secure boot features also safeguard against unauthorized access and firmware tampering. Whether deployed in a core data center or a branch office, the R540 is a dependable choice for maintaining uptime and operational continuity.

Key Features at a Glance:

• Compute Power: Dual Intel Xeon Scalable CPUs with up to 40 total cores.
• Memory Capacity: Up to 512GB DDR4 ECC RDIMM memory across 16 DIMM slots.
• Storage Options: 8 or 12 x 3.5" bays with SATA, SAS, and NVMe SSD/HDD support.
• I/O Expandability: Up to 5 PCIe Gen 3.0 slots with flexible NIC and HBA options.
• Virtualization Support: Ideal for hypervisors like VMware, Hyper-V, and KVM; supports VDI, databases, and consolidation.
• Management Tools: iDRAC9, OpenManage Enterprise, and Quick Sync 2 for full remote management.
• Energy Efficiency: Platinum PSUs, multi-vector cooling, and intelligent thermal controls.
• Reliability: Hot-swappable drives, redundant PSUs, ECC memory, and predictive diagnostics for high uptime.


Business Value

The Dell PowerEdge R540 delivers a powerful, adaptable platform for mid-sized and growing enterprises that require compute flexibility, expansive storage, and dependable reliability. Its dual-processor support, high memory capacity, and extensive I/O options make it an excellent solution for dynamic workloads including virtualization, mail servers, business applications, and backup infrastructure. With comprehensive management tools and energy-efficient design, the R540 reduces operational complexity and lowers TCO. Whether deployed as a general-purpose server or a specialized application host, it provides the versatility and scalability organizations need to support evolving IT demands. The R540 is a future-ready investment for businesses prioritizing performance, storage, and resilience.
