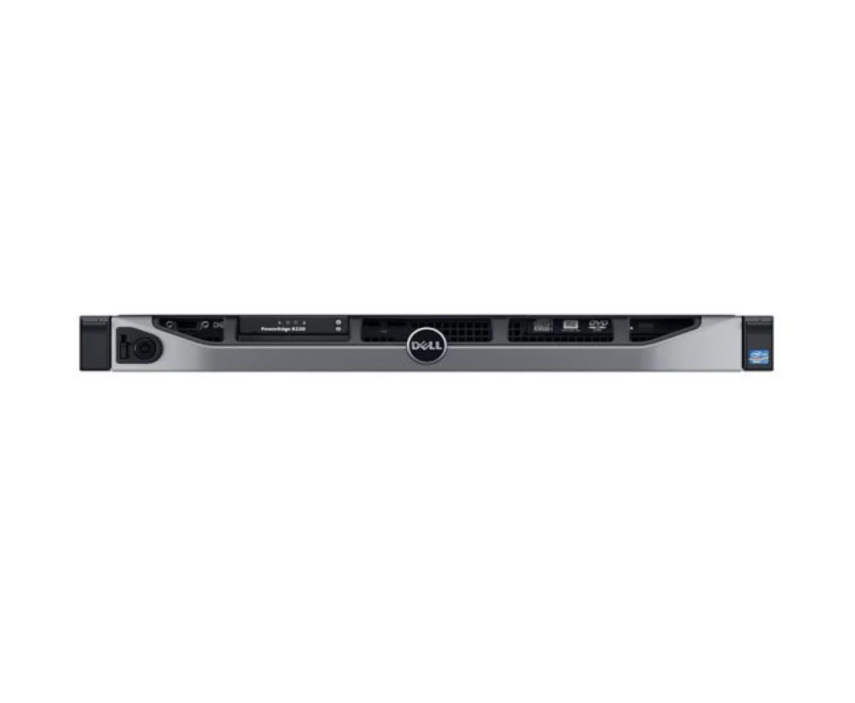

Dell PowerEdge R230 Servers

The Dell PowerEdge R230 is a compact, entry-level 1U rack server designed for small businesses, remote offices, and edge deployments that require essential compute power, data protection, and ease of management. This single-socket server delivers reliable performance, simplified IT infrastructure, and enterprise-class features in a space-saving chassis. Ideal for workloads such as file and print services, mail and messaging, web serving, and small virtualization environments, the R230 balances affordability with performance. With Intel Xeon E3-1200 v5/v6 processors, fast DDR4 memory, and flexible storage options, the R230 is purpose-built for organizations seeking a powerful yet cost-efficient solution to handle everyday IT tasks. Compact and energy-efficient, it is a solid choice for businesses with constrained space or power budgets that still require server-grade reliability.

Performance

The PowerEdge R230 is powered by Intel Xeon E3-1200 v5 or v6 series processors, offering up to 4 cores and 8 threads, with base clock speeds up to 3.9 GHz. It also supports select Intel Core i3, Pentium, and Celeron processors for even more budget-conscious deployments. With support for DDR4 memory and improved instruction throughput, the R230 provides a significant performance boost over its predecessor, the R220. This server is optimized for tasks such as serving web pages, hosting business apps, and performing basic virtualization without overwhelming IT budgets or infrastructure.

Memory and Scalability

The Dell R230 supports up to 64GB of DDR4 UDIMM ECC memory across 4 DIMM slots, ensuring system stability and protection against data corruption. DDR4 offers faster data transfer rates and lower power consumption compared to DDR3, enhancing both performance and efficiency. With ECC (Error Correcting Code) memory, the R230 is capable of detecting and correcting single-bit memory errors, which is critical in business environments that prioritize uptime and data integrity. The memory capacity and expandability make the R230 a strong fit for growing workloads in entry-level IT environments.

Storage Flexibility

The R230 provides a range of storage options to suit diverse application needs:

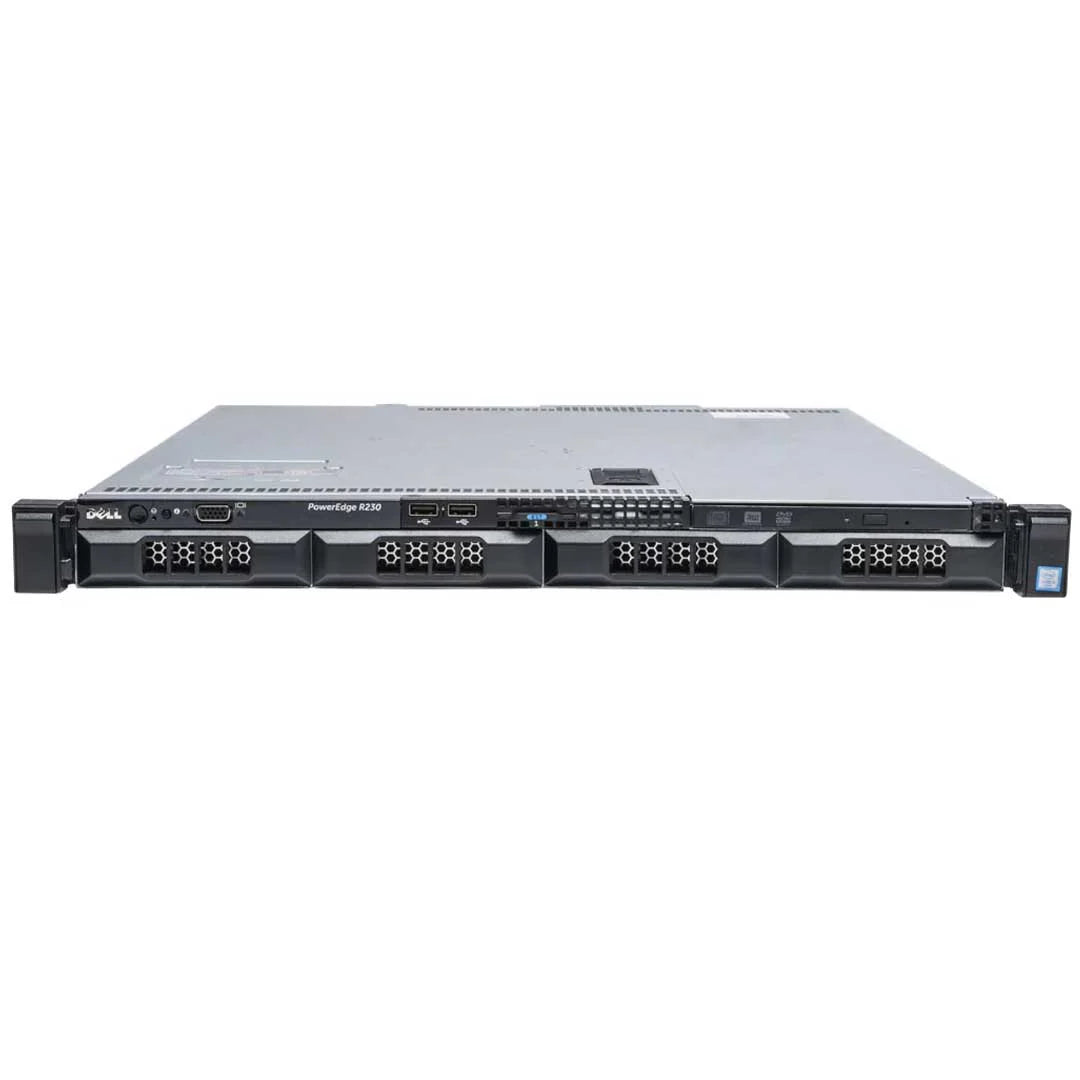

• Supports up to 4 x 3.5” or 4 x 2.5” drives (depending on chassis configuration)
• Hot-plug and cabled SATA/SAS, with total capacity exceeding 40TB
• Optional hardware RAID via Dell PERC S130, H330, or H730 controllers
• Internal USB 3.0 and SD card slots for hypervisor boot or local backups


With these options, the R230 accommodates everything from simple file shares to lightweight database and application hosting. Its flexible drive support allows businesses to scale capacity over time while maintaining data redundancy and performance.

I/O and Expandability

The Dell R230 includes 2 PCIe Gen 3.0 slots for add-in cards such as additional network adapters, HBAs, or RAID controllers. It features dual 1GbE network ports (Broadcom or Intel-based) and USB 3.0/2.0 ports for peripheral connectivity. Optional LOM (LAN on Motherboard) cards offer expanded networking capabilities, including dual- or quad-port NICs. While compact, the R230 provides enough I/O flexibility for SMBs looking to enhance network throughput or storage interfaces as their needs grow.

Virtualization and Use Cases

The PowerEdge R230 supports entry-level virtualization platforms such as VMware vSphere, Microsoft Hyper-V, and KVM, allowing businesses to run multiple workloads on a single physical server. It's ideal for lightweight virtualized environments, test labs, or branch office consolidation. This capability is particularly useful for organizations aiming to maximize infrastructure efficiency while keeping physical hardware to a minimum. Whether for database hosting, web services, or backup infrastructure, the R230 offers the foundational building blocks for IT consolidation.

Management and Automation

Equipped with iDRAC8 with Lifecycle Controller, the Dell R230 offers comprehensive out-of-band management for remote monitoring, firmware updates, and system diagnostics. Dell OpenManage Essentials provides centralized management of multiple Dell servers, streamlining deployment and maintenance. With iDRAC, administrators can access the server even if the OS is down, reducing the need for onsite support. These tools are ideal for IT teams managing remote or branch deployments with limited physical access.

Energy Efficiency

The Dell R230 offers energy-efficient operation with 80 PLUS Gold certified power supplies (250W or 350W), dynamic fan speed control, and energy-optimized hardware design. Its compact 1U form factor and low power draw make it ideal for environments with space or energy constraints. The reduced operating cost, combined with reliable performance, ensures strong ROI for businesses mindful of energy budgets.

Reliability and Availability

Designed with business continuity in mind, the R230 supports:

• Hot-plug drives and redundant power supply options
• ECC memory for data integrity
• Proactive alerting and diagnostics through iDRAC
• RAID configurations for data redundancy and protection


These features help reduce the risk of downtime, protect mission-critical data, and ensure continued service availability in production environments.

Key Features at a Glance:

• Compute Power: Intel Xeon E3-1200 v5/v6 CPUs with up to 4 cores and 8 threads
• Memory Capacity: Up to 64GB DDR4 ECC UDIMM across 4 DIMMs
• Storage Options: Up to 4 x 3.5” or 2.5” SATA/SAS drives with RAID support
• I/O Expandability: 2 PCIe Gen 3.0 slots; dual 1GbE NICs
• Virtualization Ready: Ideal for small-scale Hyper-V, VMware, or KVM deployments
• Management Tools: iDRAC8 with Lifecycle Controller and OpenManage Essentials
• Energy Efficiency: Gold-rated PSUs and intelligent fan control
• Reliability: ECC memory, optional hot-swappable drives, and RAID support


Business Value

The Dell PowerEdge R230 is an affordable yet capable entry-level rack server that delivers essential performance and reliability for small businesses and remote sites. With its compact footprint, enterprise-class features, and flexible storage options, it supports core IT workloads like file sharing, print services, lightweight applications, and virtualization. Easy to manage and cost-efficient to operate, the R230 is an excellent first-server choice for growing organizations, branch offices, and home labs seeking stability and room to scale without complexity.
