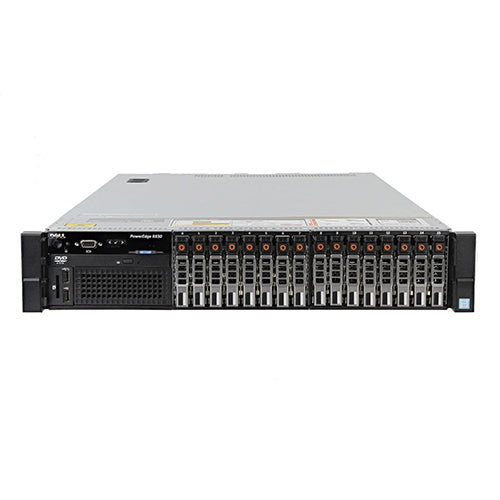

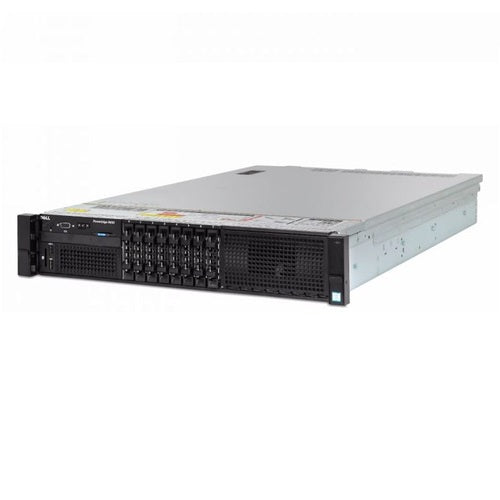

Dell PowerEdge R830 Servers

The Dell PowerEdge R830 is a 2U, quad-socket rack server designed for demanding, data-intensive workloads that require dense compute power, memory bandwidth, and balanced I/O performance. Built for enterprise applications such as large-scale virtualization, in-memory databases, and analytics, the R830 delivers exceptional performance and scalability in a compact footprint. With support for Intel Xeon E5-4600 v4 processors, high memory capacity, and a versatile storage architecture, it offers a robust platform for organizations seeking powerful compute capabilities in a space-efficient form factor.

Performance

The PowerEdge R830 is equipped with up to four Intel Xeon E5-4600 v4 processors, offering up to 88 cores and 176 threads across the system. Designed to support a wide range of business-critical workloads, the R830 benefits from Intel's Hyper-Threading and Turbo Boost technologies, providing both high core density and scalable performance on demand. With processor speeds reaching up to 3.5 GHz, the R830 is well-suited for high-throughput workloads like ERP, CRM, and decision support systems. Its architecture ensures low latency and high concurrency for real-time transactional applications.

Memory and Scalability

The R830 features 48 DDR4 DIMM slots, supporting up to 3TB of ECC RAM when fully populated with LRDIMMs, or up to 1.5TB with RDIMMs. With memory speeds up to 2400MT/s, the system is optimized for workloads that demand high memory bandwidth, such as large in-memory databases and virtualization clusters. ECC (Error-Correcting Code) memory ensures data integrity, while support for Dell’s Fault Resilient Memory enhances uptime in virtualized environments by protecting hypervisors from memory errors. This makes the R830 ideal for scale-up server deployments in growing enterprises.

Storage Flexibility

The Dell PowerEdge R830 supports a range of storage configurations:

• Up to 8 x 2.5” SAS/SATA/SSD drives, including support for hot-swappable configurations
• Optional NVMe SSD support in select backplane configurations for ultra-fast local storage
• Integration with Dell PERC RAID controllers (H730, H830) supporting RAID 0, 1, 5, 6, 10, 50, and 60


The storage architecture is designed for high IOPS environments such as database servers, caching layers, and transactional workloads. With optional internal boot SD cards and the BOSS (Boot Optimized Storage Solution) module for OS deployment, storage can be reserved entirely for data.

I/O and Expandability

The R830 includes 7 PCIe Gen 3.0 slots, providing flexibility for high-bandwidth expansion cards including network adapters, Fibre Channel HBAs, GPUs, or NVMe accelerators. With integrated dual 1GbE network ports, and optional 10GbE/40GbE NICs, the server supports robust I/O for data-intensive workloads and clustered environments. The system’s modular design enables easy expansion to meet growing application demands without replacing the entire infrastructure.

Virtualization and Use Cases

With its quad-socket architecture, high memory density, and large I/O footprint, the R830 excels in:

• Virtualized infrastructures
• In-memory databases like SAP HANA
• Mission-critical applications
• Analytics and business intelligence
• Database consolidation


The R830 is certified for leading hypervisors including VMware ESXi, Microsoft Hyper-V, and Red Hat Virtualization, making it an ideal foundation for enterprise private clouds and consolidated server environments. It supports dense VM hosting and ensures performance isolation in multi-tenant systems.

Management and Automation

Equipped with iDRAC8 with Lifecycle Controller, the PowerEdge R830 offers full-featured, out-of-band server management, enabling remote monitoring, updates, and automation without relying on the host OS. Integration with Dell OpenManage Essentials and enterprise IT frameworks like vCenter, Microsoft System Center, and Nagios enhances visibility and control across hybrid IT environments. Features like automated firmware updates, remote provisioning, and RESTful API support allow IT teams to manage infrastructure efficiently and proactively.

Energy Efficiency

The R830 includes 80 PLUS Platinum-certified power supplies (750W, 1100W, or 1600W), designed for optimal efficiency under variable workloads. Intelligent system cooling, multi-zone airflow control, and power capping policies help reduce operational energy consumption. These features, combined with Dell’s Fresh Air 2.0 compliance, make the R830 suitable for data centers aiming to improve power usage effectiveness (PUE) and lower total cost of ownership (TCO).

Reliability and Availability

The Dell PowerEdge R830 is built for business continuity, offering:

• Redundant hot-plug power supplies and cooling fans
• ECC memory and fault resilient memory support
• Predictive failure alerts via iDRAC
• Hot-swappable drives and PCIe components


This ensures minimal disruption during component failures and supports 24/7 operations across critical environments. Its design emphasizes uptime, serviceability, and diagnostics to reduce mean time to repair (MTTR).

Key Features at a Glance:

• Compute Power: Quad Intel Xeon E5-4600 v4 CPUs, up to 88 cores total
• Memory Capacity: Up to 3TB DDR4 ECC RAM across 48 DIMMs
• Storage Options: Up to 8 x 2.5” SAS/SATA/SSD/NVMe; hot-swap and BOSS support
• I/O Expandability: 7 x PCIe Gen 3.0 slots for NICs, HBAs, or GPU integration
• Virtualization Ready: Certified for major hypervisors; ideal for VDI and SAP
• Management Tools: iDRAC8, OpenManage, and support for third-party tools
• Energy Efficiency: 80 PLUS Platinum PSUs and intelligent cooling features
• Reliability: Redundant components, predictive diagnostics, and error resilience


Business Value

The Dell PowerEdge R830 offers powerful, centralized compute performance in a 2U chassis, bridging the gap between traditional dual-socket systems and large-scale four-socket platforms like the R930. It is an excellent choice for businesses that need dense processing, large memory capacity, and balanced I/O without sacrificing space or power efficiency. Its versatility and scalability make it a long-term investment for mission-critical enterprise workloads, while its reliability ensures consistent performance in even the most demanding environments.
