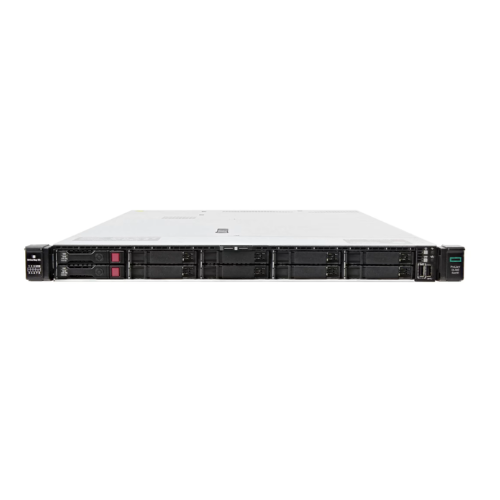

HPE Proliant DL360 G9 Servers

The HPE ProLiant DL360 Gen9 is a high-performance, 1U rack server built for dense compute environments requiring a strong balance of processing power, memory scalability, and reliability. Designed for enterprise data centers, cloud deployments, and high-performance computing, the DL360 Gen9 is ideal for workloads such as virtualization, web hosting, and data analytics. With support for dual Intel Xeon E5-2600 v3 or v4 processors, DDR4 memory, and robust storage options, this server offers a compact yet powerful platform for growing businesses and large-scale IT infrastructures.

Performance

The DL360 Gen9 is powered by up to two Intel Xeon E5-2600 v3 or v4 series processors, supporting configurations with up to 22 cores per CPU, for a total of 44 physical cores and 88 threads. These processors offer advanced capabilities such as Intel Turbo Boost, Hyper-Threading, and integrated memory controllers, delivering exceptional performance for compute-intensive workloads. With base frequencies up to 2.6 GHz and max turbo speeds exceeding 3.5 GHz, the DL360 Gen9 delivers reliable throughput across a wide range of enterprise applications. The server is designed to scale with demanding virtualization tasks, business-critical databases, and real-time analytics platforms.

Memory and Scalability

The DL360 Gen9 supports up to 24 DDR4 DIMM slots, allowing for a maximum memory capacity of 1.5TB when using 64GB LRDIMMs. It supports ECC (Error-Correcting Code) memory and HPE's Advanced Memory Protection features, including memory mirroring, sparing, and lockstep mode. Operating at speeds of up to 2400MT/s, the server ensures high bandwidth and low latency, critical for data-heavy applications. This scalability allows businesses to future-proof their infrastructure while supporting growing workloads in data-centric environments.

Storage Flexibility

The DL360 Gen9 is available in multiple chassis configurations to support:

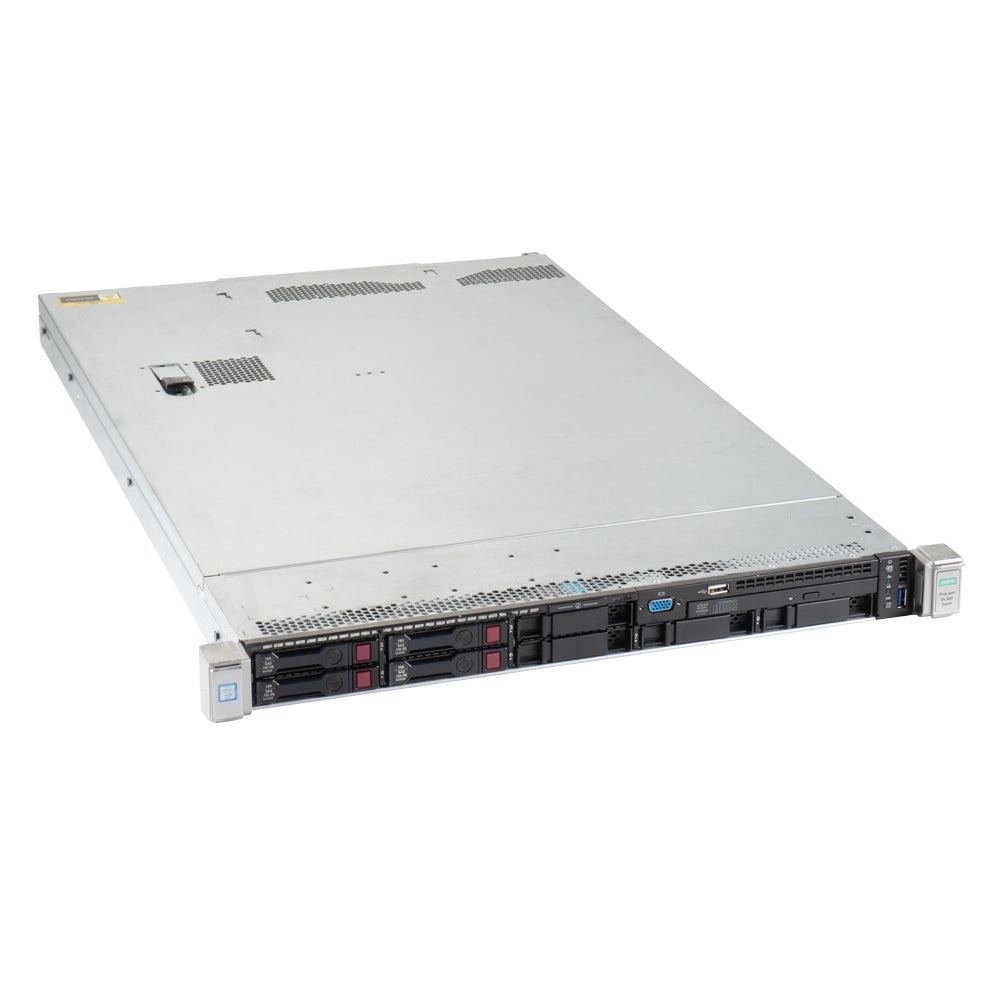

• 4, 8 or 10 x 2.5" hot-plug SAS/SATA/SSD drives

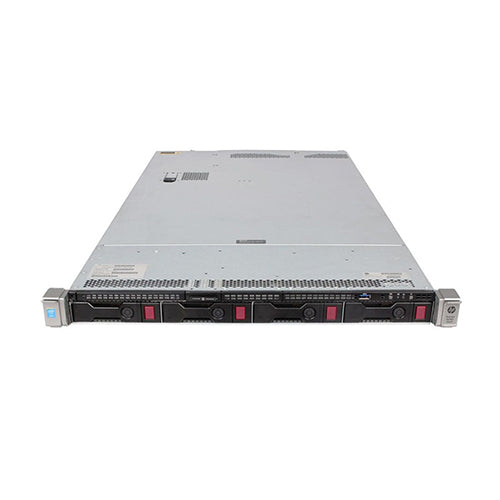

• Optional 4 x 3.5" drive chassis for higher-capacity bulk storage


It supports HPE Smart Array controllers such as the P440ar and P840, enabling RAID levels 0, 1, 5, 6, 10, 50, and 60 for data protection and performance optimization. With flexible storage tiers, the DL360 Gen9 supports database hosting, application acceleration, and dense file storage in one compact platform.

I/O and Expandability

Despite its 1U form factor, the DL360 Gen9 provides solid expandability:

• Up to 3 PCIe Gen 3.0 slots (with optional risers)
• Flexible LOM and standup NICs for network customization (1GbE, 10GbE, or 25GbE)
• Support for GPUs (select SKUs) or storage controllers


The FlexibleLOM technology enables users to upgrade network bandwidth without overhauling the server, ensuring future readiness. The system also includes USB 3.0 ports, VGA, and serial ports for comprehensive connectivity.

Virtualization and Use Cases

The DL360 Gen9 is a go-to server for environments running:

• VMware vSphere, Microsoft Hyper-V, and Citrix XenServer
• Private cloud stacks like OpenStack and Nutanix
• Enterprise applications (Exchange, SQL, SAP)
• Edge computing and remote office infrastructure


Its processing density, memory scalability, and storage flexibility make it a preferred solution for high-density virtualization, cloud computing, and general-purpose enterprise IT in space-constrained data centers.

Management and Automation

Equipped with HPE iLO 4 (Integrated Lights-Out), the DL360 Gen9 offers comprehensive remote server management, including:

• Out-of-band system monitoring
• Remote console access
• Automated firmware updates
• Power and thermal optimization


iLO works seamlessly with HPE Insight Control, OneView, and Smart Update Manager, enabling centralized lifecycle management, health monitoring, and policy-based automation across the server fleet.

Energy Efficiency

The HPE ProLiant DL360 Gen9 is designed for optimized power usage:

• 80 PLUS Platinum and Titanium power supplies (500W, 800W, or 1400W)
• Redundant, hot-plug PSU support
• Intelligent system tuning for dynamic workload management
• ASHRAE A3/A4 for operation in elevated ambient temperatures


These features reduce cooling requirements and electricity costs, particularly important in high-density deployments and edge environments with limited infrastructure.

Reliability and Availability

Enterprise-grade reliability is built into every aspect of the DL360 Gen9, including:

• Hot-swappable storage, fans, and power supplies
• Predictive failure analysis
• Advanced memory protection
• N+1 redundancy for cooling and power


With a design focused on uptime and data integrity, the DL360 Gen9 provides peace of mind for businesses running 24/7 operations, critical business applications, and SLAs that demand high availability.

Key Features at a Glance:

• Compute Power: Dual Intel Xeon E5-2600 v3/v4 CPUs (up to 44 cores total)
• Memory Capacity: Up to 1.5TB DDR4 ECC memory across 24 DIMM slots
• Storage Options: Configurable for 4/8/10 x 2.5" or 4 x 3.5" drives; NVMe support
• I/O Expandability: Up to 3 PCIe Gen 3.0 slots + FlexibleLOM networking
• Virtualization Support: Optimized for VMware, Hyper-V, Citrix, OpenStack
• Management Tools: iLO 4, Insight Control, OneView, Smart Update Manager
• Energy Efficiency: High-efficiency PSUs, thermal tuning, ASHRAE A3/A4
• Reliability: Hot-swappable components, redundant power/cooling, predictive monitoring


Business Value

The HPE ProLiant DL360 Gen9 offers an outstanding combination of performance, density, and manageability for IT environments seeking enterprise-grade capability in a compact form factor. Its modular design allows for easy upgrades, while its advanced remote management tools and energy-efficient operation reduce TCO over time. Whether supporting mission-critical applications, dense virtualization, or scalable cloud workloads, the DL360 Gen9 is a cost-effective, space-saving solution that delivers enterprise-level performance without compromise.
