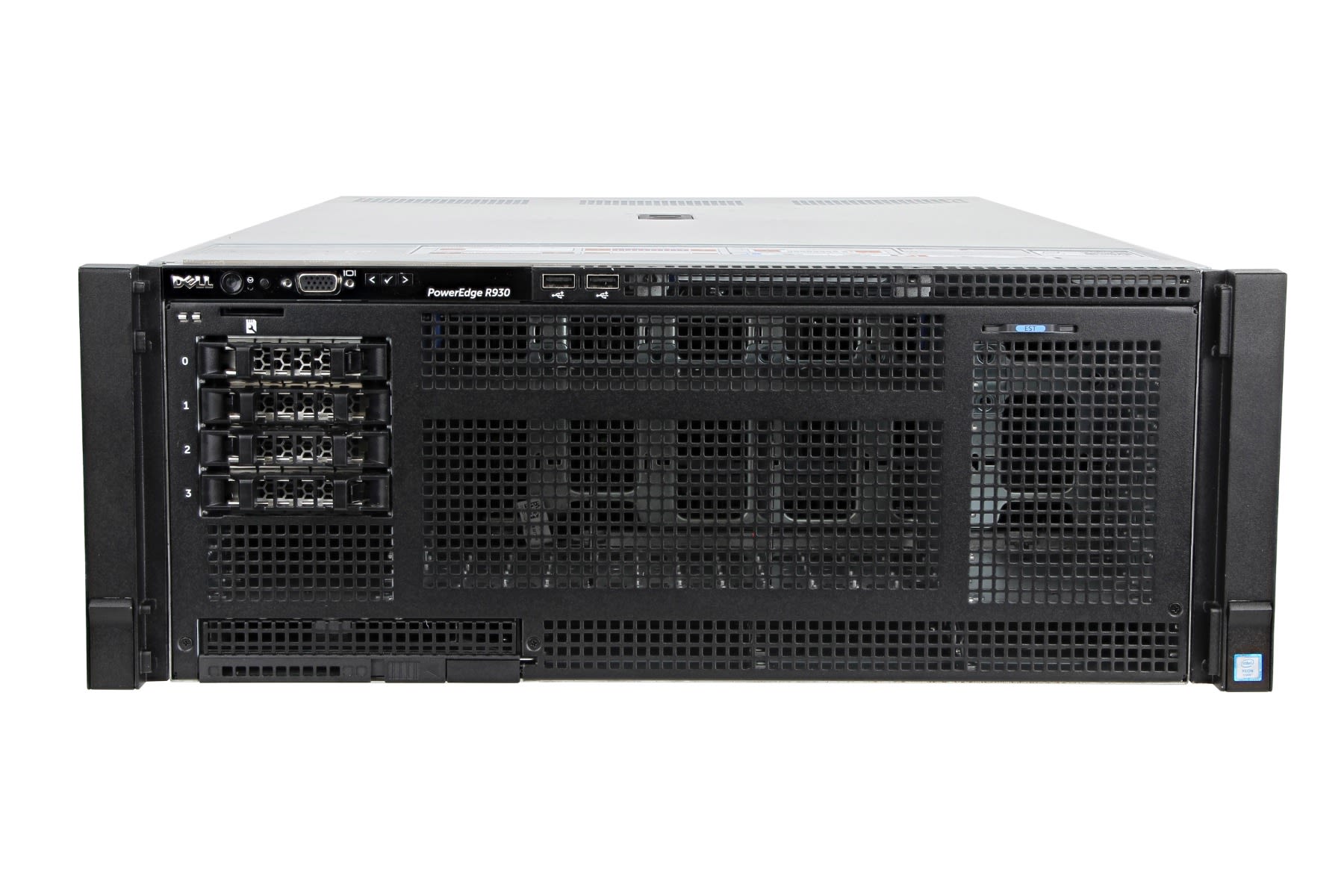

Dell PowerEdge R930 Servers

The Dell PowerEdge R930 is a high-end, 4U rack server engineered for the most demanding, mission-critical enterprise workloads. Designed to handle intensive applications such as in-memory databases, ERP systems, large-scale virtualization, and real-time analytics, the R930 offers exceptional scalability, performance, and resiliency. With its support for four Intel Xeon E7 processors, massive memory footprint, and robust storage capabilities, the R930 is the go-to solution for organizations that require maximum uptime, data integrity, and computing power.

Performance

The PowerEdge R930 supports up to four Intel Xeon E7-8800 v4 or E7-4800 v4 series processors, delivering up to 96 cores and 192 threads across the system. These processors are built for high availability and advanced RAS (Reliability, Availability, and Serviceability) features, making the R930 ideal for transaction-heavy and latency-sensitive applications. With core speeds up to 3.2 GHz and support for Hyper-Threading and Turbo Boost, the R930 provides consistent and scalable performance for enterprise-critical operations. Additionally, large L3 caches and support for NUMA optimization further enhance performance in memory-intensive environments.

Memory and Scalability

The Dell R930 supports up to 96 DDR4 DIMM slots, offering an unprecedented 12TB of RAM when populated with 128GB LRDIMMs. It supports memory speeds of up to 1866MT/s, with ECC (Error-Correcting Code) for data integrity and Dell’s Fault Resilient Memory technology for added reliability in virtualized environments. This enormous memory capacity makes the R930 a top-tier choice for SAP HANA, Oracle databases, and other in-memory platforms. The system also supports memory mirroring and sparing for additional fault tolerance in high-availability deployments.

Storage Flexibility

The PowerEdge R930 offers extensive storage capabilities:

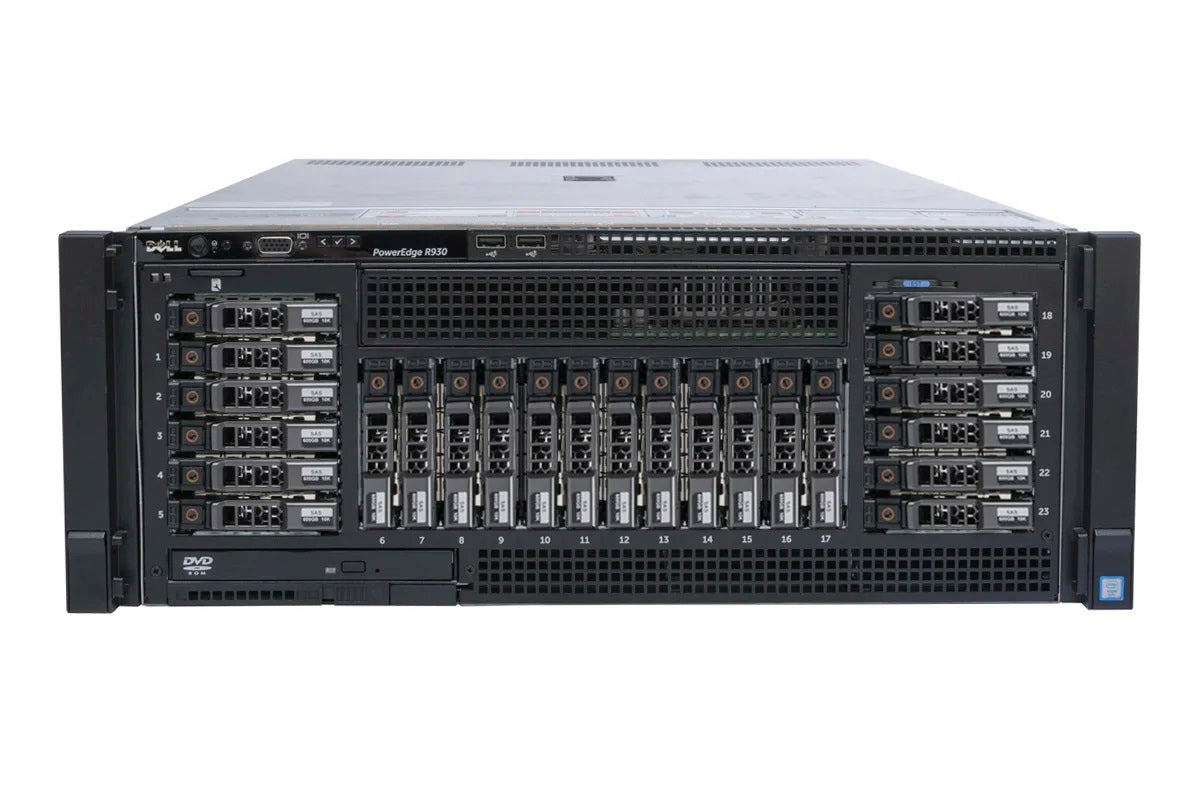

• Up to 24 x 2.5” hot-swappable SAS, SATA, or SSD drives
• Optional NVMe PCIe SSDs for ultra-low-latency storage
• Up to 8 internal PCIe SSDs for application acceleration
• Dell PERC RAID controllers with support for RAID 0, 1, 5, 6, 10, 50, and 60


With the flexibility to configure tiered storage for performance and capacity, the R930 is ideal for businesses that need fast access to large datasets. The server also supports the Dell BOSS (Boot Optimized Storage Solution) for dedicated OS boot drives, allowing primary storage to be fully dedicated to application workloads.

I/O and Expandability

The R930 includes 10 PCIe Gen 3.0 expansion slots, allowing for a wide range of add-on cards including:

• High-speed network adapaters (10GbE, 25GbE, 40GbE)
• Fibre Channel HBAs
• NVMe storage accelerators
• GPUs for computational offloading


It supports dual embedded 10GbE ports and optional daughter cards for additional network customization. The generous I/O layout ensures compatibility with diverse enterprise workloads and allows the system to grow alongside evolving infrastructure demands.

Virtualization and Use Cases

As Dell’s flagship 4-socket server, the R930 is built for enterprise-scale workloads that demand maximum compute and memory. Common use cases include:

• Large-Scale virtualization (VMware, Hyper-V, KVM)
• In-memory computing (SAP HANA, Oracle)
• Enterprise Resource Planning (SAP, Microsoft Dynamics)
• Business intelligence and analytics platforms
• High-performance database workloads


With its vast memory capacity and processing density, the R930 supports high VM density and large data sets, enabling organizations to consolidate infrastructure and reduce overhead.

Management and Automation

The R930 is equipped with iDRAC8 with Lifecycle Controller, providing full remote management capabilities out-of-band. It integrates with Dell OpenManage Essentials, as well as enterprise systems like VMware vCenter, Microsoft System Center, and BMC/HP Opsware. Administrators can automate deployment, monitor hardware health, receive proactive alerts, and update firmware seamlessly — even without an active OS. RESTful API support allows for programmable integration with modern DevOps toolchains.

Energy Efficiency

Despite its high compute and memory density, the PowerEdge R930 is optimized for energy efficiency with:

• 80 PLUS Platinum-certified PSUs (1100W, 1600W, or 2000W)
• Automated multi-zone cooling
• Dynamic power consumption monitoring and capping
• Fresh Air 2.0 compliance for safe operation in extended temperature environments


These features reduce operating costs and improve power usage effectiveness (PUE), especially in data centers running high-performance computing workloads around the clock.

Reliability and Availability

The Dell R930 is engineered for maximum uptime, featuring:

• Fully redundant power supplies and hot-plug fans
• Hot-swappable storage and PCIe components
• Memory sparing, mirroring, and ECC protection
• Predictive diagnostics and failure alerts
• Support for Dual SD Module (vFlash) for redundant hypervisor boot


These high-availability features ensure the server maintains continuity even during component failures, which is essential for mission-critical applications and financial systems.

Key Features at a Glance:

• Compute Power: Up to 4 Intel Xeon E7-8800/4800 v4 CPUs (96 cores total)
• Memory Capacity: Up to 12TB DDR4 ECC RAM with 96 DIMM slots
• Storage Options: 24 x 2.5” SAS/SATA/SSD + optional NVMe and internal PCIe SSDs
• I/O Expandability: 10 x PCIe Gen 3.0 slots + dual embedded 10GbE ports
• Virtualization Support: Ideal for SAP HANA, VDI, ERP, and high-density VMs
• Management Tools: iDRAC8, OpenManage, RESTful API, and Lifecycle Controller
• Energy Efficiency: Platinum PSUs, automated cooling, and power capping
• Reliability: Full redundancy, predictive failure analysis, hot-swap components

Business Value

The Dell PowerEdge R930 is a top-tier server purpose-built for enterprises running mission-critical workloads that require maximum performance, memory, storage, and uptime. With its unmatched scalability, robust RAS features, and flexible architecture, it delivers long-term business value by consolidating compute resources and accelerating time-to-insight. Whether hosting a massive database, powering in-memory analytics, or running a virtualized enterprise stack, the R930 enables organizations to simplify infrastructure, reduce operational risk, and ensure enterprise-grade performance without compromise.
