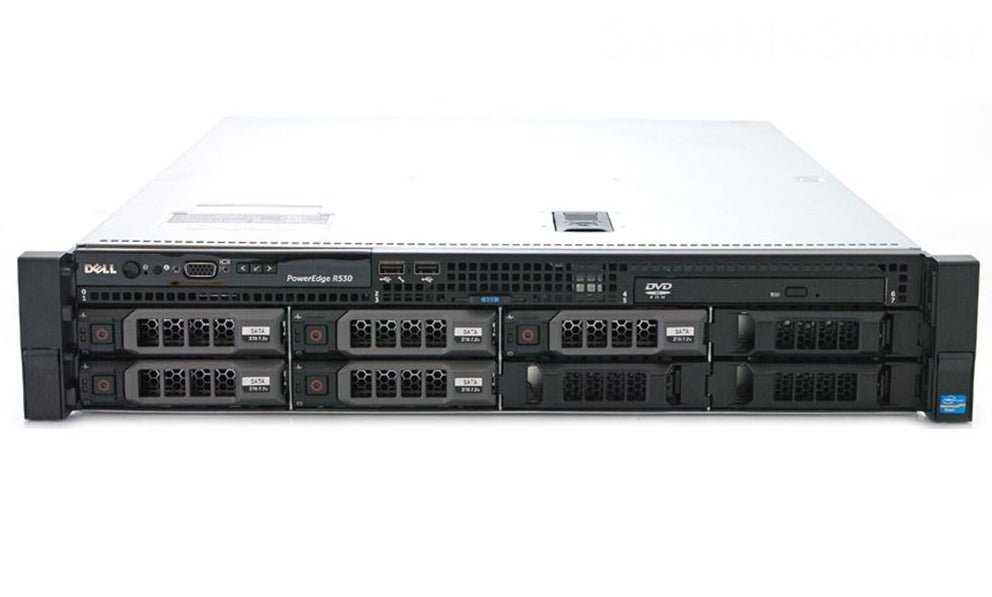

Refurbished Dell PowerEdge R530 in the 8-Bay 3.5" configuration: Dell's 13th-generation value 2U rack server, built on the Intel Grantley platform with the C610 chipset and one or two Intel Xeon E5-2600 v3 (Haswell-EP) or E5-2600 v4 (Broadwell-EP) processors. The 8-Bay 3.5" layout is the only chassis the R530 was ever sold in, and it tells you exactly what the platform is for: large-form-factor capacity storage, not spindle count or all-flash performance.

One thing to set straight up front, because it is mislabeled across much of the secondary market: the R530 is a 13th-generation server, not 12th. It shares the Haswell and Broadwell E5-2600 v3/v4 CPUs, DDR4 memory, PCIe 3.0, and iDRAC8 with the rest of the 13th-gen lineup (the R430, R630, R730, and R730xd). The 12th-generation 2U value model was the R520, which ran the older E5-2400 platform on DDR3. If a quote or listing tags this chassis as an R530 "12th gen," the generation label is wrong even though the chassis itself is correct.

Every R530 we ship is refurbished, run through a 12+ hour burn-in, and backed by a 180-day warranty. To spec a build, talk through CPU and memory sizing, or price quantities of 5 units or more, call our account team at 1-800-778-1545. We quote rather than retail, so what you get is a configuration matched to your workload instead of a fixed shelf SKU.

Where the R530 Fits in the Family

Inside Dell's 13th-generation lineup the R530 occupies a specific slot: the budget 2U. Directly above it is the Dell PowerEdge R730 8-Bay 3.5", the mainstream 2U with far more PCIe expansion, GPU headroom, and PSU range. In the dense-storage role sits the Dell PowerEdge R730xd 12-Bay 3.5" with rear flex bay. The 1U compute-density equivalent is the Dell PowerEdge R630 10-Bay 2.5", and the entry rung is the Dell PowerEdge R430 4-Bay 3.5".

What the R530 trades away to hit its price point is expansion: a smaller PCIe slot count than the R730, no network daughter card slot, and a much narrower PSU ceiling. What it keeps is the part that matters for bulk storage: eight 3.5" hot-swap bays, the full 13th-gen PERC controller range, and dual-socket Broadwell compute. If the requirement is to store a lot of capacity cheaply on a serviceable enterprise chassis, the R530 is doing exactly the job it was designed for.

The cross-vendor equivalent is HPE's value 2U, the HPE ProLiant DL180 Gen9 LFF: same market position, same generational era. If you run a mixed Dell and HPE fleet, that is the apples-to-apples comparison.

Storage: 8 LFF 3.5" Bays

The R530 ships with eight 3.5" hot-swap front bays accepting SAS, SATA, nearline-SAS, or SSD drives. Smaller 2.5" drives mount through 3.5" hybrid carriers if you need flash or SFF disks, but the chassis is built for large-capacity spinning media. Eight nearline-SAS drives at current LFF capacities push raw capacity well past 100 TB before any external expansion, which is the whole reason to choose this platform.

Common storage profiles we build on the R530:

• Backup and archive target: eight large nearline-SAS drives in RAID 6 behind a battery-backed controller. This is the R530's single best fit.
• NAS or file server: mixed SAS or SATA on a hardware RAID controller, with the operating system kept off the data array (see the boot note below).
• Capacity-tier virtualization: workable for low-IO VM storage, though a dense VM host wants an all-flash or NVMe platform instead.

For capacity arrays we build RAID 6 rather than RAID 5. On multi-terabyte spinning disks the rebuild window is long, and a second drive failure during that window is a real risk that RAID 6 survives and RAID 5 does not. Keep at least one global hot spare in an eight-bay array so a rebuild starts without a site visit.

Boot device: the R530 predates Dell's BOSS card, which arrived with 14th gen. Boot it from the Internal Dual SD Module (IDSDM), which mirrors two SD cards into a hardware-redundant hypervisor boot device, or dedicate a front-bay RAID 1 pair to the operating system. The IDSDM is the cleaner choice because it keeps all eight front bays free for data.

Storage Controllers

The R530 carries the full 13th-generation PERC range. Choose by write profile, not by price alone:

• PERC S130: chipset software RAID. Acceptable for a boot mirror or dev and test, not a production data array. We do not quote it for production storage.
• PERC H330: entry hardware RAID, no cache. Fine for RAID 1 boot pairs and light read workloads, but with no write-back cache, write-heavy arrays suffer.
• PERC H730: 1 GB cache, battery-backed. The defensible mid-tier for mixed and read-leaning workloads.
• PERC H730P: 2 GB cache, battery-backed. The production default for write-intensive arrays, and the controller we quote for backup and archive targets.
• HBA330 or 12 Gbps SAS HBA: pass-through (non-RAID) for software-defined storage such as ZFS, Ceph, or Storage Spaces.
• PERC H830: external controller for attaching a Dell PowerVault JBOD when eight bays is not enough capacity.

One refurbishment note worth knowing: the battery backing on H730 and H730P controllers is a consumable. On a 2015-era platform that battery has aged, so we test and, where needed, replace the cache battery as part of refurbishment. Ask and we will confirm the controller and battery state on the unit you are quoted.

Processors

Two LGA 2011-3 sockets accept Intel Xeon E5-2600 v3 (Haswell-EP, 2014) or E5-2600 v4 (Broadwell-EP, 2016). The two families are drop-in compatible on the C610 chipset, so a v3-era unit takes v4 CPUs after a BIOS update. Core counts run from 4 up to 22 per socket on the top v4 parts, with 2.5 MB of L3 cache per core.

Recommendations by workload:

• Storage and backup targets: core count is not the constraint here. A pair of mid-bin E5-2620 v4 (8 cores, 85W) is plenty; spend the budget on drives and controller cache, not cores.
• Capacity virtualization: E5-2650 v4 (12 cores) or E5-2680 v4 (14 cores) gives a reasonable VM-per-host ratio without reaching for the high-TDP parts.
• Single vs dual socket: the second socket is not just more cores. It unlocks the second bank of memory channels and the rear PCIe lanes. If you are sizing past six DIMMs or you need the rear riser slots, populate both sockets.

Heatsink and power note: the R530's value-tier thermal and power design is happiest with mainstream-TDP CPUs. Parts up to 120W are validated on the 495W supplies; above that you want the larger PSUs, and you should check the configuration against Dell's power planning data before pairing top-bin CPUs with a fully populated chassis. This is not a 145W flagship platform, and for what the R530 does, it does not need to be.

Memory

Twelve DDR4 DIMM slots span the two sockets, running registered (RDIMM) or load-reduced (LRDIMM) ECC memory. Do not mix RDIMM and LRDIMM; standardize on one type across every slot.

Speed depends on the CPU generation, because the system always clocks memory to the slower of the CPU and the DIMM:

• E5-2600 v3 (Haswell): up to 2133 MT/s.
• E5-2600 v4 (Broadwell): up to 2400 MT/s.
• Validated bus speeds are 1866, 2133, and 2400 MT/s. There is no value in buying 2400 MT/s DIMMs for a v3 CPU; they will clock down to 2133.

Twelve 32 GB RDIMMs reach 384 GB, which covers the overwhelming majority of storage and capacity-virtualization builds. LRDIMMs extend capacity further for memory-heavy edge cases at a price-per-GB premium that rarely pays off on a value 2U. For a backup target, 64 GB to 128 GB is usually the right size; oversizing memory on an R530 is money better spent on a newer platform with a longer runway.

Networking and PCIe Expansion

This is the R530's most important quirk, and the one buyers most often trip over: it has four integrated 1 GbE RJ45 ports on the system board and no network daughter card slot. Most 13th-gen Dell servers use a removable rNDC for networking. The R530 does not. The only way to add 10 GbE, 25 GbE, or fiber is a PCIe network card, and that card consumes one of your expansion slots.

PCIe expansion tops out at five slots with the riser fitted: three PCIe 3.0 and two PCIe 2.0. Budget those slots deliberately. A typical build spends one slot on a 10 GbE NIC and keeps the rest for an external storage HBA or additional networking.

If integrated 10 GbE or 25 GbE without spending a PCIe slot is a hard requirement, that alone is a reason to step up to the Dell PowerEdge R730 8-Bay 3.5", which carries the standard rNDC mezzanine and leaves its PCIe slots free for other cards.

GPU Support

Plainly: the R530 is not a GPU platform. Onboard graphics are a Matrox G200 for console output only, and Dell does not validate compute GPUs in this chassis. The value-tier power and thermal design has no headroom for a 150W or 300W accelerator, and there is no GPU-optimized riser or supplemental power cabling.

If GPU compute, VDI acceleration, or AI inference is anywhere in the plan, do not start with the R530. In the 13th-gen era the Dell PowerEdge R730 is the 2U platform built to take double-width accelerators. For current GPU work, a 14th-gen or newer platform is the right starting point.

Management: iDRAC8 Generation

The R530 runs iDRAC8 with Lifecycle Controller. iDRAC8 Express is the default; iDRAC8 Enterprise is the upgrade worth taking for production because it adds full remote KVM, virtual media, and a dedicated out-of-band management NIC. For a server that often lands in a remote site or a backup closet, Enterprise pays for itself the first time it saves a truck roll.

iDRAC8 is IPMI 2.0 compliant and integrates with Dell OpenManage, and optional vFlash SD media stores firmware and configuration backups. It is a generation behind the iDRAC9 security baseline (Silicon Root of Trust, the hardened firmware chain) introduced with 14th gen. That gap is one of the honest reasons to weigh the 14th-gen step-up if your environment carries a hardware-root-of-trust compliance requirement.

Power and Cooling

The R530 takes up to two hot-swap redundant power supplies, or a single non-redundant unit, in three wattages: 495W, 750W, and 1100W, all Platinum efficiency. Confirm voltage before ordering: supplies are keyed to either 110V or 220V input, and a 220V unit will not power on from a 110V circuit.

Sizing guidance for the 8-Bay 3.5" chassis:

Redundant supplies are the default we quote for any production build. A value-tier chassis in a backup role still should not go offline because a single supply failed. The R530 also carries Dell's Fresh Air 2.0 rating, so it tolerates the warmer ambient temperatures common in older or edge facilities without special cooling.

Physical Specs and Platform Notes

• Form factor: 2U rack server. Chassis depth is roughly 648 mm (25.5 in) without bezel, 646 mm with bezel: a relatively shallow 2U that fits standard-depth racks comfortably.
• PCIe expansion: up to five slots with the riser fitted, three PCIe 3.0 and two PCIe 2.0. Slot availability depends on second-socket population and riser choice.
• Parts availability: excellent. As a high-volume 13th-gen platform, drives, caddies, PERC cards, PSUs, and rails are abundant and inexpensive on the secondary market. Dell ProSupport has reached end of service life on this generation, so third-party maintenance is the standard support path in 2026.
• Accessories we recommend: the Dell 13th-gen 2U security front bezel for physical access control in shared racks, and the Dell 2U B6 ReadyRails II sliding rail kit for tool-less mounting, with an optional cable management arm.
• Platform notes: no rNDC slot (networking expands through PCIe only), no BOSS (boot through IDSDM or a front-bay mirror), and a single chassis option (the 8-bay 3.5" is the only configuration the R530 was built in). Plan networking and boot around those three facts.

Our Assessment

Where it excels: the R530 is at its best as a low-cost, serviceable LFF capacity box: backup and archive repositories, NAS and file servers, branch and edge bulk storage, and capacity-tier roles where the metric that matters is dollars per terabyte on an enterprise-grade hot-swap chassis. Eight 3.5" bays, the full PERC range, and dual Broadwell sockets cover those jobs without drama, and parts are cheap enough that keeping spares on the shelf is trivial.

Where to look instead: if you need real PCIe expansion, integrated 10 GbE without spending a slot, GPU support, or a hardware-root-of-trust security baseline, the R530 is the wrong chassis. Step up within 13th gen to the Dell PowerEdge R730 8-Bay 3.5" for expansion and GPU headroom, or the Dell PowerEdge R730xd 12-Bay 3.5" for denser storage. For any new multi-year deployment, the 14th-gen Dell PowerEdge R540 8-Bay 3.5" is the better investment, with iDRAC9, Xeon Scalable, and BOSS boot.

Bottom line: in 2026 the R530 is a deliberate budget choice, not a general-purpose buy. It earns its place when the requirement is cheap, reliable LFF capacity with a short-to-medium remaining lifecycle, or when you are expanding an existing R530 footprint and want hardware consistency. If the deployment has to run hard for several years or carry modern compliance and expansion requirements, put the acquisition savings toward the R540 instead. We will show you both price points at quote time so the tradeoff is on the table, not buried.

Where the R530 Fits in 2026

The R530 launched in 2015 and is now past Dell's support life. That does not make it useless; it makes it a specific tool. On the secondary market it is inexpensive, parts are everywhere, and for the right workload it delivers reliable service for years yet under third-party maintenance.

The honest generational question is whether to buy the R530 at all, or pay up for the 14th-gen Dell PowerEdge R540 12-Bay 3.5" or the 8-bay R540. The R540 brings Xeon Scalable, faster memory, iDRAC9 with Silicon Root of Trust, BOSS boot, and a longer support runway. For a backup target slated for retirement in two or three years, the R530's lower acquisition cost usually wins. For anything you expect to run past 2028, the R540's longer life and modern management justify the premium. We are happy to quote both so the math is explicit.

Honest Limitations

• No network daughter card slot. Unusual for 13th gen. Any networking beyond the four onboard 1 GbE ports costs a PCIe slot.
• No BOSS module. Boot is through IDSDM (mirrored SD) or a front-bay RAID 1 pair. SD-card boot is fine for hypervisors but is not a high-write OS device.
• Limited PCIe expansion. Five slots maximum, two of them PCIe 2.0. Bandwidth-hungry cards belong in the R730.
• Value-tier power and thermal envelope. Not built for top-bin 145W CPUs or accelerators. Stay in mainstream-TDP territory.
• iDRAC8, not iDRAC9. No Silicon Root of Trust hardware security baseline, which matters in compliance-sensitive environments.
• End of Dell support life. Plan on third-party maintenance and keep spares. This is a 2015-era platform.

Workload Fit

Where to Look Instead

• Step up within 13th gen: Dell PowerEdge R730 8-Bay 3.5" for full PCIe expansion, rNDC networking, and GPU headroom in the same era.
• Denser storage, same era: Dell PowerEdge R730xd 12-Bay 3.5" when eight LFF bays plus a rear flex bay are still not enough.
• 1U compute: Dell PowerEdge R630 10-Bay 2.5" when you want compute density rather than LFF capacity.
• Down-market, same era: Dell PowerEdge R430 4-Bay 3.5" for an even smaller entry-tier footprint.
• 14th-gen successor: Dell PowerEdge R540 8-Bay 3.5" or the R540 12-Bay 3.5" for a longer support runway.
• HPE equivalent: HPE ProLiant DL180 Gen9 LFF, the value 2U on the HPE side.

Ready to Configure?

Tell us the role (backup target, NAS, capacity VM storage), your raw capacity target, and the CPU and memory you have in mind, and we will spec the R530 build that fits, plus the R540 alternative so the generational tradeoff is visible in dollars.

Call our account team at 1-800-778-1545 for configuration help or to price 5 units or more for a fleet rollout. Every R530 ships refurbished, tested under a 12+ hour burn-in, and backed by our 180-day warranty, with formal pricing returned within 24 hours.
